Transformer Ratio Tester Transformers are one of the most important tools of the system in the transmission and distribution ofelectrical energy. In order for the transformers to work smoothly and in the best efficiency, the necessary tests should be performed and the accuracy of the values should be checked. They are subjected to a series of tests to check that the transformers operate at nominal and standard values specified in thelabel values. It is tested with the devices known as TTR (Transformer Turn Ratio) Device for testing the transformer ratio of transformers. In theory, an input voltage of an ideal transformer whose value is known to determine the conversion ratio is applied to one ofthe windings. By measuring the output voltage, the ratio of the input and output voltage values is calculated and the winding ratio is determined.
Specification
1
Item Name
GDBC-901 Single Phase and Three Phase Transformer Turns Ratio TTR Tester
2
Ratio measurement range
1-10000
3
Group measurement
1-12
4
Phase measurement error
1 degree
5
Ratio measurement error
1-2000 ± 0.2%RDG 2000-10000 ± 0.5%RDG
6
Test voltage
0~80V, frequency 50Hz
7
Power supply
AC220V ± 10%, 50Hz/60Hz
8
Environment temperature
0-50°C
9
Humidity
≤85%R
10
Dimension
58*45*36CM
11
Weight
22Kg

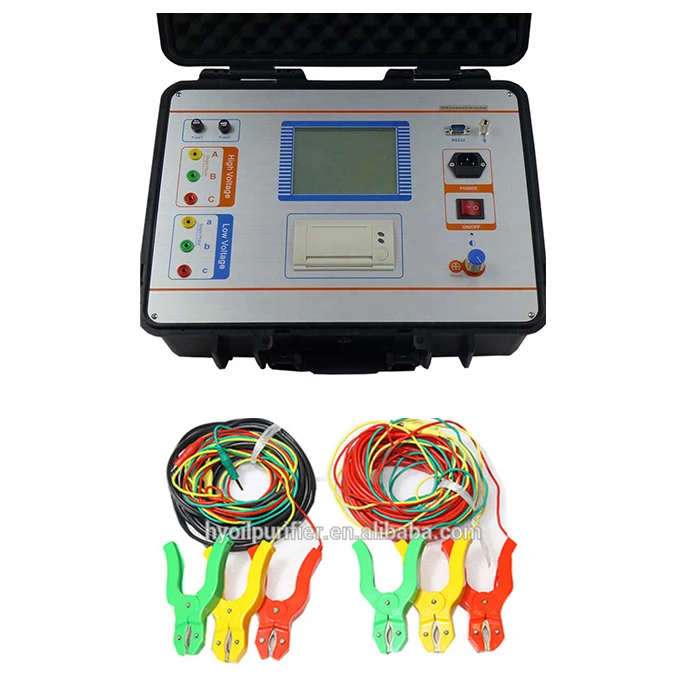

Portable TTR Meter Transformer Turns Ratio Testing Equipment Manufacture

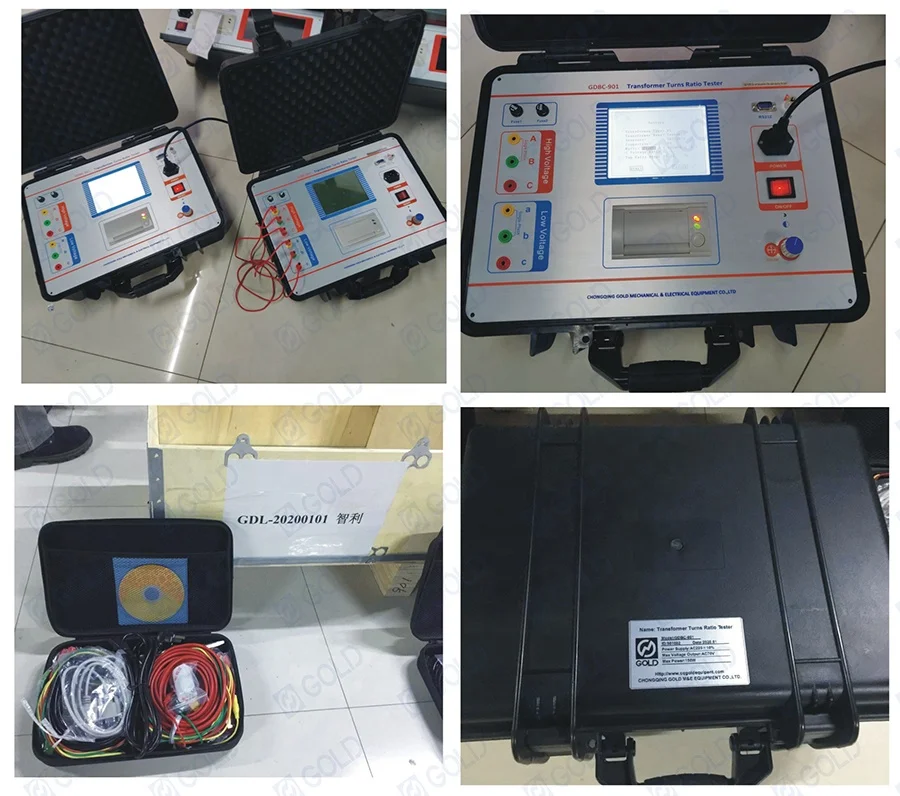

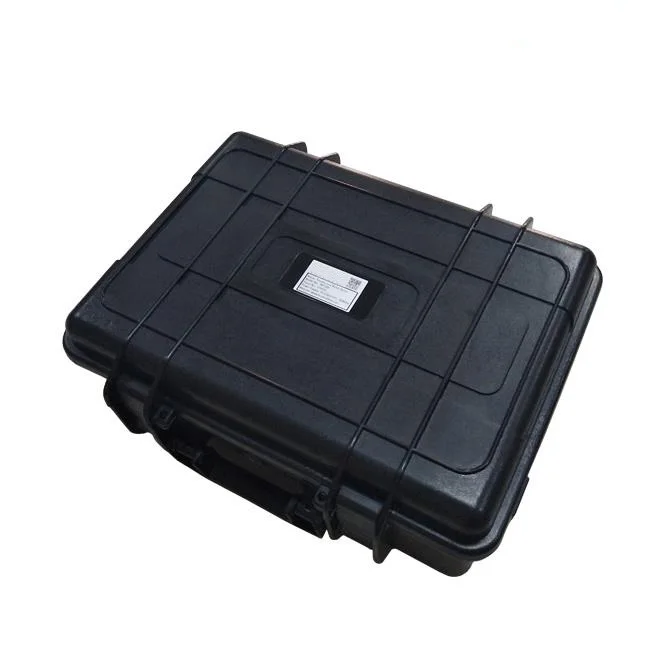

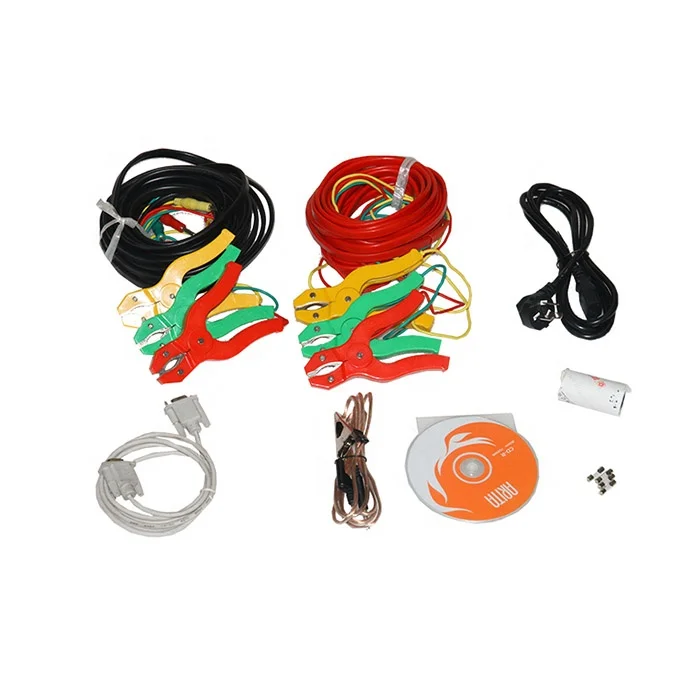

•High precision: 0.05% of three-phase working standard grade • Wide input range: 0.05-600V and 0.001-12A (with clamp up to 40kV and 3000A) • Quickly measure, analyze and report all power quality parameters • Automatic testing of electric meters and PT (VT), CT transformers • GDBC-901 is easy to carry, sturdy, waterproof (IP67) transport case, with accessories, can be used on site after opening the lid • Professional service and support (it doesn’t matter whether you encounter a complicated or trivial problem) • Low price compared to best performance
The voltage ratio measurement of three or singe phase transformer. The group vector measurement of three phase transformer. The polarity measurement of single phase transformer or CT/PT.
Voltage ratio error calculation. Voltage ratio range calculation of three phase transformer. Current transformer ratio measurement.
Excitation current measurement in ratio testing. Reproduction the AC test voltage from power source to reduce the effects ofbad power source. Save the test results in the memory internal the tester.
Over current protection in test voltage. Upload the test results to make word report by RS232 interface.
Print the test results by micro printer.
Reverse connection detect unit to prevent the high voltage injected to theoperate.
Benefits: * The test power supply is generated by the internal power amplifier of the tester, and the waveform distortion rate is less than 0.5% and is not affected by the quality of power supply. * Automatic voltage regulation, with automatic protection functions such as transformer reverse connection, over-current, etc.,to avoid damage to the instrument due to incorrect operation. * It can be used for power transformer, CT and PT ratio detection. * Convenient standard transformation ratio setting template, don’t need to manually calculate the standard transformation ratio value.
* The TTR is very light, only 20KG. It’s easy to carry. It’s suitable for field test.
Packing & Delivery
3 Phase TTR Meter Manufacturer Automatic Testing Instrument
1.Wooden box with foam inside; 2.No fumigation,not influence the delivery; 3.Standard of IEC; 4.Customer OEM packing is also available; 5.Can be delivered by air,ship; 6.The products are packaged in paper or wood. 7.The package, logo and pattern can be customized. If the order exceeds 1 piece, the weight of the goods will change . Please contact customer service.
Company Profile
Chongqing Gold Mechanical&Electrical Equipment Co.,Ltd. mainly design and manufacture the oil purifier and electrical testing equipment for more than 20 years, and we have much experience of exporting since 2008.
After several years’ development, our products have become high intelligent and wide coverage. And our company has become one of the leading manufacturer of oil purifier and electrical testing equipment in China;
We have developed sales channels in many countries such as UAE, Saudi Arabia, Malaysia, Thailand, Pakistan, India, Germany, Belgium, USA, Mexico, Kenya, Nigeria, South Africa and other countries worldwide.And we have gained strong advantage and high reputation in international market.
We have persisted on the business idea of "Integrity Basis and Quality First" for the stable and constant development. We aremaking effort to develop together with customers from both domestic and abroad on the basis of reciprocity. Client, quality andservice are our supreme target!
FAQ
1. What is the lead time for delivery?
A: 4-6 workdays days according to your specific requirement.
2.What’s the power supply can we support?
A: Normally, our power supply is AC220V±10%,50Hz/60Hz. If you required 127V or 110V, we can also customize it.
3. How long is your warranty period?
A: One year warranty. But products are implemented life-long maintenance,one year warranty. Product quality is responsible for the end.
4.Any certificates for your products?
A: We have certification and factory inspection report. Third-party measurement report is also available but with extra cost.
