LS-050 1 5 мм толщина Автоматическая нержавеющая сталь медь пневматическая машина для точечной

Описание и отзывы

Характеристики

Why choose Lotustep?

1)We are a manufacture with customized service

2)One machine can use over 5 years with copper motor

3)Warranty:1 years for the motor

4)Quick response within 2 hours

5)OEM&ODM Serivce with 3D Drawing

6)Video Teaching and exhaustive after-sale service

7)Web:www.gemstonemachine.com



Spot Welding Machine Manufacture

We can help design and make

single-spot welding machine,

double-spot welding machine,

multi-spot welding machine,

mesh welding machine.

According to the function you need and help design!!!

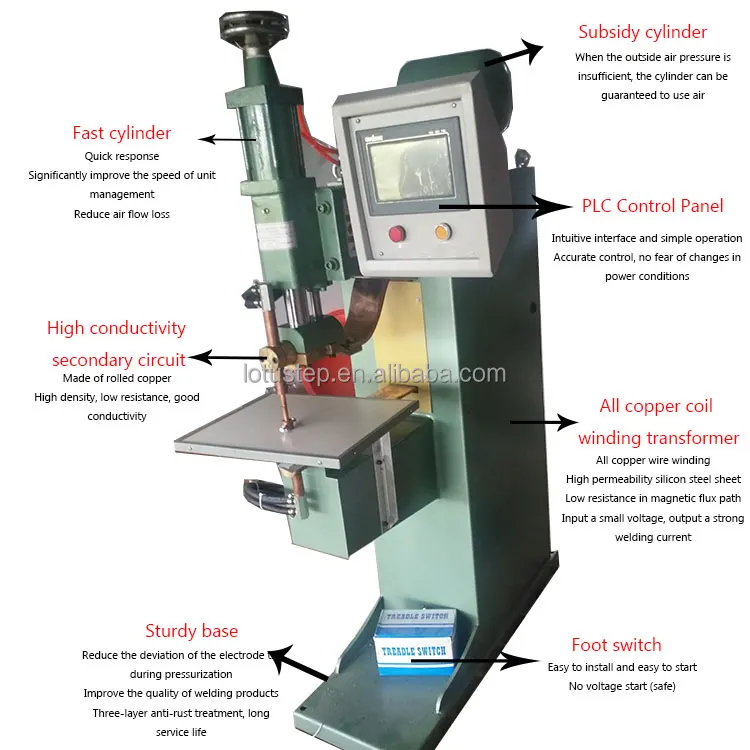

Advantage of this kind of Automatic Spot Welding Machine:

1.Subsidy cylinder:When the outside air pressure is insufficient, the cylinder can be guaranteed to use air

2.Fast cylinder:Quick response Significantly improve the speed of unit management Reduce air flow loss

3.PLC Control Panel:Intuitive interface and simple operation Accurate control, no fear of changes in power conditions

4.High conductivity secondary circuit:Made of rolled copper High density, low resistance, good conductivity

5.All copper coil winding transformer:All copper wire winding High permeability silicon steel sheet Low resistance in magnetic flux path Input a small voltage, output a strong welding current

6.Sturdy base:Reduce the deviation of the electrode tip during pressurization Improve the quality of welding products Three-layer anti-rust treatment, long service life

7.Foot switch:Easy to install and easy to start No voltage start (safe)





Parameter	Unit	LS-050-25	LS-050-40	LS-050-63	LS-050-80
Rated Capacity	Kva	25	40	63	80
Voltage	V	380	380	380	380
Power frequency	Hz	50	50	50	50
Load duration	%	20	20	20	20
Secondary no-load voltage	V	3.9	4.3	5	6.5
Maximum short circuit current	KA	10	15	19	25
Extension length of electrode arm	mm	400	400	400	400
Maximum pressure	N	300	300	300	300
Working area	mm	0-50	0-50	0-50	0-50
Max welding thickness	mm	1.5+1.5	2+2	3+3	4+4

Usage



Good after sale service

Many customers

Dare to innovate

Well Packaging
