DHY-200 CNC гидравлическая шина Пунин и ножницы для резки листового металла
- Категории: Electric Equipment Making Machinery >>>
- Поставщик: Jinan,Deshang,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

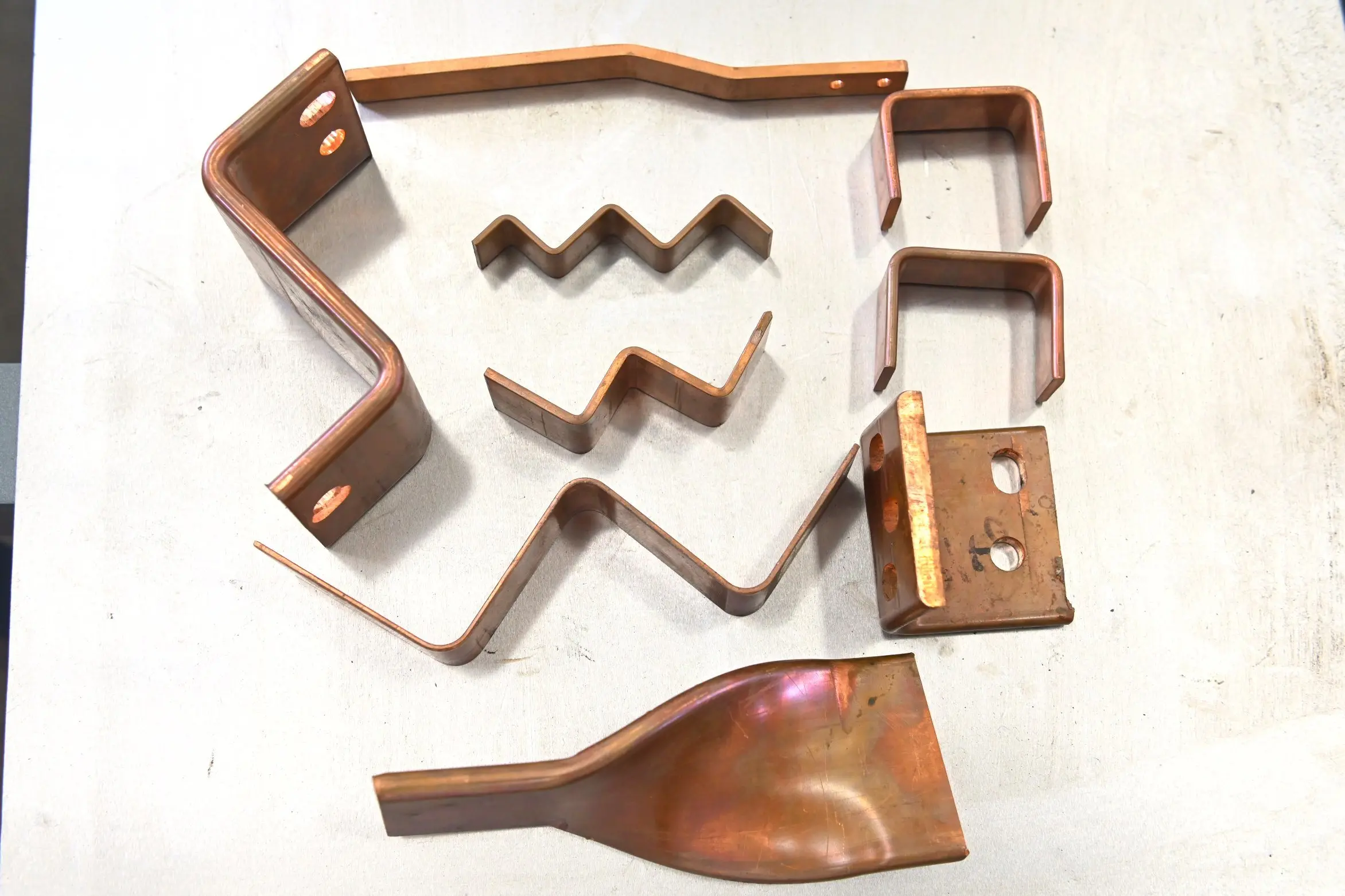

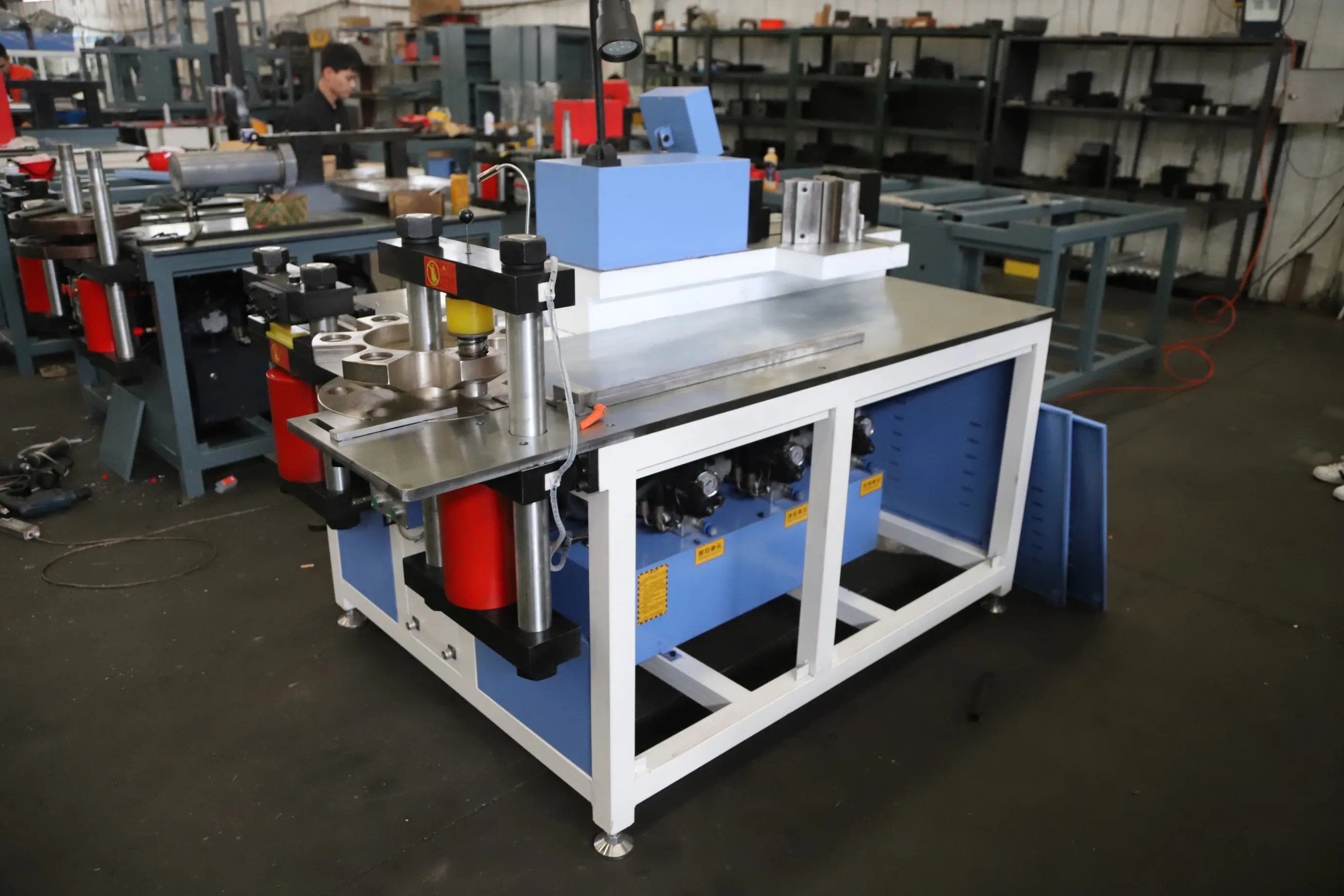

This machine is equipped with three processing stations of punching, cutting, and bending. It is controlled by PLC. The main function is to process copper and aluminum bus bars of different specifications. When working, you only need to select the corresponding processing station to cut and punch copper and aluminum bars conveniently and quickly (round hole, long round hole, chamfered R angle, chamfered right angle, chamfered 45 degree angle, square hole) , Horizontal bending, vertical bending, U-typed bending, embossing, twisting and other different processing.
Product Advantage

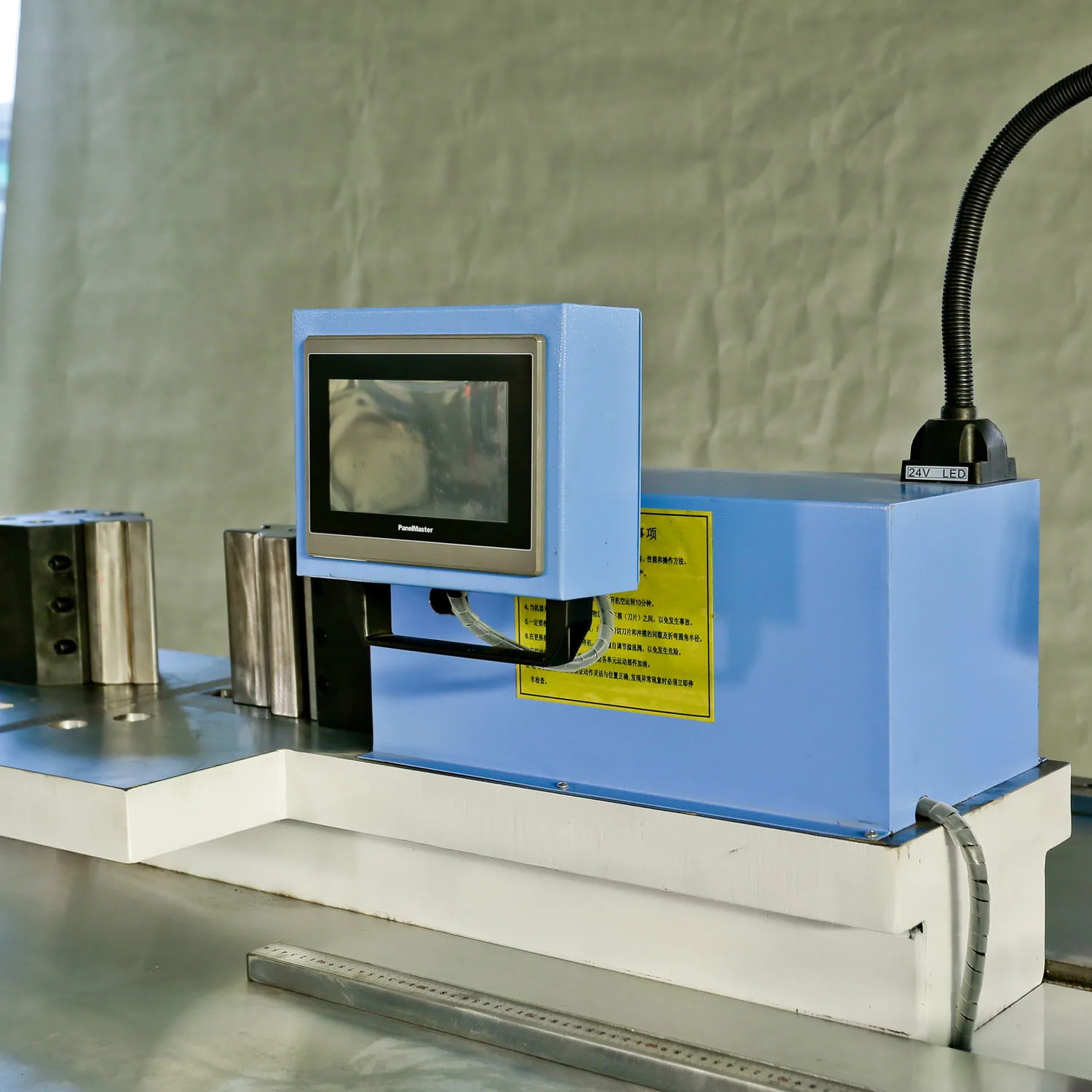

1.The S7-200 PLC produced by SIEMENS in Germany is matched with the Taiwan Touch Screen touch screen. Each parameter has a memory function, which can be adjusted to ensure that the angle of the workpiece after processing is more accurate. The system also sets the parameter settings of customer-specific bending molds to meet the various needs of customers.
2. The whole machine adopts Schneider Electric, one of the world's top 500 companies, whether it is PC material or the wiring posts inside, it uses the best materials to make the whole machine safer and more secure.
3.Button and foot pedal two control methods, the operation is more convenient and quick. When the angle is bent, select manual bending, lightly step on the foot switch or forward button to complete.
Specification
Max. Thickness (mm) | 15mm |
Max. Width (mm) | 160mm |
Voltage | 380V/220V/415V/50HZ/60HZ or customed |
Dimension(L*W*H) | 1890*1350*1400mm |
Motor Power | 3×4KW |
Function | Cutting, Bending, Punching |
Punching Force | 300KN |
Punching Diameter Range | 4.3~30mm |
Cutting Force | 500KN |
Max. Thickness | 15mm |
Max. Width | 160mm |
Bending Force | 300KN |
Max. Bending Thickness | 12mm |
Max. Bending Width | 150mm |
Product Recommendation

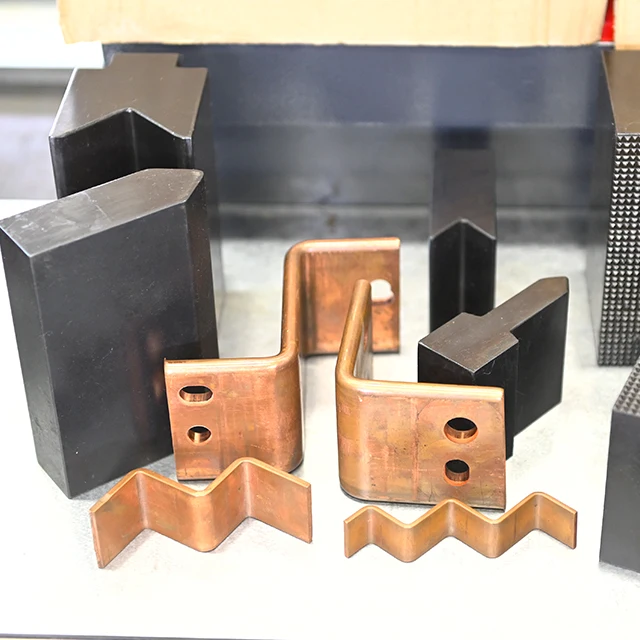

No. | Item | Quantity |
1 | Punching Dies | 8 sets |
2 | Vertical Bending Dies | 2 sets |
3 | Horizontal Bending Dies | 2 sets |
4 | U Type Bending Die | 1 set |
5 | Oil Filler | 1 set |
6 | Inner Hexagon Spanner | 1 set |
7 | Hydraulic System Sealing Ring | 1 set |

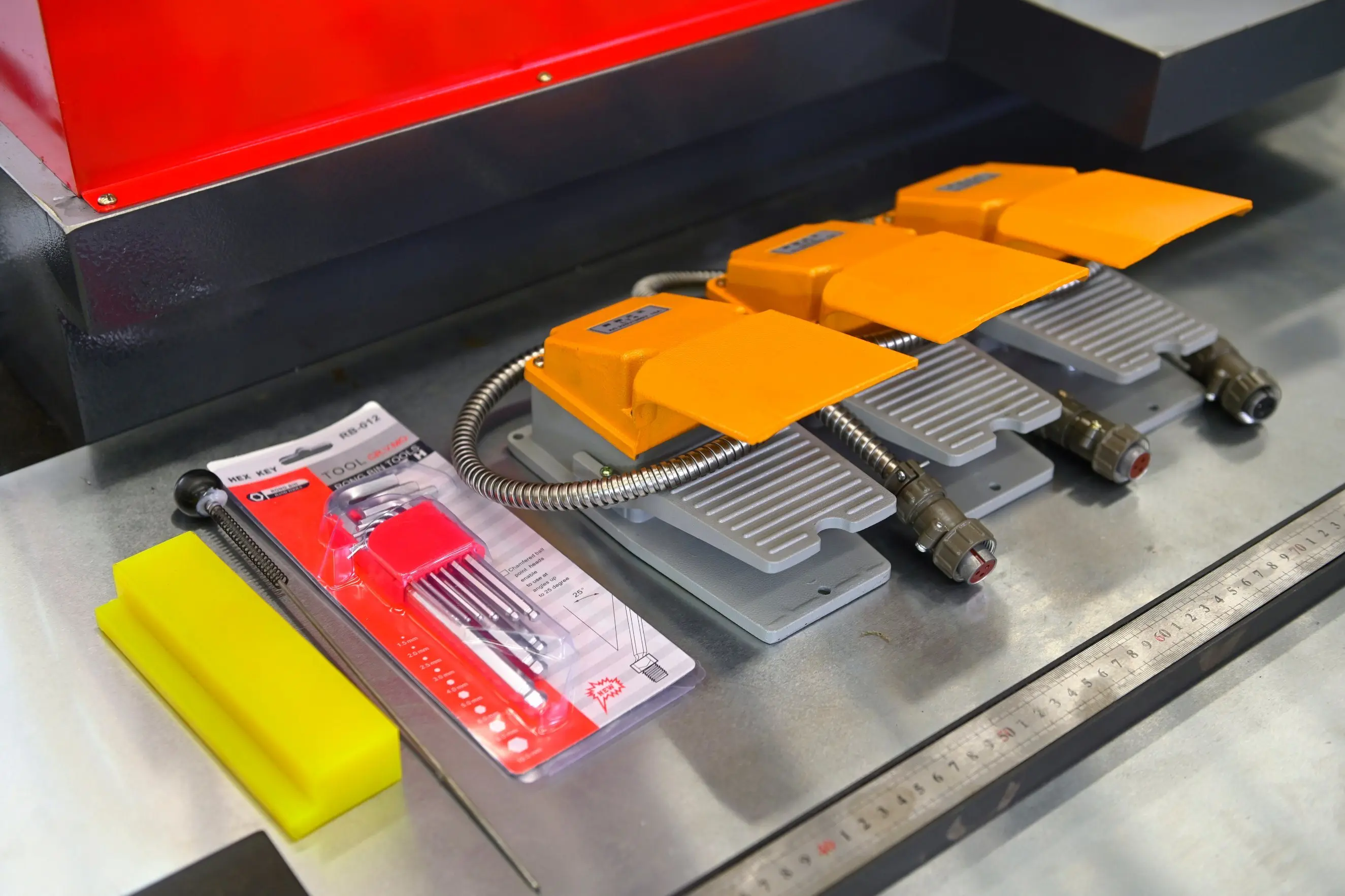

8 | Foot Switches | 3 sets |
9 | Limit Switches | 2 pieces |
10 | Punching Location Needle | 1 piece |
11 | Magnetic Location Block | 1 piece |
12 | Fuse Core | 4 pieces |

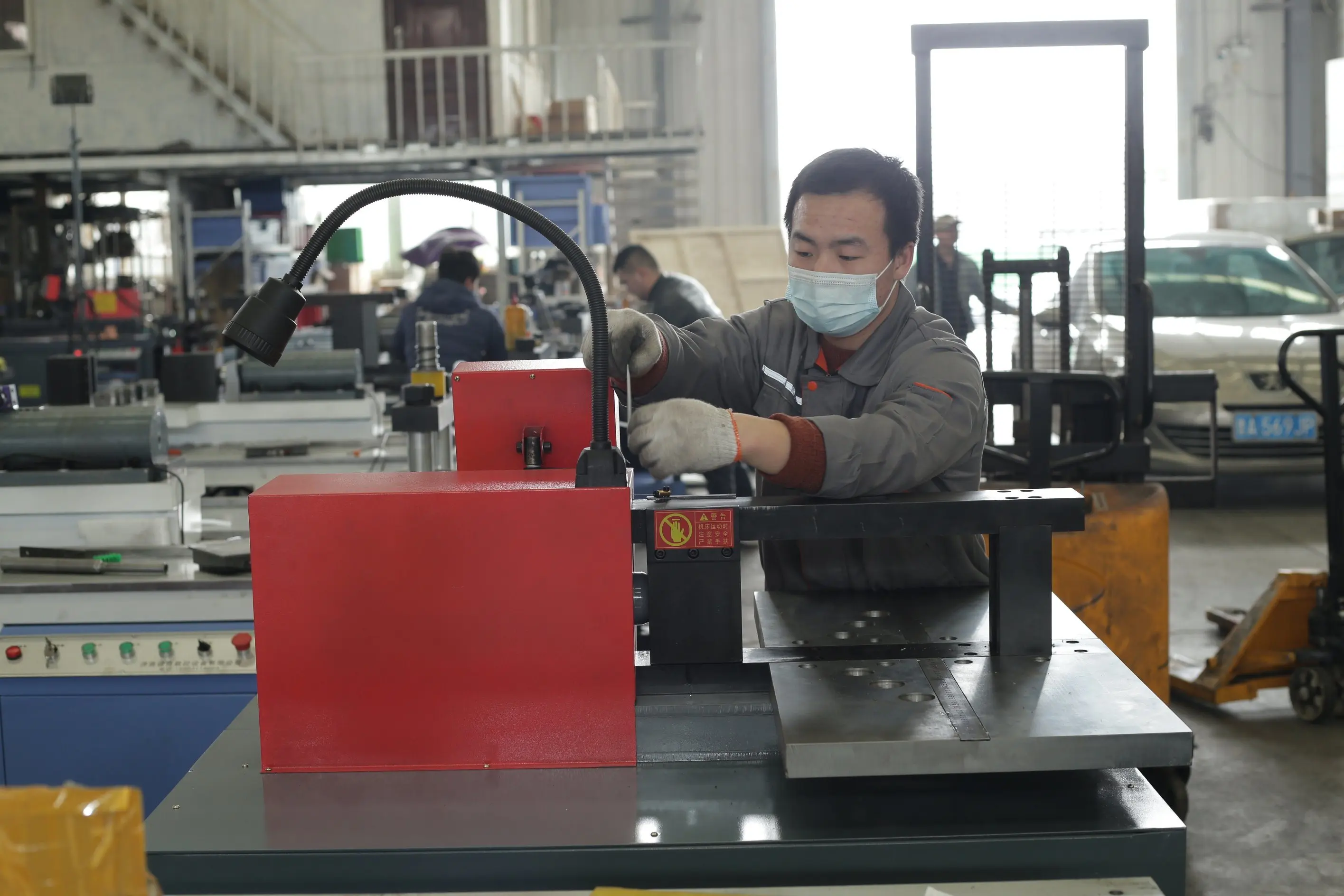

Sample Room

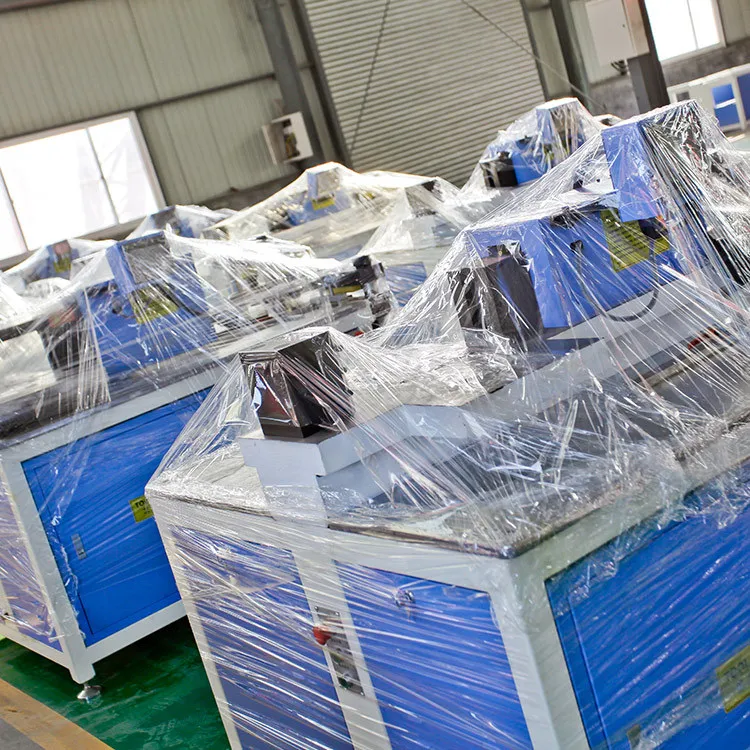

Packing & Delivery
Company Profile
Jinan Deshang CNC Equipment Co., Ltd. is a technology-based enterprise dedicated to the development and production of electrical equipment and CNC sheet metal equipment. The company’s main products include standard bus processing machines, economical copper bus processing machines, CNC bus processing machines, CNC bus bending machines, CNC turret bus processing machines, CNC copper bus processing machines, combined bus processing machines, and portable Production and sales of bus processing machines and other products. Products are widely used in high and low voltage switch cabinets, substations, transformers, electrical switches, shipbuilding, elevator manufacturing, chassis and cabinet manufacturing and other industries. The products are sold to all provinces, cities, autonomous regions and municipalities across the country and exported to Russia, the Philippines, India, Myanmar, Vietnam and other countries.
The company adheres to the market concept of "respect for customers, think more for customers, so as to have more business opportunities.", establish a win-win concept for the company, and forge the company into a "ethical and responsible company", high-quality products, and equal prices , A good reputation is your best choice! Everyone is welcome to visit the factory at any time.
The company adheres to the market concept of "respect for customers, think more for customers, so as to have more business opportunities.", establish a win-win concept for the company, and forge the company into a "ethical and responsible company", high-quality products, and equal prices , A good reputation is your best choice! Everyone is welcome to visit the factory at any time.
Certifications
FAQ
1.What is your payment terms?
30% T/T deposit, 70% balance be paid before loading after good ready.
2. What is your delivery time?
Within 45 working days after your deposit.
Within 45 working days after your deposit.
3. What is your power supply?
We will adjust according to your countries power supply.
4. What is your Min order quantity?
4. What is your Min order quantity?
One set.
5. Are all the Labels and instuctions of the machine in English?
Yes. The labels on the machine and the manual books are
Write in English .
6. What other busbar processing related machines do we provide?
We provide you with multiple options: Busbar
winding machine, busbar chamfering machine, copper plate leveling machine, portable busbar processing machine,busbar cutting
tools, busbar bending tools, busbar punching tools,hydraulic pump, hand pump, etc.
winding machine, busbar chamfering machine, copper plate leveling machine, portable busbar processing machine,busbar cutting
tools, busbar bending tools, busbar punching tools,hydraulic pump, hand pump, etc.
7.why should you buy from us not from other suppliers?
Jinan Deshang CNC Equipment Co., Ltd. is a technology-based enterprise dedicated to the development and production of electrical
equipment and CNC sheet metal equipment. We are the most professional bus processing mechanism manufacturer and exporter in China
equipment and CNC sheet metal equipment. We are the most professional bus processing mechanism manufacturer and exporter in China
