200mm 300mm Red Green pedestrian traffic signal light

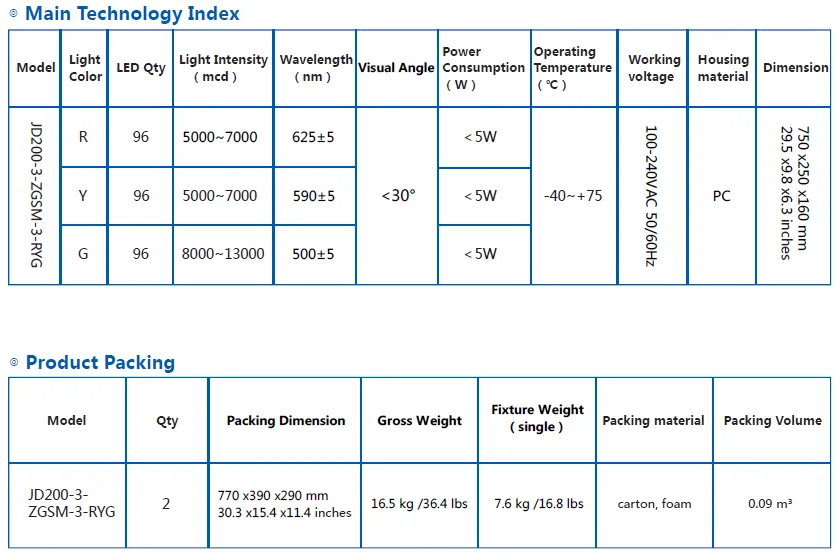

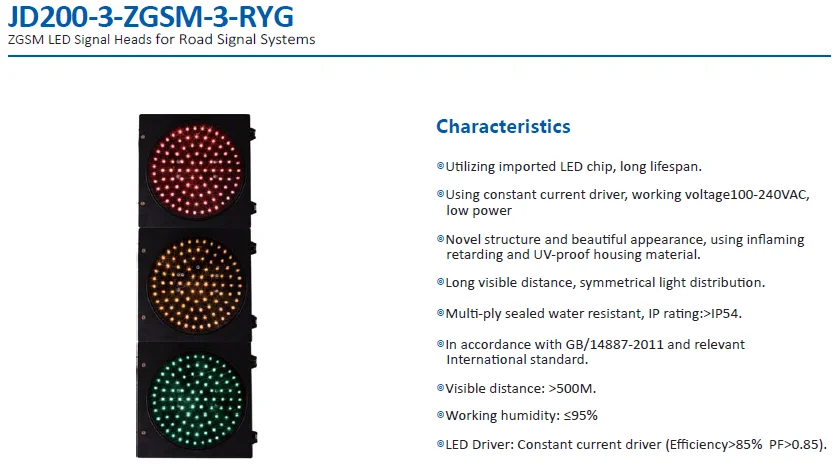

Model No.		JD200-3-ZGSM-3
Electrical Specifications
Power		Red: <5W | Yellow: <5W | Green: <5W
LED Q'ty		Red: 96 pcs | Yellow: 96 pcs | Green: 96 pcs
Operating Voltage		100V-240V AC(±10%), 50/60Hz | 12V or 24V DC
Operating Temp.		-40ºC ~ +75ºC
Operating Humidity		10% ~ 90%
Photometric Specifications
Apply Diameter		200 mm (8 inches)
Visible Range		200m (656ft)
Wavelength		Red: 625±5nm | Yellow: 590±5nm | Green:500±5nm
Intensity		Red: 5000~7000mcd | Yellow: 5000~7000mcd | Green: 8000-13000mcd
Visual Angle		<30°
Mechanical Specifications
IP Rating		IP54
Warranty		1 Year
Housing Material		PC
Lens Material		PC
Fixture Dimension		750 x250 x160 mm (29.5 x9.8 x6.3 inches)
Fixture Weight		7.6 kg (16.8 lbs)
Standard(s)		GB14887-2011
Certificate(s)		CE, RoHS
Packing Information
Packing Type		2unit /ctn.
Packing Dimension		770 x390 x290 mm (30.3 x15.4 x11.4 inches)

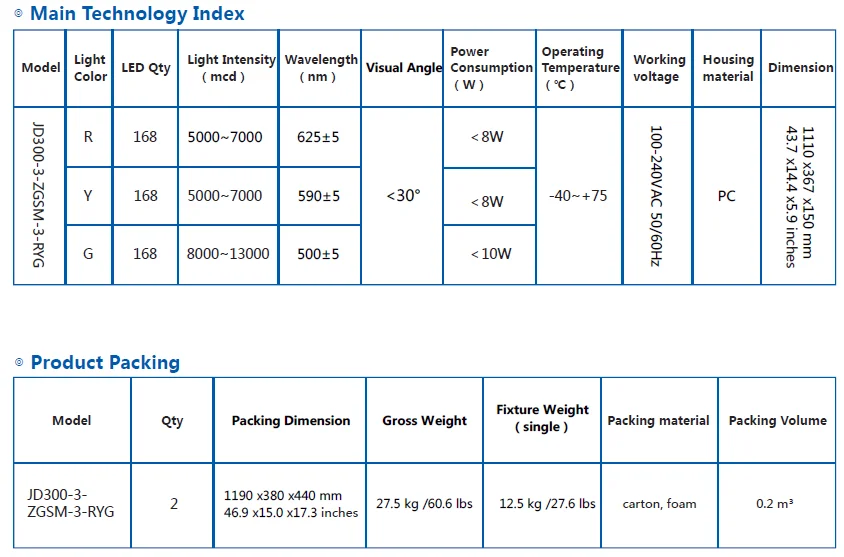

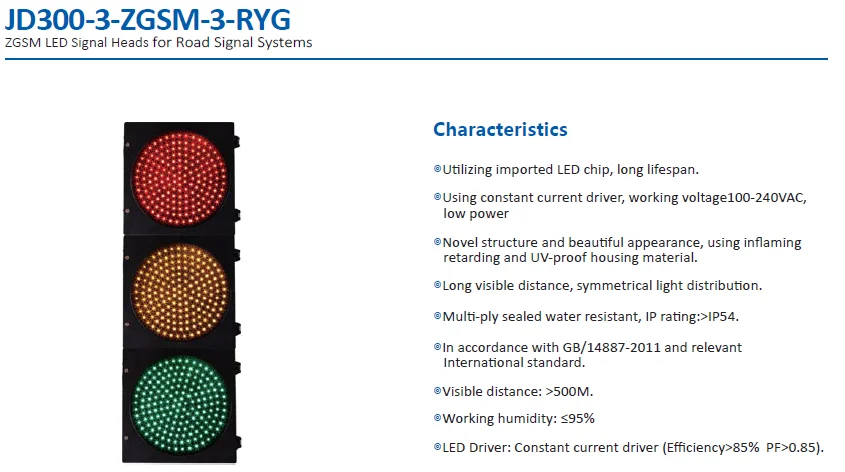

Model No.		JD300-3-ZGSM-3
Electrical Specifications
Power		Red: ≤ 8W | Yellow: ≤ 8W | Green: ≤ 10W
LED Q'ty		Red: 168 pcs | Yellow: 168 pcs | Green: 168 pcs
Operating Voltage		100-240VAC ,50/60Hz
Operating Temp.		-40ºC ~ +75ºC
Operating Humidity		10% ~ 90%
Photometric Specifications
Apply Diameter		300 mm (12 inches)
Visible Range		200m (656ft)
Wavelength		Red:625±5nm | Yellow:590±5nm | Green: 500±5nm
Intensity		R: 5000-7000mcd |Y: 5000-7000mcd G:8000-13000mcd
Visual Angle		<30º
Mechanical Specifications
IP Rating		IP54
Warranty		1 Year
Housing Material		PC or Aluminum
Lens Material		PC Housing: PC | Aluminum Housing: Glass
Fixture Dimension		PC: 1110 x367 x150 mm
		Aluminum: 1050 x367 x125 mm (41.3 x15.2 x5.9 inches)
Fixture Weight		PC: 12.5 kg (27.6 lbs) | Aluminum: 17.0 kg (37.5 lbs)
Standard(s)		GB14887-2011, EN50293:2000 & EN12368:2006
Certificate(s)		CE, RoHS
Packing Information
Packing Type		2unit /ctn.
Packing Dimension		1190 x380 x440 mm (46.9 x15.0 x17.3 inches)
Gross Weight		PC: 27.5 kg (60.6 lbs) | Aluminum: 36.5 kg (80.5 lbs)
Accessories		Visor, Bracket
