F1 6DOF Motion Racing Platform Simulators as Game
- Категории: Pneumatic & Hydraulic >>>
- Поставщик: Shenzhen,Superworker,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Company Profile
Shenzhen Dagongren Electric Cylinder Technology Co., Ltd is a high-tech innovative private enterprise specialized in designing and manufacturing of linear motion products, including servo motor electric cylinders, stepper motor electric cylinders, linear actuators, multidegree of freedom platforms, synchronization lifting platforms, VR simulators, etc. Since January 2014, Shenzhen Dagongren Electric Cylinder Technology Co., Ltd has introduced advanced technology and hired senior mechanical motion engineers for researching and developing linear motion system, the electric cylinder developed by the company featured high positioning accuracy, low noise, and long life. Our products have been widely used for industries like automated warehousing, robotics, automation equipment, medical equipment, and AGV, vehicles, etc. It has received compliments from many famous enterprises worldwide.
Product Overview
Electric linear actuators have a range of benefits in the healthcare industry since they are safe, efficient, and easy to use. An electric linear actuator uses the rotational motion of a low-voltage DC motor to effectively make products that can pivot and move in various directions. For the healthcare industry, that means producing products for patients and healthcare staff that can lift, tilt, push, and pull in various directions. It makes difficult movements easier and gives patients and staff better access when needed.
Technical Data
Product Series | DGRLT75 | ||||||
Screw lead / pitch (mm) | 5 | 10 | 16 | 20 | |||
Max. Power of Motor (W) | 1000 | ||||||
Max. Stroke (mm) | 1500mm = 59inches = 4.9feet | ||||||
Max. Rated Thrust (N) | 5000 | 5000 | 5000 | 5000 | |||
Max. Speed (mm/s) | 250 | 500 | 800 | 667 | |||
Rated Driving Torque (N.m) | 4.2 | 8.5 | 14 | 17 | |||
Max. Ball Screw Diameter (mm) | 20 | 20 | 16 | 20 | |||
Rated Dynamic Load of Ball Screw (kgf) | 1551 | 1516 | 1073 | 1387 | |||
Axial Backlash (mm) | 0.02-0.04 | ||||||
Lead Error Every 300mm (mm) | 0.023 | ||||||
Repeatability Accuracy (mm) | 0.02 | ||||||
Flange Size of Optional Servo Motor Series (mm) | 86/90 | ||||||
Flange Size of Optional Stepper Motor Series (mm) | 86 | ||||||
Flange Size of Optional Gear Box Series (mm) | 90 | ||||||
Note:
1.If you need to know the ball screw life, please contact customer service for detailed consultation;
2.The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.
3.If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;
Note: If above parameters can not meet your needs, please contact us, we can customize according to your requirements with NO MOQ.
1.If you need to know the ball screw life, please contact customer service for detailed consultation;
2.The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.
3.If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;
Note: If above parameters can not meet your needs, please contact us, we can customize according to your requirements with NO MOQ.

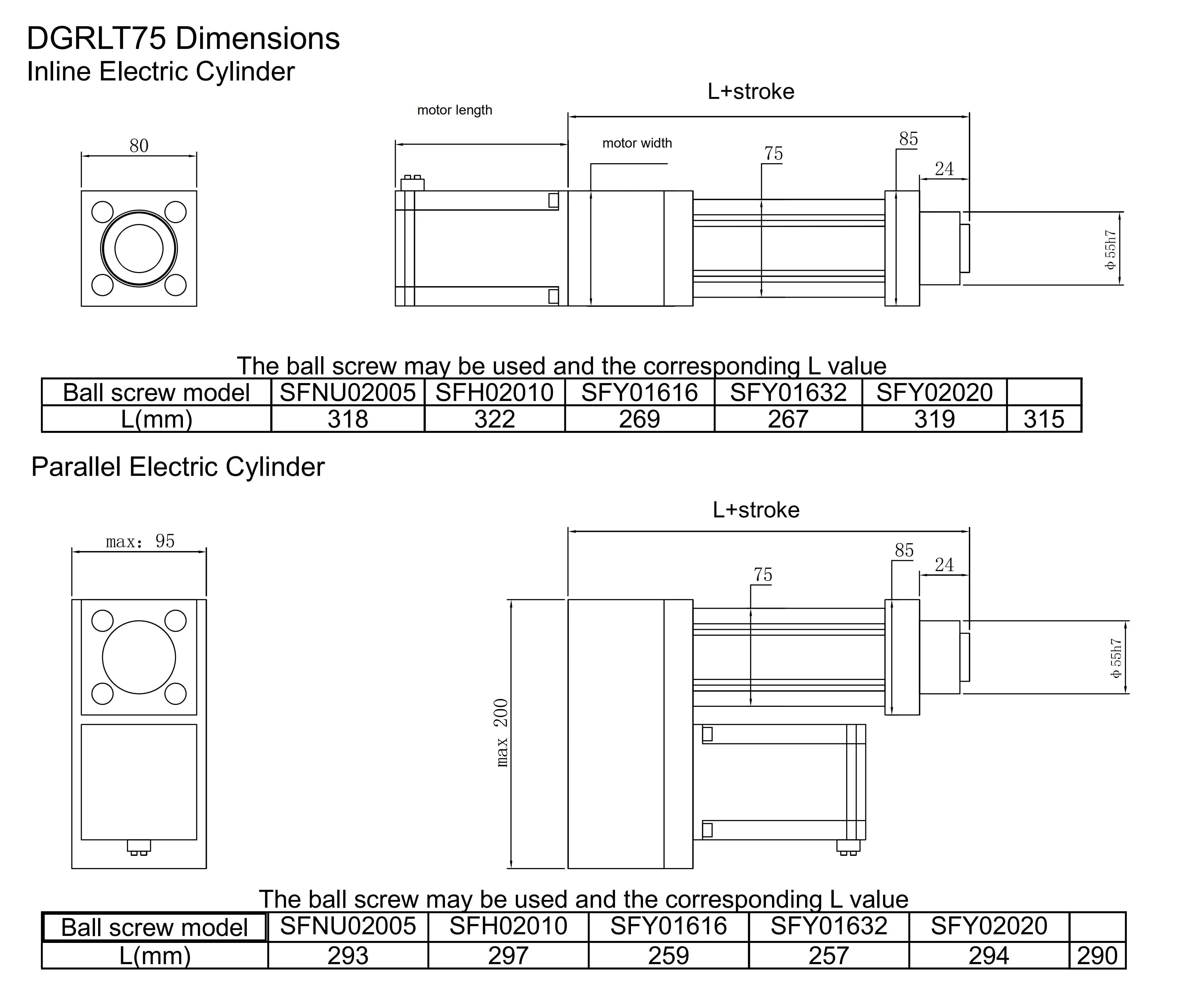

Dimension

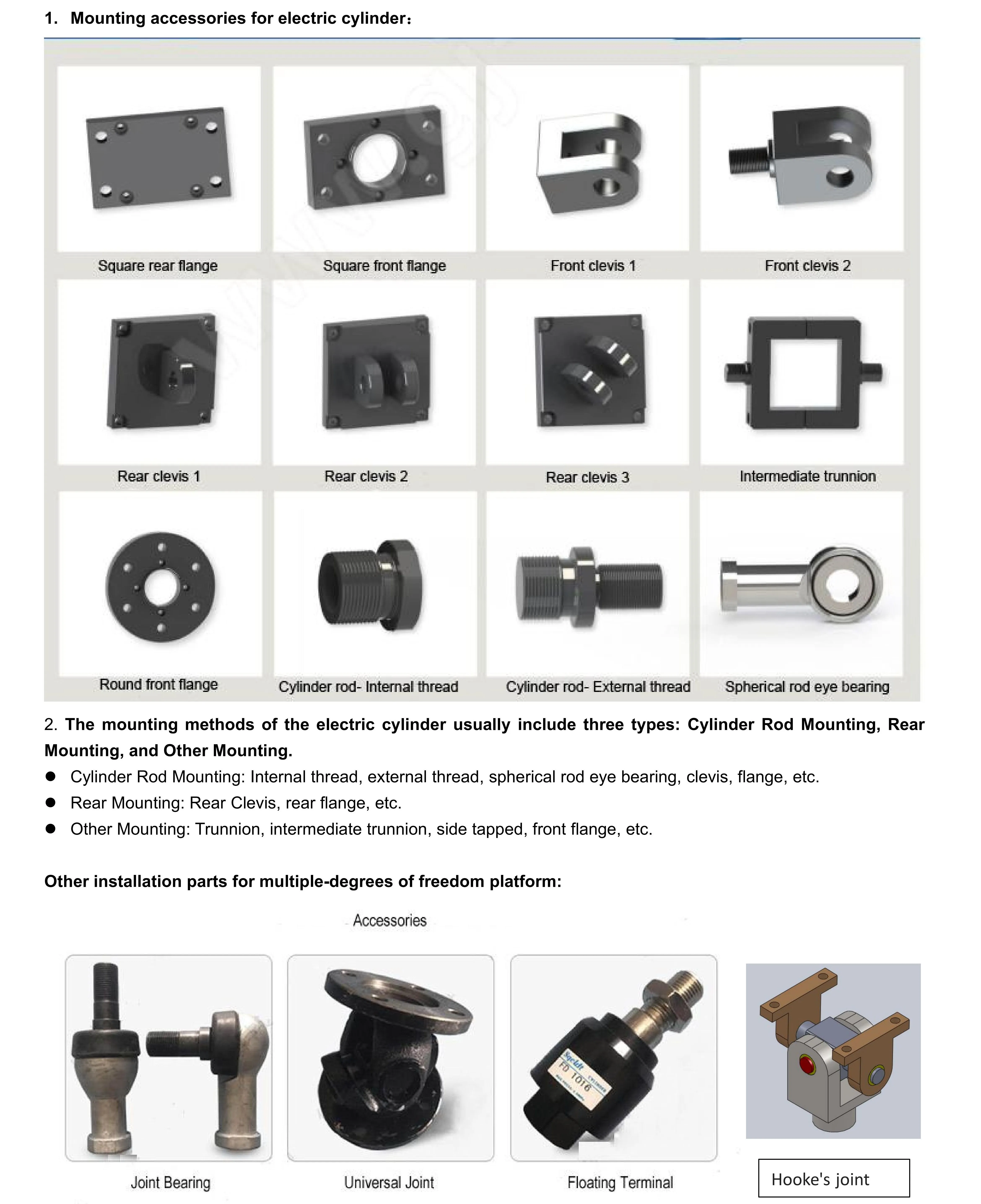

Mounting Methods and Accessories
Packing & Delivery
FAQ
Q1. What are your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown wooden cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What are your terms of payment?
A: T/T 50% as deposit, and 50% before shipping. We'll show you the photos of the products and packages before
you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 10-25 days to produce the products, and 5 days by air, 25 days of the ship by sea. The specific delivery time depends on the items and the quantity of your order.
Q5: How is the warranty system?
A: 1~5 years. (upon the deal)
Q6. Can you produce according to the samples?
A: Yes, we can produce your samples or technical drawings. We can build the molds and fixtures.
Q7. What is your sample policy?
A: We can supply the sample, but the customers have to pay the sample cost and the courier cost.
Q8. Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery.
A: Generally, we pack our goods in neutral white boxes and brown wooden cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What are your terms of payment?
A: T/T 50% as deposit, and 50% before shipping. We'll show you the photos of the products and packages before
you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 10-25 days to produce the products, and 5 days by air, 25 days of the ship by sea. The specific delivery time depends on the items and the quantity of your order.
Q5: How is the warranty system?
A: 1~5 years. (upon the deal)
Q6. Can you produce according to the samples?
A: Yes, we can produce your samples or technical drawings. We can build the molds and fixtures.
Q7. What is your sample policy?
A: We can supply the sample, but the customers have to pay the sample cost and the courier cost.
Q8. Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery.
