Flexible FPC 40 PIN LCD 4.3 Inch TFT Display 480x272 RGB LCD Screen Panel with CTP
Product Description
1. 4.3 Inch TFT Display Parameters
| Feature | ||||
| 1.LCD Type | 4.3" TFT/Transmissive | |||
| 2.Display Type | 480RGB(H) * 272(V) Dots | |||
| 3.Viewing Direction | 6 O’Clock | |||
| 4.Controller | OTA5180A | |||
| 5.Power Supply | 3.0-3.6V | |||
| 6.Operating Temperature | -20~+70℃ | |||
| 7.Storage Temperature | -30~+80℃ | |||
| 8.Interface | 24-bit Parallel RGB Interface | |||
| 9.ROHS compliant | Yes | |||

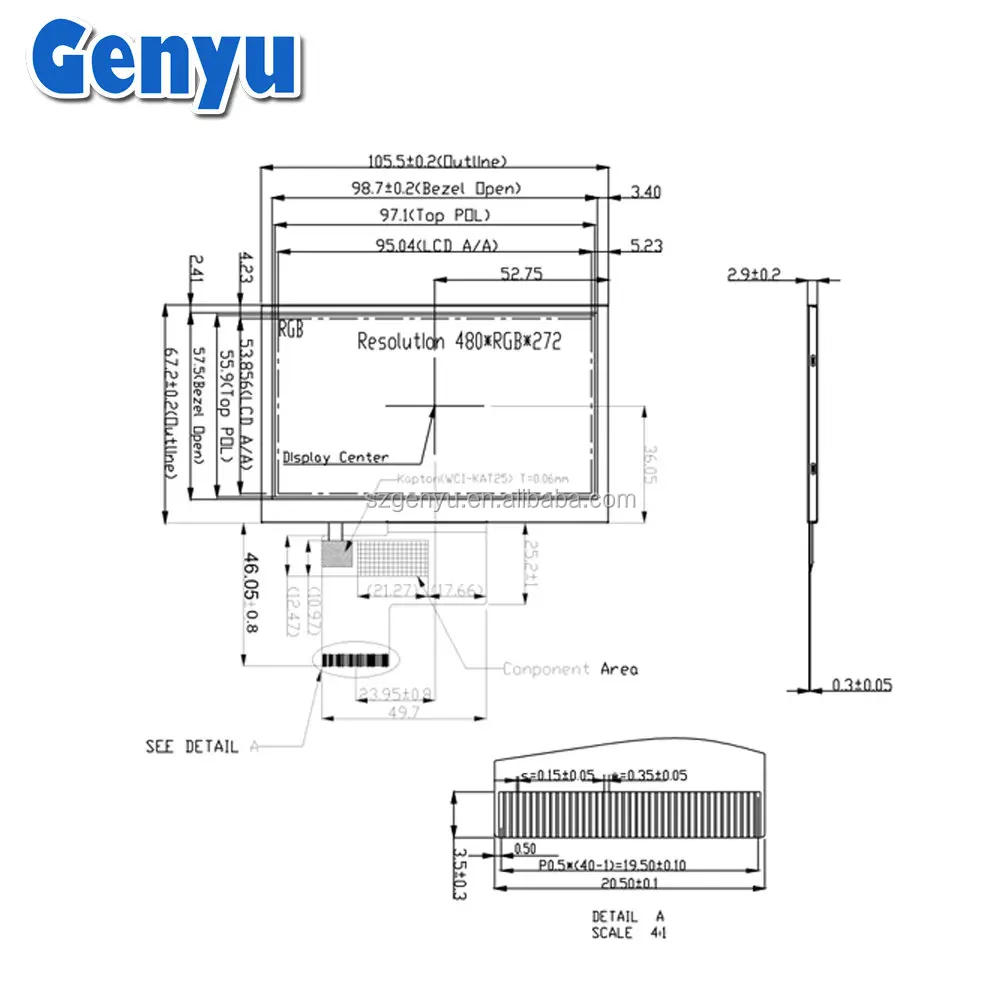

| Mechanical Parameters | ||||
| Item | Standard Value | |||
| Outline dimension: | 105.5(W)×67.2(H)×3.0(T) | |||
| Active Area | 95.04(W)×53.856(H) | |||
| Electrical Characteristics | ||||
| Item | Symbol | Min | Typ. | Max. |
| Supply Voltage (V) | VDD | 3.0 | 3.3 | 3.6 |
| Input Voltage (V) | VIH | 0.7VDD | -- | VDD |
| Input Voltage (V) | VIL | GND | -- | 0.3VDD |
| I/O Leak Current(uA) | ILI | -1.0 | -- | 1 |

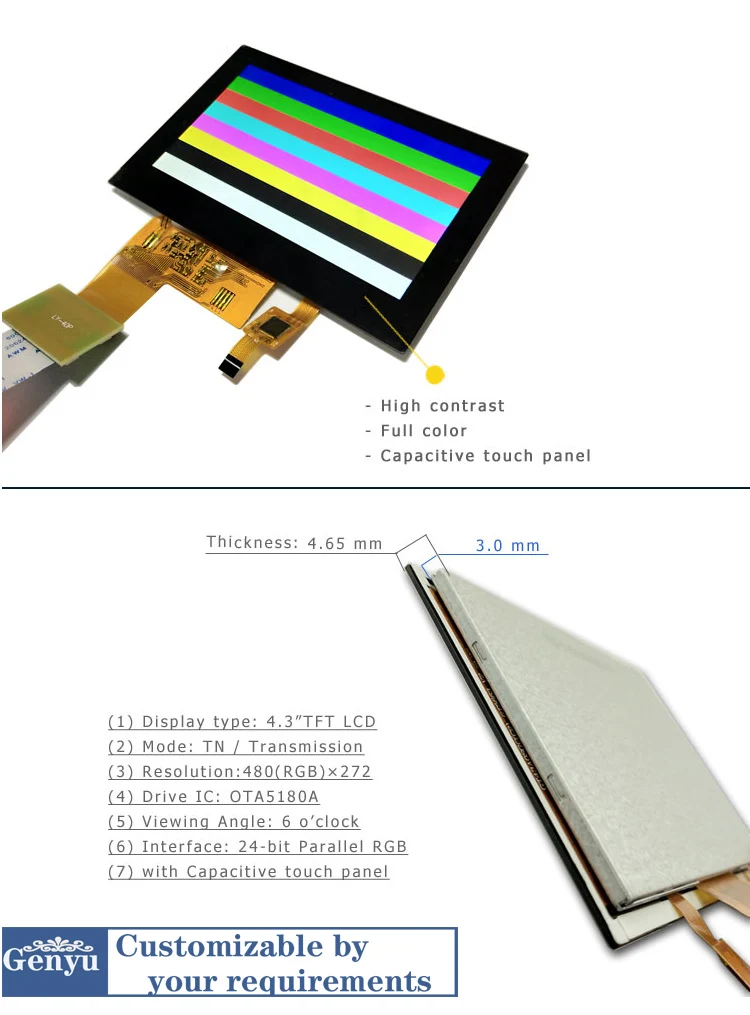

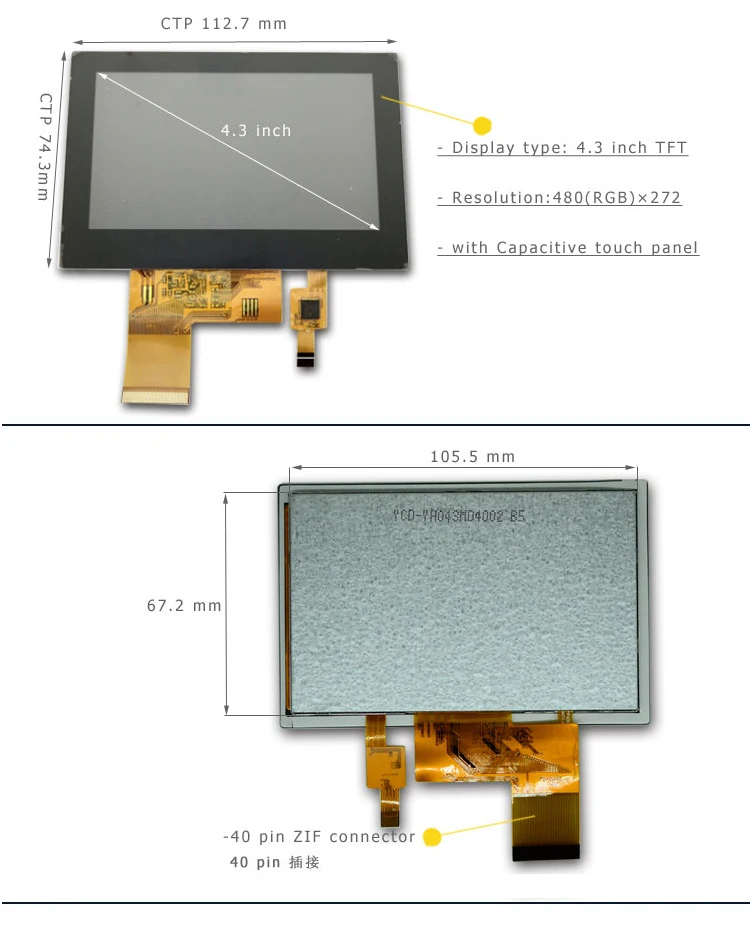

2. The Images of 480*272 TFT Display+CTP
tft

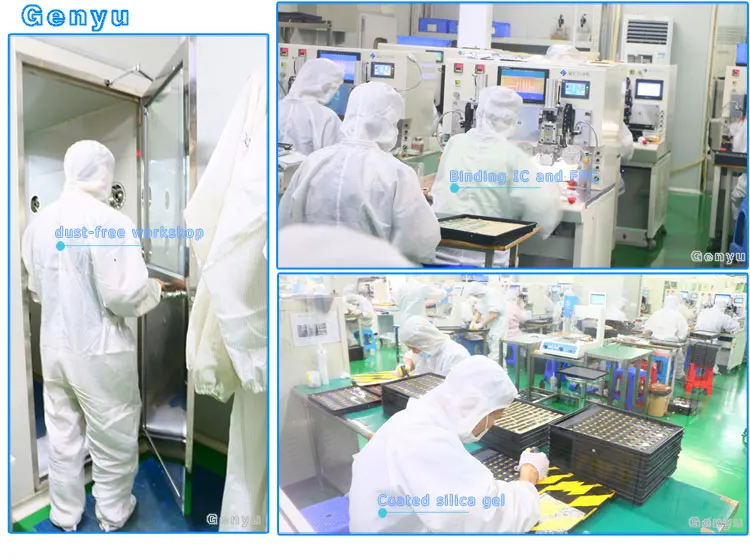

Company Information
Our Services
Genyu Technology (H K) Limited
Shen Zhen Genyu Optical Co., Ltd
1. And if it is necessary for you to have technical support in the process of development, we can provide it for you at any time.
2. Good quality and credit are the soul of our company. Before shipment, we will guarantee that the products will be done with the aging test and 100% of the visual and electric logging.
3. When the product upgrades, we will notify the related clients in advance, and the upgrading product can be perfectly compatible with the old ones.
4. The warranty period of the product is usually 12 months.
Packaging & Shipping

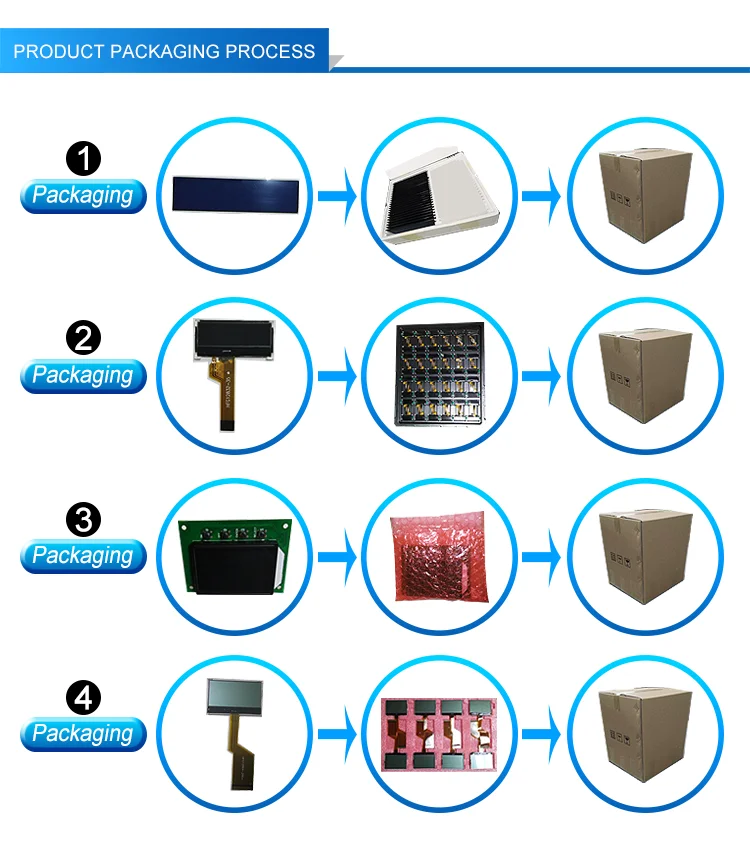

Packaging
1. Choose a suitable electrostatic packaging bag according to the size of the product, and use an airplane box with foam to ensure that the product is not damaged during transportation.
2. Three types of Anti-static bag or Bubble bag, Plastic pallet, and Carton box.
3. Package Type: Wrapped in air bubble film and covered by anti-static trays, and then packed in suitable cartons.
The packing is able to withstand rough handling.
FAQ1
1.Q: Are you a manufactory or trade company?
We are a factory located in Shenzhen and Jiangxi.
2.Q: How can I get the samples?
A: Send inquiry --Offer quotation --Confirm quotation & pay tooling charge -- Provide drawing -- confirm drawing -- make tooling & samples -- Samples finished -- Delivery via freight or sea collect
3.Q: How long can I expect to get the sample?
A: Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q: Will you offer a free sample?
A: Yes, we usually provide 1-3 pcs free samples, you just need to pay the tooling charge.
5.Q: Can you design the LCD in accordance with our demand?
A: Sure. We will give you the best tooling charge.
6.Q: How to place orders?
A: If you confirm samples ok, Please send us your purchase order by Email or Fax, Then we will send you an invoice for the deposit payment. We need to know the following information about your order.
1)Product information-Quantity, part number
2)Delivery time required.
3)Shipping information-Company name, Street address, Phone&Fax number, Destination seaport.
4)Forwarder's contact details if you have any in China.
1)Product information-Quantity, part number
2)Delivery time required.
3)Shipping information-Company name, Street address, Phone&Fax number, Destination seaport.
4)Forwarder's contact details if you have any in China.
7.Q: How long of mass production?
A: 25-30 business days. It depends on different order quantities and part numbers.
