Product Description

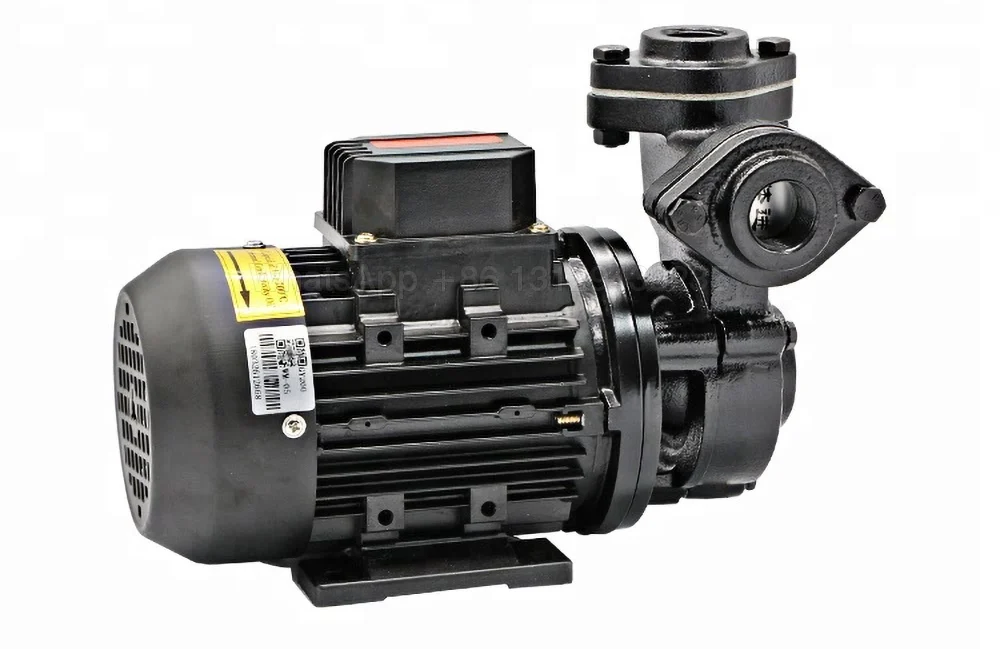

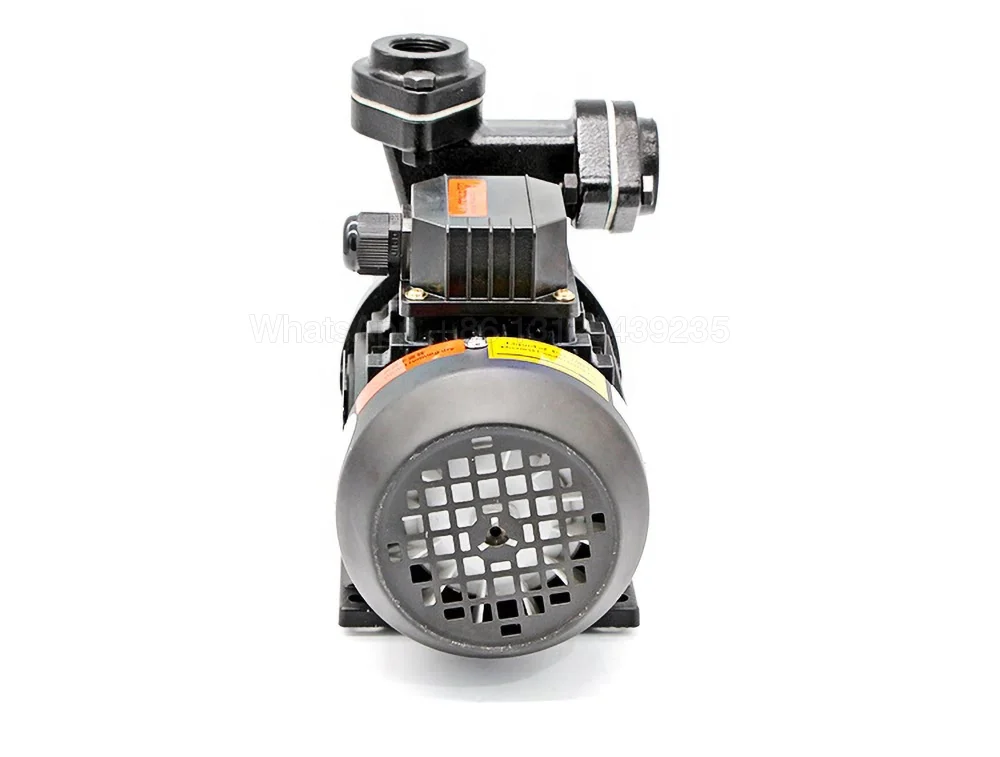

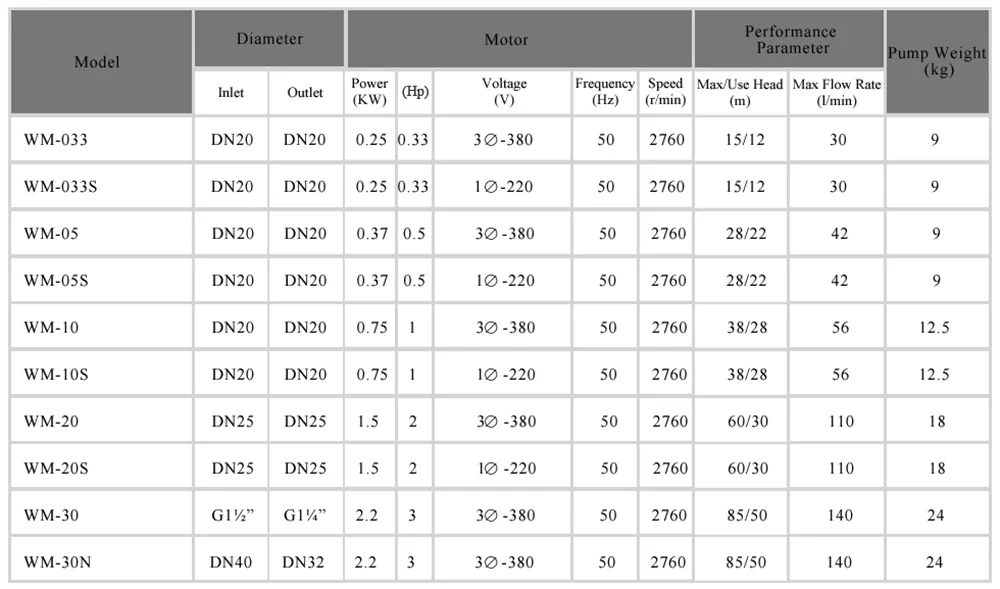

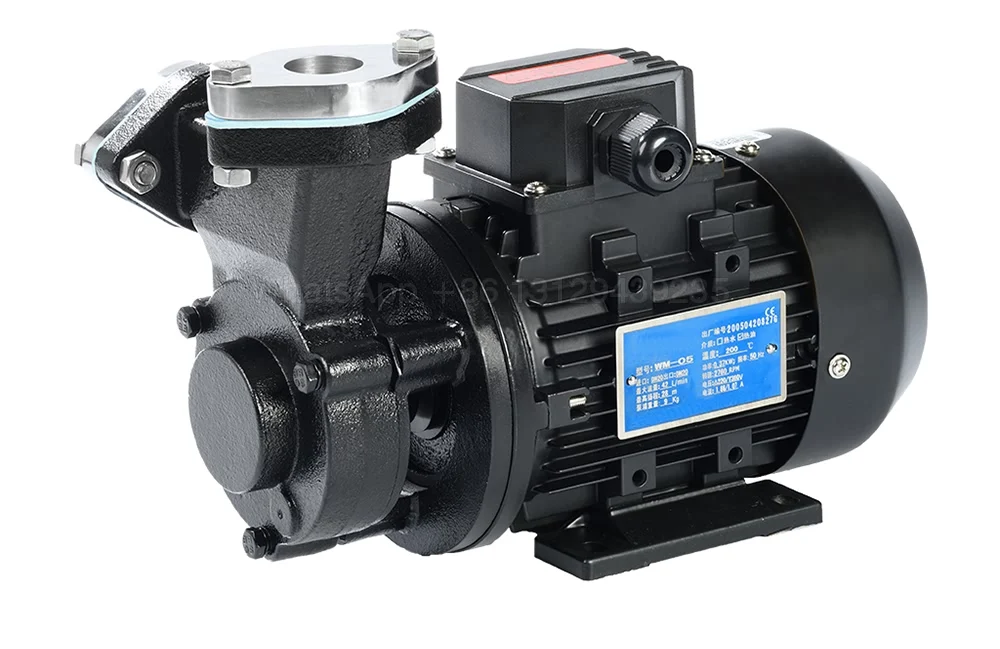

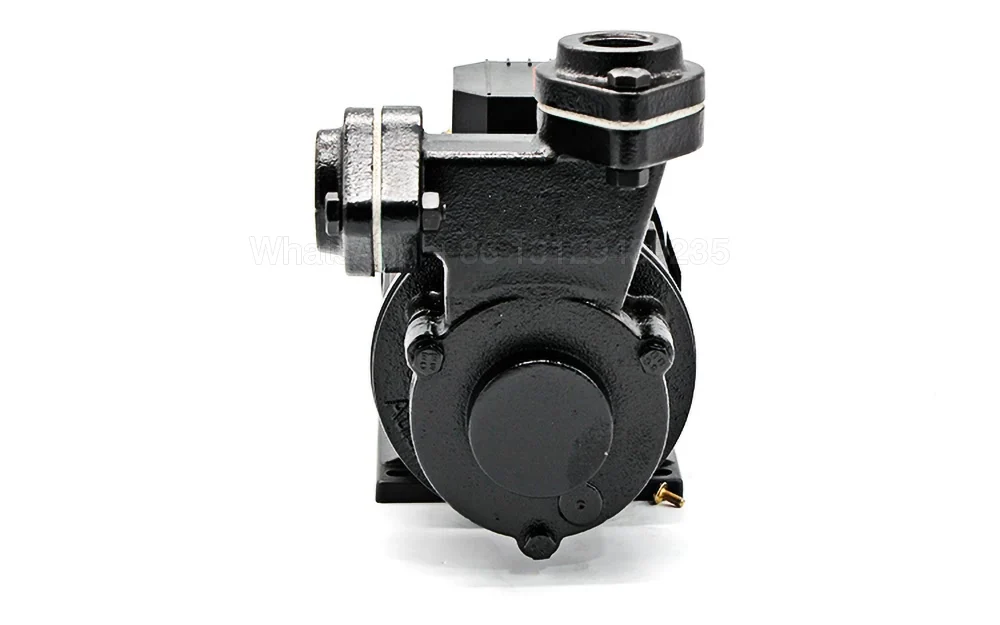

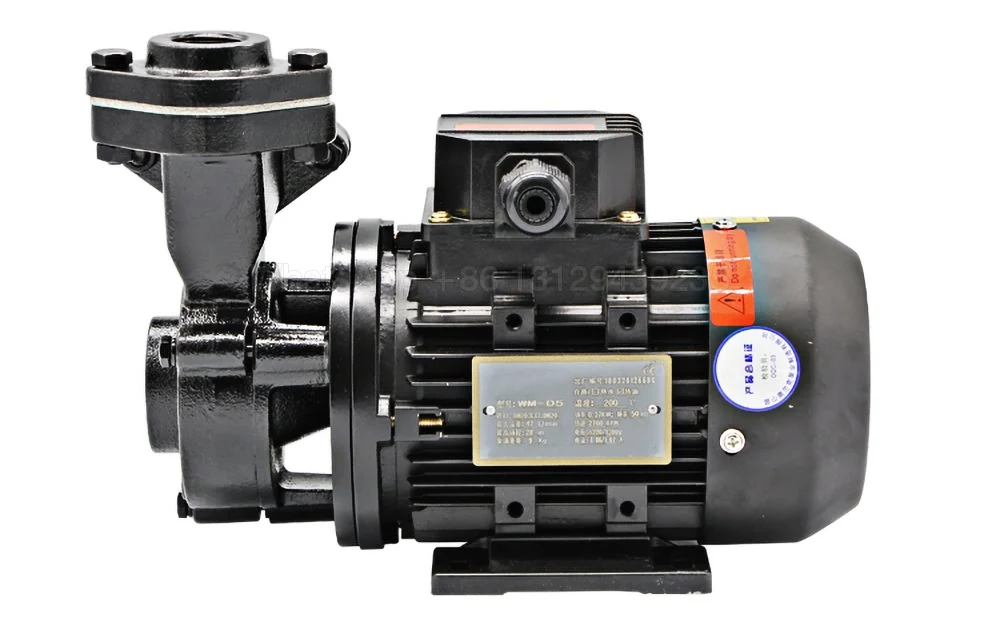

Roduct Name | WM-10 0.75kw 1hp TCU Machine Hot Oil Pump | |
Inlet Diameter | DN20 | |
Outlet Diameter | DN20 | |
Power | 0.75 KW | |
Horsepower | 1Hp | |
Voltage | 380V/220V, 3 phase - 380 V/1 phase 220v | |
Frequency | 50 Hz | |
Speed Rate | 2760 r/min | |

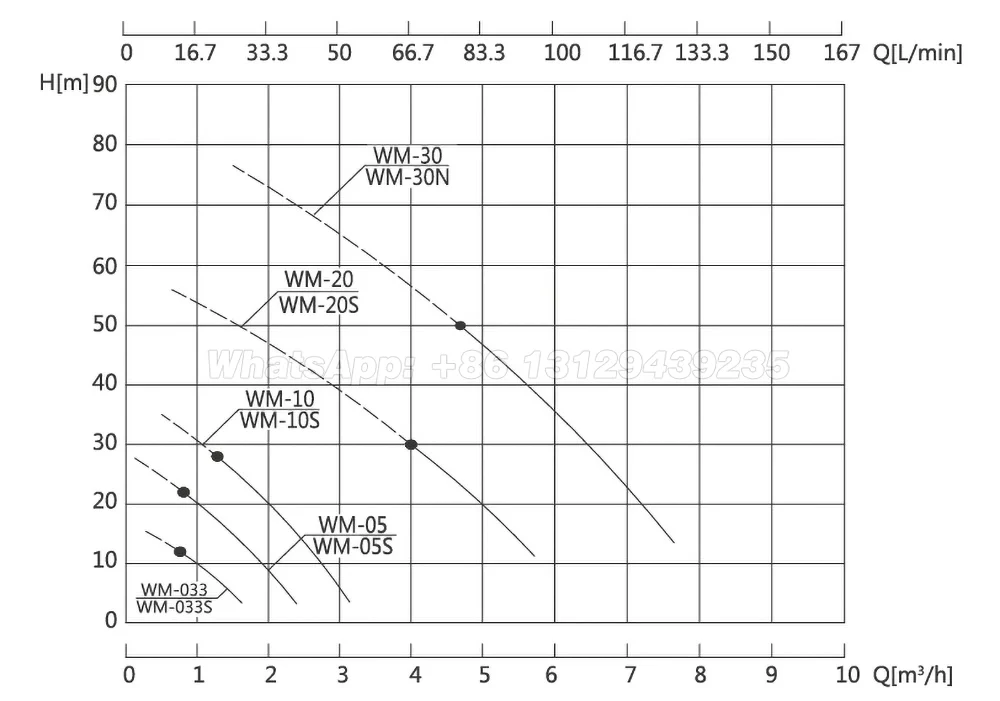

Max / Use Head | 28/ 22 m | |
Max Flow Rate | 42 L/min | |
Working Condition | Thermal Conductivity Water | +5℃- +160℃ |
Thermal Conductivity Oil | +5℃-+200℃ | |
Ethylene Glycol | -60℃- +180℃ | |
Working Temperature | -5℃- +40℃ | |
Maximun Elevation | 1000 m | |
Maximun Working Pressure | 10 bar | |
Introduction of the Pump | WM-05 The pump transfer the non flammable and explosion liquid without the particles, fiber. Small size, saving installing place , fine appearance, high temperature , stable performance and other advantages. | |
Application Range | Small TCU, Boiler feed water system Small hot oil furnace , Cylinder temperature controlling system. | |
Pump’s Feature | 1) Stable performance, small volume, saving installing space | |
2) Low noisy low energy, fast flow rate | ||
3) Easy to maintenance, low cost | ||
Application Area: Mold temperature controlling,Ultrasonic cleaning,Testing instrument,Machine tool cooling, Cyfinder heat preservation, Hot and cold switching system.
Circulation Medium: Water, ethyleneglycol, alcohol, thermal oil,hydrocarbon solution, silicone oil and other liquids without particles and fibers..
