Products Description
RFID Card Credit IC Card Pos RFID Reader Payment Terminal Machine with Advertising Screen
1. Support wireless communication transmission: you can connect to the management software of the computer through the communication module to perform operations, such as proofreading time, downloading the blacklist, and collecting data;
2. The smart terminal with wireless communication module can upload data in real time. And the without wireless communication module can upload transaction records through U disk or USB connection.
3. Inquire consumption details: You can query the detailed records of consumption on the smart communication terminal according to the card number, time, operator number, etc.;
4. Count the consumption data: counting the consumption records can be made according to the card number, time, and operator number.
2. The smart terminal with wireless communication module can upload data in real time. And the without wireless communication module can upload transaction records through U disk or USB connection.
3. Inquire consumption details: You can query the detailed records of consumption on the smart communication terminal according to the card number, time, operator number, etc.;
4. Count the consumption data: counting the consumption records can be made according to the card number, time, and operator number.

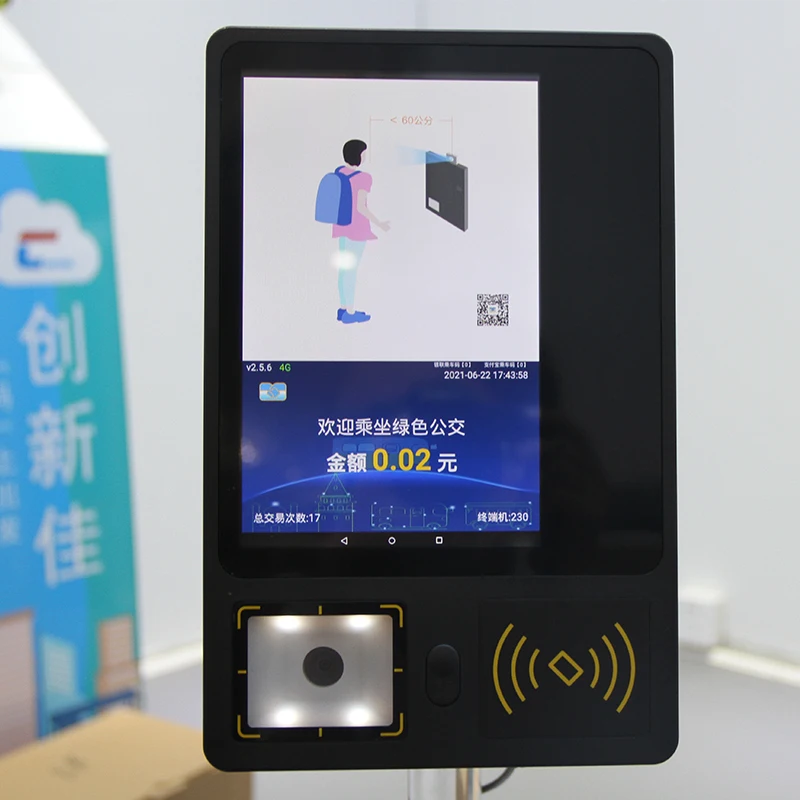

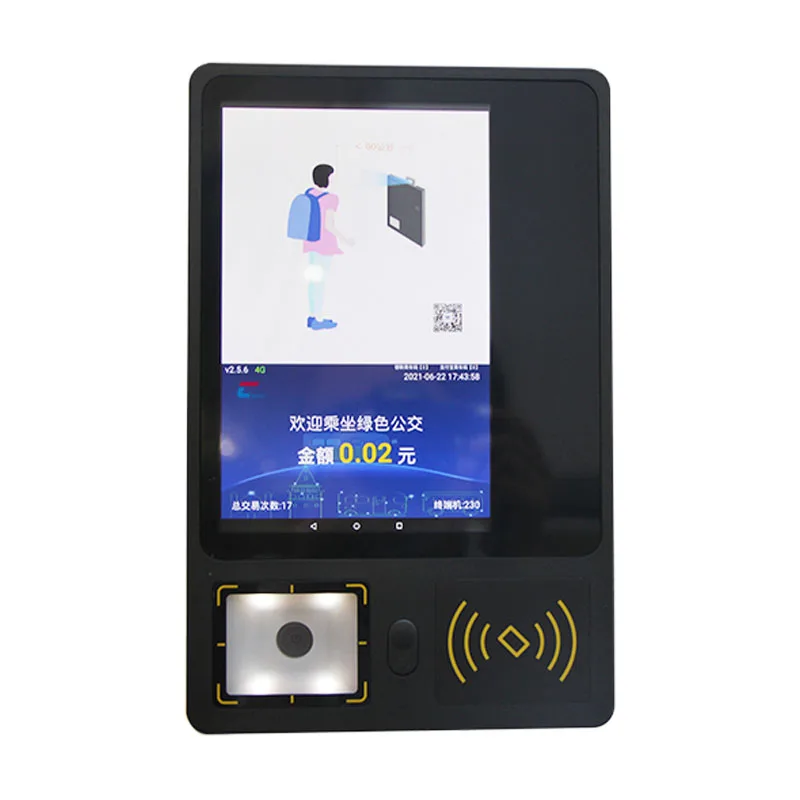

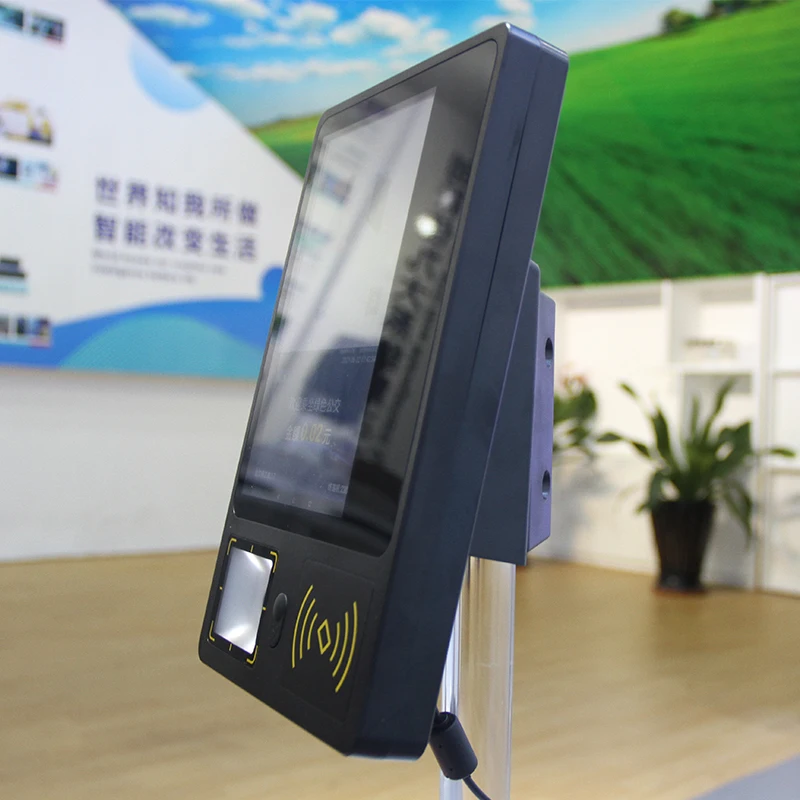

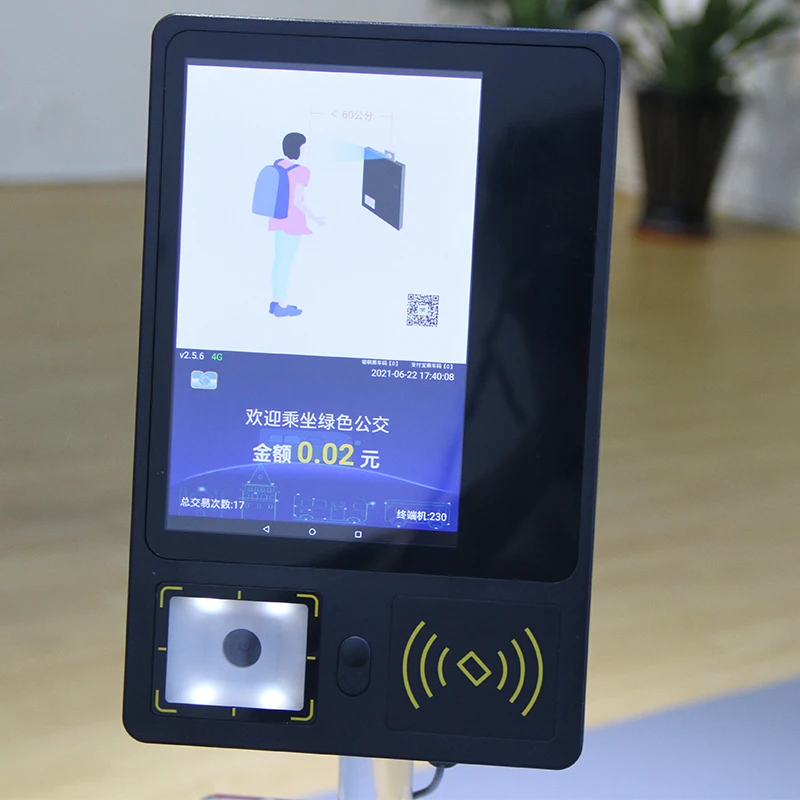

CL-A818G scan code advertising bus swiping machine is an intelligent terminal based on Android5.1 operating system, with IC card reader module.

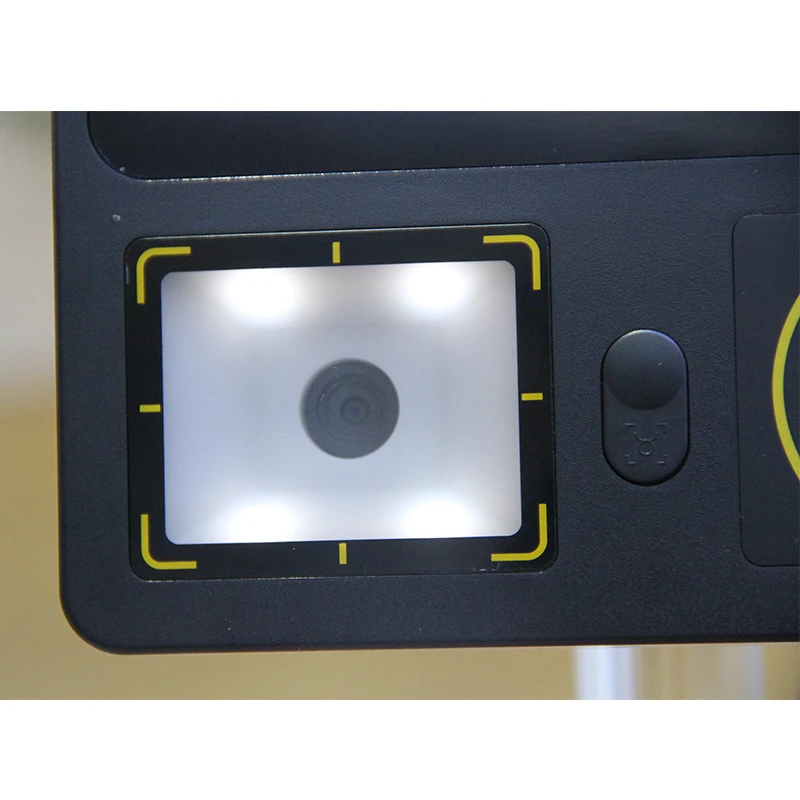

It not only is compatible with QR code and face recognition module, but also supports the protocol of ISO-14443 Type A/B , with the 13.56MHz of working frequency, which is suitable for MIFARE 1 series smart card. And it also supports CPU card and financial IC card.
Technical specifications:
Product Name | CL-A818G scanning code bus swiping machine | ||||||
Operating System | Android system 5.1 | CPU | Quad-core cortex-a9 main frequency 1.4GHz, integrated GPU Mali-400 MP4 | ||||
Flash Memory | DDR3 1G (default) | Dimension | 270x169x72mm | ||||
Data Capacity | Stand-alone storage of 2 million pieces (default), expandable. | Blacklist | 200W (default), expandable and configurable. | ||||
Humidity | 0-90% RH non condensing | ||||||
Storage Temperature | -40℃~85℃ | Working Temperature | -25℃~65℃ | ||||
Data Memory | eMMC 16G, maximum support TF card expansion 64G | Material | Engineering Plastics (Anti static electricity coating design, be protected from high-frequency interference) | ||||
Indicator Light: | Red and green | Display | 8 inch TFT-LCD, 1280*800 | ||||
Sound Prompting | Buzzer,Single channel loudspeaker | Voice Prompting | 16KHz,16bit single channel voice prompt | ||||
Connectors | USB-HOST,USB-OTG,RS485 or TTL-232 | Width of receipt | 58mm | ||||
Read card distance | 0~50mm | Frequency | 13.56Mhz | ||||
Supporting Card | Mifare 1 card, CPU card, UnionPay IC card | Working Voltage | DC 8V-50V | ||||
Printing Module | Support external POS 58 printer(need 5pin aviation plug turn DB9 cable) | RFID | Can read and write ISO14443 Type A\\B Electronic tag | ||||
Power Consumption | ≤10 W | Wireless Communication | GPRS.,3G,4G, WIFI optional | ||||
Position Way | GPS, Beidou positioning (Optional) | Working Mode | Stand-alone or connect to server | ||||
Warning Function | Warning when card balance is insufficient or data memory is full | Collection method | 2G, 3G, 4G wireless collection and USB connection collection (optional), WIFI (optional) and Bluetooth (optional) | ||||
Application:

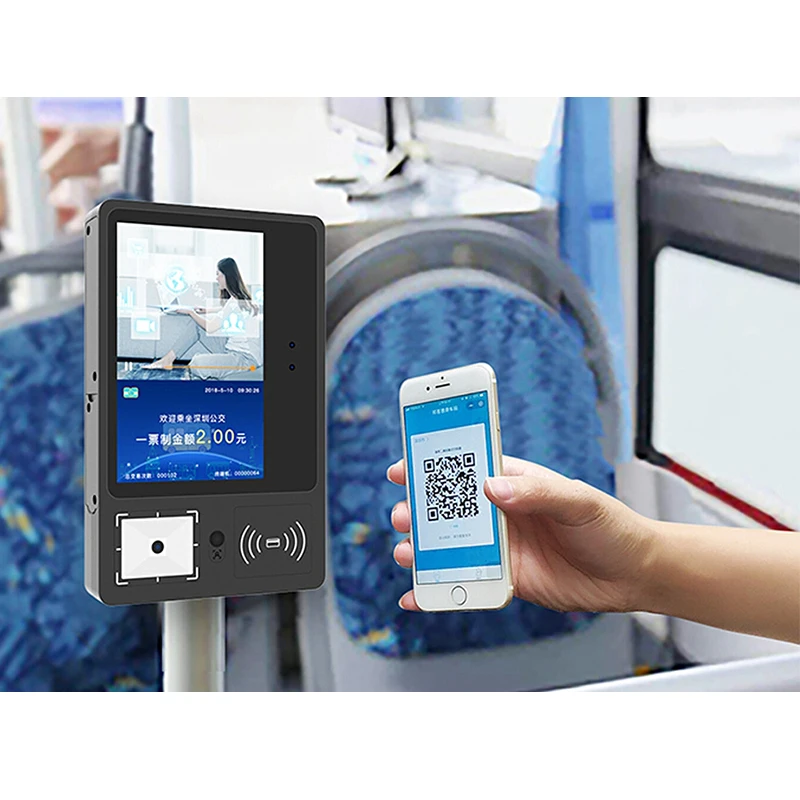

CL-A818G scanning code bus swiping machine can be applied to various places involving authority control. The main functions are wireless communication, GPS positioning, IC card reading, electronic payment, balance inquiry, etc.
Applied to:
Applied to:
Gate access control in public places
Attendance of enterprises and institutions
Consumption at tourist attractions or amusement parks
Bus consumption
Enterprise bus
Campus bus

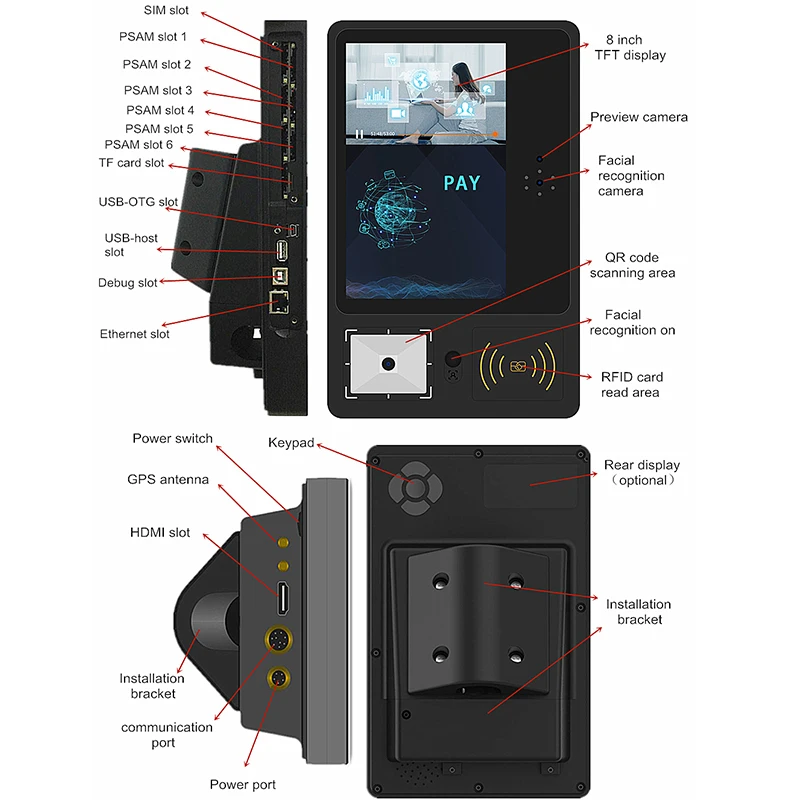

Detailed Images
