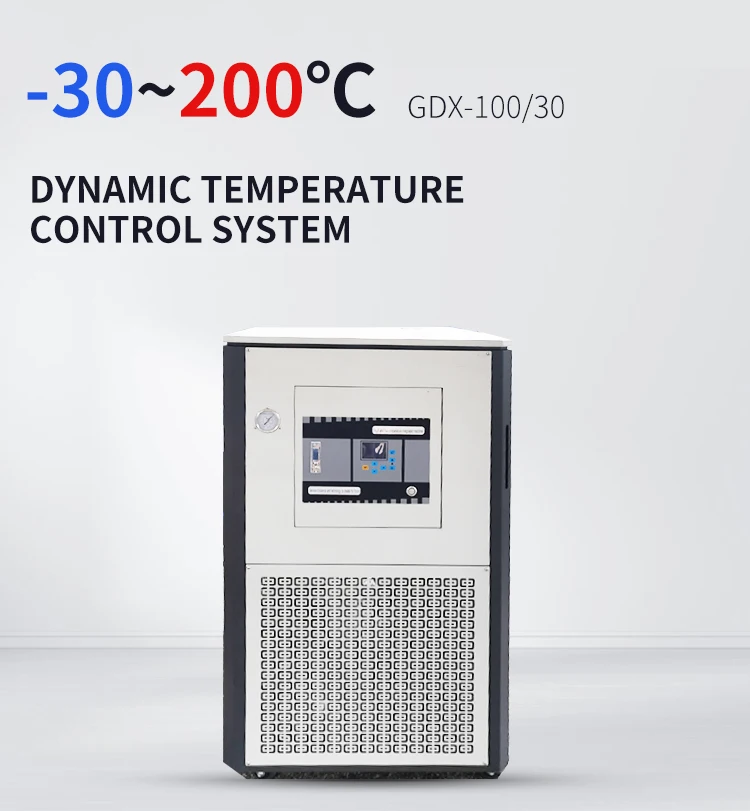

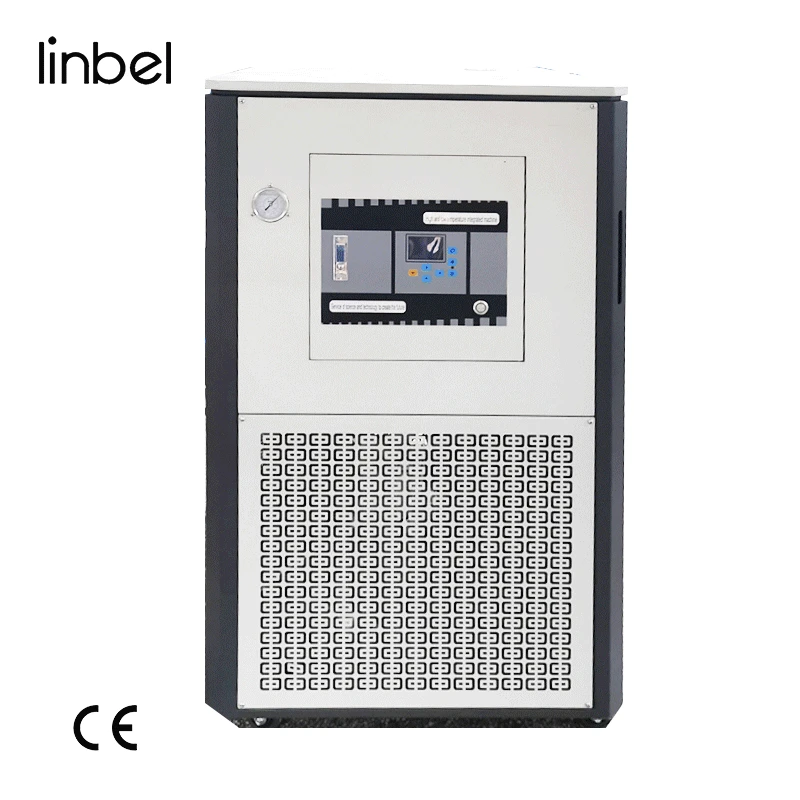

Linbel Standard Model -30 Degree to 200 Degree Air Cooled Industrial Chiller
Product Description
GDX series high and low temperature circulation tank is a type of multifunctional device which own heating and cooling function to provide constant temperature for chemical experiment. The integrated refrigerating and heating circulator has been widely used in medical, chemical and biological industries. The refrigerating and heating circulator has two systems: cooling system and heating system. These two systems can work together or independently.
Detailed Images
| Specification model | GDX-10/30 | GDX-20/30 | GDX-30/30 | GDX-50/30 | GDX-100/30 |
| Volume(L) | 7L | 10L | 17L | 35L | 100L |
| No-load temperature(℃) | -30-200℃ | ||||
| Cooling capacity | 2010-650W | 2800-600W | 4600-600W | 10500-900W | 15750-1600W |
| Flow(L/min) | 20 | 20 | 35 | 35 | 43 |
| HeadH(m) | 8 | 8 | 8 | 12 | 20 |
| Voltage(V) | 220V | 220V | 220W | 380W | 380W |
| Cooling current | 5.2A | 6.3A | 11A | 8A | 8A |
| Heating current | 13.6 | 13.6 | 20 | 12 | 18 |
| Heating power | 3KW | 3KW | 4.5KW | 4.5KW | 9KW |
| Cooling power(W) | 1000 | 1300 | 2100 | 4000 | 5600 |
| Cold slot size(mm) | 160*310 | 160*310 | 200*350 | 250*370 | 300*500 |
| Lenth(mm) | 620 | 620 | 710 | 770 | 970 |
| Width(mm) | 540 | 540 | 580 | 670 | 800 |
| Height(mm) | 920 | 920 | 1050 | 1180 | 1350 |

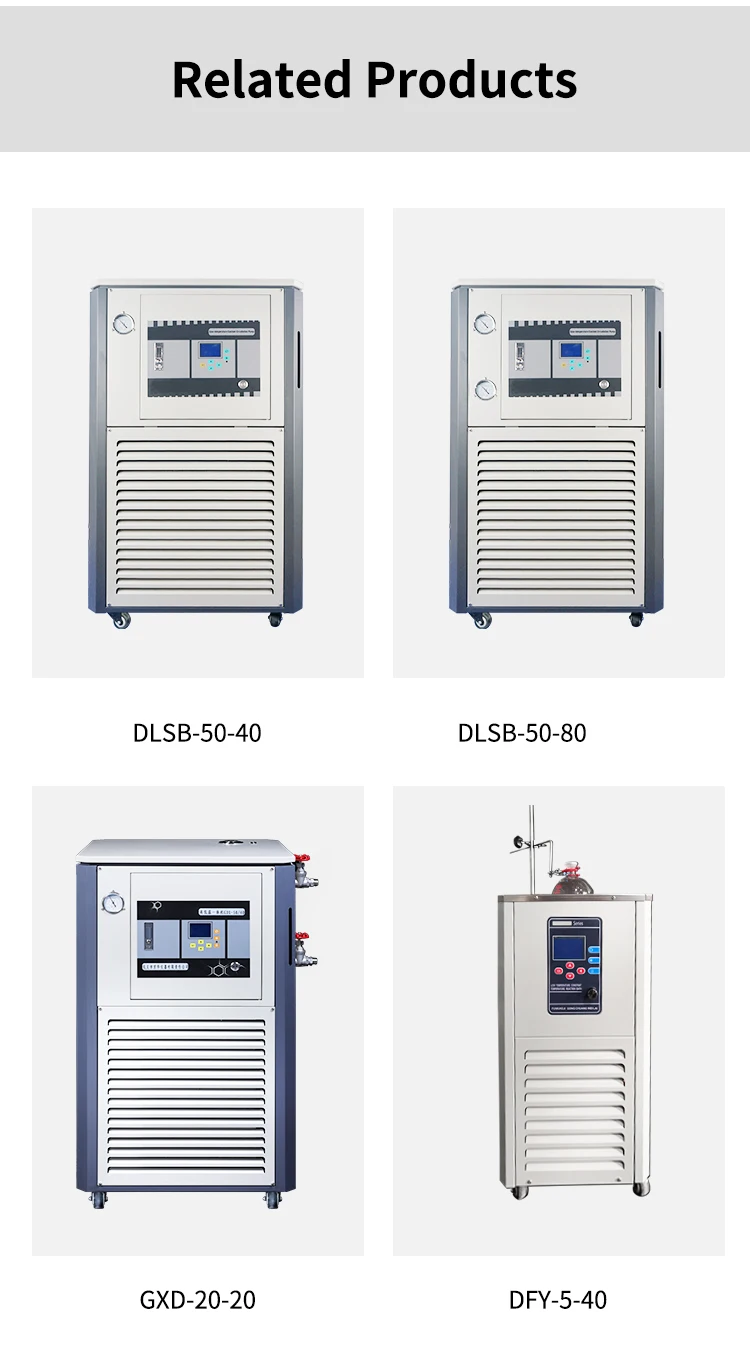

Recommend Products
Our Certifications
FAQ
1. Why you choose LINBEL?
A.Linbel is a professional manufacturer with more than 10 years experience.
B.Linbel exports to 99% countries.
C.Linbel provides One-stop service from Designing to deliverying.
2. Could you provide OEM/ODM service? Yes
3. Could you support visiting factory?
Yes. Linbel factory is located in Henan Province. Our sales team and after-sales service team is in Shanghai. Welcome every customer/friend to visit our factory.
4. Do you have Overseas Warehouse?
Yes. Linbel warehouse is located in 6221 Knott Avenue, Buena Park, CA 90620, USA.Welcome to visit our warehouse!
5. How can you ensure your products quality?
Linbel has professional QC and test equipment to ensure the quality. We are the gold verified supplier issued by SGS, and the related certificate of gold verified supplier issues by SGS is available.
