Fit your backhoe attachment on the rear of your compact tractor. Lock the latch arms to the mounting frame. Then hook up the backhoe to your compact tractor’s auxiliary hydraulics. Multiple bucket widths are available to fit your excavating job size.
OVERVIEW
Boleo ® Backhoes offers great durability and reliability, can handle tough excavating jobs. such as Dig septic tanks or ditches, Trench for irrigation, water and power lines, Build retaining walls and other landscape projects. It operates with minimal ground disturbance, which is ideal for working in sensitive areas. You’ll have a clear line of sight into the hole, making it easy to dig accurately. Once your digging task is complete, change to another compact tractor implement to finish the job.
FEATURES
● Designed to operate excellent reach capabilities
● Full 150 degree swing rotation with equal power in both directions
● Highback seat is adjustable vertically as well as forward and back
● Included sub-frame attaches to the rear of your tractor for added strength and durability
● Swing speed control allowing the operator to adjust swing speed
● Dual cylinder swing system with cushioned stop design provides maximum power
● Replaceable steel bushings in all major pivot points

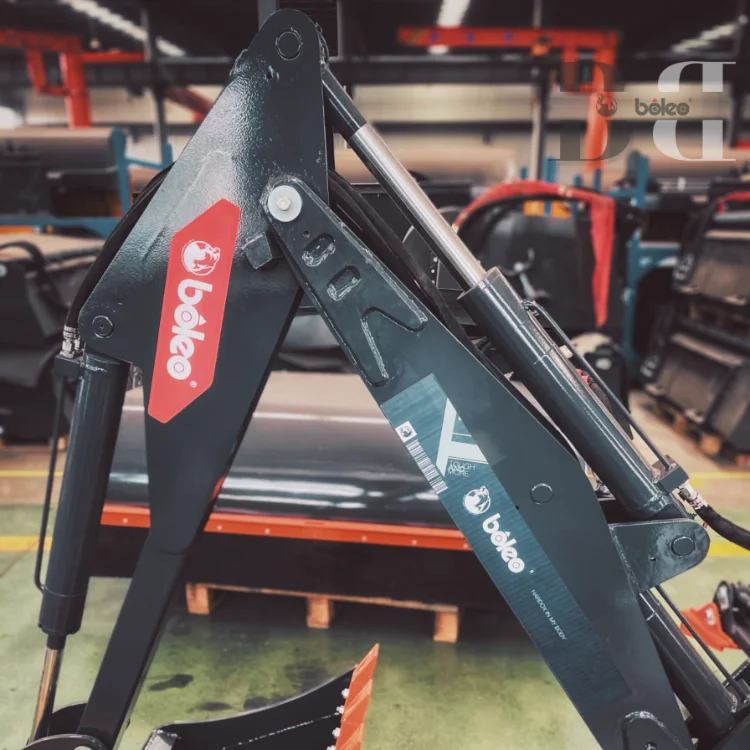

● Large diameter boom and dipper cylinder with cushioned stop design.
● Operating Weight 600 kgs (1,320 lbs)
● Bucket Rotation 170°, Swing Arc 150°

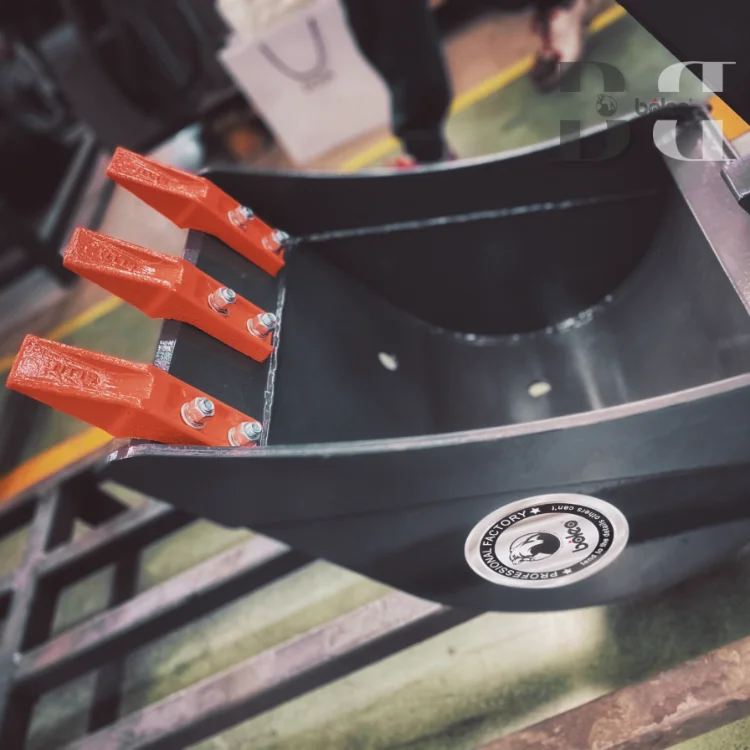

● 13-inch bucket standard; 16-inch bucket available
● Available colors
Backhoe Digger Tech-specs
Model
BBH70
BBH70S
Max.digging depth(mm)
2430
2375
Max.horizontal arm length(mm)
2864
2547
Max.unloading height(mm)
3269
3019
Height(mm)
215
215
Swing angle(°)
±70
±70
Bucket rotation angle(°)
186
150
Bracket width(mm)
1176
1176
Weight(Kg)
682
712
Hydraulic Flow(L/Min)
20-50
20-50
Max.sustainable pressure(MPa)
21
21
Optional Bucket
Standard type 0.04m³ Optional type 0.03m³ . 0.05m³
