Product Description
Mini road construction machine walk behind single drum roller double drum vibratory roller
1T seated driving roller is mainly used for compaction and leveling of ditches, roads and sports fields, as well as for compaction of asphalt surfaces.
1. Small working radius, can work in a narrow area, suitable for groove backfilling;
2. International brand HONDA gasoline engine or mingyou diesel engine, quality assurance, superior performance, easy to start;

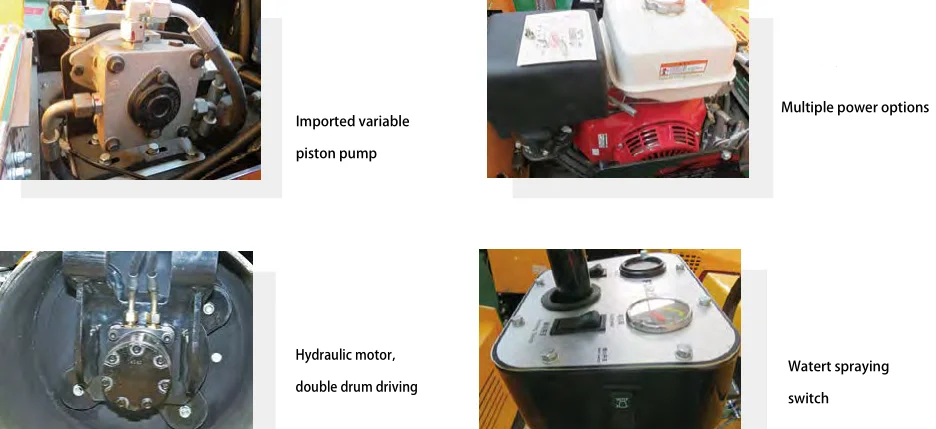

3. Adopt American hydraulic transmission unit, infinitely variable speed, easy to walk before and after, easy to change direction;
4. The engine is CF186, electric start, the machine adopts hydraulic vibration, more easy and convenient operation;

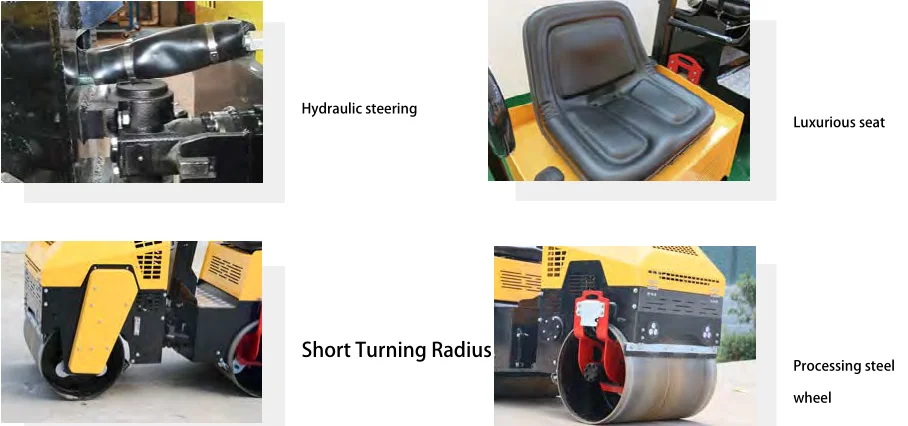

5. Luxurious seats are installed for easy adjustment;
6. Adopt internationally famous NSK bearing and imported hydraulic valve block to ensure the working performance of the machine;
7. Plastic-sprayed surface, beautiful and beautiful, rust and corrosion resistant.
2. International brand HONDA gasoline engine or mingyou diesel engine, quality assurance, superior performance, easy to start;
3. Adopt American hydraulic transmission unit, infinitely variable speed, easy to walk before and after, easy to change direction;
4. The engine is CF186, electric start, the machine adopts hydraulic vibration, more easy and convenient operation;
5. Luxurious seats are installed for easy adjustment;
6. Adopt internationally famous NSK bearing and imported hydraulic valve block to ensure the working performance of the machine;
7. Plastic-sprayed surface, beautiful and beautiful, rust and corrosion resistant.
model | BDXGXYL880 |
speed | 0-5km/h |
Tank volume | 19L |
Theory of climbing ability | Thirty percent |
Lubricating oil quantity | 0.6 L |
Fuel consumption | 313g/kWh |
Static load line | 20/55N/cm |
Nominal amplitude | The 0.6 mm |
Front steel wheel width | 740mm |
The vibration frequency | 70Hz |
Front steel wheel diameter | 560mm |
Vibration force | 27kN |
Rear steel wheel width | 800mm |
The tank volume | 60L |
Rear steel wheel diameter | 560mm |
Packing size | 2100x1000x1650mm |
drive | Full hydraulic drive |
vibration | Electromagnetic clutch |
Work weight | 1000kg |
Engine type | Changfa CF186/ Changfa 13 water-cooled/Honda 390 |
Engine type：diesel water-cooled 4-stroke single cylinder | Gasoline engine air-cooled 4-stroke OHV single cylinder |
Start the way | Hand pull and electric start |

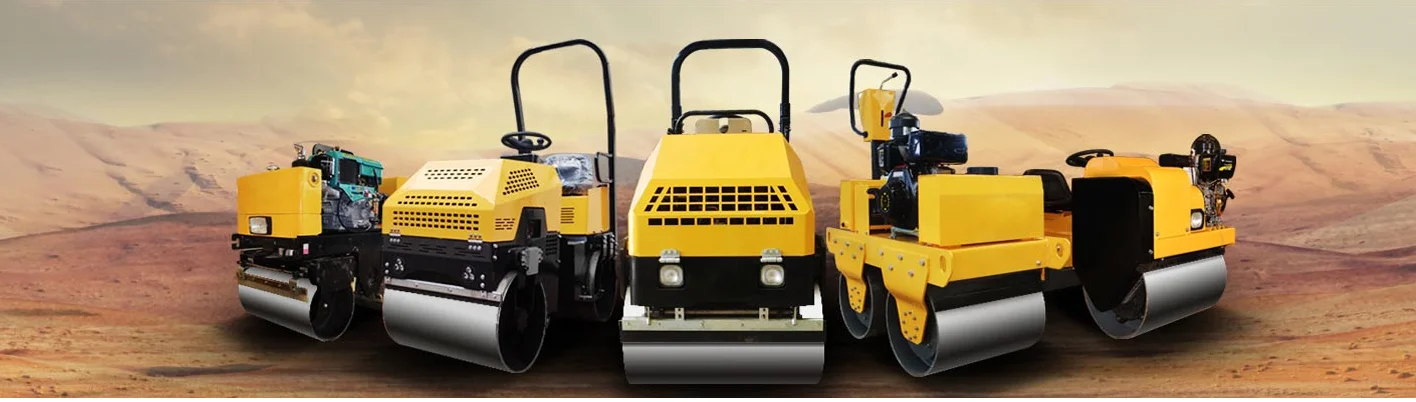

More Model Options
Model | BD-S600 | BD-S600C | BD-JS600C | BD-800 | BD-880 |
Speed(km/h) | 0-4 | 0-4 | 0-6.5 | 0-4 | 0-5 |
Fuel tank volume(L) | 21 | 21 | 0.3 | 20 | 19 |
The oretical climbing ability (%) | 30 | 30 | 30 | 30 | 30 |
Static line load(N/cm) | 53 | 53 | 40 | 75 | 20/55 |
Nominal Amplitude(mm) | 0.5 | 0.5 | 0.7 | 0.5 | 0.6 |
Vibrating frequency(Hz) | 70 | 70 | 70 | 70 | 70 |
Exciting force(KN) | 20 | 20 | 20 | 20 | 27 |
Water tank volume(L) | 20 | 20 | 50 | 26 | 60 |
Package dimensions(mm) | 1450*1100*1200 | 1450*1100*1200 | 1450*900*1920 | 1510*870*1920 | 2100*1000*1650 |
Drive Type | hydraulic pressure stands | hydraulic pressure stands | hydrostatic transmission | Full hydraulic transmission | Full hydraulic transmission |
Vibration | automatic clutch | automatic clutch/electromagnetic clutch | electromagnetic clutch | electromagnetic clutch | electromagnetic clutch |
Net Weight(kg) | 550 | 550 | 550 | 780 | 1000 |
Starting mode | Hand pull | Hand pull/Electric | Hand pull/Electric | Hand pull/Electric | Hand pull/Electric |
Company Profile
Certifications

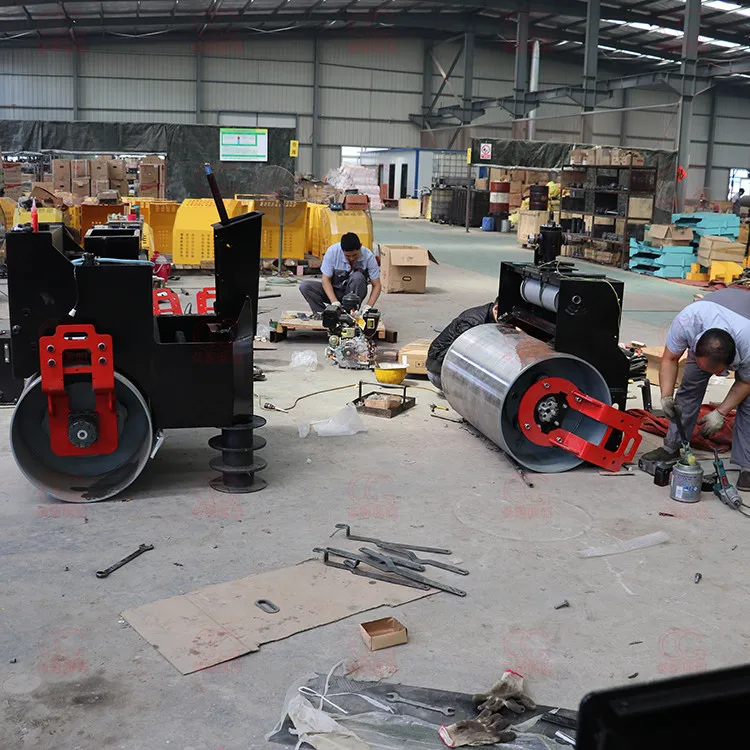

Production Process
Partner

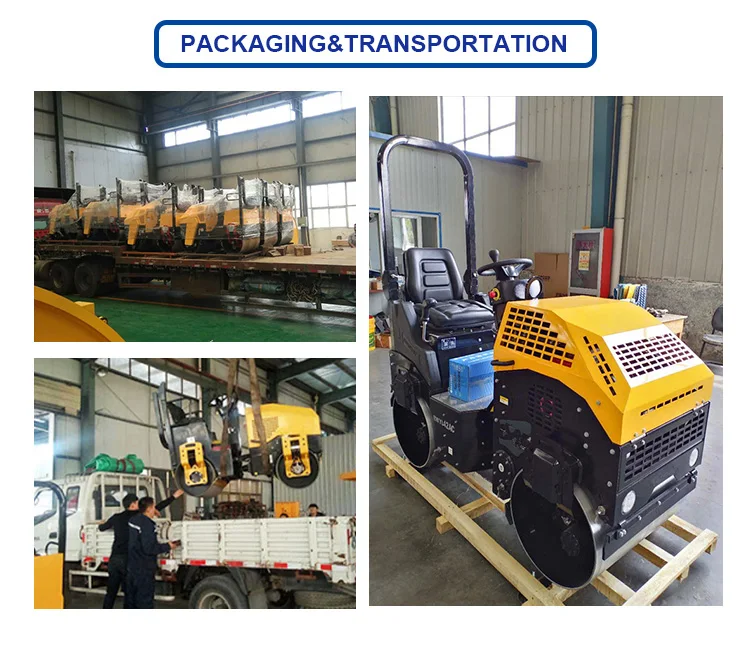

Transport
FAQ
1.Q: Are you a manufacturer?
A: Yes, we are a manufacturer located in Shandong province which in the manufacturing center of construction machinery. We have passed ISO and CE certificate and our products have been exported to over 20 countries.
2.Q: Why choose BADA?
A:With our two factories and more than 100 workers, we only produce very high quality products.2 Years warranty and only 1% repair rate during the past 10 years, which is cost effective and win good reputation.
3.Q: Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply higher configuration.
4.Q: How about your After-sales service?
A: We have 3 aftersales, and can provide 24-hour technical support by phone and email.
5.Q: What is your lead time?
A: Normal goods usually take 7-10 days, and customization takes 15-25 days.
6.Q: Is it convenient to visit your factory? How to go there?
A: Warmly welcome to visit our factory. When you arrive, we will pick you up.
A: Yes, we are a manufacturer located in Shandong province which in the manufacturing center of construction machinery. We have passed ISO and CE certificate and our products have been exported to over 20 countries.
2.Q: Why choose BADA?
A:With our two factories and more than 100 workers, we only produce very high quality products.2 Years warranty and only 1% repair rate during the past 10 years, which is cost effective and win good reputation.
3.Q: Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply higher configuration.
4.Q: How about your After-sales service?
A: We have 3 aftersales, and can provide 24-hour technical support by phone and email.
5.Q: What is your lead time?
A: Normal goods usually take 7-10 days, and customization takes 15-25 days.
6.Q: Is it convenient to visit your factory? How to go there?
A: Warmly welcome to visit our factory. When you arrive, we will pick you up.
