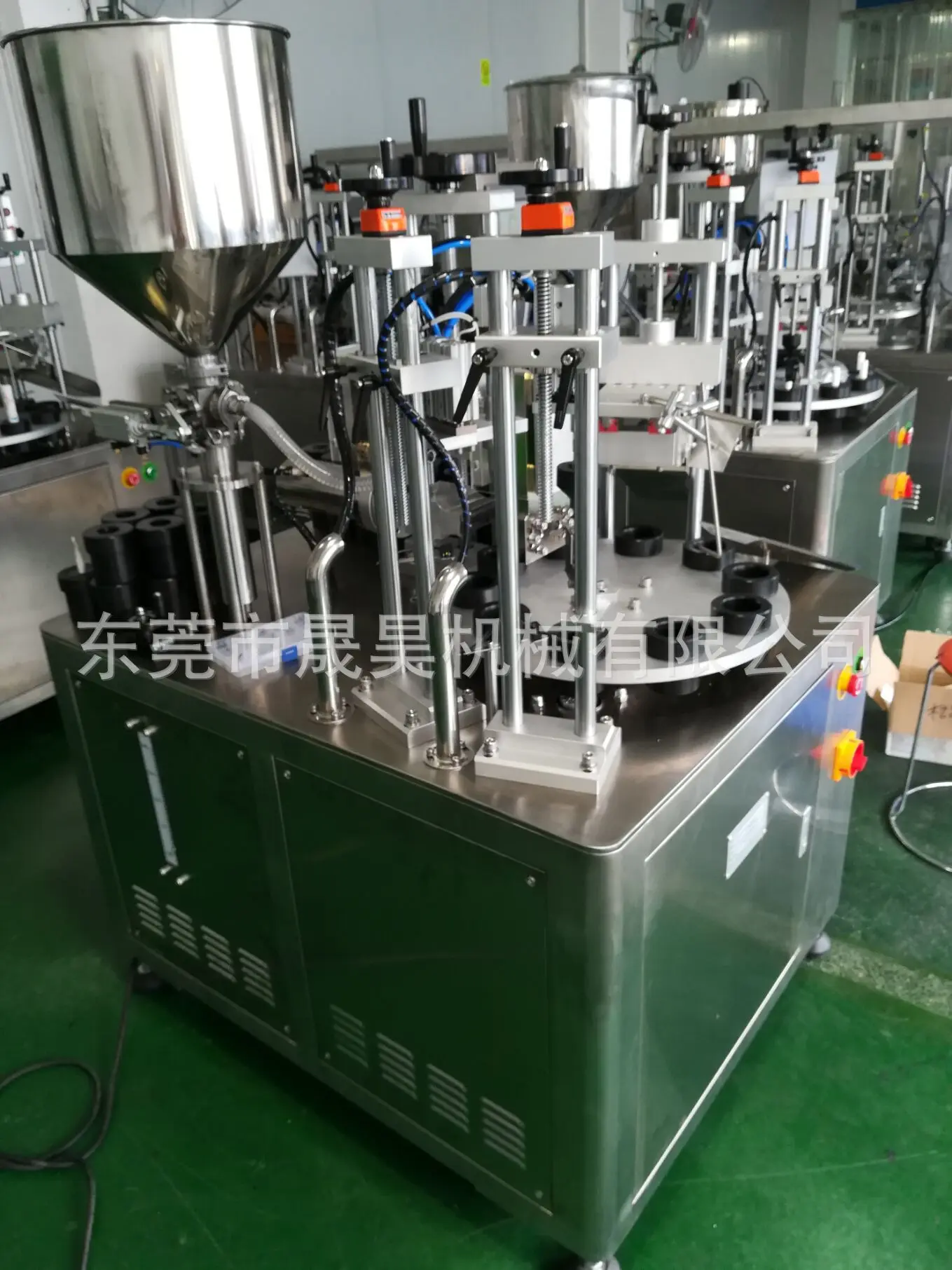

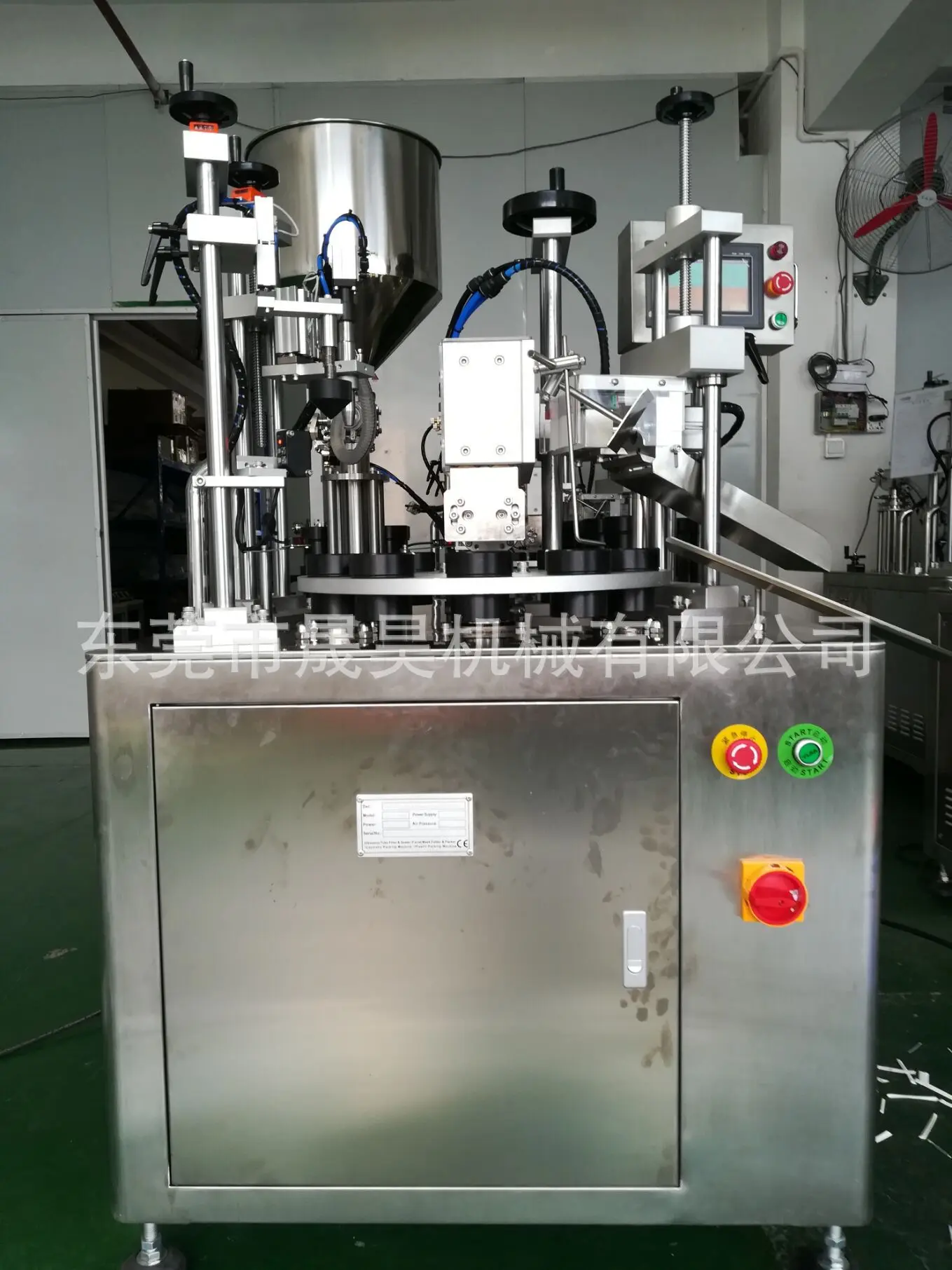

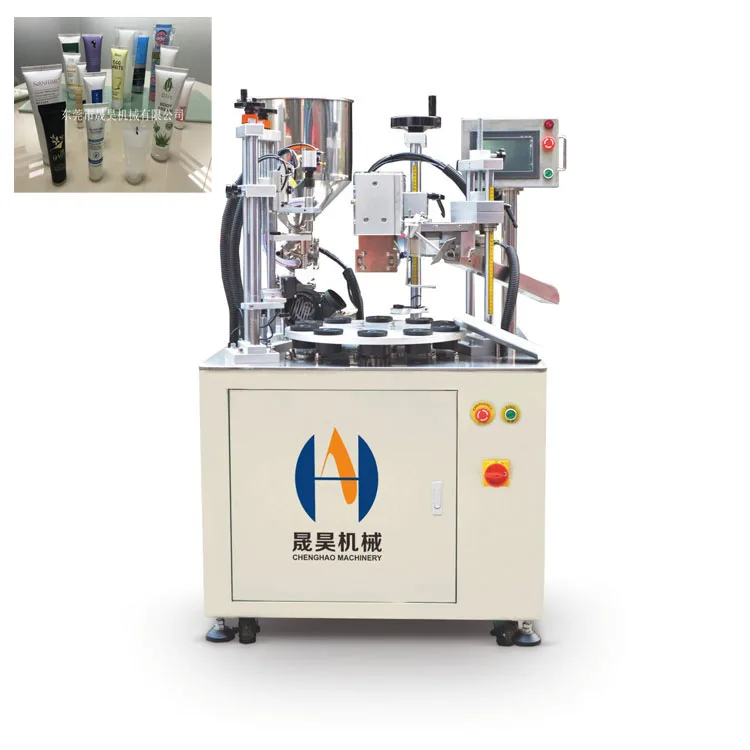

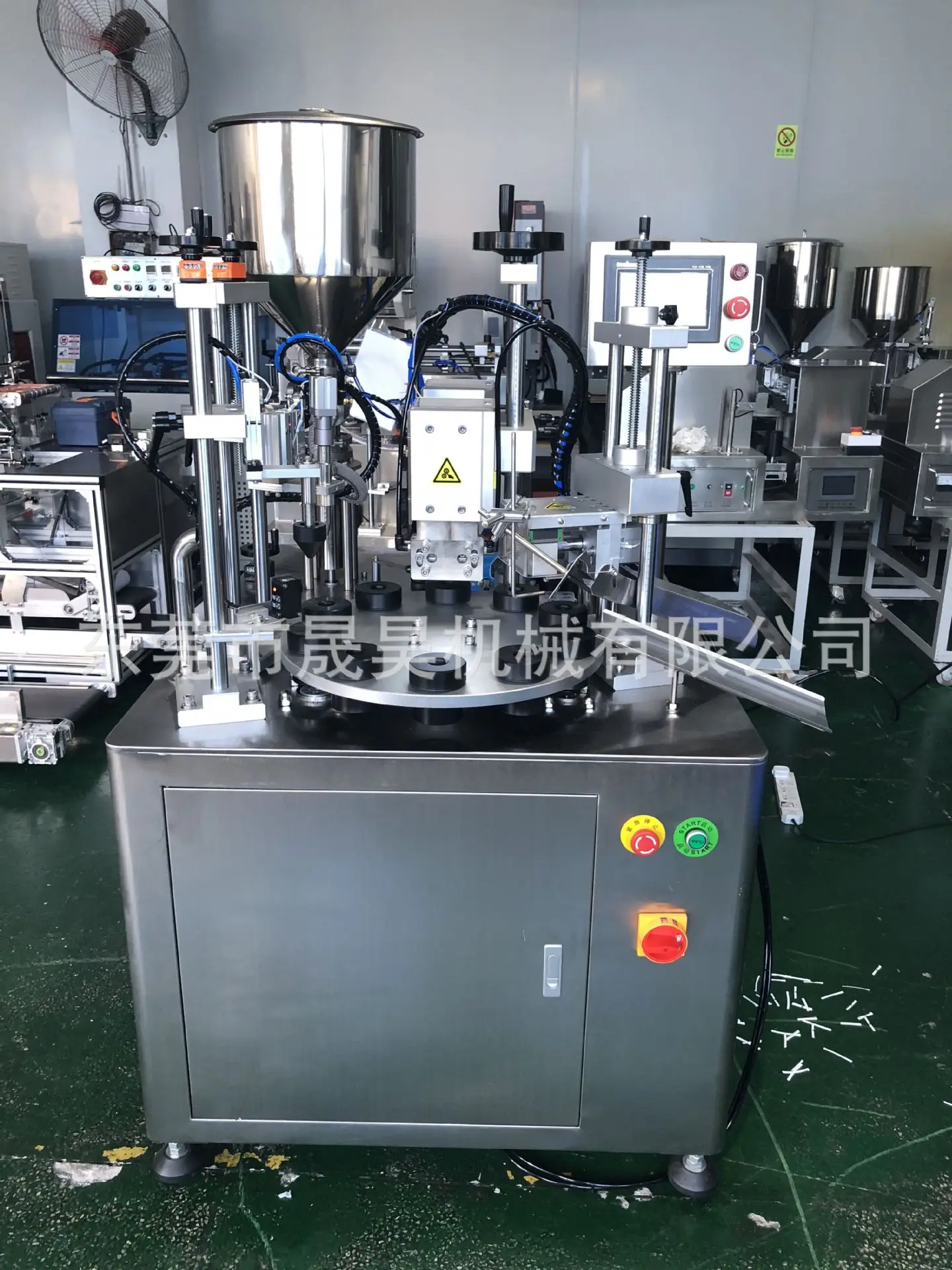

Products Description










Characteristic:
PLC program control, strong versatility, complete functions, tail sealing appearance beautiful, neat, firm sealing, good stability. At the same time, in order to meet the filling requirements of different viscosity, it can be equipped with different specifications of filling head.
1. The transmission part is enclosed under the platform, safe and reliable, without pollution;
2. The filling and sealing part is installed above the platform, which is easy to observe, operate and maintain;
3. PLC control, man-machine dialogue interface;
4. The rotary table is driven by cam, with high speed and high precision;
5. Manual pipe installation to ensure accurate access to the pipe socket;
6. Photoelectric benchmarking workstation, with high-precision probe, stepper motor control hose pattern in the correct position
7. The filling nozzle is equipped with a cutting mechanism to ensure the filling quality;
8. No filling without tube;

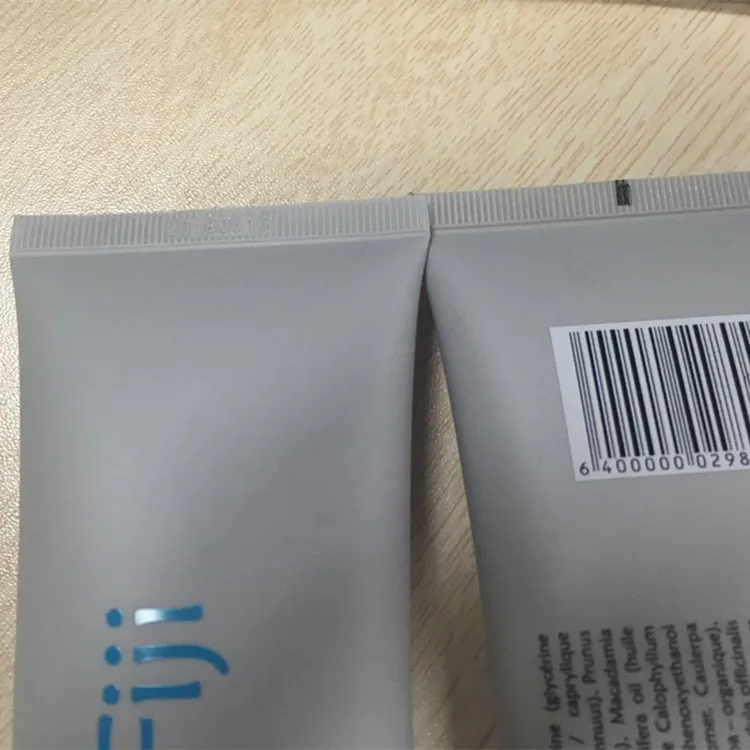

9. Ultrasonic sealing is adopted for tail sealing
10. The work station of typing code will print the word code on the position required by the process automatically;
11. The plastic manipulator cuts the tail of hose into right angle or round corner for selection;


Advantage:
1. All contact materials and some related parts of the whole machine are made of high-quality stainless steel. Quick change device is selected for parts requiring cleaning, which is convenient for disassembly and cleaning.
2. When some materials need to be heated for heat preservation, a heating and constant temperature device can be installed outside the barrel. Any use of plastic pipe and composite tube as packaging materials, you can rest assured to choose the machine.
3. It is the best choice for cosmetic industry, pharmaceutical industry, adhesive industry, shoe polish industry and other related industries


Specifications


Model
CH-006
Output Power
2KW
Voltage
220V/110V 50/60HZ
Sealing Diameter
5-50mm
Hose height
10-250mm
Capacity
20-25pcs/min
Working pressure
0.6mpa
Machine Size
1300*1200*1550mm
Machine Size
320KG


Application




Purpose:

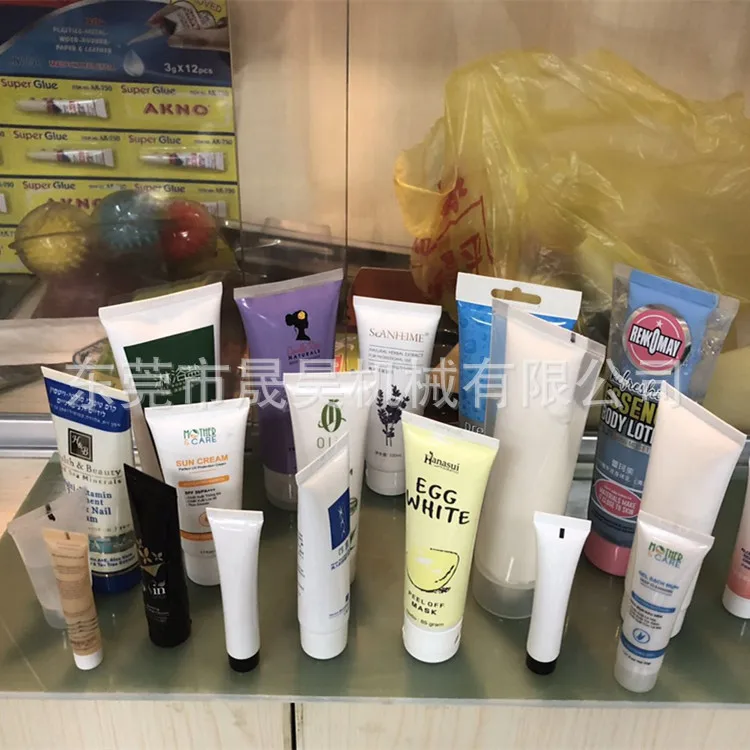

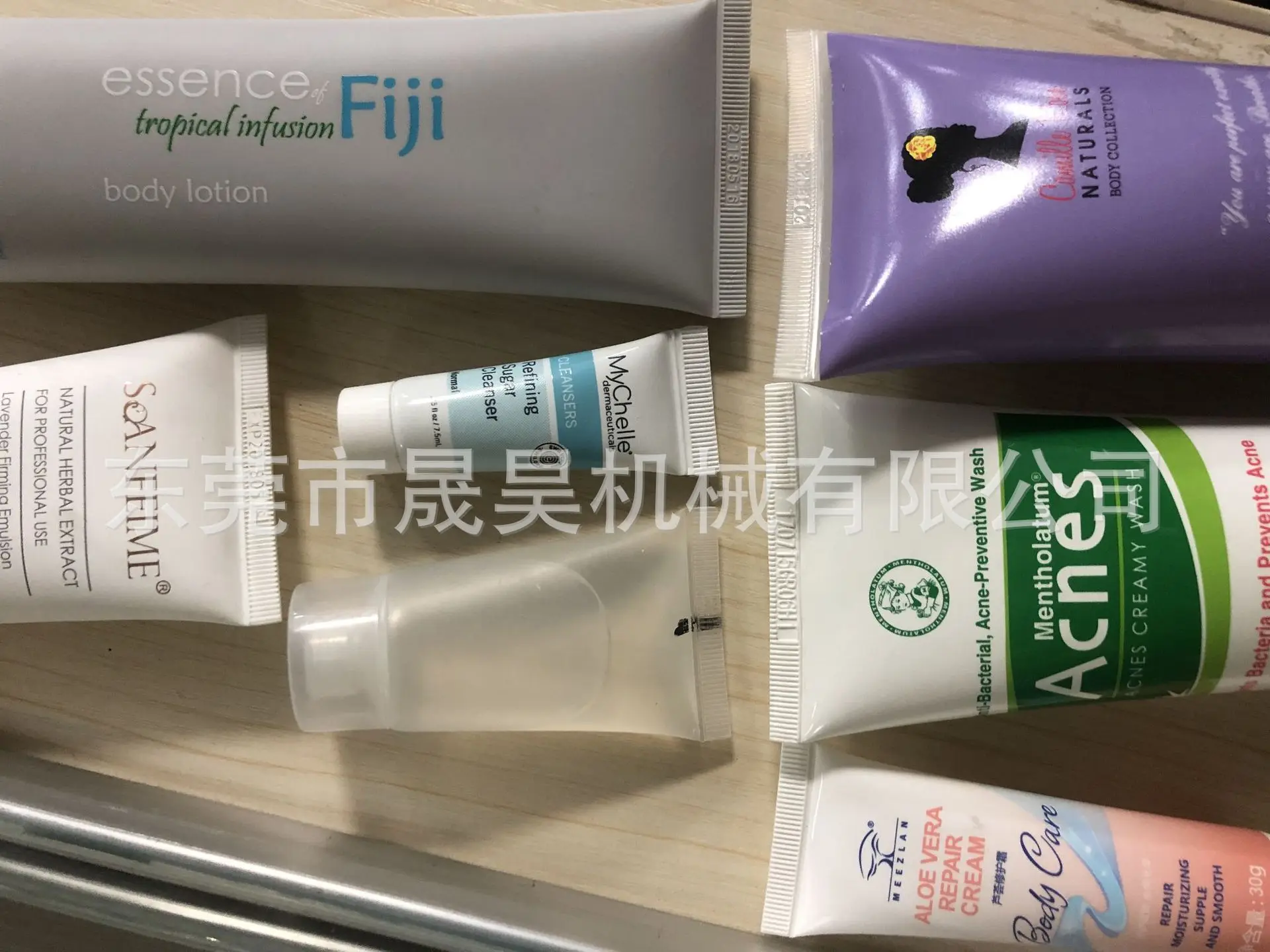

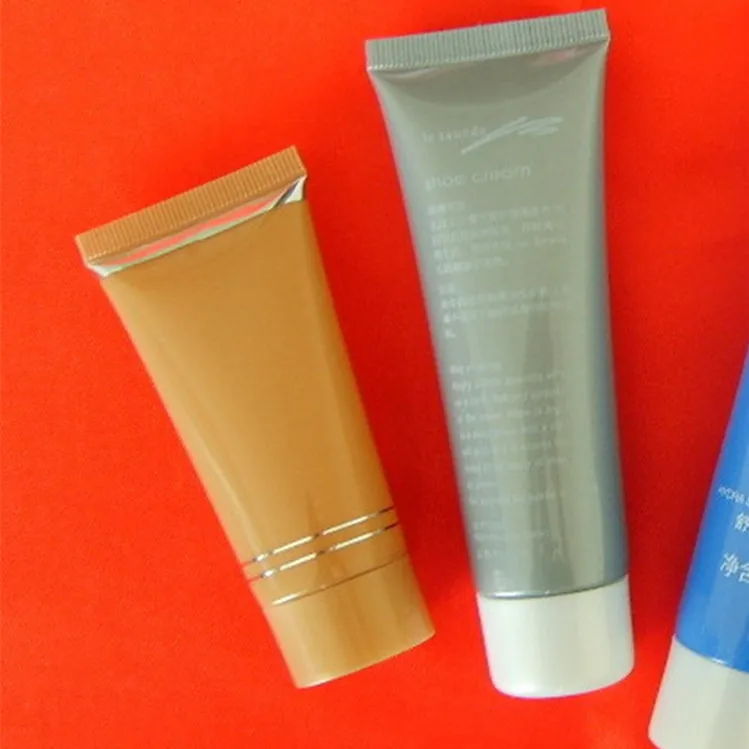

This machine is mainly used to seal the end of materials with hose as packing container. The product adopts closed and semi closed paste and liquid, with no leakage at the end of sealing, good consistency of weight and capacity, sealing and printing can be completed at one time. It is suitable for packaging products in pharmaceutical, daily chemical, food, chemical and other fields. Hair coloring, cleansing cream, skin care lotion, ointment, hair dye, toothpaste, shoe polish, adhesive, AB adhesive, epoxy adhesive, neoprene and so on.


Product packaging




Packing:

We use ply-wood case for packing machines, it will meet export standard like safty, protection requirment and durable performace in long time shipping by sea or air, our package no need fumigation.

Delivery:

For machine is big and heavy parcel, and different country with different delivery cost. And the best delivery we suggest is by sea, so the delivery cost will be depended on your destination port. The price show on the website just the machine EXW price, please understand.
