Product Description
Artemis TI-CS-T1 Thermal Imaging Camera
Artemis TI-CS-T1 Thermal Imaging Camera is a thermal temperature camera, which is specially designed to measure infrared human body temperatures.
It has the characteristics of accurate temperature measurement, real-time imaging, automatic high temperature tracking, fast aiming, etc. It can be used to measure human body temperatures in public places to prevent the spread of disease.
This thermal temperature camera is lightweight, easy to carry and easy to use.
Quick Questions About T1
Q1. Can the temperature screening equipment be used outdoors?
A: The optimal installation environment is indoors (a relatively isolated area from the outside world), which is the same as the current surface temperature measurement methods on the market. The best environment temperature range is 15℃ to 25℃ (59℉ to 77℉).
Q2. Thermal Camera is IP54?
A: T1 thermal camera is IP54 - Protected against dust limited ingress, no harmful deposits and Protected against water splashed from all directions, limited ingress permitted.
Q3. Can I use this T1 to monitor in real-time?
A: The T1 body temperature solution is designed to be used for real-time monitoring, allowing you to immediately detect high body temperatures in a controlled environment – range from 1 to 4.5 meters (3 to 15 feet). It can be powered by battery which lasts 2 hours or by 110V power supply which lasts for a long period of time.
For better accurate reading, we recommend people face forward toward to the camera, and stand still for a couple of seconds. Showing a side face or only appearing for a second may not provide accurate readings.
A: The optimal installation environment is indoors (a relatively isolated area from the outside world), which is the same as the current surface temperature measurement methods on the market. The best environment temperature range is 15℃ to 25℃ (59℉ to 77℉).
Q2. Thermal Camera is IP54?
A: T1 thermal camera is IP54 - Protected against dust limited ingress, no harmful deposits and Protected against water splashed from all directions, limited ingress permitted.
Q3. Can I use this T1 to monitor in real-time?
A: The T1 body temperature solution is designed to be used for real-time monitoring, allowing you to immediately detect high body temperatures in a controlled environment – range from 1 to 4.5 meters (3 to 15 feet). It can be powered by battery which lasts 2 hours or by 110V power supply which lasts for a long period of time.
For better accurate reading, we recommend people face forward toward to the camera, and stand still for a couple of seconds. Showing a side face or only appearing for a second may not provide accurate readings.

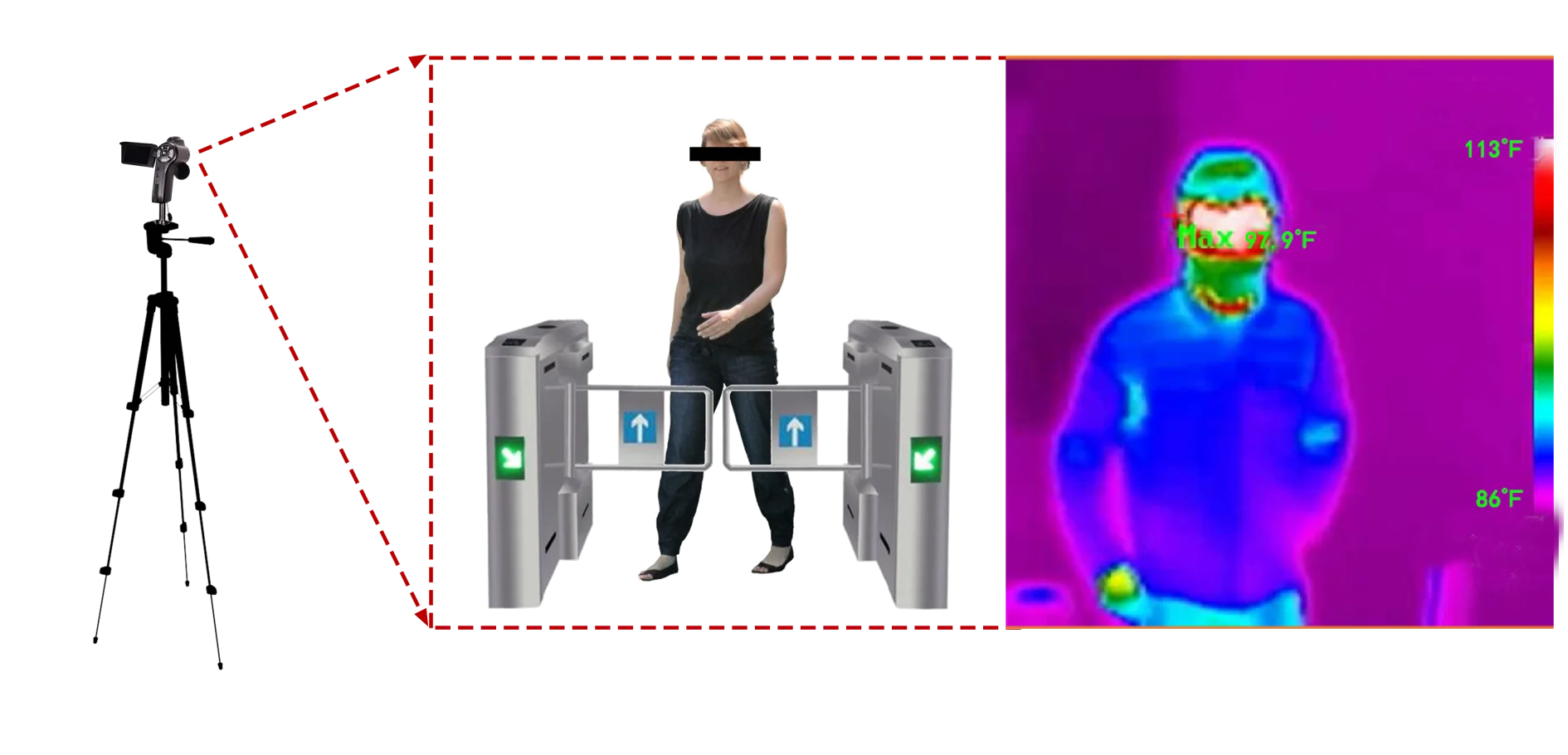

Product Usage
Artemis T1 Use Scenario
Airports
Railway stations
Hospitals
Schools
Why Choose Us
Why we are here?
We are here to help businesses reopen, keep your employees and customers safe as well as safeguard the future of your business for unexpected events.
Specification Table
Detector Data | ||
Type | Uncooled FPA | |
IR resolution | 384×288 | |
Pixel pitch | 17μm | |
Spectral range | 7.5～14μm | |
NETD/Sensitivity | 50mK | |
Lens Data | ||
FOV | 24°× 18° | |
Minimum imaging distance | 30cm | |
IFOV | 1.2mrad | |
Focus | Motor/Auto | |
Lens(optional) | 45°×34°/15cm, 12°×9°/1m | |
Image Performance | ||
Display | High definition 3.2 ”color digital LCD display, rotatable,800×480 | |
Visual camera | 3 megapixel CMOS, auto focus, 1 led fill light | |
Frequency | 50Hz/60Hz | |
Amplification | 1X～8X Continuous zoom | |
Color palettes | 12 options (including iron red, rainbow, black hot and white hot) | |
Contrast/Brightness | Auto/Manual | |
Measurement | ||
Temperature range | +30℃～+45℃ | |
Measurement accuracy | ±0.3℃ | |
Measurement mode | Real-time 4 movable points, 3 movable areas (highest temperature, lowest temperature capture, average temperature measurement), movable line temperature measurement, isothermal analysis, temperature difference measurement, temperature alarm (sound, color) | |
Measurement correction | Auto/Manual | |
Emissivity correction | Adjustable emissivity from 0.01 to 1.0, or correct emissivity through a predefined material emissivity meter | |
Background temperature correction | Auto (based on the entered background temperature) | |
Atmospheric transmissivity correction | Auto (according to the entered distance, relative humidity, ambient temperature) | |
Function settings | Date / time, temperature unit ℃/℉/K, language | |
Image storage | ||
Built-in memory | Yes, can store> 500 frames | |
Storage media | 8G, can store> 8000 frames | |
Storage method | Auto / manual single frame image | |
Single frame infrared image format | JPEG format with 14-bit measurement data image | |
One frame visible image format | JPEG format, or stored with a single frame image (PIP) | |
Voice annotation | 40s voice format, stored with image (built-in microphone) | |
Laser indicator | ||
Laser classification | Second level | |
Laser power | 1mW | |
Laser wavelength | 635nm red | |
Interface | ||
Power interface | Yes | |
SD card slot | Yes | |
Video output | CVBS | |
Audio output | Yes | |
USB interface | USB2.0, Image, measurement data, voice transmission to computer | |
Tripod | 1/4” -20 | |
Power System | ||
Battery type | Lithium battery, rechargeable | |
Operating time | 3h continuous working (room temperature) | |
External power | DC: 5V, ±5% | |
Charging system | Smart charger or local charger | |
Power saving | Yes | |
Environment Parameters | ||
Operating temperature range | +16℃～+32℃ | |
Storage temperature range | -40℃～+70℃ | |
Humidity | ≤95%(non-condensing) | |
Shock | 25G(IEC60068-2-29) | |
Vibration | 2G(IEC60068-2-6) | |
Encapsulation | IP54(IEC60529) | |
Physical data | ||
Size | 128mm×62mm×154mm | |
Weight | ≤0.4kg(With battery and standard lens) | |
Packing | ||

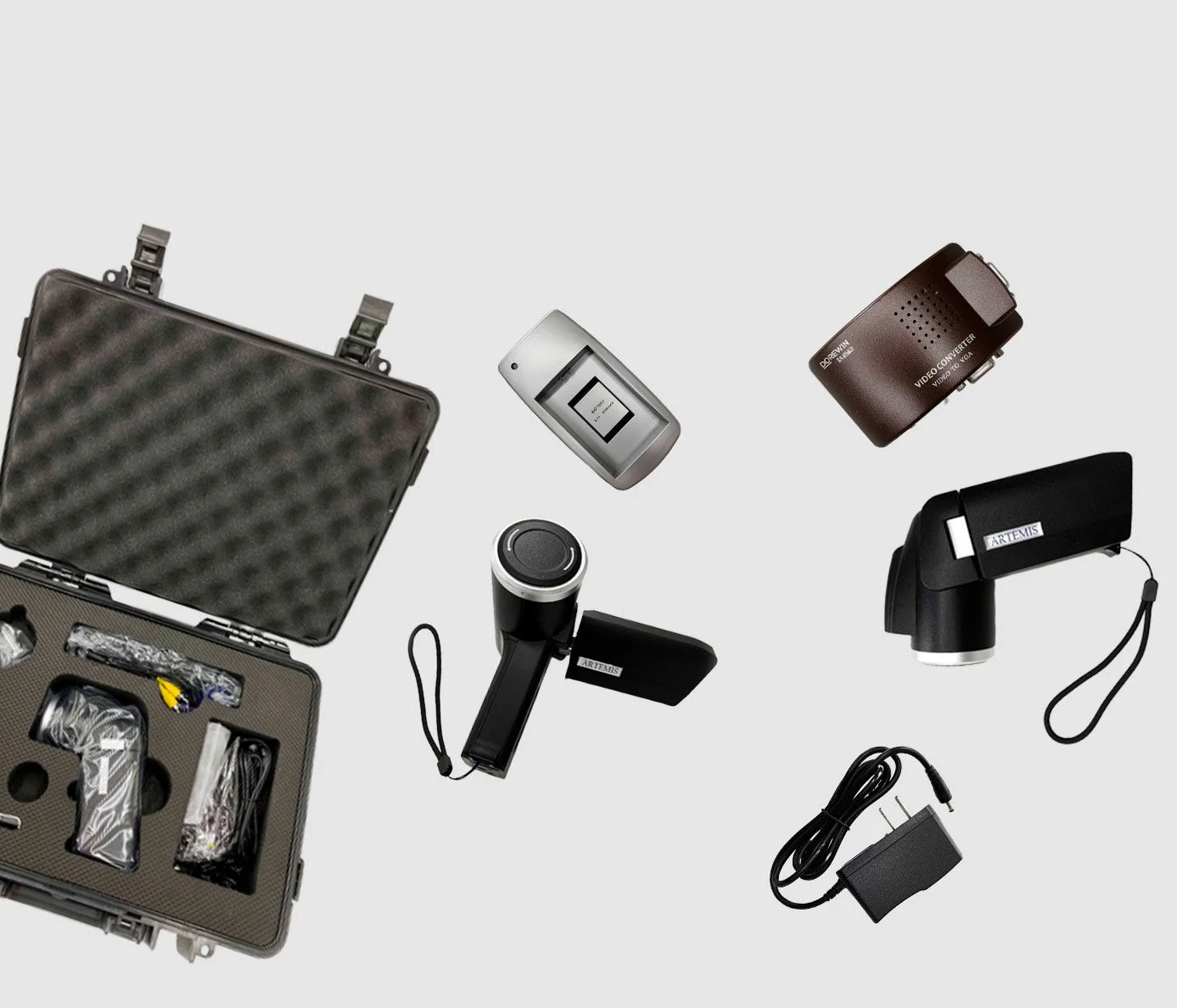

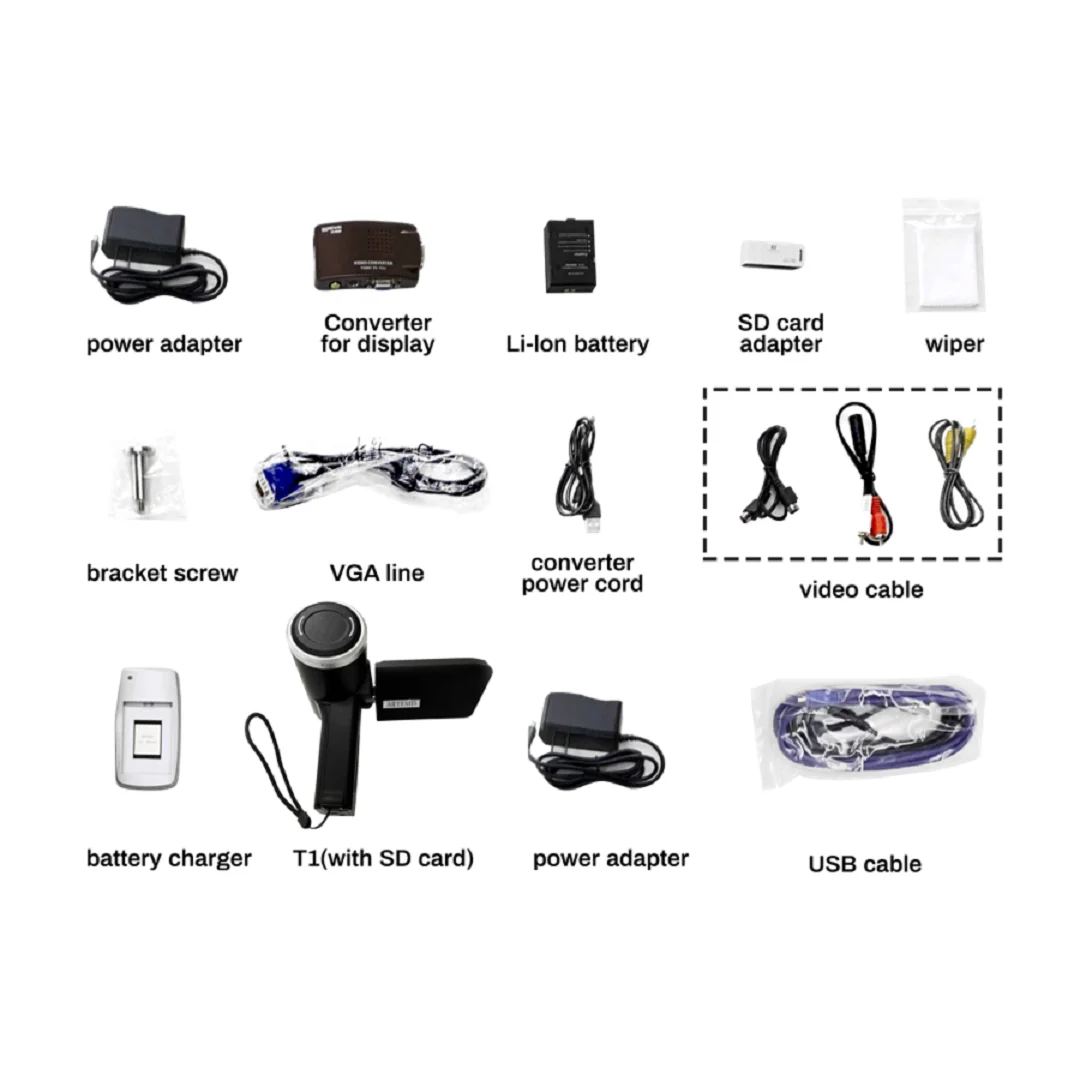

Standard | Thermal Imaging Camera(with standard lens), 2 lithium batteries, battery charger, adapter, USB cable, SD card, card reader, software CD, warranty card, certificate, calibration book | |
Optional accessories | Laptop, SLR | |
Quality assurance | ||
ISO9001 | Yes | |
CE | Yes | |
Company Profile
Chengdu Meixiang Technology is an affiliate of CreativeStar Solutions, a Massachusetts-based company providing essential technology, software, and services for businesses.
Not only does our reliable technology and software help businesses reopen and prepare them for future unexpected events, but our people are there to help every step of the way, helping you find the most suitable solution. Our solution-based company is dedicated not only to keeping employees and customers safe but also to safeguarding the future of your business for unexpected events.
Not only does our reliable technology and software help businesses reopen and prepare them for future unexpected events, but our people are there to help every step of the way, helping you find the most suitable solution. Our solution-based company is dedicated not only to keeping employees and customers safe but also to safeguarding the future of your business for unexpected events.
Packing
FAQ
1. What's the order process?
1) Inquiry --- You tell us your clear requirements (total quantity and package details).
2) Quotation --- We send you a quotation form including the product specifications, quantities and prices.
3) Ordering --- After you confirm the order details, we'll send you an invoice.
4) Payment --- You make full payment for the order.
5) Shipping --- We ship the products to you from our warehouse in the USA, WITHOUT any shipment fee.
2. What terms of payment you use?
Only T/T payment is accepted. As for other payment terms, it depends on the total amount and products.
3. What is the average delivery time?
Our warehouse is located in Boston, MA, USA. It usually takes about 5 to 10 working days if the amount is less than 50. Bulk order may take longer.
4. Is there a better price available?
All our products are at the lowest and best prices now.
5. What about the after-sale services and warranty?
The warranty is 1 year. We have professional technical services in both China and the USA to walk you through and answer any of your questions in use.
1) Inquiry --- You tell us your clear requirements (total quantity and package details).
2) Quotation --- We send you a quotation form including the product specifications, quantities and prices.
3) Ordering --- After you confirm the order details, we'll send you an invoice.
4) Payment --- You make full payment for the order.
5) Shipping --- We ship the products to you from our warehouse in the USA, WITHOUT any shipment fee.
2. What terms of payment you use?
Only T/T payment is accepted. As for other payment terms, it depends on the total amount and products.
3. What is the average delivery time?
Our warehouse is located in Boston, MA, USA. It usually takes about 5 to 10 working days if the amount is less than 50. Bulk order may take longer.
4. Is there a better price available?
All our products are at the lowest and best prices now.
5. What about the after-sale services and warranty?
The warranty is 1 year. We have professional technical services in both China and the USA to walk you through and answer any of your questions in use.
