19 мм кольцевой светодио дный кнопочный 4 контакта водонепроницаемый IP65 1NO мгновенные переключатели из нержавеющей стали плоский круглый металлический
- Категории: Push Button Switches >>>
- Поставщик: Jiangxi,Shuangdu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description

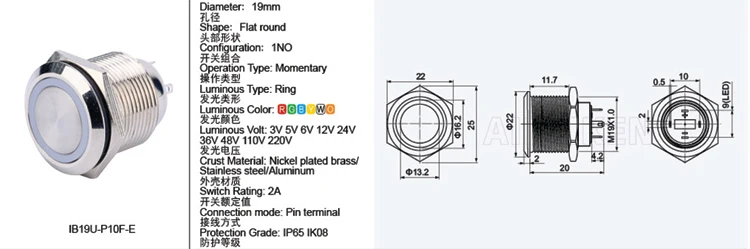

19mm Ring LED Pushbutton 4pins waterproof IP65 1NO momentary Stainless Steel switches flat round Metal Push Button Switch
Specification: Switch Rating: 2A/250VAC
Panel thickness: 1 - 10mm
Protection level: IP65, IK10
Mounting Cut Hole: 19mm
Head Diameter: 22mm
Operation Type: Momentary
Switch Contact: 1NO normally open
LED Rating: AC/DC 12V
LED Pattern: Ring Indicator
Contact Material: Silver alloy
Button Material: Nickel Plated Brass / Stainless Steel
Product Paramenters
Detailed Specification | ||
Product type: | Waterproof Push Button Switch | |
Mounting diameter | 19mm | |
Head shape | Flat Head | |
Switch Combination | 1NO | |
Operation type | Momentary | |
Max Current | 2A | |
Illuminating or Not | Yes | |
Voltage Available | 3V/5V/12V/24V/36V/110V/220V/250V | |
Housing material | Brass nickel,Stainless steel,aluminum oxide | |
Contact Resistance | 50mΩ max | |
Insulation Resistance | 1000MΩ Min | |
Dielectric Intensity | 2000VAC | |
Accessories | Nut, Rubber Waterproof O-ring | |
Installation Instructions
Details Images
Company Profile
Product packaging
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment? 12mm push button switch 12V LED PUSH BUTTON SWITCH 8mm switch
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery? 16mm push button switch, 16mm led switch Momentary switch reset button switch
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? push button switch 12V LED PUSH BUTTON SWITCH
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples? momentary switch on off SWITCH
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy? moon off push button switch factorymentary switch on off SWITCH
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery? on off push button switch factory
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment? 12mm push button switch 12V LED PUSH BUTTON SWITCH 8mm switch
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery? 16mm push button switch, 16mm led switch Momentary switch reset button switch
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? push button switch 12V LED PUSH BUTTON SWITCH
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples? momentary switch on off SWITCH
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy? moon off push button switch factorymentary switch on off SWITCH
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery? on off push button switch factory
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
