Новая Foton 8x4 колеса 12 кузов рефрижераторного в продаже
US $6000-$10000
New product carrier freezer truck refrigeration units for refrigerated box trucks
- Категории: Refrigerator Trucks >>>
- Поставщик: Jinan,Sino,Truck,Sales,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Specification
SPECIFICATION Of 8×4 cargo truck | ||||||||||
Truck Brand | SINOTRUK—HOWO | |||||||||
Driving type | Left hand driving | |||||||||
Truck Model | ZZ1317N4667W | |||||||||
Dimension(Lx W x H)（unloaded）（mm） | 11984x2496x3785 | |||||||||
Cargo body dimension (L x W x H)mm | 9280x2300x2400 standard size | |||||||||
Cargo body shape | According to customers requirements | |||||||||
Approaching angle/Departure angle（°） | 16/14 | |||||||||
Overhang(front/rear) (mm) | 1500/2734 | |||||||||
Wheel base (mm) | 1800+4600+1350 | |||||||||
Max speed（km/h） | 90 | |||||||||
Curb weight（kg） | 13420 | |||||||||
Loading Weight（kg） | 31000 | |||||||||
Engine (Made in China) | Model | WD615.69 water-cooled，four strokes，6 cylinders in line with water cooling , directly injection | ||||||||
Fuel type | Diesel | |||||||||
Horse Power, max（kw/rpm） | 336HP | |||||||||
Emission | EURO II | |||||||||
Fuel tanker capacity (L) | 400 | |||||||||
Transmission | Model | HW19710,10 forwards and 2 reverse | ||||||||
Brake system | Service brake | Dual circuit compressed air brake | ||||||||
Parking brake | spring energy, compressed air operating on rear wheels | |||||||||
Auxiliary brake | Engine exhaust brake | |||||||||
Steering system | Model | hydraulic steering with power assistance | ||||||||
Front axle | HF7 | |||||||||
Rear axle | ST16 | |||||||||
Color | Optional | |||||||||
Tyre | 295/80R22.5 Tubeless tire | |||||||||
Tyre quantity | 10pcs + 1 spare | |||||||||
Electrical system | Battery | 2X12V/165Ah | ||||||||
Alternator | 28V-1500w | |||||||||
Starter | 7.5Kw/24V | |||||||||
Cab | HW76 cab, one sleeper with air conditioner, all-steel forward control, 55º hydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | |||||||||
Refrigerator unit | Thickness: Bottom: 105mm Side and rear door: 85mm | |||||||||
Brand: Thermo King(American) Type: Independent | ||||||||||
Temperature: -20 degree—-15 degree | ||||||||||
One pair door on the back side One door on the side | ||||||||||
More seals on the cryogenic insulation chamber effectively increase air-tightness | ||||||||||
The seamless body is smooth, easy to clean, and both impact and corrosion resistant. | ||||||||||

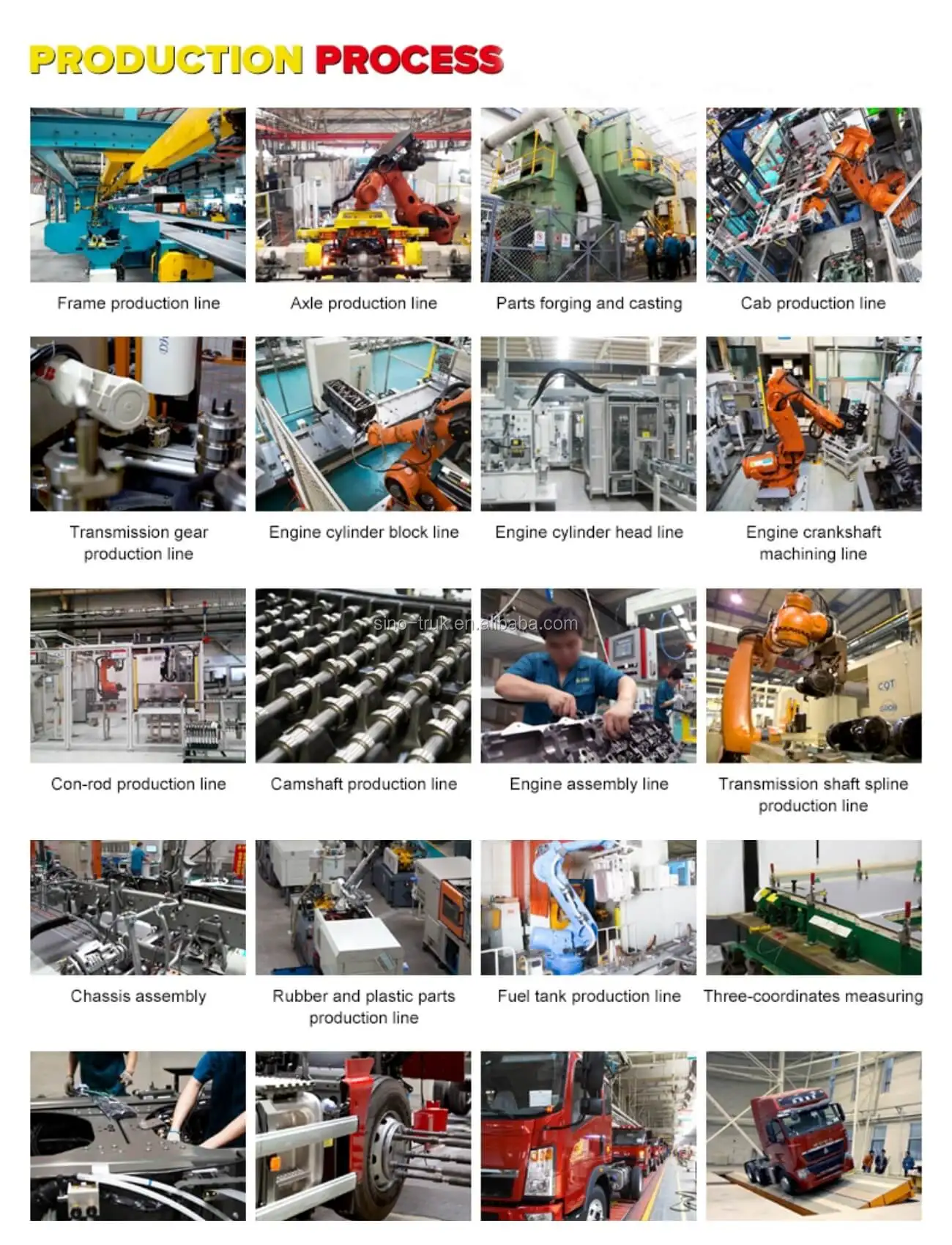

Production Process

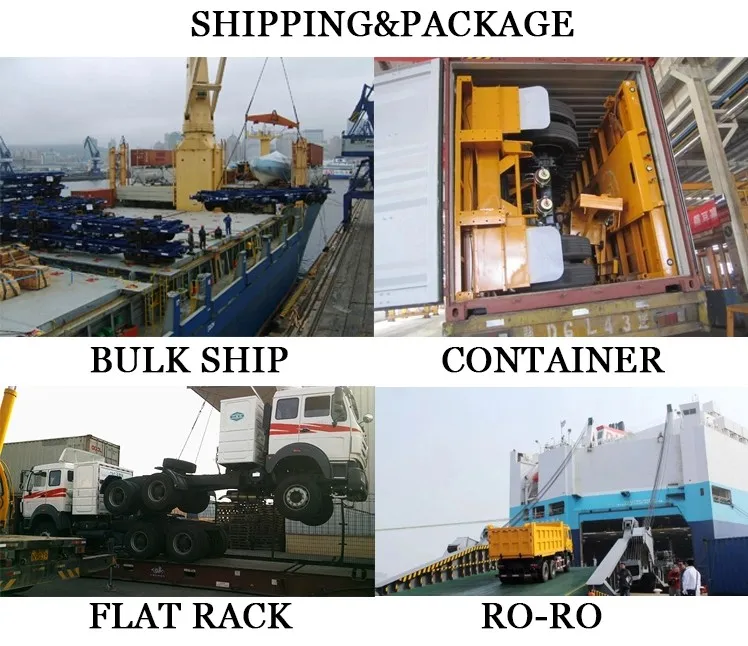

Packing & Delivery
Packaging Details: All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way. There are three way can be choose, RORO, BULK CARGO VESSEL AND FLAT RACK CONTAINER
Port: Tianjin,Qingdao
Lead time: Shipped in 30 days after payment
Port: Tianjin,Qingdao
Lead time: Shipped in 30 days after payment
FAQ
Q. Can your trucks be legally used in our country ?
A: Yes, they are CCC and ISO approved, and it has valid VIN number so that it can be used legally on road
Q. How about your product quality?
A: The products have passed the ISO,CCC,SGS,BV, and CONTECNA qualification certification.All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.
Q. How about your company's service, especially after-sale service?
A: Jinan Sino Truck Sales Co.,Ltd. have been in this field for many years, our company is constantly improving the service quality to provide excellent service for customers according to the “client first” principle.We always do our best to solve all the problems and put our customer's interests in the first place.
Q. Is there any advantages of your price?
A: Jinan Sino Truck Sales Co.,Ld. is one of the important suppliers of Sinotruk, which provides guarantees for reasonable price and good quality. Especially,we provide a new service pattern--online assembly service, which aims to produce cars according to customers’ specific requirements.
Q. What is your lead time and voyage days?
A: Our trucks usually can be completed within 20 working days and the voyage day it may take 30 days to arrive in your ports, it depends on the distance of your country.
A: Yes, they are CCC and ISO approved, and it has valid VIN number so that it can be used legally on road
Q. How about your product quality?
A: The products have passed the ISO,CCC,SGS,BV, and CONTECNA qualification certification.All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.
Q. How about your company's service, especially after-sale service?
A: Jinan Sino Truck Sales Co.,Ltd. have been in this field for many years, our company is constantly improving the service quality to provide excellent service for customers according to the “client first” principle.We always do our best to solve all the problems and put our customer's interests in the first place.
Q. Is there any advantages of your price?
A: Jinan Sino Truck Sales Co.,Ld. is one of the important suppliers of Sinotruk, which provides guarantees for reasonable price and good quality. Especially,we provide a new service pattern--online assembly service, which aims to produce cars according to customers’ specific requirements.
Q. What is your lead time and voyage days?
A: Our trucks usually can be completed within 20 working days and the voyage day it may take 30 days to arrive in your ports, it depends on the distance of your country.
