22 мм включения/выключения и логотип с подсветкой led Настенные переключатели водонепроницаемый мгновенного мгновенный 12v кнопочный пластиковые
- Категории: Switches >>>
- Поставщик: Jiangxi,Shuangdu,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Specification:
Part number: IB22U-P11Z-*/PC
Install diameter:22mm
Switch rating: 5A/250VAC
Shape: White frame Round head
LED and Button color: Blue (or Red, Green, Orange, White, Yellow)
Voltage: 12V(or 24V 110V 220V)
Function: Momentary/Latching
Terminal:5 PIN terminal
Crust material: Plastic
Temperature: - 25 to 55 Degree
Part number: IB22U-P11Z-*/PC
Install diameter:22mm
Switch rating: 5A/250VAC
Shape: White frame Round head
LED and Button color: Blue (or Red, Green, Orange, White, Yellow)
Voltage: 12V(or 24V 110V 220V)
Function: Momentary/Latching
Terminal:5 PIN terminal
Crust material: Plastic
Temperature: - 25 to 55 Degree
Product Paramenters
Model Specification | ||
Model NO. | JDU22U-P11-Power-PC push button switch | |
Mounting diameter | 22mm | |
Head shape | Flat head | |
Switch Combination | 1NO1NC/2NO2NC | |
Operation type | Momentary/Latching | |
Rated Current | 5A | |
Illuminating type | illuminated | |
Illuminating color | Red,green,blue,yellow,orange,white,purple | |
Lamp voltage | 2V/3V/6V/12V/24V/36V/110V/220V/250V | |
Shell material | Plastic | |
Contact Resistance | 50mΩ max | |
Insulation Resistance | 1000MΩ Min | |
Dielectric Intensity | 2000VAC | |
Accessories | Nut, Rubber Waterproof O-ring | |

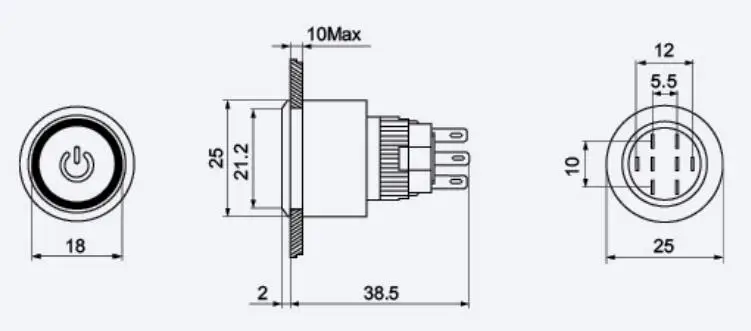

Installation Instructions
Details Images
Company Profile
Product packaging
FAQ
Q1. What is your terms of packing? Ring led light push button switch
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment? Wayerproof momentary latching push button switch
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery? IP65 IK08 Wayerproof push button switches
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? Customize push button switches
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples? 16mm 19mm 22mm Metal Push Button Switch
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy? 12mm Flat Round push button switch
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery? 1NO1NC 2NO2NC Metal Push Button Switch
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship? Electric switch push button
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment? Wayerproof momentary latching push button switch
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery? IP65 IK08 Wayerproof push button switches
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time? Customize push button switches
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples? 16mm 19mm 22mm Metal Push Button Switch
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy? 12mm Flat Round push button switch
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery? 1NO1NC 2NO2NC Metal Push Button Switch
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship? Electric switch push button
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
