1325 лазерный режущий станок цена резак мощность листового металла от 180 Вт до


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

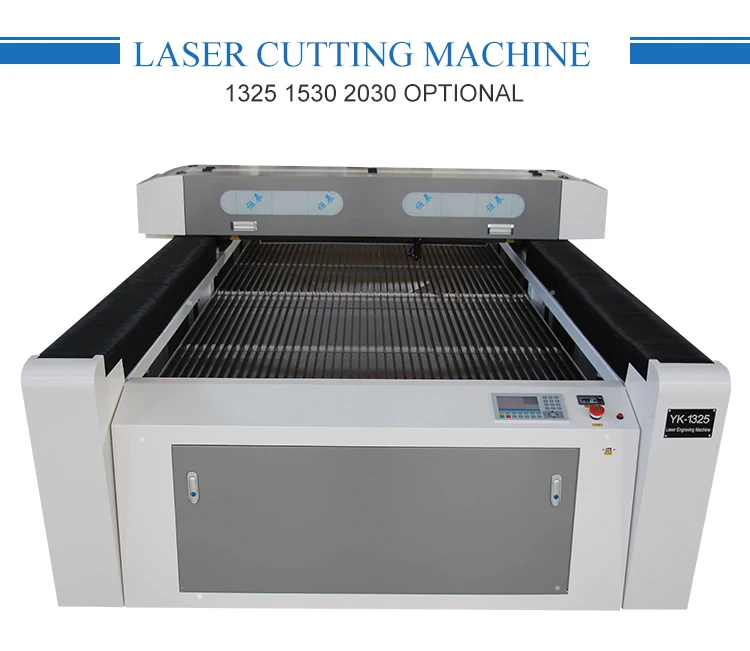

co2 200w 300w metal laser cutter 1325 metal laser cutting machine



Product Description



1.Mixed-cut:metal-Stainless steel, carbon steel and non-metal-acrylic, board
2.High precision:Imported servo motor with imported ball screw tansmission greatly improve the response speed and cutting precision of equipment, extend the time of using.
3.Constant light system: The machine uses the constant light, achieving high precision cutting of the whole area.
4.High precision and Good stability :With precision ball screw transmission mechanism and optimized the nc system control, it can meet the precision parts processing,stable dynamic performance,also can work for long hours.
5. The cutting section with good quality:Mechanical follow-up cutting head system,
cutting head always follows the material to keep the cutting point location unchanged, which insures smooth cutting section without processing again. It can adapt to flat or curved surface sheet cutting.
6.Adopt sealed co2 laser tube , main consumable items are electric energy,watercooling, auxiliary gas and laser light
7. Sample structure, easy operation, stable laser device and low maintenance cost.





Technology
































































































ModelYK-1325
Laser tube  brandReci/EFR/Yongli
Working area1300*2500mm
Working tableBlade table/Honeyhome table
Laser power130w150w/180w/260/300w
Guide railTaiwan high accuracy guide rail
Transmission methodShanghai Fulong belt
Drive systemLeadshine driving system and stepper motor
Cooling systemWater chiller5000/5200/6000
Control  systemRuida controller
Graphic format supportPLT, DXF, BMP, DST ,AI
Control softwareRDCAM
System EnvironmentWindows 7/8/10
Working Precision:±0.01mm
System Resolution:±0.001mm
Working environment0-45°C
Operating Humidity5-95%
Power supply220v±10%
PackingPlywood case (veneer wood case for export)
Net weight

1300kg


Gross weight1400kg
Options

1. Up-down table


2. Rotary axis for round


3. Laser power


4. Working area





  PS: All the working area and specifications can be customized according to your requests.

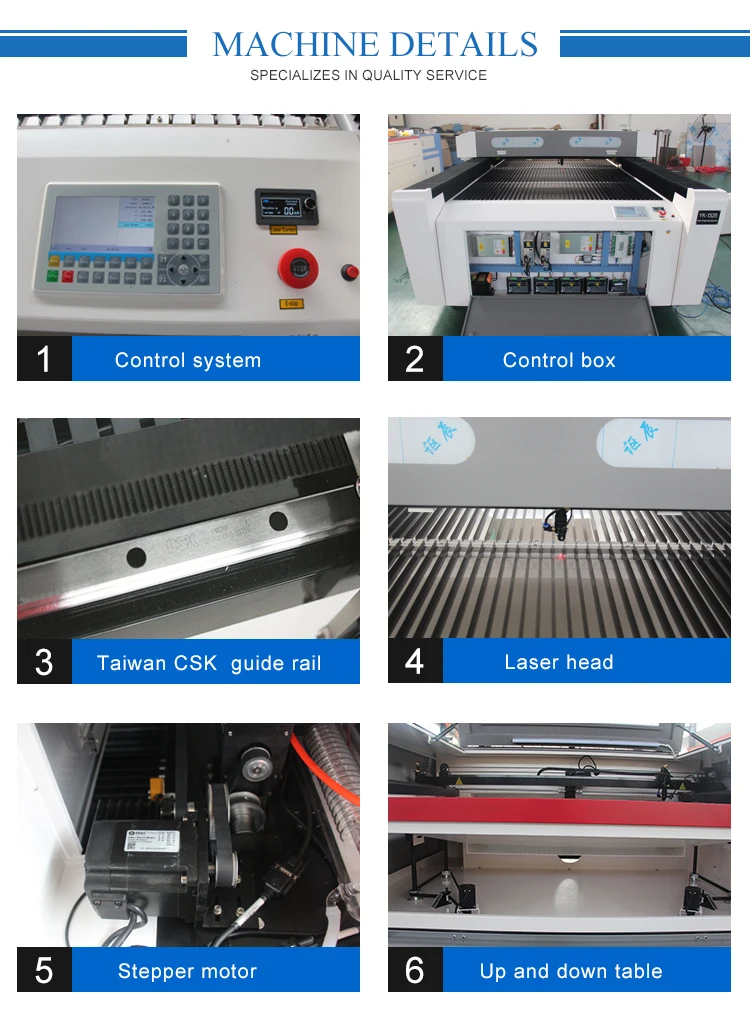

Detailed Images






Sample show

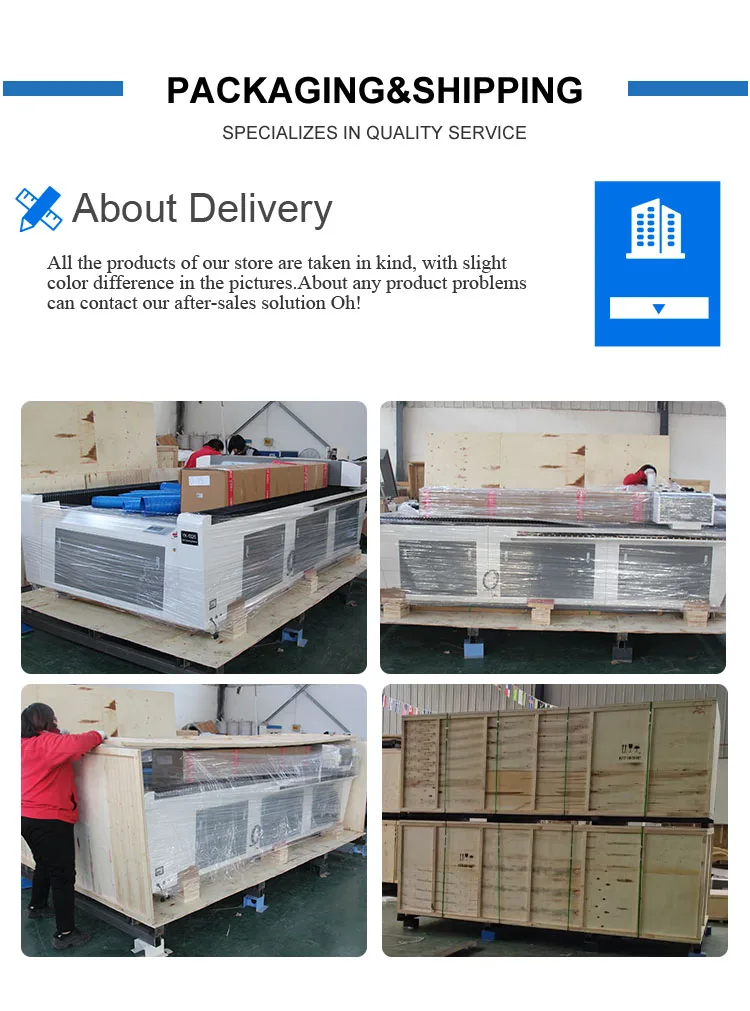

Packaging & Shipping






FAQ


FAQ

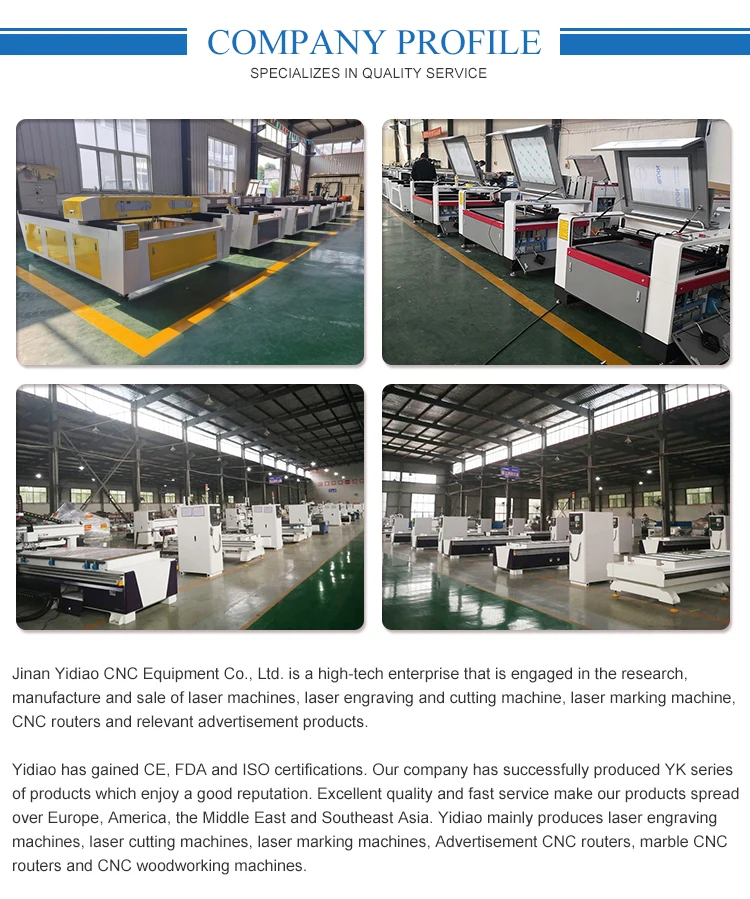

Company Information

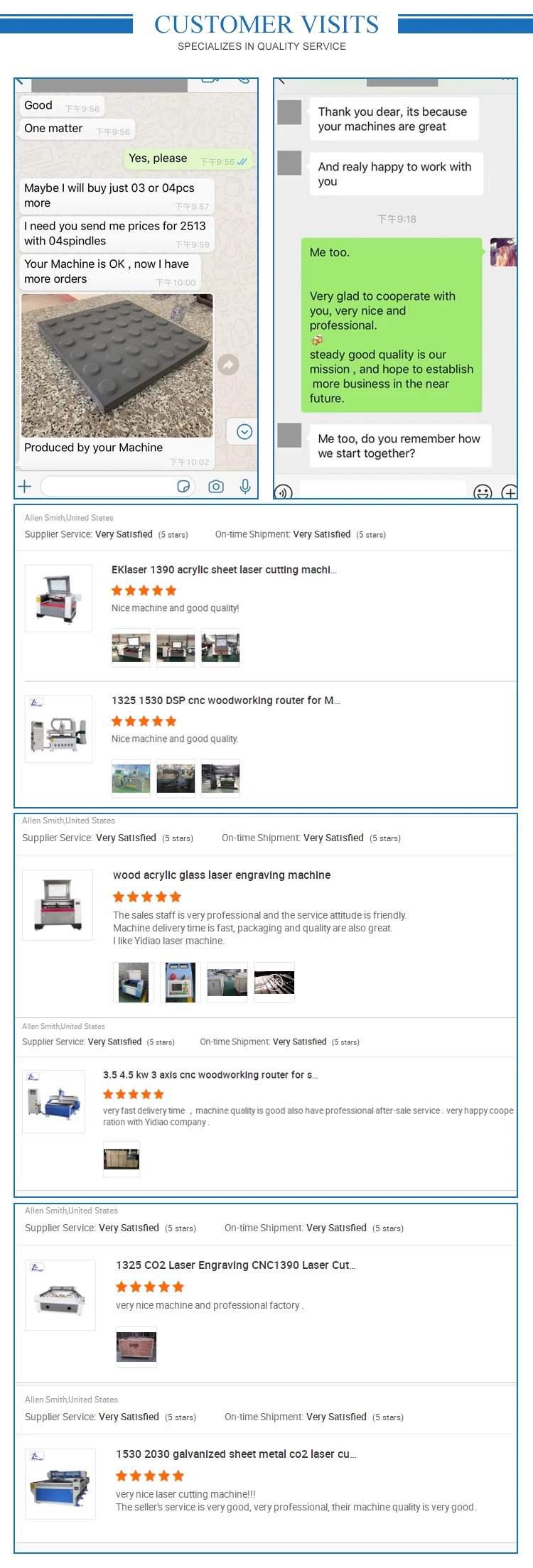

Customer Visits
