Products Description

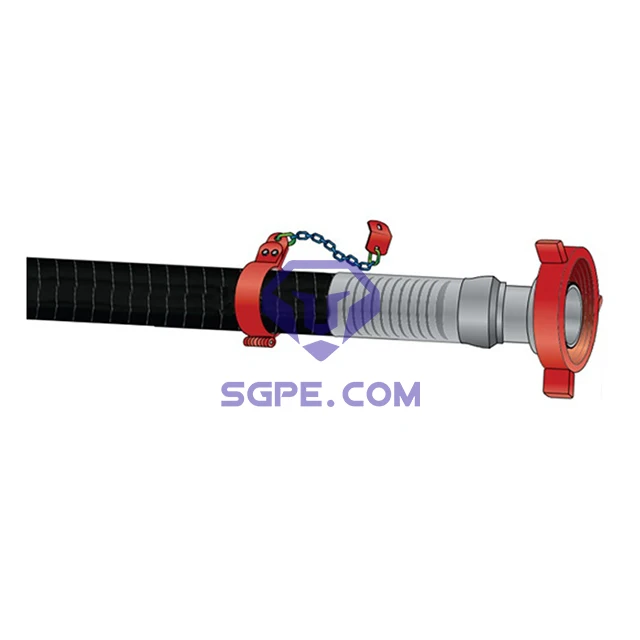

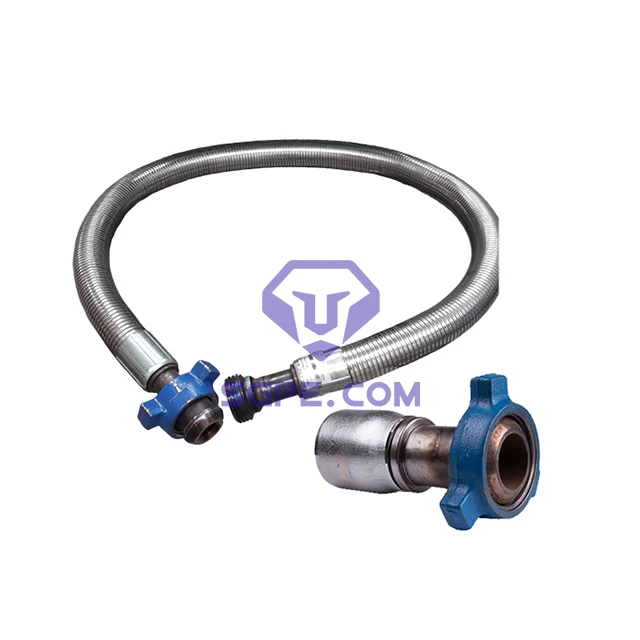

Flexible Choke and Kill hose
The product features resistance to high pressure, thermal insulation, anti flaming and fire resistance as well as inner wall with high abrasion resistance.
(1) Applicability:Hydraulic control pipe line for BOP control equipments.
(2) Operating Temperature:-20°C~+82°C
(3) Tube:Abrasion, oil and corrosion resistant chemigum.
(4) Reinforcement:2-8 layers spiraled by high-strength steel wire.
(5) Cover :Weather, abrasion and ozone resistant neoprene.
(6) Outer protective:Stainless steel armoured
(7) Fittings:Swaged fitting with API thread, and can be connected with hammer union hubs,flanges or clamp
It also can be upon customer's requirement
(1) Applicability:Hydraulic control pipe line for BOP control equipments.
(2) Operating Temperature:-20°C~+82°C
(3) Tube:Abrasion, oil and corrosion resistant chemigum.
(4) Reinforcement:2-8 layers spiraled by high-strength steel wire.
(5) Cover :Weather, abrasion and ozone resistant neoprene.
(6) Outer protective:Stainless steel armoured
(7) Fittings:Swaged fitting with API thread, and can be connected with hammer union hubs,flanges or clamp
It also can be upon customer's requirement
Product display
Product Paramenters
ID mm(in) | Rated working pressure MPa(psi) | Test pressure MPa(psi) | Min.burst pressure MPa(psi) | Min.bending radius(mm) |
50.8(2) | 35.0(5000) | 70.0(10000) | 105.0(15000) | 900 |
64(2 1/2) | 1000 | |||
76.2(3) | 1000 | |||
89(3 1/2) | 1100 | |||
101.6(4) | 1200 | |||
50.8(2) | 70.0(10000) | 105.0(15000) | 157.5(22500) | 1000 |
63.5(2 1/2) | 1100 | |||
76.2(3) | 1150 | |||
89(3 1/2) | 1200 | |||
101.6(4) | 1250 | |||
50.8(2) | 105.0(15000) | 157.5(22500) | 236.25(33750) | 1000 |
63.5(2 1/2) | 1150 | |||
76.2(3) | 1200 | |||
50.8(2) | 138.0(20000) | 207.0(30000) | 310.0(45000) | 900 |
64(2 1/2) | 1100 | |||
76.2(3) | 1200 |
