DTS100 ЧПУ Инструмент для регулировки
- Категории: Machine Tools Accessory >>>
- Поставщик: Dongguan,Dongfangqidu,Measurement,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
DTS100 is a unidirectional touch tool setter produced by DongfangQidu, which can conduct the function of on-machine measurement of tool length, tool broken detection and automatic compensation. DTS100 transfers signal by cable. DTS100 has 5mm of stroke distance which reduce the possibility of crash. This tool setter has an indictor light to show its working condition and cable with 6 cores. DTS100 adopts original micro resistance technology guarantees excellent stability and useful life. DTS100 is widely used on CNC machining center.
Specifications
Model | DTS100 |
Diameter of touch pad | Φ10 |
Trigger direction | +Z |
Pre-stroke | none |
Output | NO or NC |
Stroke length | Up to 5mm |
Trigger protection distance | 2mm |
Repeatability precision(2σ) | <0.5um(speed: 50~200mm/min) |
Trigger life | >10 million times |
Signal transmission mode | cable |
Sealing | IP68 |
Trigger force | 1.5N |
Touch pad material | Tungsten steel |
Surface treatment | Mirror grinding |
Contact nominal value | DC24V, ≤10mA |
Protective tube | 1.5m, minimum radius 7mm |
LED light | Normal: off; active: on |

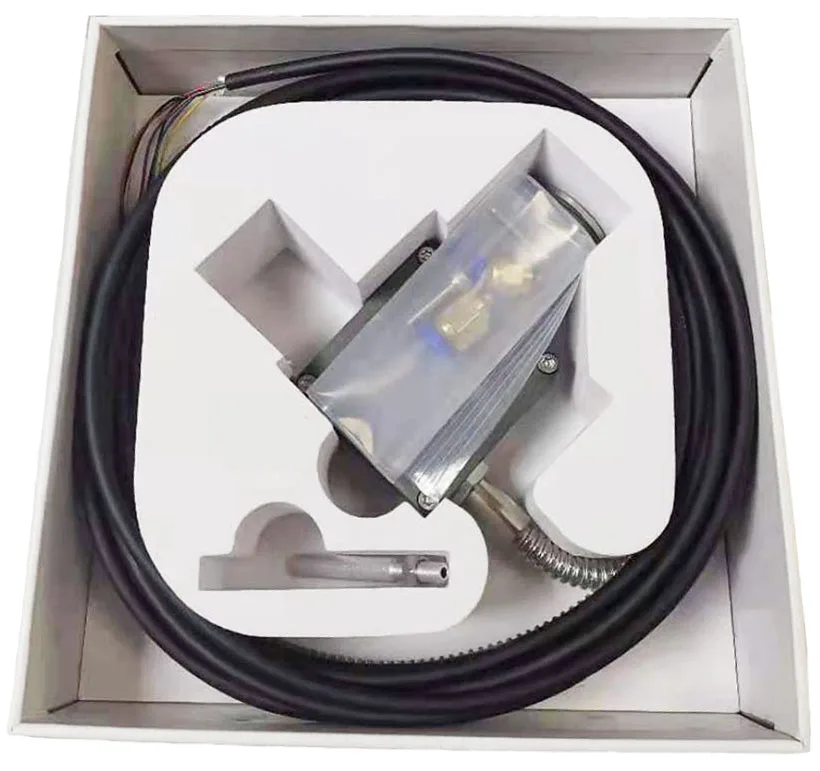

Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Information

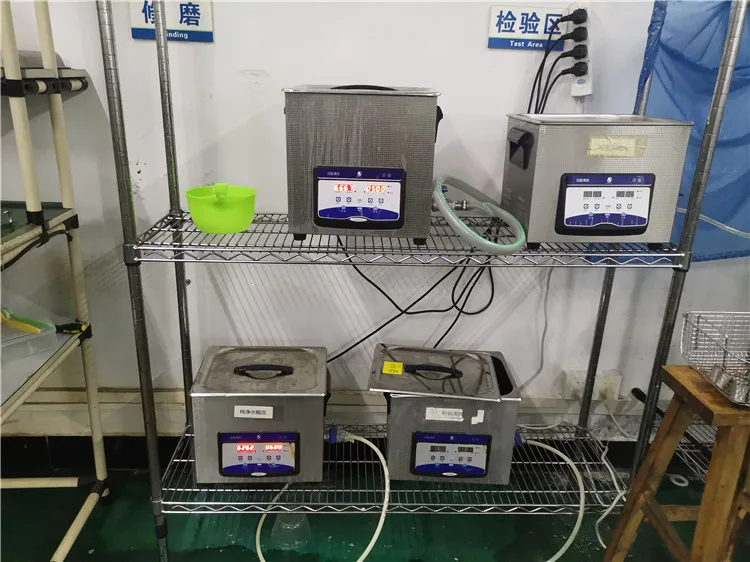

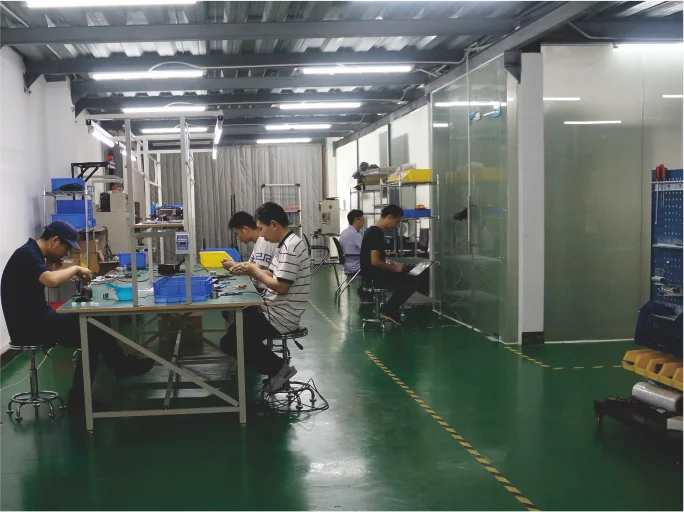

DongfangQidu Meatrology Co., Ltd. is a high-tech company with the integrity of R&D, production and sales. Our products include NC probe, NC tool setters, stylus series, on-line measurement software, and NC peripheral products. Our R&D and production facility is located in Dongguan City, Guangdong Province. More than 60% of employees graduated from colleges. The company's equipment includes 1K class clean rooms, ASM placement machines, CNC lathes, CNC machining centers, CNC milling and other high-end equipment DongFangQiDu adheres to the principle of quality first. Strict quality control process is carried out from material incoming to shipment. Quality control equipment includes aging furnace, electric shed, 2D measuring projector, photometer, waterproof tester, comprehensive operation test platform, repeatability tester and other test and measurement equipment Our dedicated team provided professional after-sale service and technical support at the first time Ethical, professional, and high quality are DongfangQidu’s business principles. To satisfy customer is our greatest priority.
Our Services
Our sales and engineering team offer professional and various serviices and solutions to our customers and distributors.
1. OEM Manufacturing welcome: Product, Package...;
2. Sample order;
3. Your inquiry will be replied in 24 hours.
4. We offer tracking information until you receive the products after shipping;
5, We will answer any possible questions when you install and use our product.
FAQ
Q1:Are you a factory or trading company?
A: We areafactorylocatedinDongguancity, you are welcome to visit our factory anytime.
Q2: How to choose the appropriate model or specifications?
A:Based on your requirement and application, our professional sales and engineers will offer you a detailed suggestions regarding models and specifications.
Q3: Do you accept customized service?
A: Yes, we can providenotonlystandardproducts,butalsocustomizedservicetomeetvariouscustomerdemands.
Q4: What is your warranty period?
A: Our standardproduct warranty period is one year. Our quality system guarantees the high precision, repeatability, stability and long-life of our products.
