Product Description
Automatic Soft Gel Tablet Bottle Capsule Counting And Filling Machine

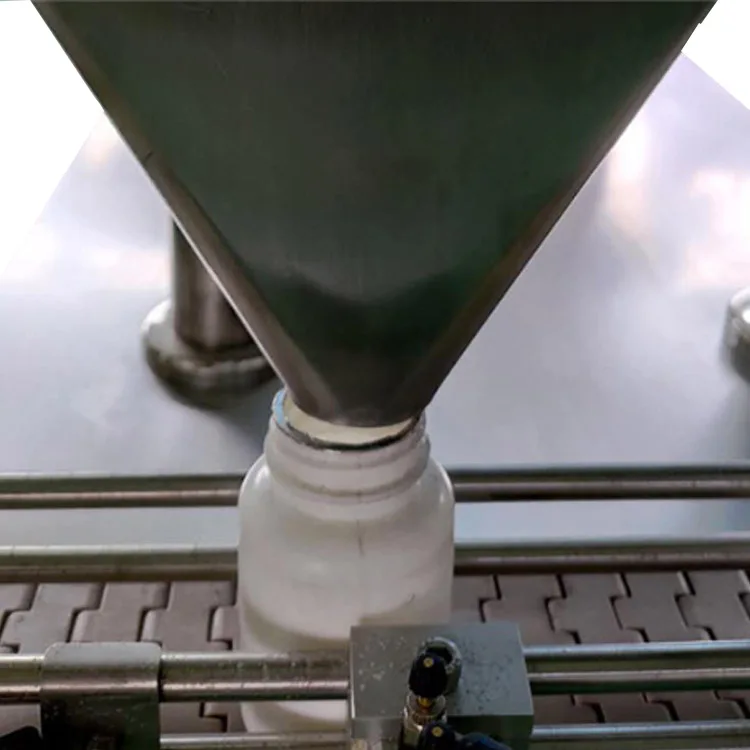

The block bottle device on the passing bottle-track of the conveying bottle system make the bottles which came from the previous equipment stay in the bottling position,waiting to be filled in.The medicine goes into the medicine container in order by the vibration of the feeding corrugated plate.There’s a counting photo electronic sensor installed on the medicine container,after counting of the medicine in the medicine container by the counting photo electronic sensor, the medicine goes into the bottle in the bottling position.
Features Of Automatic Soft Gel Tablet Bottle Capsule Counting And Filling Machine
1.Strong compatibility
2.Vibration cutting
3.Anti high dust
4.Correct counting
5.Special structure of the discharge spout(optional)
6. High intelligence
7.Auxiliary function
8.Easy operation
9.Convenient maintenance
10.Sealing and dust proof (Optional)
2.Vibration cutting
3.Anti high dust
4.Correct counting
5.Special structure of the discharge spout(optional)
6. High intelligence
7.Auxiliary function
8.Easy operation
9.Convenient maintenance
10.Sealing and dust proof (Optional)
Specification
No. | Description | Data |
1 | Name | Electronic counting machine |
2 | Applicable bottle shape | round、square plastic bottle |
3 | Filling material | Φ0~5#capsule、soft capsule、Φ5.5～12compressed tablet、special-shaped tablet、sugarcoated tablet，Φ3～12pill |
5 | Setting range of bottling volume | 1—9999 |
7 | Accuracy rate | ＞99.5%(higher than the industrial standard ) |
8 | Air pressure | 0.6Mpa |
Model | E-8 | E-12 | E-16 |
Output | 10-30 bottles/min | 20-40 bottles/min | 20-80 bottles/min |
Power | 0.6Kw | 0.8Kw | 1.2Kw |
Weight | 250KG | 320KG | 420KG |
Size | 1360*1350*1650mm | 1360*1650*1650mm | 1360*1650*1650mm |
Model | E-24 | E-32 | E-48 |
Output | 20-90 bottles/min | 40-120 bottles/min | 40-150 bottles/min |
Power | 1.5Kw | 2.2Kw | 2.5Kw |
Weight | 450KG | 550KG | 620KG |
Size | 1760*1650*1650mm | 2160*1650*1650mm | 2160*1650*1650mm |
No. | Name | Manufacturer |
1 | See bottle of photo Electronic sensor | Panasonic |
2 | Count the Photo Electronic Head | Adopt EVERLIHT Electronics., Ltd |
3 | Count the Photo Electronic Head | Adopt EVERLIHT Electronics., Ltd |
4 | Pneumatic Components | SHANGHAI XINGCHEN |
5 | Switch button | Schneider |

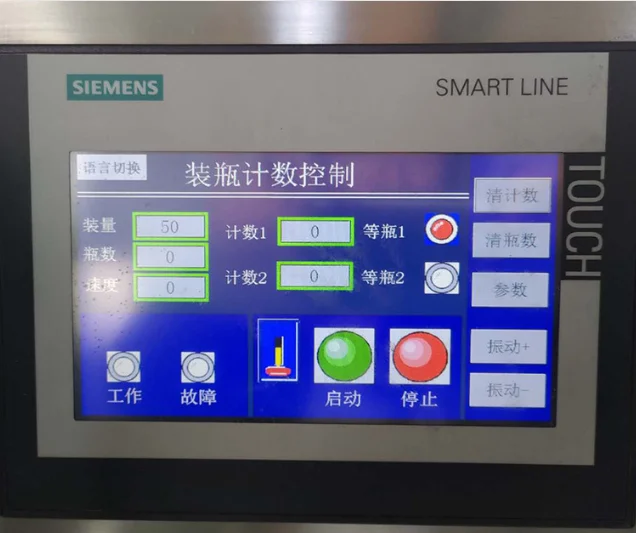

6 | The man-machine interface | Adopt Delta-China |
7 | Main control chip | By using imported STMicroelectronics co., LTD |
Product packaging
Package
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
Company Informations
FAQ
1. Q: What is the power supply of the machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.
2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc
3. Q: What is the payment term
A: The payment term is 30% down payment, and 70% before shipment(T/T mode), we also accept other payment term, like L/C, DA, D/P etc
4. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.
5. Q:What is the warrantee period of the machine?
A: The warrantee period is one year since the date of B/L.
