Коммутатор Gigabit POE 8 портов + 1 UTP 1000M
- Категории: Network Switches >>>
- Поставщик: Shenzhen,Sunsoont,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

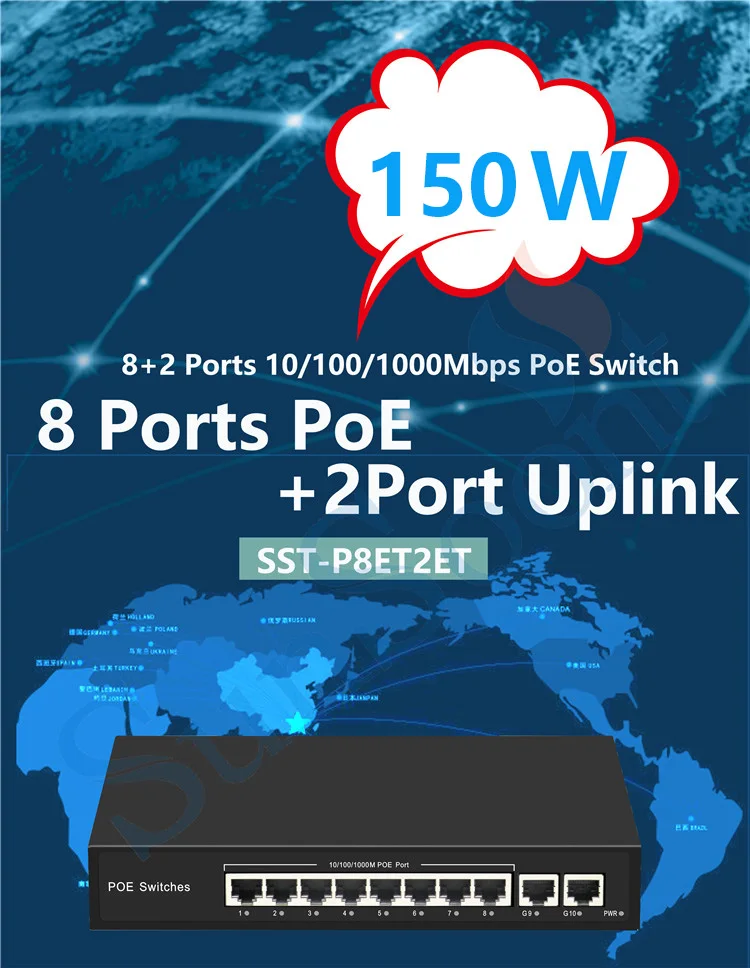

10 Port all Gigabit POE Switch
10-Ports 10/100/1000Mbps POE Switch, using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of POE Switch can be 10/100/1000Mbps Ethernet. The network provides a seamless connection, and the POE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards.The non-POE device intelligently detects no power and only transmits data.
POE (Power over Ethernet) refers to the technology of providing dc Power supply to some IP-based terminals (such as IP telephone,wireless access AP, network camera, etc.) while transmitting data signals. These devices receiving dc Power supply are called receiving devices.
POE (Power over Ethernet) refers to the technology of providing dc Power supply to some IP-based terminals (such as IP telephone,wireless access AP, network camera, etc.) while transmitting data signals. These devices receiving dc Power supply are called receiving devices.
Feature
◆Up to 150Wtotal PoE budget
◆Up to 30WPoE power one port
◆8 x 10/100/1000Mbps PoE+ ports,2 x 10/100/1000Mbps uplink ports
◆Comply with IEEE802.3af/at standards
◆IEEE 802.3x Flow control
◆Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;
◆Automatically supplied to adaptive devices;
◆Panel indicator monitoring status and help failure analysis;
◆Support for VLANmode, OFFmode and Extend mode;
◆Support Watchdog Function;
◆Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 8KV.
◆Up to 30WPoE power one port
◆8 x 10/100/1000Mbps PoE+ ports,2 x 10/100/1000Mbps uplink ports
◆Comply with IEEE802.3af/at standards
◆IEEE 802.3x Flow control
◆Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard;
◆Automatically supplied to adaptive devices;
◆Panel indicator monitoring status and help failure analysis;
◆Support for VLANmode, OFFmode and Extend mode;
◆Support Watchdog Function;
◆Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 8KV.
Specification
Technical parameter list | ||
Product Name | 10-Ports 10/100/1000Mbps POE Switch | |
Model | SST-P8ET2ET | |
Connector Type | 8 Ports 10/100/1000Mbps POE + 2 Ports 10/100/1000Mbps Ethernet Uplink | |
IEEE802.3 IEEE802.3u IEEE802.3x IEEE802.3ab | ||
POE Standard: IEEE802.3af /IEEE802.3at | ||
Max each port: 15.4W ( IEEE 802.3af ) Max each port：30W ( IEEE 802.3at ) | ||
POE compatibility: IEEE 802.3af/at adaptive | ||
POE port output: DC48-55V | ||
Power Pin : Power over spare pairs 1/2(+) , 3/6 (-) | ||
10BASE-T: Cat 3,4,5 UTP(≤100 meter) 100BASE-T: Cat 5 UTP(≤100 meter) 1000BASE-TX: Cat5 or more UTP (≤100 meter) | ||
Bandwidth: 20Gbps | ||
MAC Address: 2K | ||
Packet Buffer Memory: 2M | ||
Packet Forwarding Rate: 14.88Mpps | ||
Forwarding Mode: Store-And-Forward | ||
Power Supply | Power input: AC100-240V 50/60Hz, Output: 52V, Power Budget: 150W | |
Operating Temperature: -20℃ ~ 50℃; Storage Temperature: -40℃ ~ 85℃; Operating Humidity: Max 90%, non-condensing Storage Humidity: Max 95%, non-condensing Working Height: Max to 10,000 feet (3,000 meters) Storage Height: Max to 10,000 feet (3,000 meters) | ||
Physical Parameter | Product Dimension (L*W*H): 222mm*163mm*40mm Package Dimension (L*W*H): 303mm*190mm*60mm N.W: 0.9KG G.W: 1.2KG | |
1.Ethernet Switch：1 unit 2.User Guide：1 unit 3.Warranty Card：1 unit 4.Power Cord：1 unit | ||
MTBF | 100,000 hours | |
Certification | CE ,RoHS, FCC, CCC | |
Warranty | 2 years | |
Details Images
Packing & Delivery
Company Profile
Shenzhen Sunsoont Technology Co, . Ltd. was established in Shenzhen, China, is a professional optical fiber network communications equipment production, R&D and sales in one of the manufacturers, our main products include POE switches, industrial Ethernet switches, fiber switches, fiber media converter, wireless network devices and other communication products.
As a national high-tech enterprise, we have a number of scientific research patents, and strictly abide by ISO9001 and CE, ROHS
international standards in the production process. The company has 4, 000 square meters of industrial plant and nearly technical
team, 4 production lines, a complete set of testing aging equipment, perfect production process and strict inspection process, and
a sufficient inventory, to ensure the product reliability and rapid market response.
The company not only owns its own brand "SUNSOONT", but also a large number of professional OEM/ODM production bases in the industry, providing all-round design and manufacturing solutions for customers at different levels of domestic and international
demand, and providing cost-effective products and services!
As a national high-tech enterprise, we have a number of scientific research patents, and strictly abide by ISO9001 and CE, ROHS
international standards in the production process. The company has 4, 000 square meters of industrial plant and nearly technical
team, 4 production lines, a complete set of testing aging equipment, perfect production process and strict inspection process, and
a sufficient inventory, to ensure the product reliability and rapid market response.
The company not only owns its own brand "SUNSOONT", but also a large number of professional OEM/ODM production bases in the industry, providing all-round design and manufacturing solutions for customers at different levels of domestic and international
demand, and providing cost-effective products and services!
