9BB Solar Mini Cells Monocrystalline 166mm for Roof System Panel
- Категории: Solar Cells >>>
- Поставщик: Zhejiang,Intenergy,Innovation,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Front Busbar | 9 busbars(silver), width 0.1±0.03mm |
Finger | 124 fingers |
Back Busbar | width of back electrode(silver) 1.3±0.25mm |

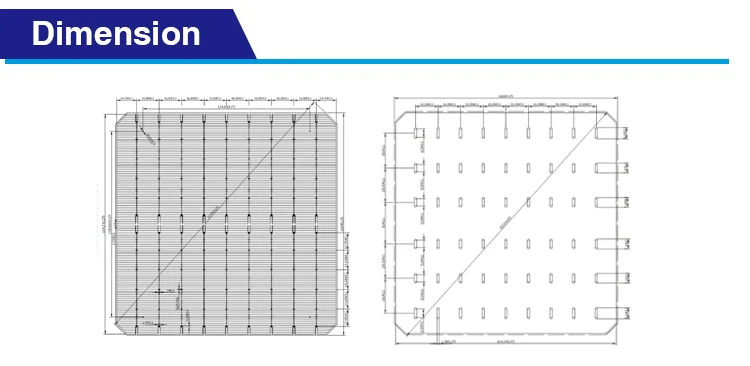

Dimension | 166mm*166mm±0.25mm |
Efficiency （%） | Pmpp(W) | Impp(W) | Umpp(W) | Isc(A) | Uoc(V) | FF(%) |
21.70 | 5.95 | 10.411 | 0.5714 | 10.964 | 0.661 | 82.08 |
21.80 | 5.98 | 10.437 | 0.5726 | 10.989 | 0.6619 | 82.16 |
21.90 | 6.00 | 10.451 | 0.5745 | 11.008 | 0.6641 | 82.13 |
22.00 | 6.03 | 10.464 | 0.5764 | 11.025 | 0.6662 | 82.15 |
22.10 | 6.06 | 10.472 | 0.5786 | 11.033 | 0.6683 | 82.18 |
22.20 | 6.09 | 10.485 | 0.5805 | 11.046 | 0.6699 | 82.25 |
22.30 | 6.11 | 10.488 | 0.5829 | 11.06 | 0.6732 | 82.11 |
22.40 | 6.14 | 10.502 | 0.5848 | 11.077 | 0.6746 | 82.18 |
22.50 | 6.17 | 10.515 | 0.5866 | 11.089 | 0.6761 | 82.27 |
22.60 | 6.20 | 10.529 | 0.5885 | 11.103 | 0.677 | 82.43 |
22.70 | 6.22 | 10.544 | 0.5902 | 11.119 | 0.6784 | 82.51 |
22.80 | 6.25 | 10.55 | 0.5925 | 11.124 | 0.6803 | 82.6 |
22.90 | 6.28 | 10.563 | 0.5943 | 11.139 | 0.6817 | 82.67 |
FAQ
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
1. who are we?
We are based in Zhejiang, China, start from 2020,sell to Mid East(15.00%),Eastern Europe(12.00%),South America(12.00%),North America(8.00%),Southern Europe(8.00%),Western Europe(8.00%),Northern Europe(8.00%),Africa(8.00%),South Asia(6.00%),Eastern Asia(5.00%),Domestic Market(3.00%),Southeast Asia(3.00%),Central America(2.00%),Oceania(2.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Module
4. why should you buy from us not from other suppliers?
Intenergy is a global Solar energy provider with a presence in more than 80 countries around the world.More than 1.5GW of perlight modules have been used in residential, commercial and off-grid systems around the world.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,DDP,DDU；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Zhejiang, China, start from 2020,sell to Mid East(15.00%),Eastern Europe(12.00%),South America(12.00%),North America(8.00%),Southern Europe(8.00%),Western Europe(8.00%),Northern Europe(8.00%),Africa(8.00%),South Asia(6.00%),Eastern Asia(5.00%),Domestic Market(3.00%),Southeast Asia(3.00%),Central America(2.00%),Oceania(2.00%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Solar Module
4. why should you buy from us not from other suppliers?
Intenergy is a global Solar energy provider with a presence in more than 80 countries around the world.More than 1.5GW of perlight modules have been used in residential, commercial and off-grid systems around the world.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,DDP,DDU；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
