Sunchonglic 90w spare parts washing machine universal spin motor washing machine
Click to view,more surprises!
Welcome to visit our 3D reality showroom online.
If you are interested in our products, please feel free to contact us!

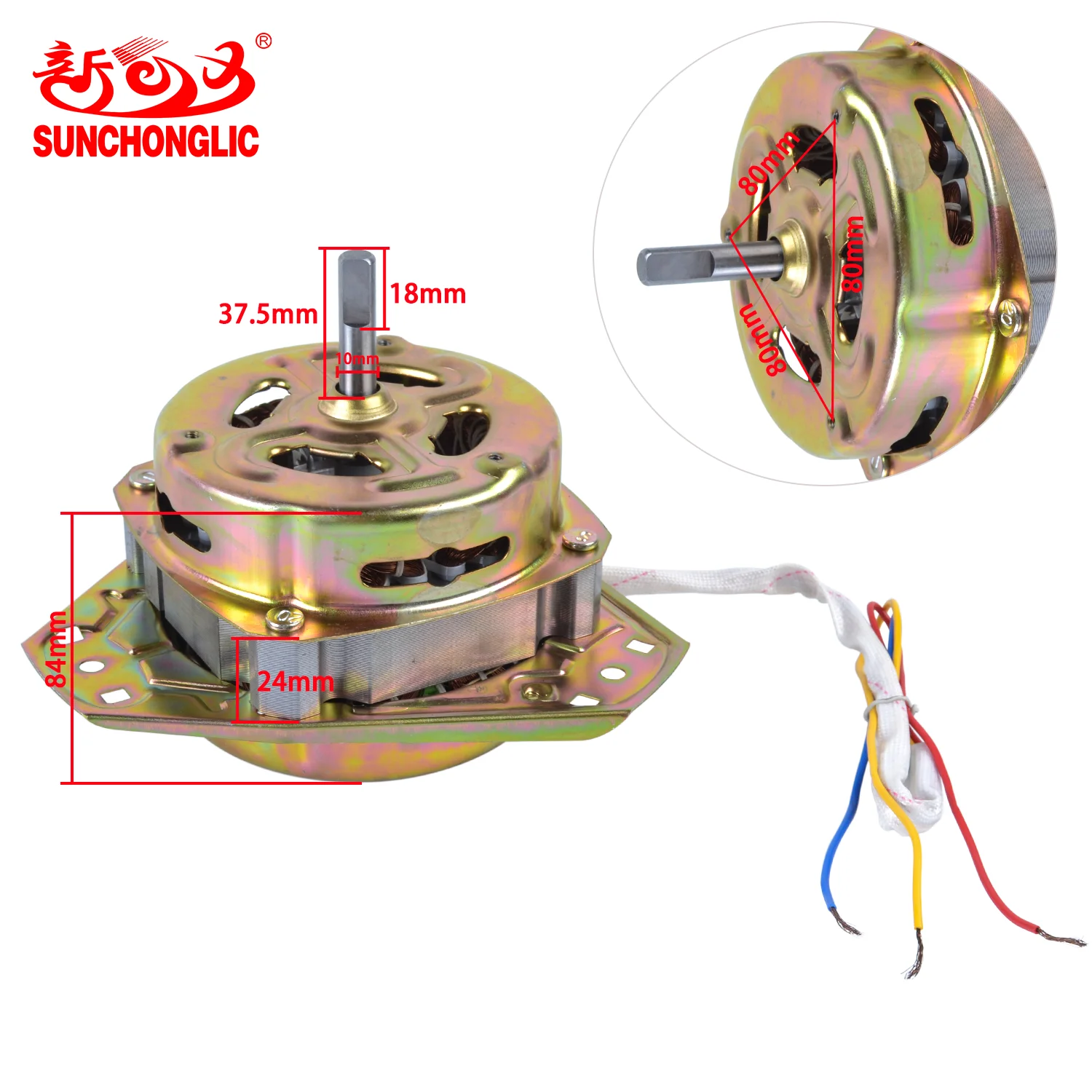

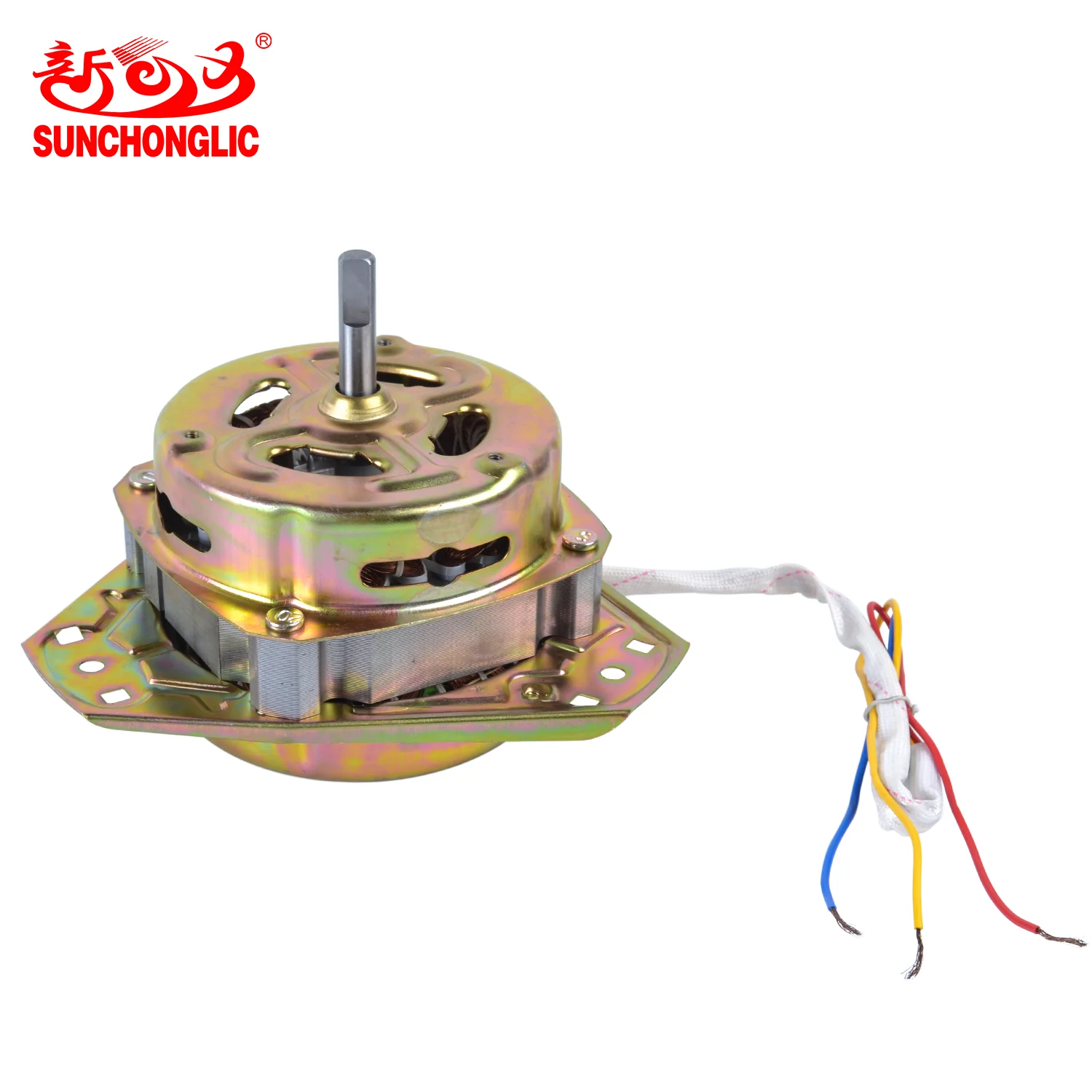

♣This is universal type washing machine spin motor.
It's suitable for Drum washing machine & Pulsator/Fully automatic washing machine.

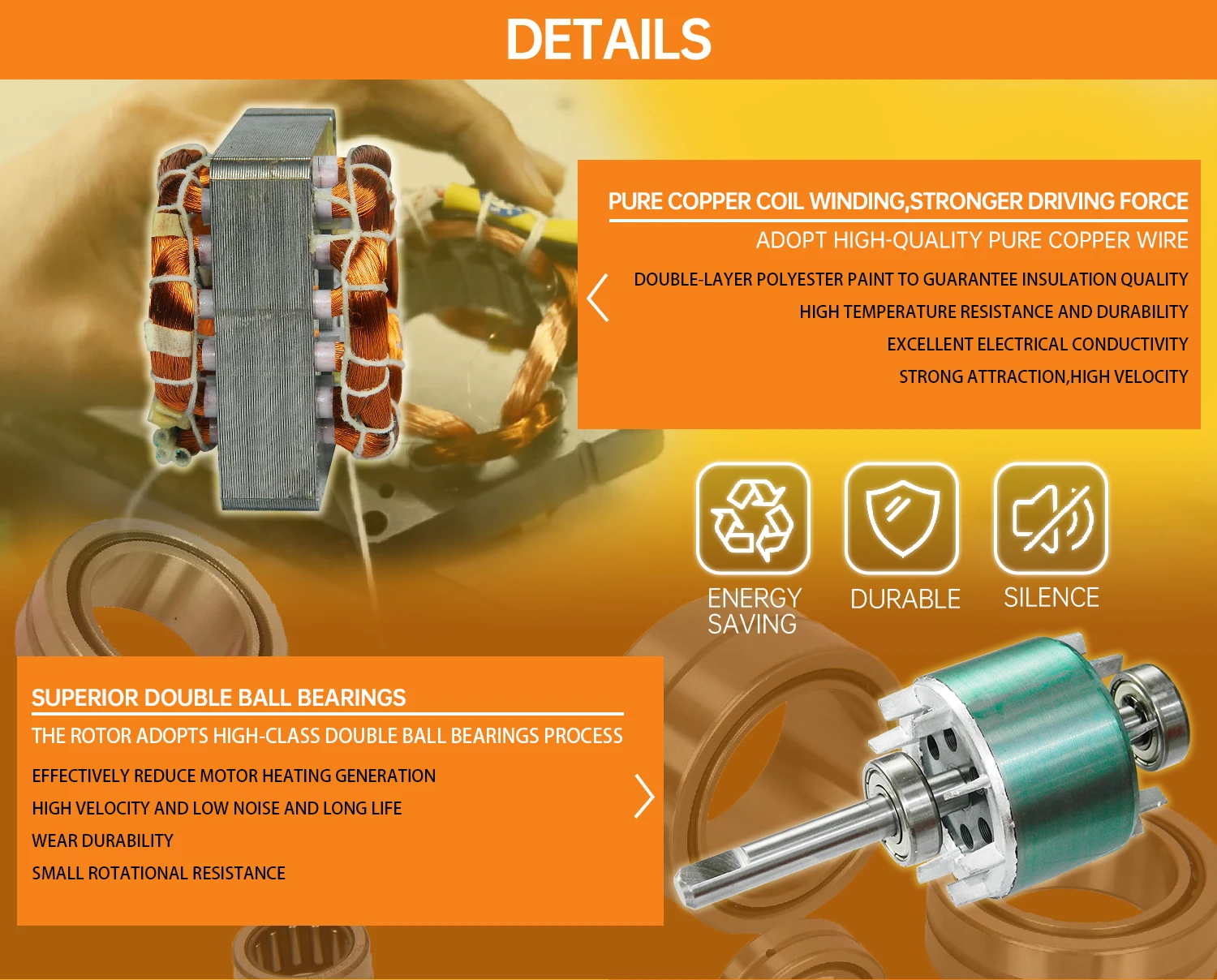

1. Adopt high-quality pure copper coil, stronger driving force.
2. Double-layer polyester paint to guarantee insulation quality.
3. High temperature resistance and durability.
4. Excellent electrical conductivity.
5. Strong attraction, high velocity.
6. Superior double ball bearings.
7. The rotor adopts high-class double ball bearing process.
8. Effectively reduce motor heating generation.
9. High velocity and low noise and long life.
10.Wear durability.
11.Small rotational resistance.
P.S. For more washing machine motor information,please feel free to inquiry us!
Product code | Type | Output Power | Voltage | Frequency | Diameter | Winding | Speed | Capacitor |
B03010011 | Washing machine wash motor | 120W | 220V | 50Hz | 12mm | Copper wire | 1280r/min | 10μF/450V |
B03010024 | Washing machine wash motor | 150W | 220V | 50Hz | 12mm | Copper wire | 1320r/min | 10μF/450V |
B03010002 | Washing machine wash motor | 150W | 220V | 50Hz | 12mm | Copper wire | 1280r/min | 10μF/450V |
B03010037 | Washing machine wash motor | 150W | 220V | 50Hz | 12mm | Copper wire | 1280r/min | 10μF/450V |
B03010041 | Washing machine wash motor | 180W | 220V | 50Hz | 12mm | Copper wire | 1280r/min | 12μF/450V |
B03010119 | Washing machine wash motor | 200W | 220V | 50Hz | 12mm | Copper wire | 1280r/min | 12μF/450V |
B03010060 | Washing machine wash motor | 120W | 220V | 50Hz | 12mm | Aluminium wire | 1350r/min | 10μF/450V |
B03030016 | Washing machine wash motor | 180W | 220V | 50Hz | 12mm | Copper wire | 1320r/min | 12μF/450V |
B03010119 | Washing machine wash motor | 200W | 220V | 50Hz | 12mm | Copper wire | 1280r/min | 12μF/450V |

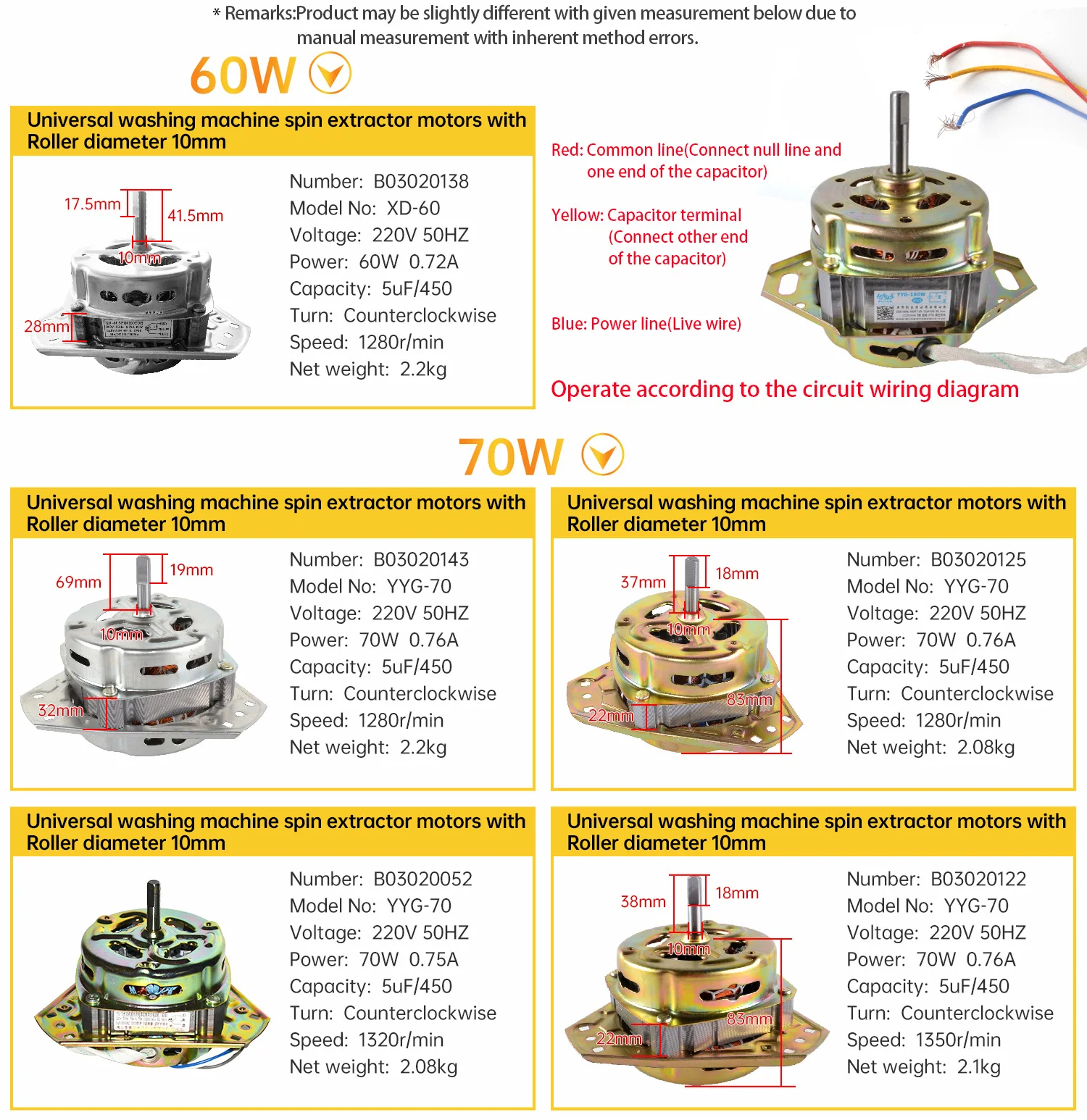

B03020138 | Washing machine spin motor | 60W | 220V | 50Hz | 10mm | Copper wire | 1280r/min | 5μF/450V |
B03020190 | Washing machine spin motor | 60W | 220V | 50Hz | 10mm | Aluminium wire | 1280r/min | 5μF/450V |
B03020143 | Washing machine spin motor | 70W | 220V | 50Hz | 10mm | Copper wire | 1280r/min | 5μF/450V |
B03020122 | Washing machine spin motor | 70W | 220V | 50Hz | 10mm | Copper wire | 1350r/min | 5μF/450V |
B03020125 | Washing machine spin motor | 70W | 220V | 50Hz | 10mm | Aluminium wire | 1280r/min | 5μF/450V |
B03020052 | Washing machine spin motor | 70W | 220V | 50Hz | 10mm | Aluminium wire | 1320r/min | 5μF/450V |
B03020179 | Washing machine spin motor | 70W | 220V | 50Hz | 10mm | Aluminium wire | 1280r/min | 5μF/450V |
B03020053 | Washing machine spin motor | 80W | 220V | 50Hz | 10mm | Copper wire | 1280r/min | 5μF/450V |
B03020050 | Washing machine spin motor | 80W | 220V | 50Hz | 10mm | Copper wire | 1280r/min | 5μF/450V |
B03020077 | Washing machine spin motor | 80W | 220V | 50Hz | 10mm | Copper wire | 1350r/min | 5μF/450V |
B03020144 | Washing machine spin motor | 90W | 220V | 50Hz | 10mm | Copper wire | 1280r/min | 6μF/450V |
B03020075 | Washing machine spin motor | 90W | 220V | 50Hz | 10mm | Copper wire | 1280r/min | 6μF/450V |
B03020191 | Washing machine spin motor | 90W | 220V | 50Hz | 10mm | Aluminium wire | 1280r/min | 6μF/450V |

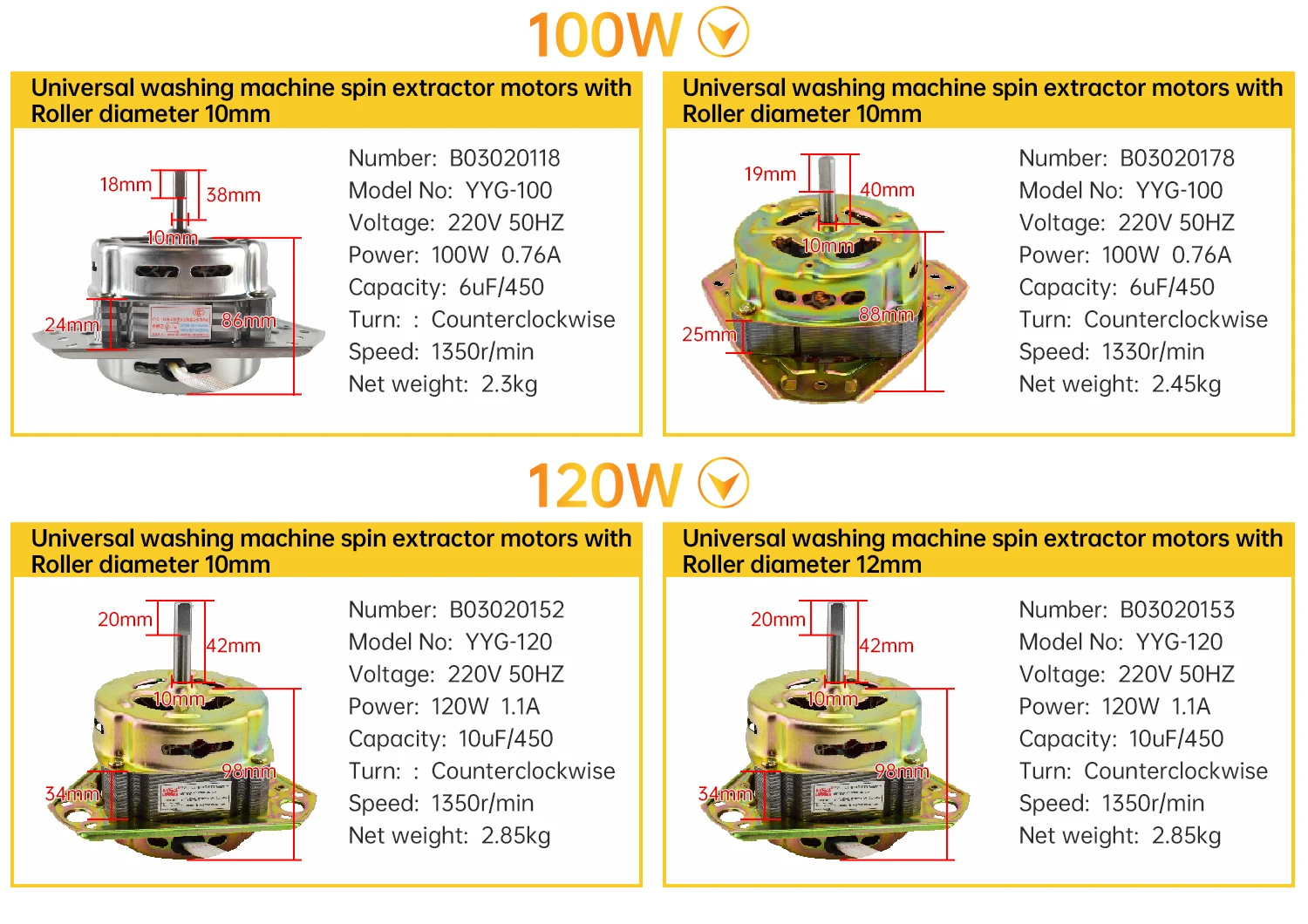

B03020118 | Washing machine spin motor | 100W | 220V | 50Hz | 10mm | Copper wire | 1350r/min | 6μF/450V |
B03020154 | Washing machine spin motor | 70W | 220V | 50Hz | 10mm | Aluminium wire | 1350r/min | 5μF/450V |
B03020004 | Washing machine spin motor | 80W | 220V | 50Hz | 10mm | Copper wire | 1320r/min | 5μF/450V |
B03020112 | Washing machine spin motor | 90W | 220V | 50Hz | 12mm | Copper wire | 1280r/min | 6μF/450V |
B03020170 | Washing machine spin motor | 90W | 220V | 50Hz | 10mm | Aluminium wire | 1350r/min | 6μF/450V |
