Светодио дный зажженный балансировщик литиевой батареи/эквалайзер 1s 3 2 v 7 активная защита батареи печатная
- Категории: >>>
- Поставщик: Benbv,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Lead Acid Balancer/Equalizer specification
Products Model | Lithium Battery Balancer | ||||||
Demension | 85*45*25mm 0.1kg/pcs | ||||||
Brand | QNBBM | ||||||
Suitable Battery Type | Lithium Ion ,LiFepo4,LTO,NCM,Nickel ,Super capacitor | ||||||
Balancing volt range | 1.5-5V | ||||||
Balancing Tech | 100% Active/Energy transfer/Dynamic/No waste energy | ||||||
Volt difference after balancing | 5-10MV | ||||||
Balance Current | Max 6A | ||||||
Balancer Advantages | Can use in series/No capacity limitation | ||||||
Approved Certification | CE/USA Patents/China Patents | ||||||
Storage/working Temprature | -40 to 80 ℃/ -40 to 100 ℃ | ||||||
Matching the SoC of each cell. Active cell balancing redistributes charge during the charging and discharging cycle, unlike
passive cell balancing, which simply dissipates charge during the charge cycle. Thus active cell balancing increases system
run-time and can increase the charging efficiency. Active balancing requires a more complex, larger footprint solution;not a very cheap solution
run-time and can increase the charging efficiency. Active balancing requires a more complex, larger footprint solution;not a very cheap solution
Concerns regading Battery Management concerns :
Why my battery with weak balance?/Whay my battery can not fully charged ?/How to revive my battery ?/What is good for my battery pack ?/How to save my cost /time?/How to extend my battery span-life? /Passive bms good or active one good?/Can bms use in series?
Fifty -fifty ,you need active balancers/Equalizer/BMS/ ,it can work with your existing bms system
Fast delivery /With stock /ready to shipment /looking for distributors
How to choose balancers to protect /balance my lead acid battery pack ?
1.Comfirm Battery Type
Lead Acid type: comfirm volt of each cell , 2V choose 2V balancers ,6V choose 6V balancer .
2.Count how many series of your finished pack ,series of pack =S of balancer
3.Choose Led /without led option (Led can show how balancing working , suit for starter/new bird
How to choose balancers to protect /balance my lithium/lto.. pack ?
1.Comfirm Battery Type: Lithium balancers universal to lipo, lifepo4, polymer,ncm,nickel,super capacitor
2 Count how many series of your finished pack ,series of pack =S of balancer

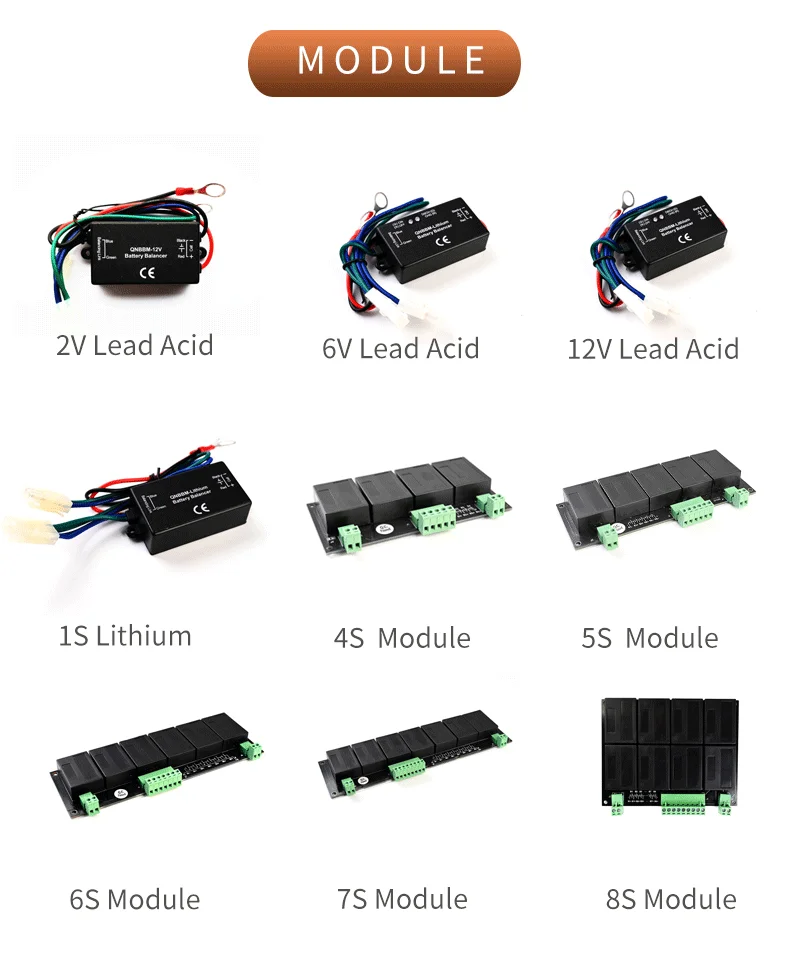

3.Choose suitable module for your system ,lithium balancers got 1S/3S/4S/5S/6S/7S/8S version
For example: 12S pack , u can use 12pcs 1S version , or 3pcs 4S ,or 2pcs 6S balancer module
4.Noted balancer module without cable included
Balance current depends on Battery capacity (AH)/Volt differences/Length of balance cable/lead wire
If you got any problems/issues/please contact us ,we got experiences after service team
