Китай гусеничный экскаватор мини гидравлический 2t 3 8 t 5 тонн
- Категории: Excavators >>>
- Поставщик: Bada,(shandong),Construction,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
China Low fuel consumption excavator 2t 3.8t 6.7ton crawler hydraulic excavator
1.Using YANMAR engine, in-line four stroke, low fuel consumption, environmental protection,convenient repair and maintenance.
2.Imported original hydraulic parts,quality is reliable and stable, working efficiency is high.

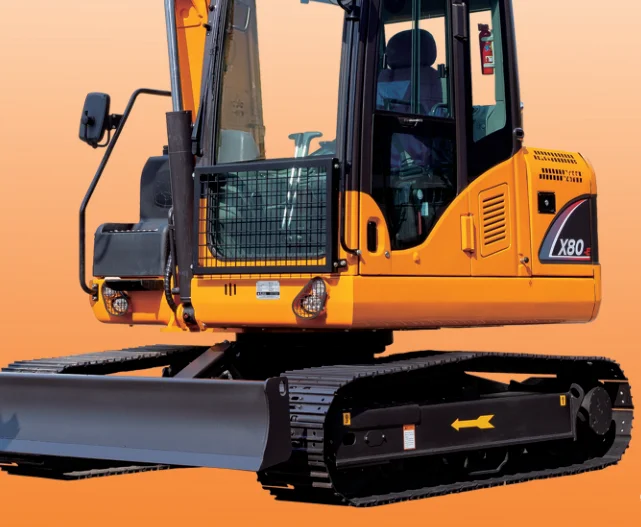

3.Based on the strong and durable key parts and international quality chassis configuration, operation stablility is stronger.

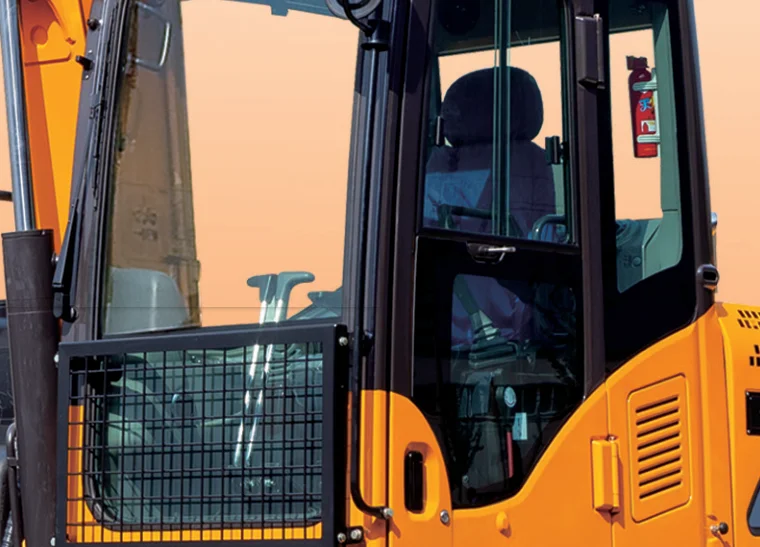

4.The machine adopted new type cab with wide field of vision, new seat, automatic regulated air conditioning system make the operation lexible and comfortable
5.The concept of low noise, ensure the operator to manipulate more comfortable and safety
3.Based on the strong and durable key parts and international quality chassis configuration, operation stablility is stronger.
4.The machine adopted new type cab with wide field of vision, new seat, automatic regulated air conditioning system make the operation lexible and comfortable
5.The concept of low noise, ensure the operator to manipulate more comfortable and safety
6.Electronic monitoring using a dot matrix type advanced multifunctional large screen liquid crystal display, electronic throttle control system has the function of throttle control, automatic idle speed, overheat protection, speed acquisition. Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.
Main dimensions | Operating range | |||||
Wheel base | 2200mm | Max. digging radius on ground | 6140mm | |||
Total lenath of track | 2750mm | Max. digging depth | 3440mm | |||
Platform ground clearance | 720mm | Max. digging height | 6220mm | |||
Platform back turning radius | 1570mm | Max. dumping height | 4540mm | |||
Chassis width | 2150mm | Max. vertical digging depth | 3190mm | |||
Track width | 400mm | Min. rotation radius | 2180mm | |||
Chassis ground clearance | 345mm | Max, upgrade height of dozer blade | 335mm | |||
Track height | 650mm | Max, digging depth of dozer blade | 440mm | |||
Transport length | 5830mm | |||||
Height of cab | 2600mm | |||||
Transport width | 2160mm | |||||
Specification | ||||||||
Machine Weight | 6730kg | Traveling speed(hight/low) | 4/2km/h | |||||
Bucket capacity | 0.3m3 | Rotating speed | 9rpm | |||||
Engine | yanmar 4TNV98-ZCSLKC | Climbing ability | 35degree | |||||
Displacement | 3.319L | Ground pressure | 39kpa | |||||
Rated power / speed | 46.3кM/2200гpm | Bucket digging force | 52kn | |||||
Maximum torque | 223.3-243.5N. m/1600± 100 rpm | Arm digging force | 38kn | |||||

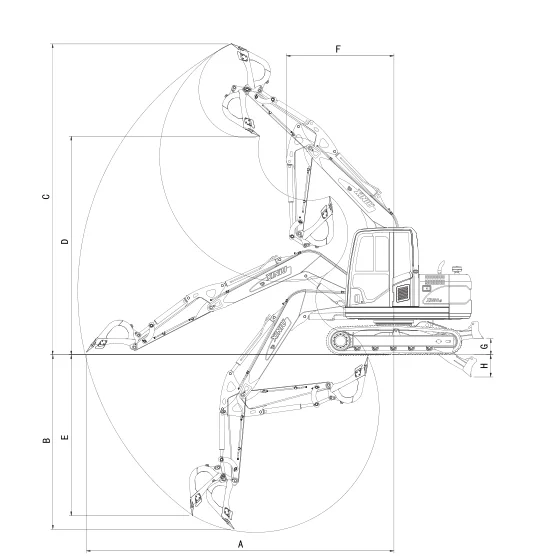

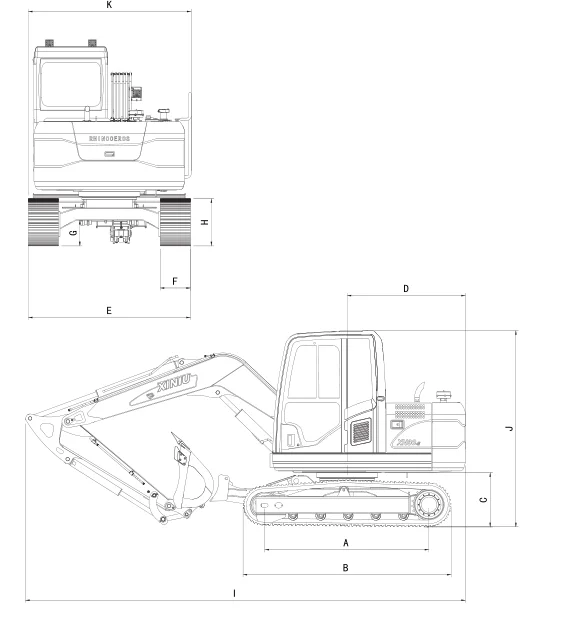

1.Main dimensions schematic diagram 2.Working range schematic diagram

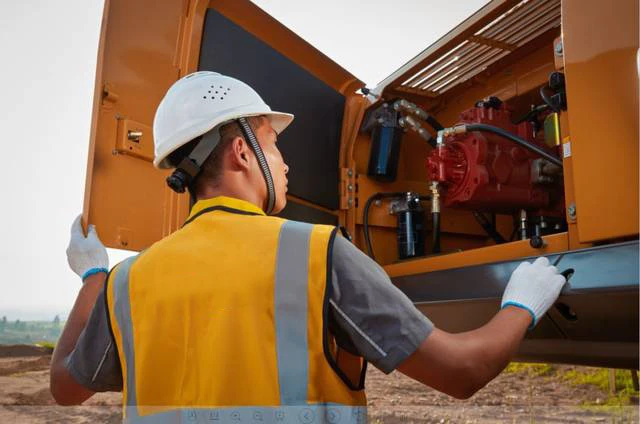

1.Power hydraulic system
1. the engine adopts stepless throttle speed regulation system, the excavator can work under any ideal speed.
2. The load-sensitive flow distribution system can provide and distribute flow according to the needs of the system for flow. Through the optimization of the main spool, the coordination between the actuators can achieve precise control requirements
1. the engine adopts stepless throttle speed regulation system, the excavator can work under any ideal speed.
2. The load-sensitive flow distribution system can provide and distribute flow according to the needs of the system for flow. Through the optimization of the main spool, the coordination between the actuators can achieve precise control requirements
2.engine system

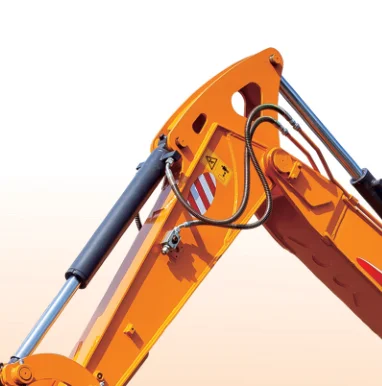

1.The new design of powerful structural parts, longer service life
1.The new design of powerful structural parts, longer service life

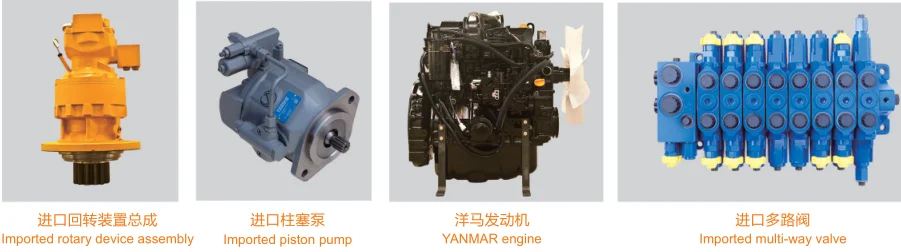

2. Specially for the whole set of well-known European companies hydraulic system, to ensure the high reliability of the hydraulic system
3.Using special yanmar 4TNV98-ZCSLKC engine, strong power, reliable performance and wide application of micro digging, high customer recognition; Durable, fuel saving, cheap accessories, easy maintenance, the first choice for excavators!!
3.Using special yanmar 4TNV98-ZCSLKC engine, strong power, reliable performance and wide application of micro digging, high customer recognition; Durable, fuel saving, cheap accessories, easy maintenance, the first choice for excavators!!

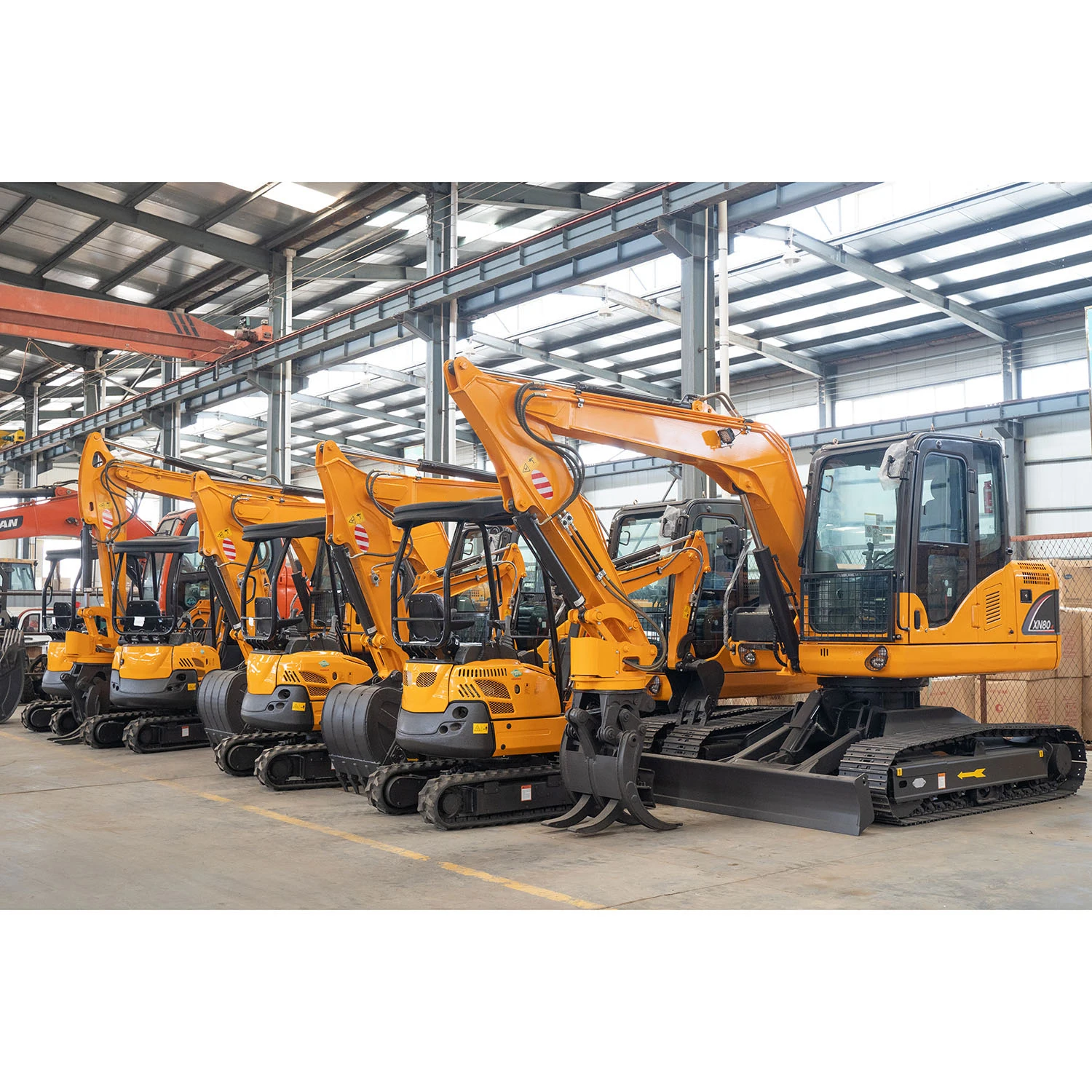

Company Profile
Company advantages
(1) Founded in 1999 (2) CE ISO certificate (3)15+ senior technicians (4) 2 years warranty (5)24 hours after sale service (6) large stock and cheap spare parts
Certifications
Partner
Transport
FAQ
1.Q: Are you a manufacturer?
A: Yes, we are a manufacturer located in Shandong province which in the manufacturing center of construction machinery. We have passed ISO and CE certificate and our products have been exported to over 20 countries.
2.Q: Why choose BADA?
A:With our two factories and more than 100 workers, we only produce very high quality products.2 Years warranty and only 1% repair rate during the past 10 years, which is cost effective and win good reputation.
3.Q: Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply higher configuration.
4.Q: How about your After-sales service
A: We have 3 aftersales, and can provide 24-hour technical support by phone and email.
5.Q: What is your lead time?
A: Normal goods usually take 7-10 days, and customization takes 15-25 days
6.Q: Is it convenient to visit your factory? How to go there?
A: Warmly welcome to visit our factory. When you arrive, we will pick you up.
A: Yes, we are a manufacturer located in Shandong province which in the manufacturing center of construction machinery. We have passed ISO and CE certificate and our products have been exported to over 20 countries.
2.Q: Why choose BADA?
A:With our two factories and more than 100 workers, we only produce very high quality products.2 Years warranty and only 1% repair rate during the past 10 years, which is cost effective and win good reputation.
3.Q: Can you produce customizable machines?
A: Yes, we can provide customizable machines according to your requirements. We have 8 senior engineers and can design and supply higher configuration.
4.Q: How about your After-sales service
A: We have 3 aftersales, and can provide 24-hour technical support by phone and email.
5.Q: What is your lead time?
A: Normal goods usually take 7-10 days, and customization takes 15-25 days
6.Q: Is it convenient to visit your factory? How to go there?
A: Warmly welcome to visit our factory. When you arrive, we will pick you up.
