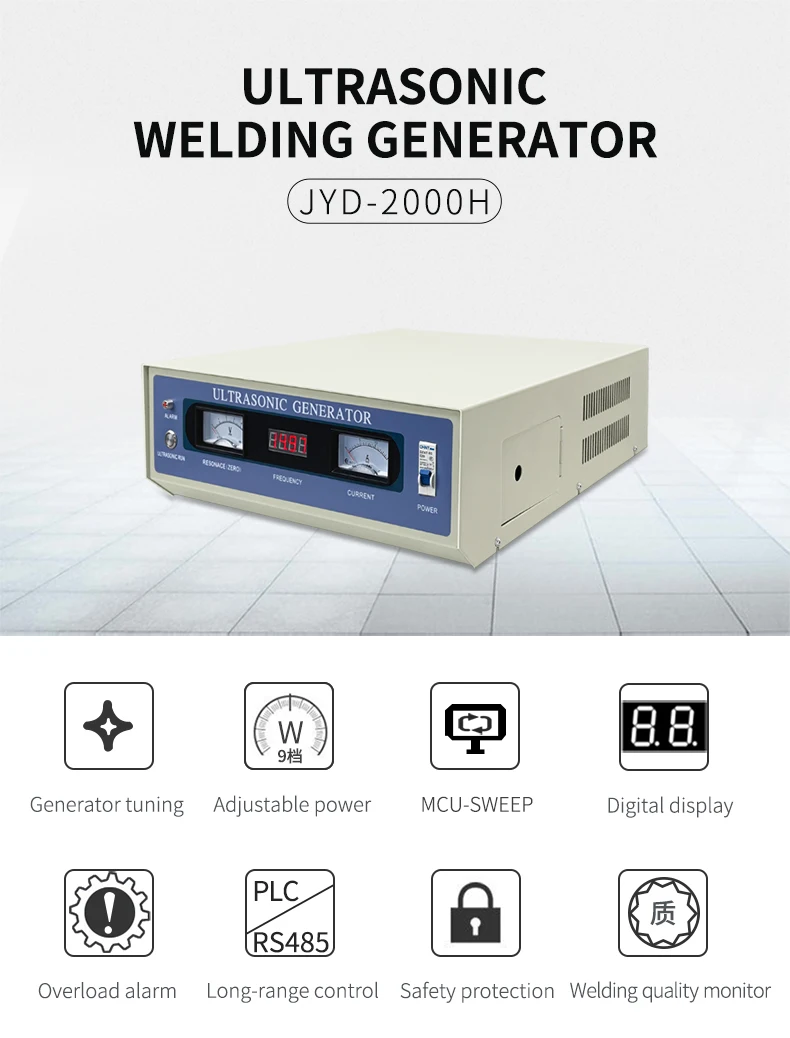

JYD-2000H Factory Price Portable Supersonic Wave Ultrasonic Generator for Welding
Product Description

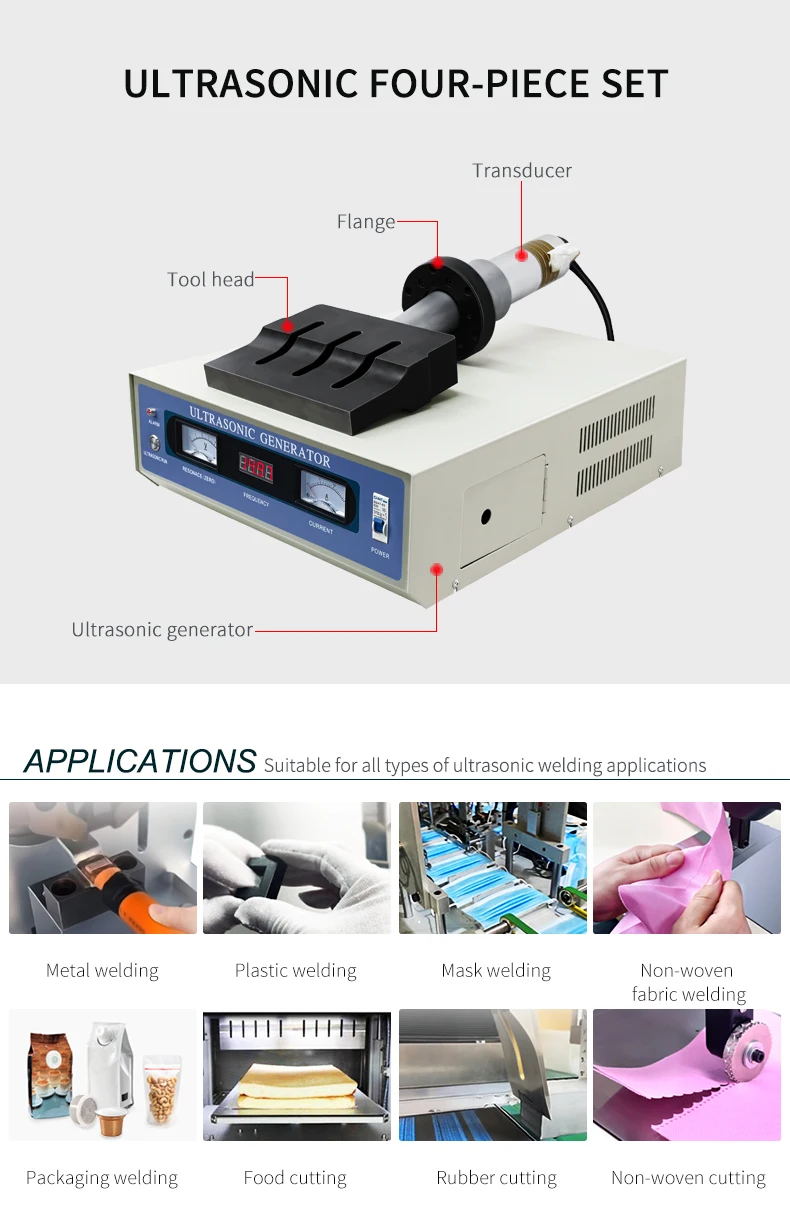

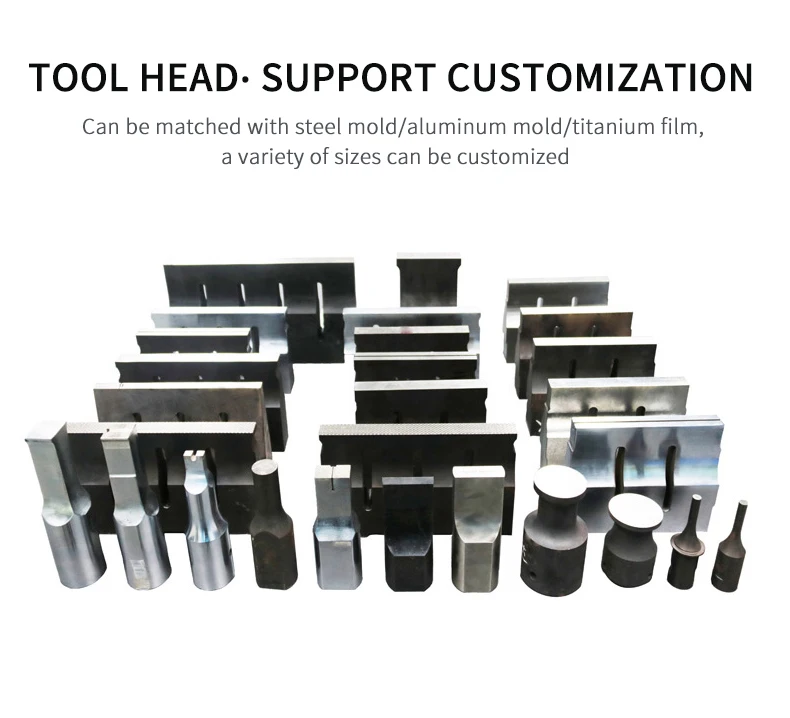

Jiayuanda Ultrasonic Welding Generator JYD-2000H series is suitable for transducers with different formats and ultrasonic tool heads. Newly added frequency display, real-time observation of ultrasonic working status, strong ultrasonic output, convenient operation, and adjustable power.
Features
- Frequency control: self-excited circuit, able to track transducer parameters stably, and stable output under heavy load and pressure

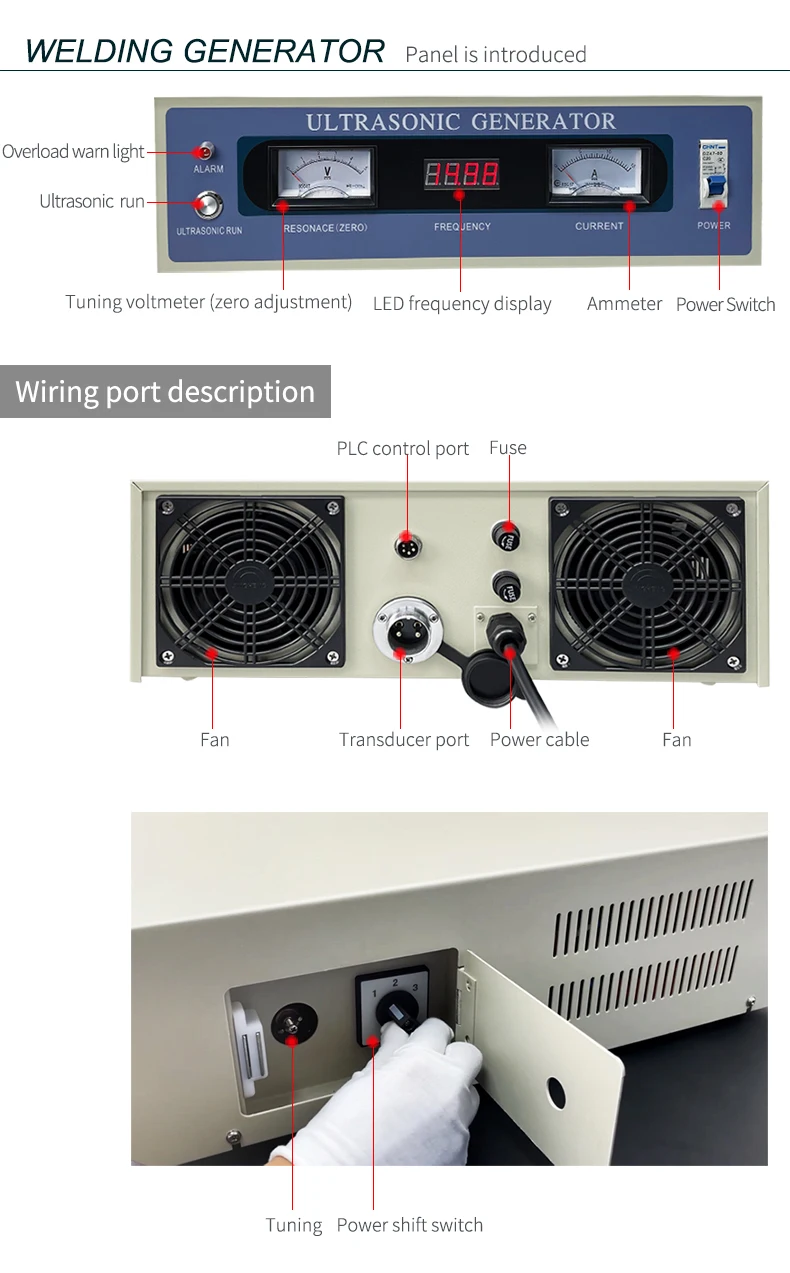

- Display mode: digital frequency display, current display
- Power control: 9 levels adjustable
- Core materials: modular design, imported IGBT functional devices
- Abnormal protection: frequency, current protection
- Control method: PLC control
Technical Parameters
Model No | JYD-2000H | JYD-2000H | JYD-2000H |
Power | 3200W | 1800W | 1000W |
Power adjustment | 9 levels adjustable | 9 levels adjustable | 9 levels adjustable |

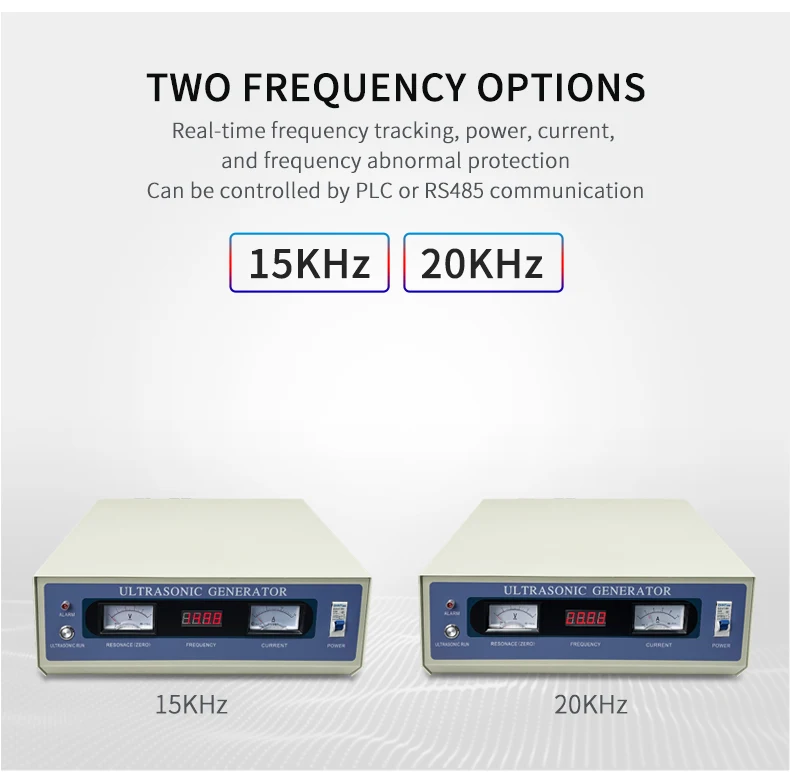

Frequency | 15KHz | 20KHz | 20KHz |
Voltage | 220V/110V±10% 50Hz/60Hz | 220V/110V±10% 50Hz/60Hz | 220V/110V±10% 50Hz/60Hz |
Max current | 10A | 8A | 3.5A |
Temperature | 0-40℃ | 0-40℃ | 0-40℃ |
Dimension | 405*525*150mm(L*W*H) | 405*525*150mm(L*W*H) | 405*525*150mm(L*W*H) |
