Products Description
YG110 traveling block
The traveling block & hook can be in accordance with Spec 8C PSL1.
The advanced heat treatment processes such as carburetion, etc. is used on some crucial driving components with high strength and long service life
The advanced heat treatment processes such as carburetion, etc. is used on some crucial driving components with high strength and long service life

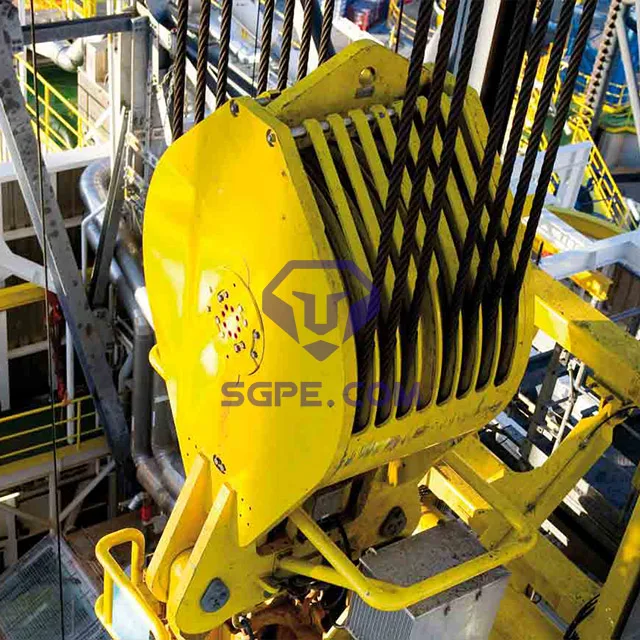

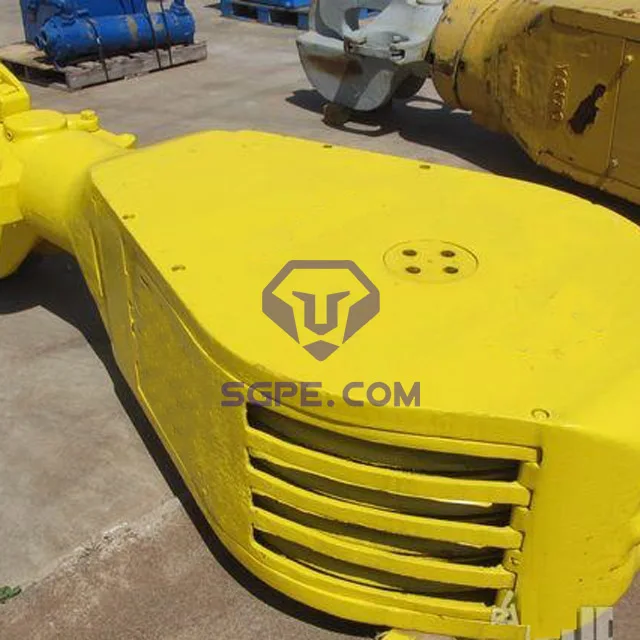

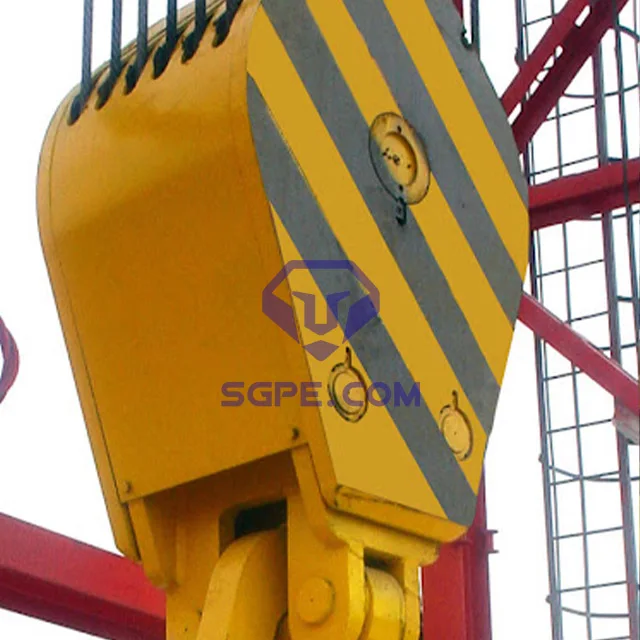

Product display
Product Paramenters
Model | YG40 | YG50 | YG70 | YG110 | ||
Max. static load lb(kN) | 90000(400) | 112500(500) | 157500(700) | 247500(1100) | ||
OD of sheaves in.(mm) | 20.4(518) | 22.6(575) | 24(605) | 24(605) | ||
No. of sheaves | 3 | 3 | 4 | 3 | ||
Dia. of wirelines in.(mm) | 7/8(22) | 7/8(22) | 7/8(22) | 1(26) | ||
Weight lb(kg) | 308(682) | 356(785) | 634(1397) | 646(1424) | ||
Overall dimensions in.(mm) | 84×21.26×17.5 (2138×540×445) | 87.4×23.7×17.5 (2220×602×445) | 72.44×27.24×21.26 (1844×692×540) | 91.89×26.5×22.13 (2334×673×562) | ||
Model | YG150 | YG180 | YG200 | YG350 | ||
Max. static load lb(kN) | 337500(1500) | 405000(1800) | 450000(2000) | 787500(3500) | ||
OD of sheaves in.(mm) | 30(760) | 42(1060) | 43.3(1100) | 44(1118) | ||
No. of sheaves | 4 | 5 | 5 | 5 | ||
Dia. of wirelines in.(mm) | 1(26) 1-1/8(29) | 1-1/8(29) | 1-1/4(32) | 1-1/4(32) | ||
Weight lb(kg) | 1276(2180) | 2336(5146) | 3323(7320) | 2206(4860) | ||
Overall dimensions in.(mm) | 108.98×32.68×27.99 (2768×830×711) | 136.57×43.7×30.24 (3469×1110×768) | 156.06×47.24×36.02 (3964×1200×915) | 141.73×47.95×32 (3600×1218×812) | ||
Product packaging
Certifications
