Product Description
Product Details

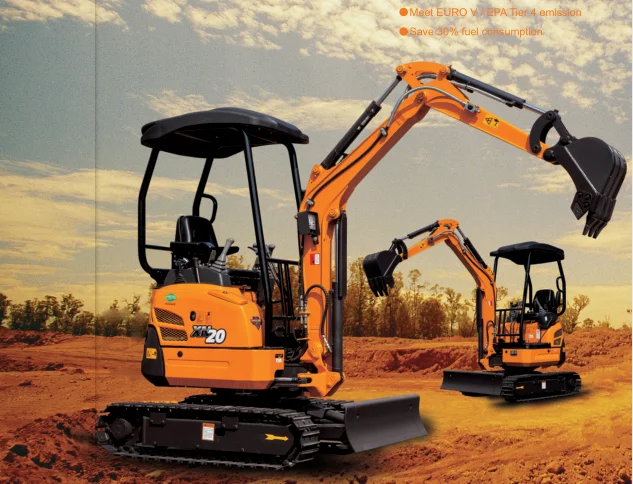

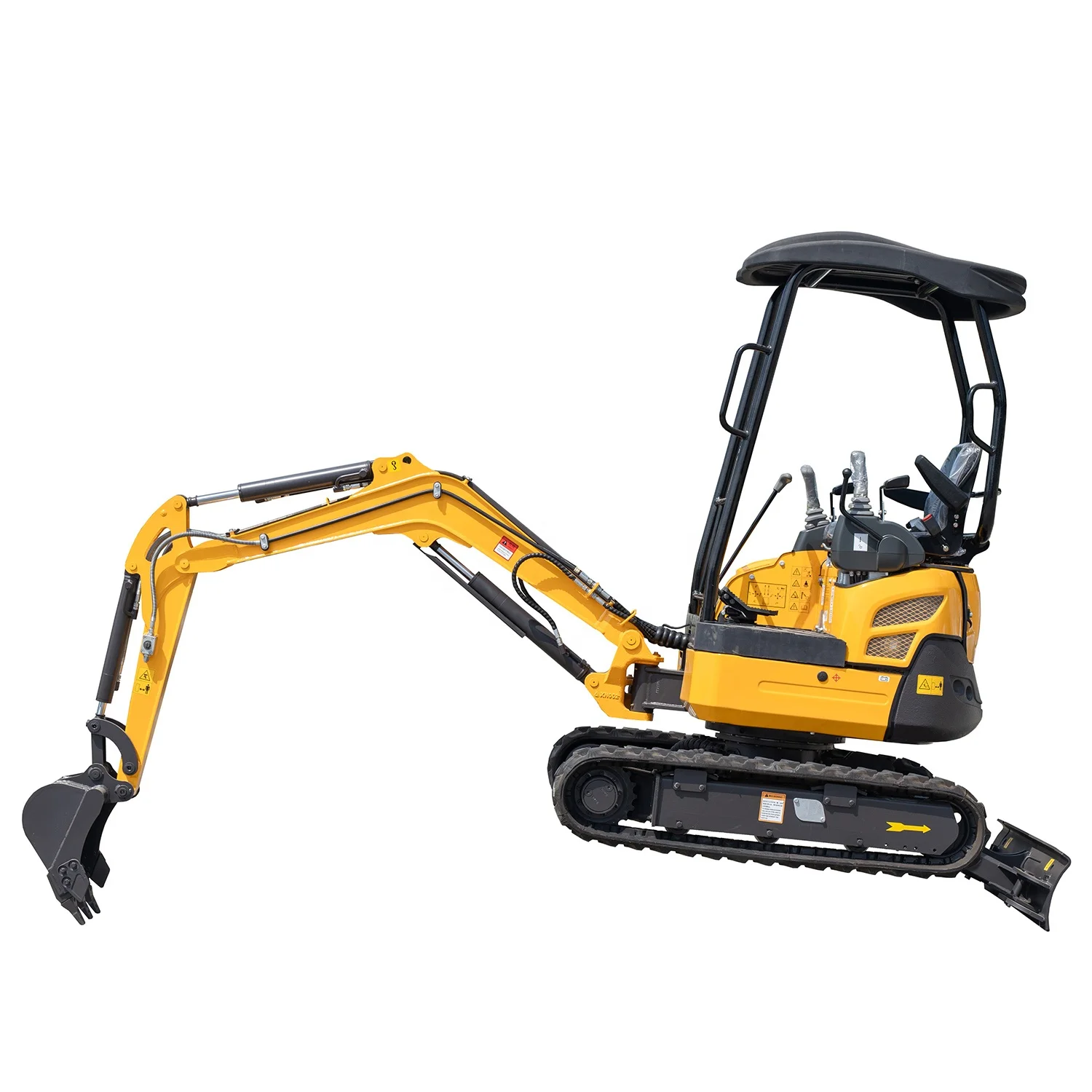

Hydraulic Mini Dumper Crawler Excavator 2t mini crawler excavator
1. Independent design, surface spray, beautiful appearance, small working radius, can used in a small area.
2.Equipped with a well-known brand engine with strong power. Brand hydraulic system, high configuration, superior performance and low fuel consumption
3. Low noise, low emissions, low fuel consumption and convenient maintenance.

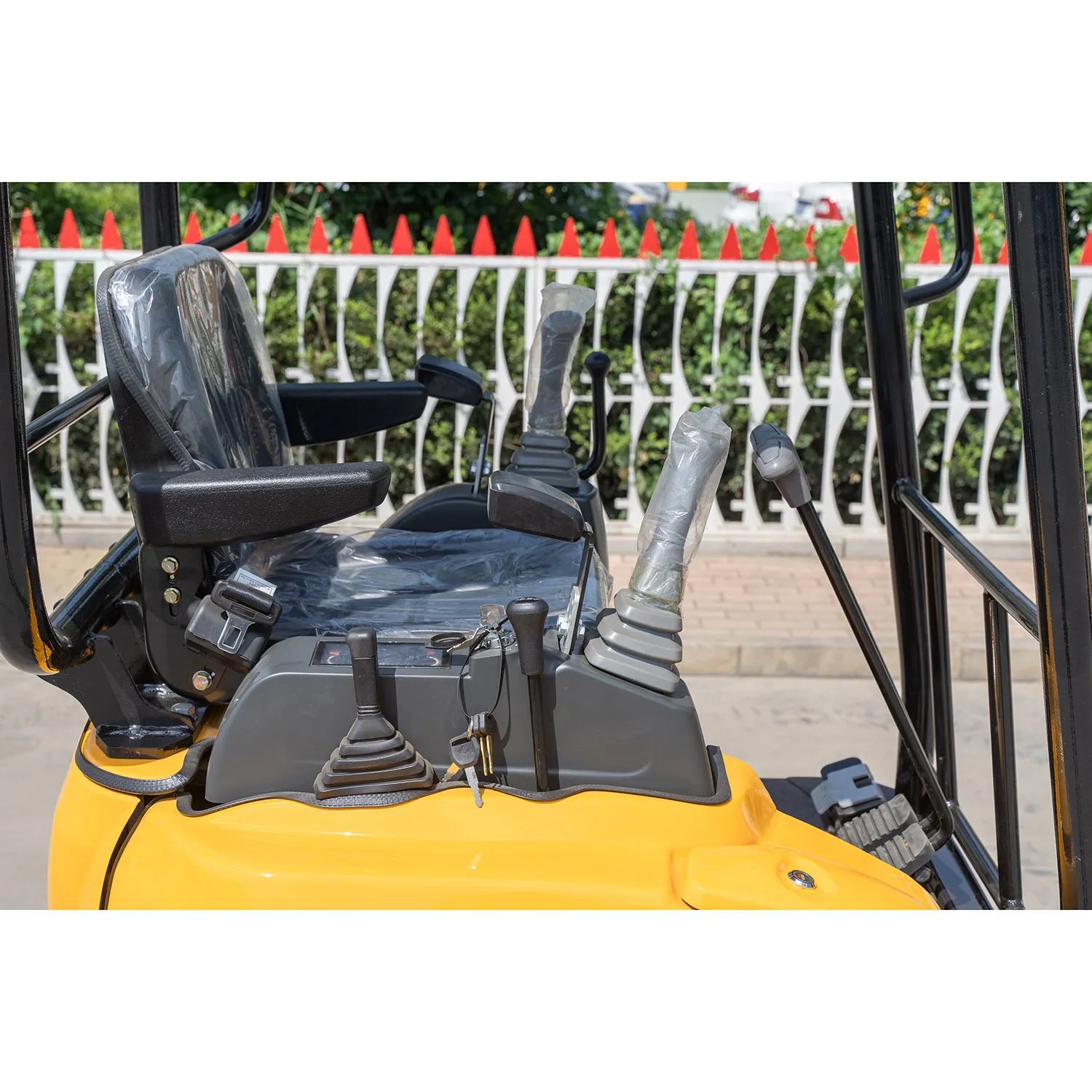

4.Equipped with a high-precision integrated instrument monitoring system, real-time monitoring of equipment performance parameters, world-class safety performance.
5.Stable performance and strong industrial and mining adaptability. It has multiple functions such as digging, crushing, trench clearing, drilling and so on

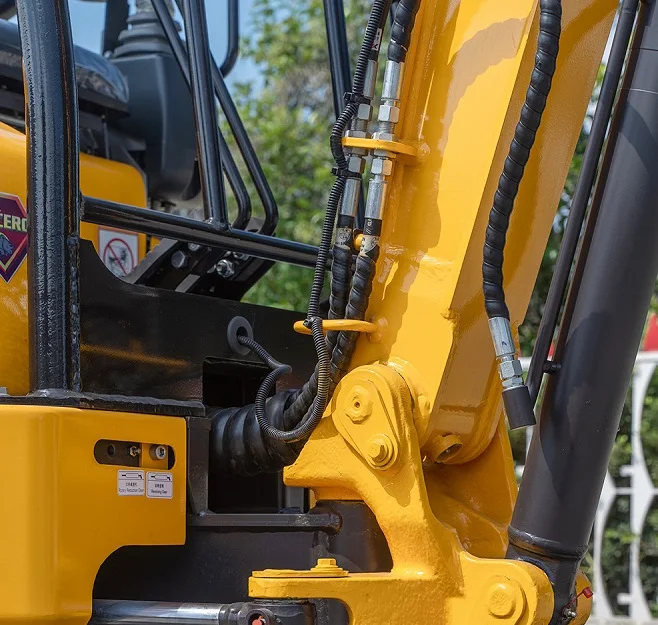

6.Boom side shifting device: The front of the body is equipped with a boom side shifting device, so as to truly realize the direct excavation work in the corner area without frequent movement of the body, which is more suitable for narrow site operations.

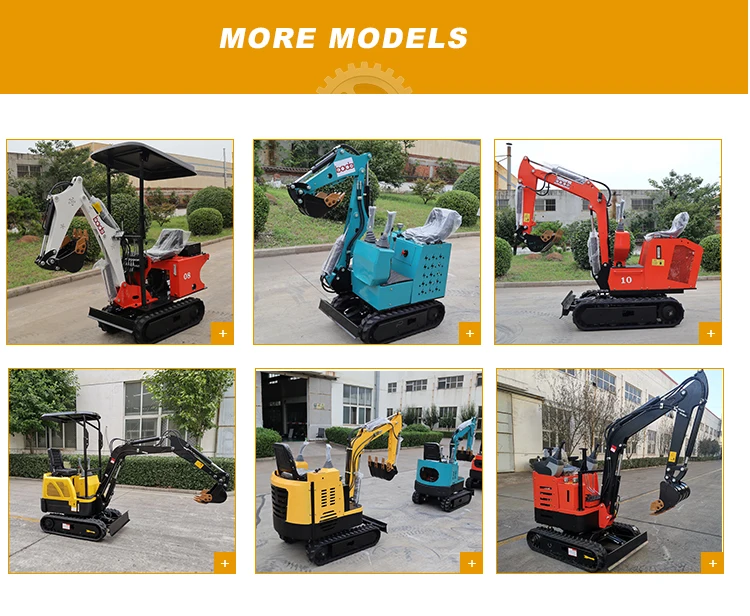

7. A variety of models, a variety of appearances to choose from, to meet the different functional needs and choices of different types of customers.
8.Some models use the rear hood that can be opened or exposed, which is convenient for customer maintenance.
9.Low maintenance and work costs, liberate labor, improve the degree of mechanization, low investment, high return.
Main dimensions | Operating range | |||
Wheel base | 1230 | Max. digging radius on ground | 3610 | |
Total length of track | 1590 | Max. Digging Radius | 3700 | |
Platform ground clearance | 473 | Max. digging depth | 2150 | |
Platform back turning radius | 790 | Max. digging height | 3275 | |

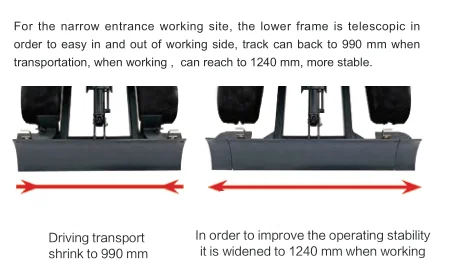

Chassis width | 990 (1240) | Max. dumping height | 2310 | |
Track width | 230 | Max. vertical digging depth | 1740 | |
Track height | 360 | Min rotation radius | 1580 | |

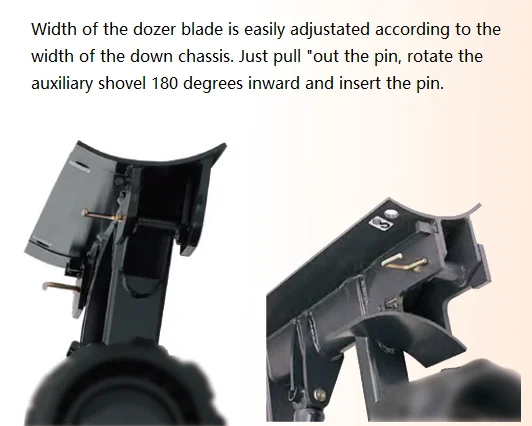

Transportation Length | 3400 | Max. upgrade height of dozer blade | 275 | |
Height (From seat to ground) | 1660 | Max. digging depth of dozer balde | 180 | |
Total height | 2380 | |||
Boom swing-left | 390 | |||
Boom swing- right | 510 |

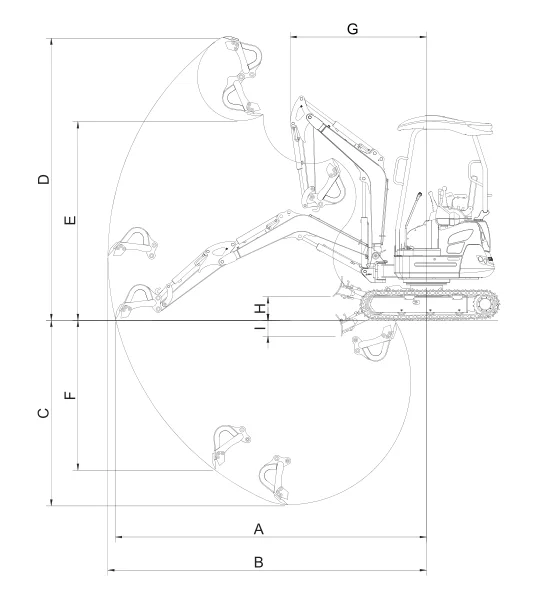

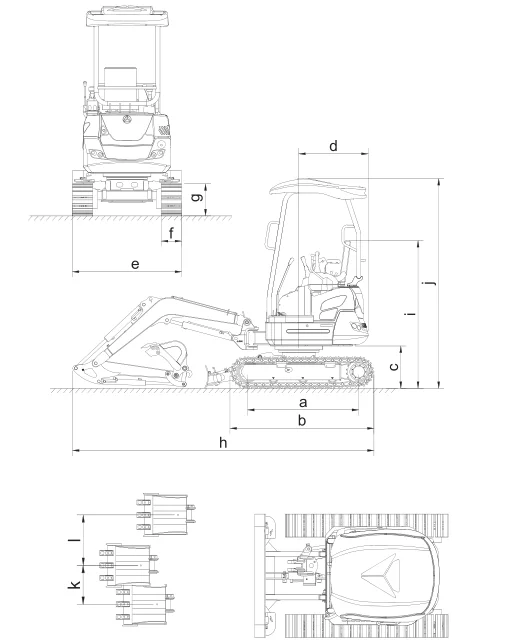

1.Main dimensions schematic diagram 2.Working range schematic diagram
Specification | ||||
Operating Weight | 1900kg | Fuel tank capacity | 19 | |
Bucket capacity | 0.048 m3 | Bucket arm digging force | 10.1 | |
Working device form | Backhoe | Theoretical Maximum traction | 17.5 | |
Model | Yanmar 3TNV703TNV74F | Ground specific pressure | ||
Displacement | 0.854 | Track | steel /rubber track | |
Rated power/Lap speed | 10.3/11.2/2200 | Butter oil cylinder | ||
Maximum torque | 51.9/1600 | Pump type | Piston pump | |
Max. travel speed (high/low) | 3.4/1.9 | Working pressure | 22 | |
Swing speed | 10.5 | Flow rate | 2x17+14 | |
Max. Gradeability | 30degree (58%) | Hydraulic oil tank capacity | 15.3 | |
Bucket digging force | 13.5 | Engine oil capacity | 2.8 (1.3) |

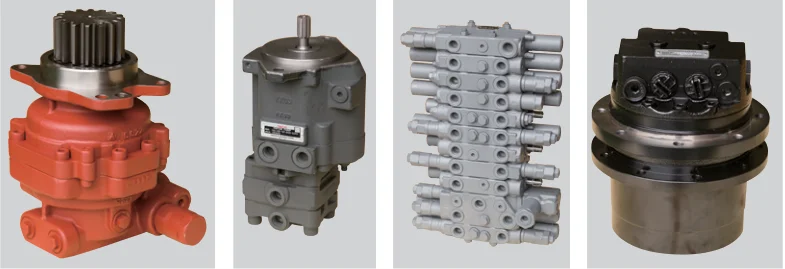

1.Full import hydraulic system
Based on matching technology of excellent engine and full import hydraulic system, machine is with more power output, improve working peed and reduce fuel consumption.
2.anmar engine - reliable, fuel saving
Reliable engine, high efficiency, low vibration, low noise, can meet all kinds of harsh operation
High fuel efficiency with super power, green emissions and high power output yangma TNV direct injection diesel engine.
High fuel efficiency with super power, green emissions and high power output yangma TNV direct injection diesel engine.
3. Easy maintenance
Rear and side cover can be opened widely, easy to daily checking and maintenance and repair works.
4.Security
Using 4 pillar anti-tilt bars, the two columns are farther apart than before to ensure a wide view of the front, the bar is used as a safety handrail, shielding rain or falling objects, protecting the operator's safety.
Product Features

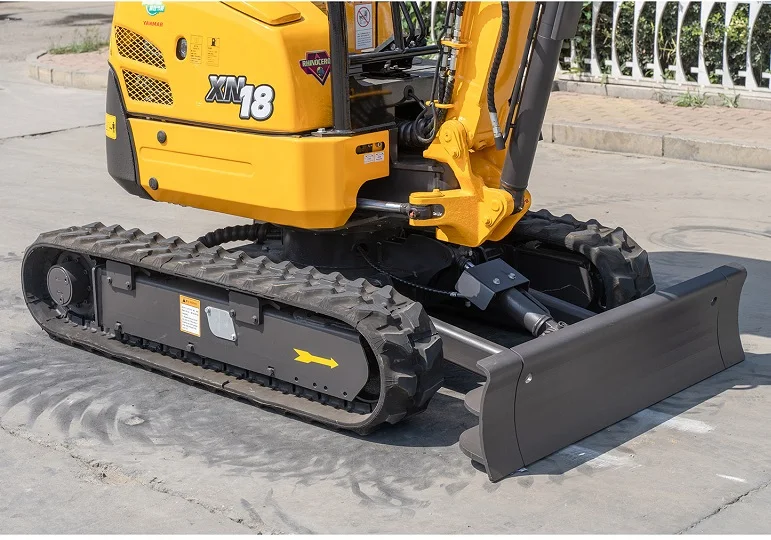

Adjustable bulldozer, optional crusher and pipeline, can quickly replace various functional joints, such as breaker, Various attachments such as rakes, rippers, rotary drills, loading buckets, grabs, etc., greatly increase the utilization rate of the machine and realize smooth, fast and powerful operations.
Suitable working conditions: farmland, gardens, greening, pipeline construction, urban and rural construction, land loosening, orchard nursery planting pits, concrete pavement crushing, sand and gravel mixing, construction operations in small spaces, etc.
