Products Description

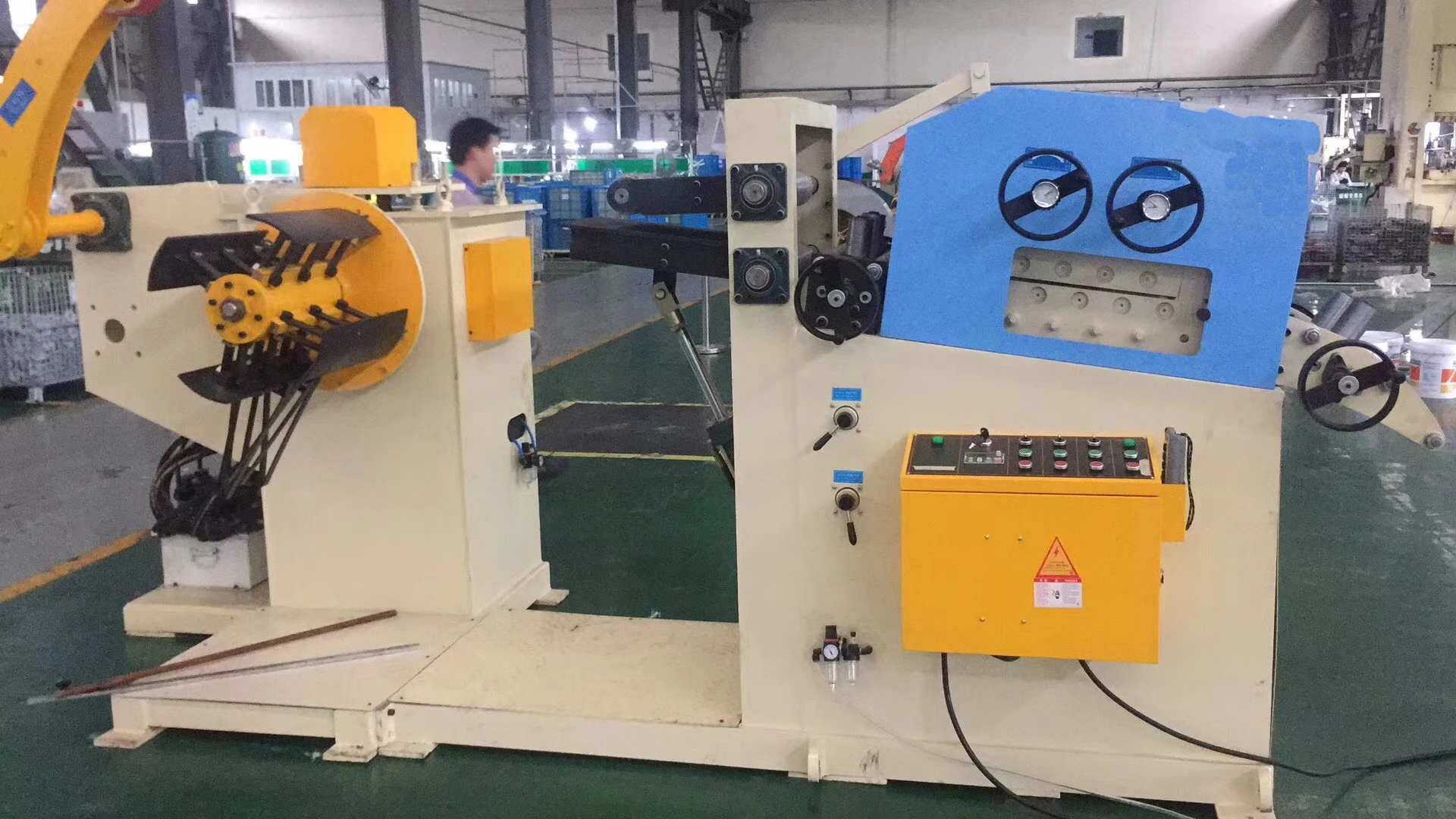

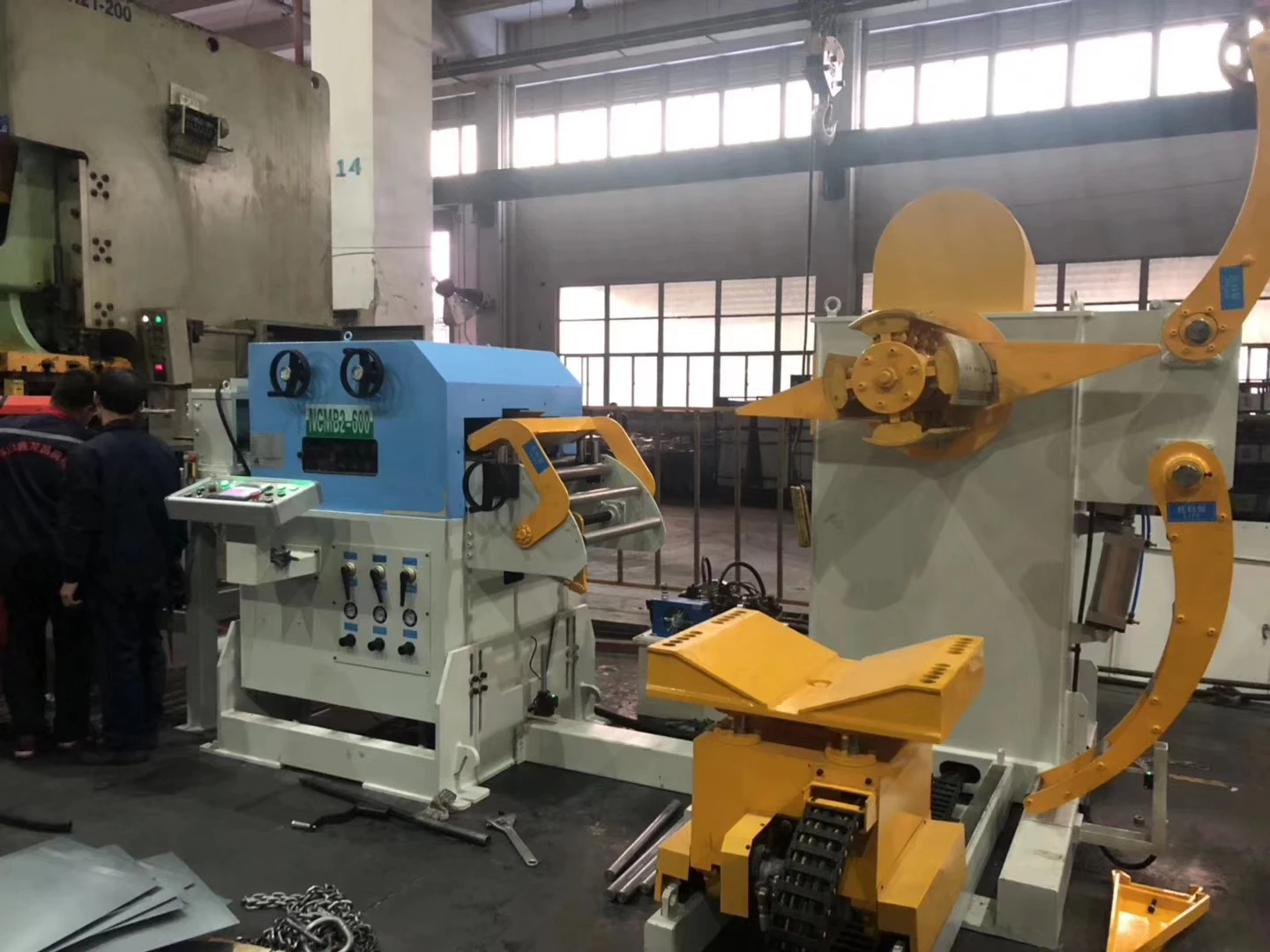

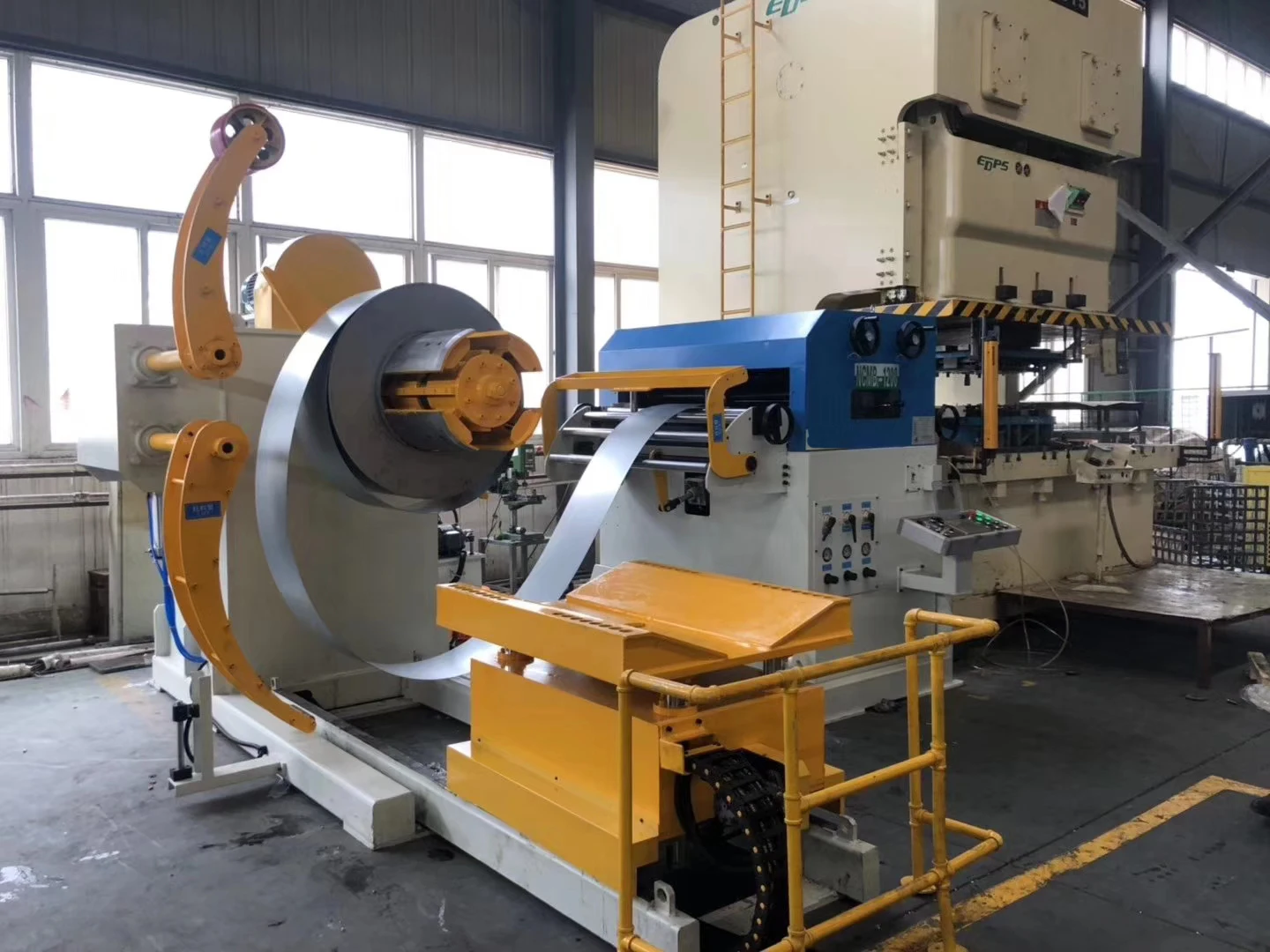

The thick plate three-in-one feeder is composed of the unwinding rack, the leveling machine and the feeder placed on the same machine, which can reduce the error during feeding and leveling to achieve high-precision requirements. It is convenient to install and does not take up space.
1. High-precision feeding: The three-in-one feeder adopts Mitsubishi PLC with Japanese imported servo motor and supporting drivers to achieve stable and high-precision feeding, with an accuracy of up to 0.02mm.
2. Save floor space and space: The three-in-one leveling feeder has the functions of unwinding, leveling and feeding together. There is no need to equip another leveling machine and material rack. The main features are space-saving and reduce the waiting area. The feeding and leveling accuracy is higher.
3. Convenient and fast loading and unloading: Equipped with a loading trolley: safely and smoothly move the material to the expansion and contraction structure of the uncoiler spindle, which is used to hold the material during uncoil, so that the material belt can smoothly enter the leveling machine. (Optional)
4. Multi-functions: The thick plate three-in-one feeder can be customized to multi-stage feeding according to customer needs, and each group provides 999 stamping times.
6. Durable and wear-resistant: The feeding roller and the leveling wheel are specially heat-treated, with high hardness (HRC62 degrees), wear resistance and long service life.
7. Easy to operate and easy to learn: The operation panel adopts a color LCD display, a large touch screen, a high-definition operation screen, and the operation safety protection system can be operated with peace of mind even for the first time users.
8. Time-saving and safe: The humanized design of the sound operating system shortens the preparation work, and the advanced automatic diagnosis system assists the operator in quickly mastering the operating performance of the machine.
9. Save labor and time: feeding, feeding, blocking, folding, leveling, feeding, and refueling are all completed by one machine, and one person can complete the point-controlled operation on the independent console, which is great Save labor and reduce labor intensity.
Function: used for the width positioning of the roll
Advantages: This device is different from the general A-type iron, which is of great help to the fixed center of the material and the phenomenon of loose coiling.
Special attention: Without this device, the material roll will swing left and right, causing safety hazards.
Raw Material | Galvanized sheet, mild steel, etc | ||||||
Roller Material | High grade 45# steel | ||||||
Production Line | Fully automatic | ||||||
Electrical Control System | PLC control | ||||||
Usage | Light steel keel | ||||||
Brand | KINGREAL | ||||||
Certifications
Our products have passed the international ISO9001 and European CE certification,
and being exported to many European countries.
Why Choose Us
Related products
Company Profile
KINGREAL UNIVERSAL INDUSTRIAL LIMITED is established on 1995 and is dedicated on researching, desgin and metal ceiling production factory manufacturing all kinds of metal ceiling perforation production line, HVAC Duct Auto Manufacture Line, T bar roll forming machine, metal slitting line, cut to length line, acoustical ceiling tile textile install machine, cold roll forming machine and etc.
Our machinery and production line had been exported to Turkey, Saudi, UAE, Russia, etc and win good reputation all around the world.We warmly welcome old and new customers from all over the world to visit our company and establish business relationships with us. We do believe our mutual cooperation will create a brilliant future.
Our machinery and production line had been exported to Turkey, Saudi, UAE, Russia, etc and win good reputation all around the world.We warmly welcome old and new customers from all over the world to visit our company and establish business relationships with us. We do believe our mutual cooperation will create a brilliant future.
Product packaging
For different machines or production line parts, we have different packing solutions:
* For the machine or production line, using plastic film to cover and wrap. Then will be loaded to the container by forklift or crane.
* For the key parts such as the roll forming rollers set, we will use the metal frame to package.
* For the electrical cabinets, molds set, we will use wooden carton to package and load.
* For the electrical cabinets, molds set, we will use wooden carton to package and load.
