Лента Кабеля FFC 34 Pin 0 5 мм для ноутбука клавиатуры кнопки питания плоские гибкие
- Категории: Wiring Harness >>>
- Поставщик: Shenzhen,Holy,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
1.These flexible flat cable is suitable for extending PCB circuit board wire.
2.FFC is finding wide acceptance in the computer industry and screen display of 3D printer, particularly in such pplications as Lap Top, Palm Top and Note Pad.
3.Widely used in the connection between the head of the printer and the motherboard, signal transmission and board connection of plotters, scanners, copiers, stereos, LCD appliances, fax machines, and various DVD players.
4."A Type" flat cable means --- the contacting side of the 2 top pin is on the same side(Both towards to up or down).
5."B Type" flat cable means --- the contacting side of the 2 top pin is on the opposite side(One towards to up, the other towards to down).
5."B Type" flat cable means --- the contacting side of the 2 top pin is on the opposite side(One towards to up, the other towards to down).

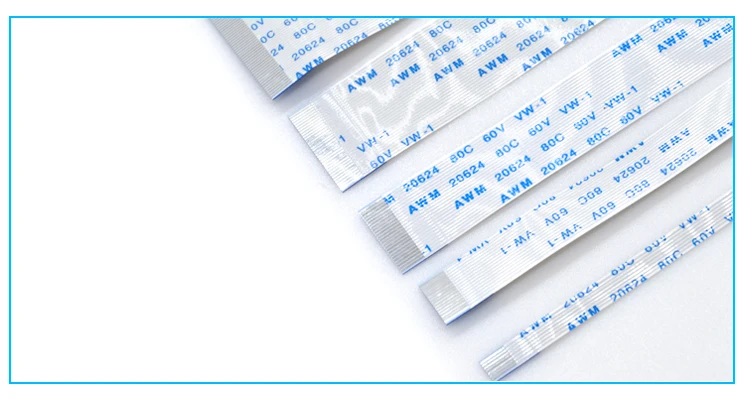

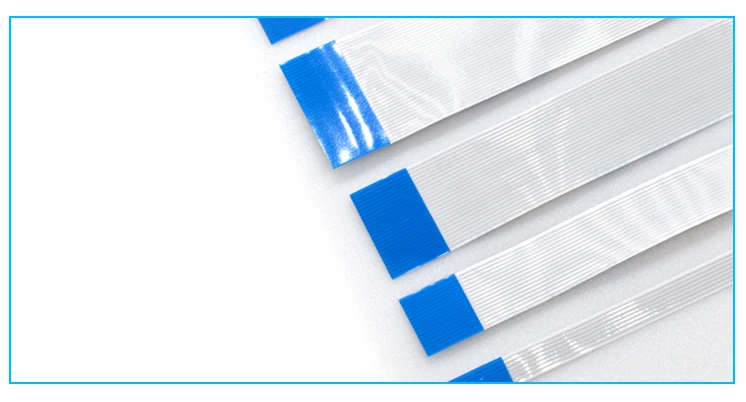

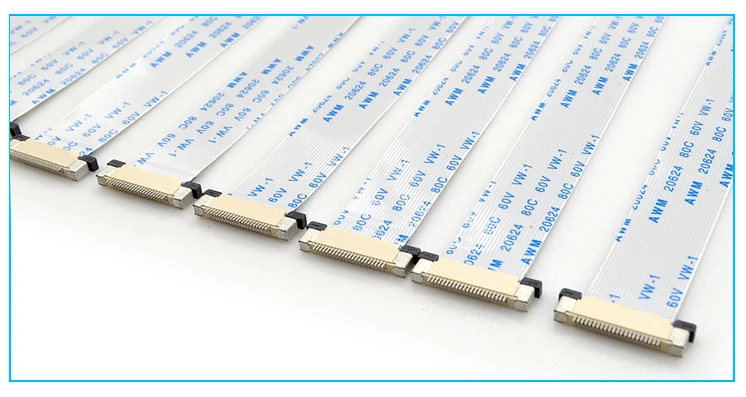

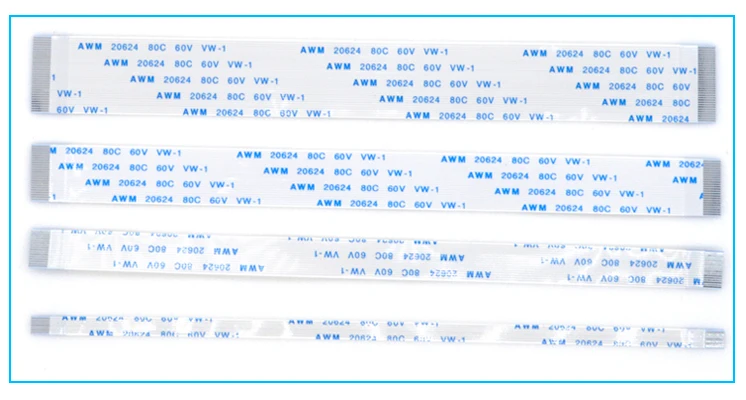

Product Photograph
Specification
Flat FFC Cable | Specification | ||||||
Pitch | 0.5mm | ||||||
Pins | 4-64Pin(customized) | ||||||
Insulation Material | Flame Retardant Polyester Film | ||||||
Conductor Material | Copper with tin plated | ||||||
Cable Sides | same side or opposite side contact | ||||||
Cable Type | A type or B type (According to customers' request) | ||||||
Cable Length | 20mm-10000mm (According to customers' request) | ||||||
Voltage Rating | 60 V ac | ||||||
Operating Temperature | -20℃-85℃ | ||||||
Packaging | Bag-packed | ||||||
Service | OEM/ODM products are acceptable. | ||||||
Contactor contacts
There are 8 metal contacts The link specification is 8pin
Same side
The metal contact points are all on one surface (pictured)
Measure soft cable
①The length parameter you need
Metal contacts
Blue patch length
Note:
The special length can be customized by contacting customer service for quotation.
One plug and one welding (Type E)
Coaxial reinforcement plate warping (F type)
Both ends welding (G type)
Coaxially covered conductive cloth
Sub-line package wax acid cloth
Sub-line
Sub-line package copper foil
Can be customized 0.5mm, 0.8mm, 1.0mm, 1.25mm, 2.0mm, 2.5mm pitch FFC cable
Production process: dividing line, folding, aluminum foil, acetate cloth, copper foil, silver paste, magnetic ring, drawing line, sticking double-sided tape, Mylar.

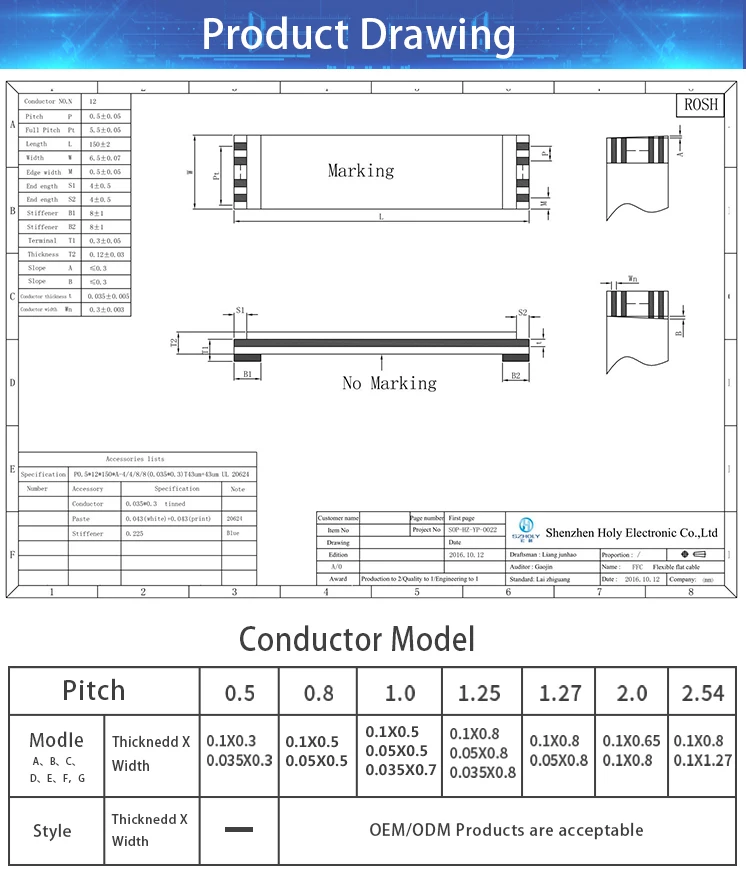

Product Drawing
Cable Type
Company Profile
Shenzhen HOLY Electronics Co., Ltd. is a manufacturer of FPC connectors. We not only strive for perfection, innovate research and development, but also introduce a full range of manufacturing technologies to create an integrated solution for FPC contactor orders.
In our industry, since 2012, We take "survive by quality, develop by science and technology" as our business tenet and adhere to quality standards. Phosphor Bronze,Tin(Lead Free) over Nickel/Gold over NickelIt aims to provide cost-effective products and provide more perfect solutions for global enterprises.
In our industry, since 2012, We take "survive by quality, develop by science and technology" as our business tenet and adhere to quality standards. Phosphor Bronze,Tin(Lead Free) over Nickel/Gold over NickelIt aims to provide cost-effective products and provide more perfect solutions for global enterprises.
Certifications
Packing & Delivery
We will pack all products carefully, and each product will be packed in PP bags, using bubble bags, cartons or other protective materials when necessary. For heavy-duty products, they are individually packaged into cartons and then packed into pallets or plywood boxes. Comply with international transportation standards.
FAQ
Q1: How about your company quality control?
A1: Strictly obey ISO9001, all products will be 100% checked before the shipment.
Q2: Do you accept small orders ?
A2: Yes. If you are a small retailer or starting up business, we are definitely willing to grow up with you. And we are looking forward to co-work with you for a long term relationship.
Q3: How about the price? Can you make it cheaper ?
A3: We always take the customer’s benefit as the top priority. Price is negotiable under different conditions, we are assuring you to get the most competitive price.
Q4: How about the sample?
A4: All samples are free. You need to pay for currier cost. Please contact us for details.
Q5: Do you accept Customization ?
A5: Yes,we can do OEM and ODM for our customers.
Q6: What are your payment terms ? any third party payment ?
A6: We usually accept T/T, Alibaba trade assurance, Western Union, Paypal and L/C.
Q7: Can I visit your company and factory in China?
A7: Sure. You are very welcomed to visit our company in Shenzhen, China.
Q8: What about your delivery time?
A8: The stock goods delivery within 1 day, customized goods delivery within 5-7days.
Q9: How Can I place an order ?
A9: You can place an order directly through Alibaba. Of course, you can also send an inquiry to any of our sales representatives to obtain detailed order information. We will explain the detailed process.
A1: Strictly obey ISO9001, all products will be 100% checked before the shipment.
Q2: Do you accept small orders ?
A2: Yes. If you are a small retailer or starting up business, we are definitely willing to grow up with you. And we are looking forward to co-work with you for a long term relationship.
Q3: How about the price? Can you make it cheaper ?
A3: We always take the customer’s benefit as the top priority. Price is negotiable under different conditions, we are assuring you to get the most competitive price.
Q4: How about the sample?
A4: All samples are free. You need to pay for currier cost. Please contact us for details.
Q5: Do you accept Customization ?
A5: Yes,we can do OEM and ODM for our customers.
Q6: What are your payment terms ? any third party payment ?
A6: We usually accept T/T, Alibaba trade assurance, Western Union, Paypal and L/C.
Q7: Can I visit your company and factory in China?
A7: Sure. You are very welcomed to visit our company in Shenzhen, China.
Q8: What about your delivery time?
A8: The stock goods delivery within 1 day, customized goods delivery within 5-7days.
Q9: How Can I place an order ?
A9: You can place an order directly through Alibaba. Of course, you can also send an inquiry to any of our sales representatives to obtain detailed order information. We will explain the detailed process.
