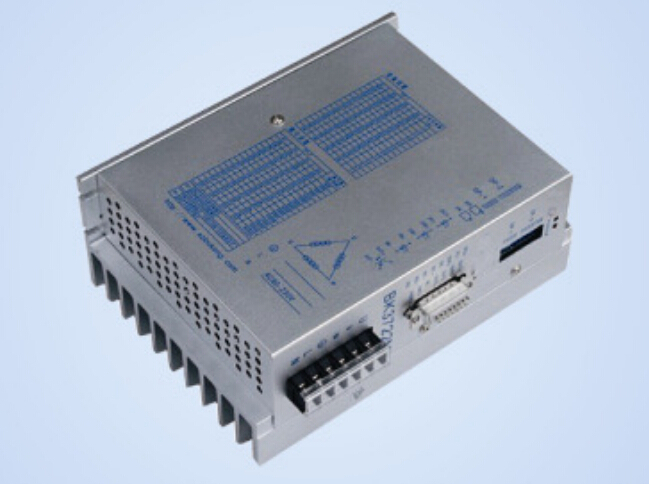

1.3A -7.0A packing machine 3 Phase digital hybrid stepper motor driver for nema 42 nema 52 110V-220V AC ZG3MD2207

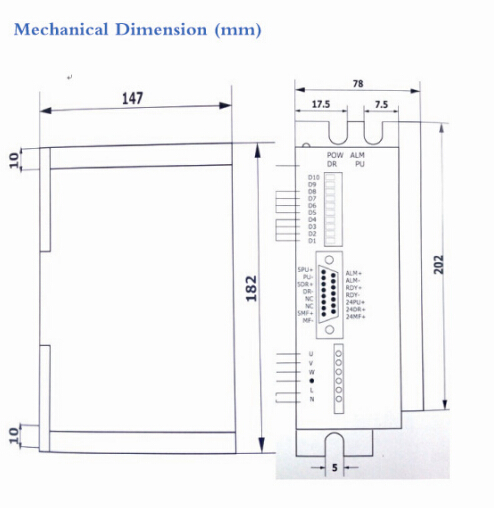

product drawing
Product Description
ZG3MD2207 is a type of 3phase digital hybrid stepper motor driver,this driver input voltage is 110V-220V AC. suit for current less 7.0A,diameter is 110mm,130mm 3 phase hybrid stepper motor.the motor to run smoothly .it is widely used in CNC machine,robots,cutting machine,packing machine,plotter, engraving machine and so on.
Features:
1: Supply voltage from 110VAC-220VAC
2: Opto-isolated singal I/O
3: Overvoltage, under voltage,overcurrent,phase short cicuit protection
4: 16 channelssubdivision and automatic idle-current reduction
5: 16 channels output phase current setting
6: low noise,low hot
7: Mainly for 110mm(NEMA42) and 130mm(NEMA52)3 phase stepper motor
Mechanical Specification:
Input Voltage
110-220V AC
Output current
1.3A-7.0A
Temperature
Working temperature -10℃~45℃,stocking temperature -20℃~70℃
Humidity
Not condensation,no water droplets
Gas
Prohibition of combustible gases and conductive dust
