2 0 дюймовый 240(RGB)x 320 IPS SPI интерфейс TFT
- Категории: LCD Module >>>
- Поставщик: Dongguan,Shineworld,Innovations,Co.,Limited
Поделиться:
Описание и отзывы
Характеристики
Product Description

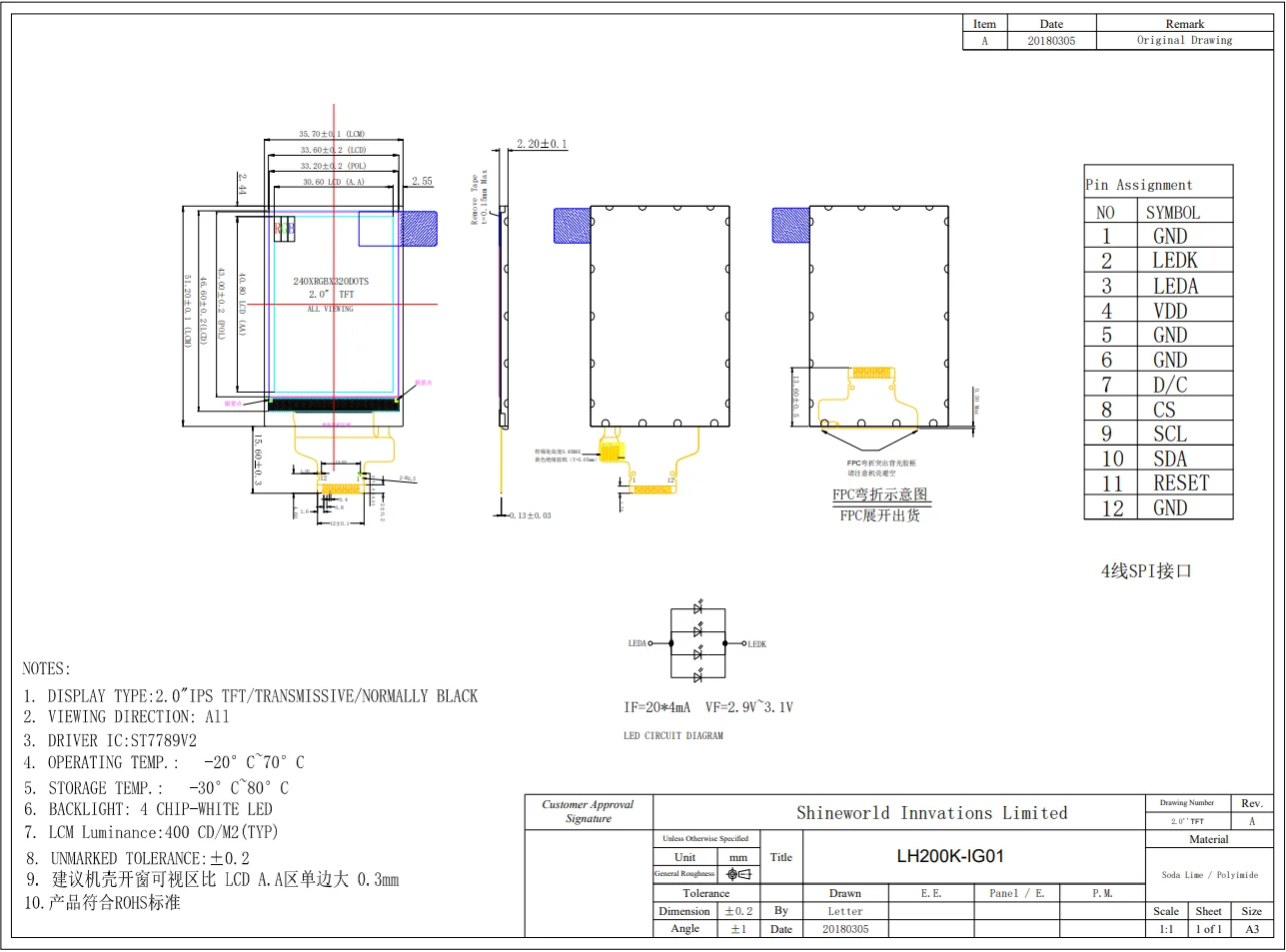

2.0 Inch IPS SPI Interface TFT LCD With CTP Optical Bonding | ||
Diagonal Screen Size | 2.0 inch | |
Number of Pixels | 240(RGB)x320 | |
Module Construction | TFT | |
Panel Size | 35.7x51.2x2.3mm | |
Active Area | 30.6x40.8mm | |
Pins | 12 | |
Drive IC | ST7789VW | |
Interface | 4-wire SPI | |
Pixel pitch | 0.1275(H) x 0.1275(V) mm | |
Assembly | Soldering | |
Temperature Range | ||||
Item | Min. | Max. | ||
Operating Temperature (°C) | -20 | 70 | ||
Storage Temperature (°C) | -30 | 80 | ||

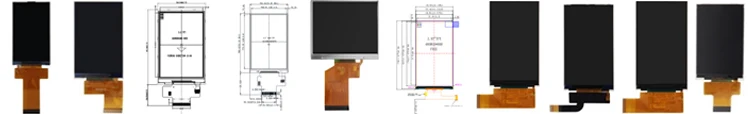

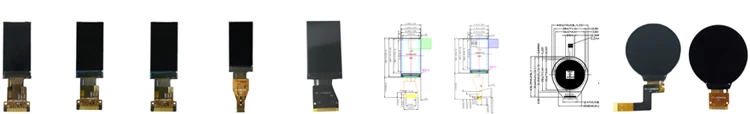

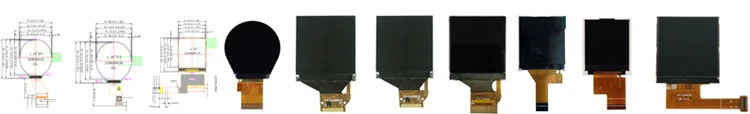

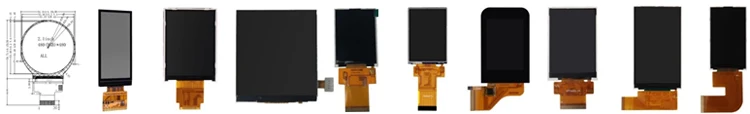

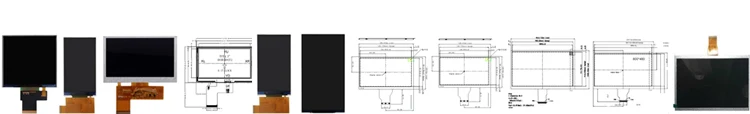

More Products
0.96" | 0.96" | 0.96" | 0.96" | 1.14" | 1.14" | 1.14" | 1.0" | 1.28" | 1.28" |
T-IG11 | T-PG11 | T-PG06 | T-IF09 | T-IG01 | T-IG02 | T-IF03 | G128128-27 | R-IF04 | R-IG01 |
1.28" | 1.28" | 1.28" | 1.3" | 1.3" | 1.3" | 1.3" | 1.44" | 1.44" | 1.54" |
R-IG02 | R-IF06 | T-PF01 | 13001 | T-IG01 | T-PG01 | T-IF05 | 14410A | 14406A | T-PC03 |
2.1" | 2.13" | 2.2" | 2.4" | 2.4" | 2.4" | 2.4" | 2.8" | 2.8" | 3.0" |
21002A | B213HWG01 | 22012A | K-IC02 | 24020C | 24045A | 24065C | 28002B | 28047D | 30011A |
3.2" | 3.5" | 3.5" | 3.5" | 3.5" | 3.97" | 3.97" | 3.97" | 3.97" | 4.0" |
32009H | 35005B | 35096A | 35071A | 35081 | K-IC01 | 39720B | 39710B | 39717 | 39501 |
4.0" | 4.3" | 4.3" | 4.3" | 4.5" | 5.0" | 7.0" 7.0" | 9.0" | 9.0" | 10.1" |
40005B | 43002B | 43008 | 43013A | 45001C | 5011 | 323C-21A 356C-27B | TB406C-27B | 409C-27A | 506C-21A |
Size | Type | Item No. | Pixels | Active Area (HxV mm) | Panel Size (HxVxD mm) | Interface |
0.96" | IPS | 80RGBx160 | 10.8x21.7 | 13.5x27.95x1.5 | 4-wire SPI | |
0.96" | IPS | LH096T-PG11 | 80RGBx160 | 10.8x21.7 | 13.5x27.95x1.4 | 4-wire SPI |
0.96" | IPS | LH096T-PG06 | 80RGBx160 | 10.8x21.7 | 13.5x27.95x1.4 | 4-wire SPI |
0.96" | IPS | 80RGBx160 | 10.8x21.7 | 13.5x27.95x1.4 | 4-wire SPI | |
1.14” | IPS | 135RGBx240 | 14.864x24.912 | 17.6x31.0x1.6 | 4-wire SPI | |
1.14” | IPS | LH114T-IG02 | 135RGBx240 | 14.864x24.912 | 17.6x31.0x1.6 | 8 Bit 8080 MCU |
1.14” | IPS | 135RGBx240 | 14.864x24.912 | 17.6x31.0x1.6 | 4-wire SPI | |
1.0" | TN | G128128-27 | 128RGBx128 | ⌀26.67 | 32.67x36.39x1.95 | |
1.28" | IPS | 240RGBx240 | ⌀32.4 | 35.6x38.1x1.5 | 4-wire SPI | |
1.28" | IPS | 240RGBx240 | ⌀32.4 | 35.6x38.1x1.5 | 4-wire SPI | |
1.28" | IPS | LH128R-IG02 | 240RGBx240 | ⌀32.4 | 35.6x38.1x1.5 | 8 Bit 8080 MCU |
1.28" | IPS | LH128R-IF06 | 240RGBx240 | ⌀32.4 | 35.6x38.1x1.5 | 8 Bit 8080 MCU |
1.28" | SR/ST | LG128T-PF01 | 176RGBx176 | 23.0208x23.0208 | 26.16x29.22x1.85 | 4-wire SPI |
1.3” | IPS | TFT13001 | 240RGBx240 | ⌀32.4 | 35.5x38.23x1.5 | |
1.3” | IPS | 240RGBx240 | 23.4x23.4 | 26.16x29.22x1.5 | 4-wire SPI | |
1.3” | IPS | LH133T-PG01 | 240RGBx240 | 23.4x23.4 | 26.16x29.22x1.5 | 4-wire SPI |
1.3” | IPS | 240RGBx240 | 23.4x23.4 | 26.16x29.22x1.5 | 4-wire SPI | |
1.44" | TN | 128RGBx128 | 25.5x26.5 | 29x34.41x2.2 | 4-wire SPI | |
1.44" | TN | 128RGBx128 | 25.5x26.5 | 30.9x36.51x2.3 | 4-wire SPI | |
1.54" | IPS | 240RGBx240 | 27.72x27.72 | 33.72x31.52x1.5 | 8 Bit 8080 MCU | |
1.54" | IPS | 240RGBx240 | 27.72x27.72 | 33.72x31.52x1.5 | 4-wire SPI | |
1.54" | IPS | 240RGBx240 | 27.72x27.72 | 33.72x31.52x1.5 | 4-wire SPI | |
1.54" | IPS | LH154T-PC10 | 240RGBx240 | 27.72x27.72 | 33.72x31.52x1.5 | 4-wire SPI |
1.54" | IPS | 240RGBx240 | 27.72x27.72 | 33.72x31.52x1.5 | 4-wire SPI | |
1.77" | TN | 128RGBx160 | 28.03x35.04 | 34x43.7x2.5 | 8-Bit Parallel | |
2.0" | IPS | 240RGBx320 | 30.6x40.8 | 35.7x51.2x2.3 | 4-wire SPI | |
2.0" | IPS | 240RGBx320 | 30.6x40.8 | 35.7x51.2x2.3 | 4-wire SPI | |
2.0" | IPS | 240RGBx320 | 30.6x40.8 | 35.7x51.2x2.3 | 4-wire SPI/MCU | |
2.0" | TN | TFT20021 | 240RGBx320 | 30.6x40.8 | 37.68x51.32x2.3 | |
2.1" | IPS | 480RGBx480 | ⌀53.28 | 56.18x59.71x2.3 | 3SPI/RGB | |
2.1" | IPS | TFT21002A | 480RGBx480 | ⌀53.28 | 56.18x59.71x2.3 | MIPI |
2.13" | Refl | B213HWG01 | 122x250 | 23.668x48.5 | 27.068x56.2x1.02 | 4-wire SPI |
2.2" | TN | TFT22012A | 240RGBx320 | 33.84x45.12 | 40.1x55.2x2.5 | |
2.4" | IPS | LH240K-IC02 | 240RGBx320 | 36.72x48.96 | 40.44x57.0x2.2 | 8 BIT 8080 MCU |
2.4" | IPS | TFT24020C | 240RGBx320 | 36.72x48.96 | 42.72x60.26x2.2 | Parallel/RGB/4-wire SPI |
2.4" | TN | TFT24045A | 240RGBx320 | 36.72x48.96 | 42.72x60.26x3.55 | Parallel/Serials |
2.4" | IPS | 240RGBx320 | 36.72x48.96 | 42.72x48.96x2.2 | Parallel/RGB/4-wire SPI | |
2.8” | TN | TFT28002B | 240RGBx320 | 43.2x57.6 | 50x69.2x2.25 | Parallel/RGB/SPI |
2.8” | IPS | 240RGBx320 | 43.2x57.6 | 50x69.2x2.3 | ||
3.0" | TN | TFT30011A | 240RGBx400 | 38.88x64.8 | 45.04x77.05x2.6 | Parallel |
3.2" | IPS | TFT32009H | 480RGBx800 | 41.76x69.6 | 43.76x78.7x1.86 | RGB |
3.5" | IPS | TFT35005B | 320RGBx480 | 48.96x73.44 | 53.4x83.0x2.0 | RGB |
3.5" | TN | TFT35096A | 320RGBx480 | 48.96x73.44 | 54.94x85.5x2.3 | |
3.5" | IPS | TFT35071A | 320RGBx480 | 48.96x73.44 | 52.36x80.42x2.0 | 18-Bit RGB |
3.5" | IPS | 320RGBx240 | 70.08x52.56 | 76.84x63.84x3.3 | 24-Bit RGB | |
3.97" | IPS | LH397K-IC01 | 480RGBx800 | 51.84x86.4 | 55.94x95.05x1.95 | MIPI |
3.97" | IPS | 480RGBx800 | 51.84x86.4 | 57.14x96.85x2.2 | Parallel/RGB/4-wire SPI | |
3.97" | IPS | TFT39710B | 480RGBx800 | 52.44x87 | 57.14x96.85x1.97 | MIPI |
3.97" | TN | TFT39717 | 480RGBx800 | 51.84x86.4 | 57.14x96.85x2.0 | |
4.0" | TN | TFT39501 | 320RGBx480 | 55.86x83.52 | 60.78x94.472x2.5 | |
4.0" | IPS | 480RGBx480 | 71.86x70.08 | 77x80x2.5 | SPI/RGB | |
4.3" | IPS | TFT43002B | 480RGBx800 | 56.16x93.6 | 60.66x104.25x2.3 | Parallel/RGB/4-wire SPI |
4.3" | IPS | TFT43008 | 800RGBx480 | 95.04x53.86 | 105.5x67.2x2.95 | RGB |
4.3" | TN | 480RGBx272 | 95.04x53.856 | 105.4x67.1x2.9 | RGB 24-Bit/Parallel | |
4.5" | IPS | 480RGBx854 | 55.44x98.64 | 60x109.00x2.25 | MIPI | |
5.0" | TFT5011 | 720RGBx1280 | 62.1x110.4 | 64.9x117.8x1.55 | MIPI | |
7.0" | B070T323C-21A | 800RGBx480 | 154.08x85.92 | 164.9x100x3.5 | Digital/Parallel/8-bit RGB | |
7.0" | TN | B070TB356C-27B | 1024RGBx600 | 154.2144x85.92 | 164.9x100x3.5 | MIPI |
9.0" | B090TB406C-27B | 1024RGBx600 | 196.608x114.15 | 203.7x122.1 | RGB | |
9.0" | B090TB409C-27A | 800RGBx480 | 198.0x111.696 | 210.7x126.4x3.5 | RGB | |
10.1" | TN | B101TB506C-21A | 1024RGBx600 | 222.72x125.28 | 235x143x3.5 | RGB |
About TFT
SWI offers a wide product range of small to medium sizes TFT display modules in sizes ranging from 0.96” through 10.1”, no matter it is by engineering a custom display module, or by implementing a standard display from our wide selection of technologies, including being integrated with touch sensors and/or cover lenses. These TFT LCD modules are including options of TFT panel, TFT LCM with controller board, industry standard mono TFT LCM, TFT color display, IPS display and wide operating temperatures of -20°C to +70°C or -30°C to +80°C. The interface options are MCU / RGB / SPI / UART / 8080 / LVDS. We also offer customization of backlight or/and FPC. Our products have been applied in a wide range of industries including E-cigarettes, wearable deivices, energy meter equipment, fiscal processors, portable devices, intelligent home solutions, medical facilities and industrial control.
With our automatic direct bonding process, we can also integrate these displays with customized capacitive touch panels and/or cover lens using lamination of OCA, SCA or OCR.
With our automatic direct bonding process, we can also integrate these displays with customized capacitive touch panels and/or cover lens using lamination of OCA, SCA or OCR.
ABOUT US
Who is SWI?
Started in 2003 and refounded in 2011, Shineworld Innovations Limited (SWI) is a China-based provider of display screens and the custom display solutions. We are dedicated to providing our customers with the latest in state of the display technology that can be utilized in almost any environment resulting in advanced viewing experiences. We continually develop this technology while remaining a responsible, sustainable company, fully committed to the well-being of our employees and community.
With the pioneering technical team and sophisticated manufacturing facilities, SWI’s products, solutions and services are both competitive and quality. At SWI, innovation focuses on customer needs. We keep investing in new technologies, concentrating on technological breakthroughs that drive the display industry forward.
With the pioneering technical team and sophisticated manufacturing facilities, SWI’s products, solutions and services are both competitive and quality. At SWI, innovation focuses on customer needs. We keep investing in new technologies, concentrating on technological breakthroughs that drive the display industry forward.
What does SWI offer the world?
With a wide range of standard and customized display products including LCM, TFT, OLED, Mrico LED, EPD and CTP, as well as direct bonding services, SWI provides customers the specific and integrated solutions and technologies best suited for the applications.
Our technology has been applied to a wide range of industries including consuming products, portable devices, financial devices, energy meter equipment, check-in machines, fiscal processors, wearable devices/body cams, intelligent home solutions, medical facilities and industrial equipment.
As the end users’ expectation increase on the display appearance and durability, direct bonding is becoming more and more common.
SWI provides direct bonding processing services for touch panel products, LCD displays, glass cover plates or any types of
customer supplied display materials in various sizes of 0.2” to 110”. This provides customers with the flexibility to optically bond a wide array of display applications.
We create value for our customers. Together with our suppliers and partners, we provide our customers with innovative and quality products, as well as the thoughtful services.
We provide dedicated people with a strong growth platform. We keep inspiring dedication of employees. We make it a point to be a responsible, sustainable company that provides a bright future for employees, shareholders, and the communities we touch.
Our technology has been applied to a wide range of industries including consuming products, portable devices, financial devices, energy meter equipment, check-in machines, fiscal processors, wearable devices/body cams, intelligent home solutions, medical facilities and industrial equipment.
As the end users’ expectation increase on the display appearance and durability, direct bonding is becoming more and more common.
SWI provides direct bonding processing services for touch panel products, LCD displays, glass cover plates or any types of
customer supplied display materials in various sizes of 0.2” to 110”. This provides customers with the flexibility to optically bond a wide array of display applications.
We create value for our customers. Together with our suppliers and partners, we provide our customers with innovative and quality products, as well as the thoughtful services.
We provide dedicated people with a strong growth platform. We keep inspiring dedication of employees. We make it a point to be a responsible, sustainable company that provides a bright future for employees, shareholders, and the communities we touch.
OUR ADVANTAGES
CUSTOMER FOCUSED
We’re here to serve customers, and they receive our unwavering focus. We also continually communicate with those we serve, encouraging feedback on how we can better meet their needs and expectations. This helps guide our priorities and methodology.
EFFECTIVE TEAMWORK
We feel a team-based approach works best, for all engagements. Effective teamwork demands strong relationships, respect, and diversity of thought from all contributors, and we foster an environment where those are stimulated.
ADVANCED FACILITIES
The advanced facilities and automated production lines in designated class 100 and class 1000 clean rooms ensure the product quality.
With the pioneering technical team and sophisticated manufacturing facilities, SWI’s products and services are both competitive and quality.
With the pioneering technical team and sophisticated manufacturing facilities, SWI’s products and services are both competitive and quality.
INTEGRATED SOLUTIONS
We propose most suitable display solutions to our customers integrated with capacitive touch functions and optical bonding solutions.
The wide selection and integrated solutions of display technologies in our company meet the customers' effective one-stop customization requirements. This includes LCM, TFT, OLED, EPD, CTP and optical bonding.
The wide selection and integrated solutions of display technologies in our company meet the customers' effective one-stop customization requirements. This includes LCM, TFT, OLED, EPD, CTP and optical bonding.
FAQ
Q.: What is your business type?
A: We design, produce and export our products.
Q: Where is your main market?
A: We sell and ship our products all over the world. Our main market is in Europe, North America and Asia.
Q: Can I get samples before I order?
A: Yes, we can have samples sent to you within 7 working days upon receipt of your payment for these samples.
Q: What is the lead time?
A: Usually our production period is around 4 working weeks. If you have a deadline in mind, we will always aim to meet it,
however it still depends on the availability of raw materials and the period of year.
Q: What are the payment terms？
A：Our payment terms are TT(telecom transfer) 40% in advance and TT 60% before shipment.
Q: Do you also customize the products?
A: Yes, we also customize the products according to your requirements.
Q: Can we visit your factory?
A: You are welcome to visit us.
Q: What is the minimum order quantity (MOQ)?
A: The MOQ is generally 1000pcs/lot, however we accept less quantities for the trial orders.
