High Efficient Optic Fiber Ribbon Secondary Coating Line Wire And Cable Manufacturing
- Категории: Cable Manufacturing Equipment >>>
- Поставщик: Zhongtian,Smart,Equipmennt,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Show

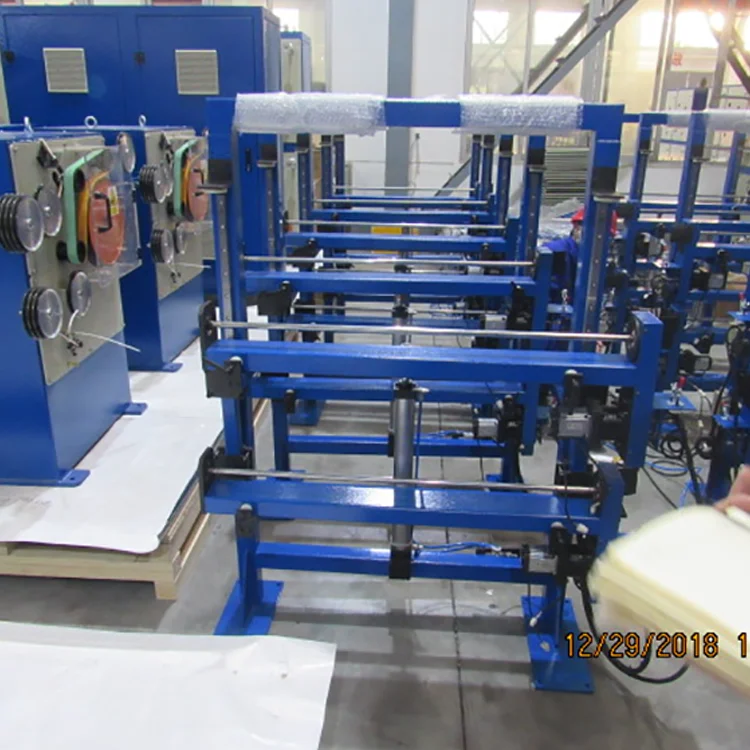

A cabinet contains 12/24 fiber release heads, suspended shaft structure, reel clamping sleeve, multi-wheel dancer control synchronization signal, drive adopts 0.55Kw motor and DANFOSS360 frequency conversion system, and the pay-off shaft is subjected to abrasion resistance heat treatment , All guide wheels adopt anodizing treatment. With static elimination device, the compressed air pipeline is equipped with pneumatic water removal components. (The pay-off is driven by the AC long-axis motor, and the tension adopts the counterweight, without the air cylinder)
Pay-off tension：（0.4～1.5）N±0.05N
Pay-off speed：（10～500）m/min
Reel specification： Ф236×Ф160×Ф25.4×108 mm
Ф265×Ф160×Ф25.4×250 mm
Weight of the reel： 10kg
Requires radial runout of the fiber release shaft：≤0.1mm
Pay-off speed：（10～500）m/min
Reel specification： Ф236×Ф160×Ф25.4×108 mm
Ф265×Ф160×Ф25.4×250 mm
Weight of the reel： 10kg
Requires radial runout of the fiber release shaft：≤0.1mm
It adopts double-layer SZ twisting device and cylinder switching. When the number of cores is small, it can be used in a single layer, and the other layer is used as a spare; a fixed bracket is equipped with a 0-270 degree SZ twisting device, which enters the parallel line through the guide porcelain hole 模装置。 Mould device. The rotating disc is controlled by a 400W Panasonic AC servo system drive reducer.
800-1000 double-disc automatic switching take-up and take-up unit | ||
Loading specification | PN800mm-1000mm | |
Take-up | 500m/min | |
Diameter of shaft hole | φ80mm | |
Cable pitch | （1.5～4）mm | |
Maximum load | 500kg | |
Exchange success rate | ≥99% | |
Product parameter
item | value |
Place of Origin | China |
Jiangsu | |
Brand Name | ZTT |
Product name | 45 Loose tube production line |
Country of origin | Nantong |
MOQ | 1 set |
Packing | standard export packaging |
Delivery date | 120 days |
