Промышленный водяной охладитель с воздушным охлаждением мощностью 80
- Категории: >>>
- Поставщик: Guangdong,Soxi,Intelligent,Equipment,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Products Description
Place of Origin | China |
Material | stainless Steel |
Warranty | 1 Year |
High gloss mold temperature known as the rapid heat & cool mold temperature controller, designed to solve, such as a weld mark, ripple, floating fiber, optical alignment color, deflated, lack of material, and the stress concentration and other injection molded article quality, people to take a number techniques measure, comprising: optimizing the mold design (e.g., layout optimization cavity and waterways), optimization of the injection process (including a control mold temperature, speed and pressure, and dwell blank range and the like), and the combined hot runner technology, Gas-assisted technology and heat treatment technology. Nevertheless, these measures are still difficult to solve the problem fundamentally. The painting process afterthought despite remedy the aforementioned drawbacks, but often leads to higher costs and scrap rates, and its production is not environmentally friendly (benzene). As a new technology developed in recent years, the high-gloss no-melting injection molding system has become a new solution to the above problems.
Multi-function high-gloss mold temperature technological advantages:
The equipment combines the steam forming technology of Japan, South Korea and Europe to remove the expensive and complicated boiler system, and combines the unique characteristics of domestic enterprises with the single-machine design. The equipment is small in size and strong in maneuverability and can be moved like a common mold temperature machine , Small investment returns fast, the company can provide a set of enterprises for traceless (highlight) molding programs, including traceless (highlight) mold design, test mode, production.
The equipment combines the steam forming technology of Japan, South Korea and Europe to remove the expensive and complicated boiler system, and combines the unique characteristics of domestic enterprises with the single-machine design. The equipment is small in size and strong in maneuverability and can be moved like a common mold temperature machine , Small investment returns fast, the company can provide a set of enterprises for traceless (highlight) molding programs, including traceless (highlight) mold design, test mode, production.
In April 2007 the first generation of high light control device does not require boiler available Size of 3.4M x 1.2M x 2.2M
In February 2008, the second generation of high light control device does not require boilers available, and access to national patents and the European Union CE certification
August 2009 The third generation was released and exported to Mexico and Hungary. 2011 has a market share of more than 50%.
E-MOLD system:
The use of electric heaters directly installed in the mold heating system, the mold cost is higher, and the expensive mold design royalties to pay.
RHCM system:
Is the system that uses high-temperature and high-pressure steam as the heat transfer medium. The RHCM system is the earliest, and the mold of this system is relatively mature. The steam can not be recycled in the production process, and the boiler equipment needs to be installed, resulting in high running costs. Research and commercialization Manufacturers using RHCM systems are mainly concentrated in Japan (eg Ono, Mitsubishi, Fuji Seiko, etc.).
SOXIHOT system (patent number: 200820202111.0):
SOXIHOT system is the first SOXI company after years of research and development of a temperature control system and obtained the relevant patents, the system uses high-pressure hot water (the use of pressure to change the boiling point of water) as a heat transfer medium ,in China, the system is the first launch and It is used by a number of enterprises such as Flextronics (one of the world's top 500 leading enterprises) and its molds are compatible with the mold design of RHCM system. The secondary high-pressure hot water is recycled so that the energy can be greatly saved to reduce the operating cost. The system's control method is simple and can be based on the actual situation of choice, the control mode has timer control, signal control, temperature control in three ways, the system is stable and easy to operate without professionals, ordinary employees can operate, internal design has more than 10 safety Protection device to ensure zero accidents.
Multi-purpose high-light mold temperature controller uses:
For the LCD TV, LCD computer, LCD monitors, lights and optical instruments and other industries, in addition to flat-panel TV panels, this technology can also be widely used in computer LCD monitors, air conditioners, automotive interiors and other appliances, Automotive, communications, medical and other industries.
In February 2008, the second generation of high light control device does not require boilers available, and access to national patents and the European Union CE certification
August 2009 The third generation was released and exported to Mexico and Hungary. 2011 has a market share of more than 50%.
E-MOLD system:
The use of electric heaters directly installed in the mold heating system, the mold cost is higher, and the expensive mold design royalties to pay.
RHCM system:
Is the system that uses high-temperature and high-pressure steam as the heat transfer medium. The RHCM system is the earliest, and the mold of this system is relatively mature. The steam can not be recycled in the production process, and the boiler equipment needs to be installed, resulting in high running costs. Research and commercialization Manufacturers using RHCM systems are mainly concentrated in Japan (eg Ono, Mitsubishi, Fuji Seiko, etc.).
SOXIHOT system (patent number: 200820202111.0):
SOXIHOT system is the first SOXI company after years of research and development of a temperature control system and obtained the relevant patents, the system uses high-pressure hot water (the use of pressure to change the boiling point of water) as a heat transfer medium ,in China, the system is the first launch and It is used by a number of enterprises such as Flextronics (one of the world's top 500 leading enterprises) and its molds are compatible with the mold design of RHCM system. The secondary high-pressure hot water is recycled so that the energy can be greatly saved to reduce the operating cost. The system's control method is simple and can be based on the actual situation of choice, the control mode has timer control, signal control, temperature control in three ways, the system is stable and easy to operate without professionals, ordinary employees can operate, internal design has more than 10 safety Protection device to ensure zero accidents.
Multi-purpose high-light mold temperature controller uses:
For the LCD TV, LCD computer, LCD monitors, lights and optical instruments and other industries, in addition to flat-panel TV panels, this technology can also be widely used in computer LCD monitors, air conditioners, automotive interiors and other appliances, Automotive, communications, medical and other industries.

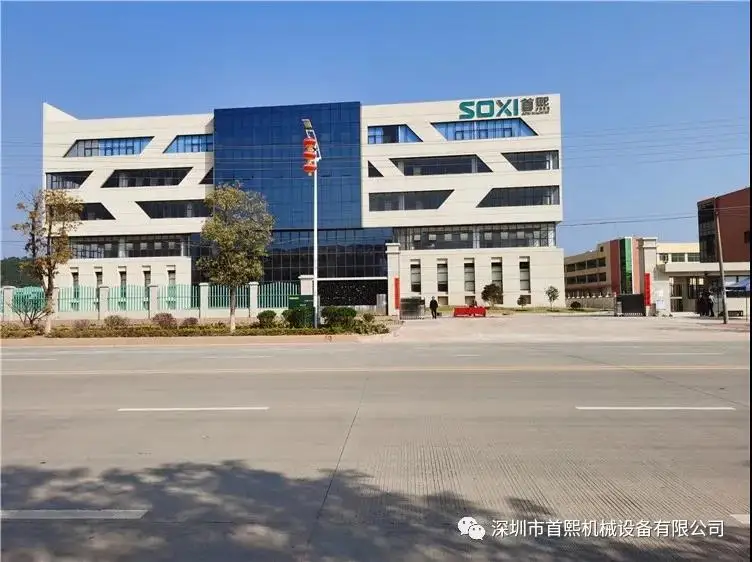

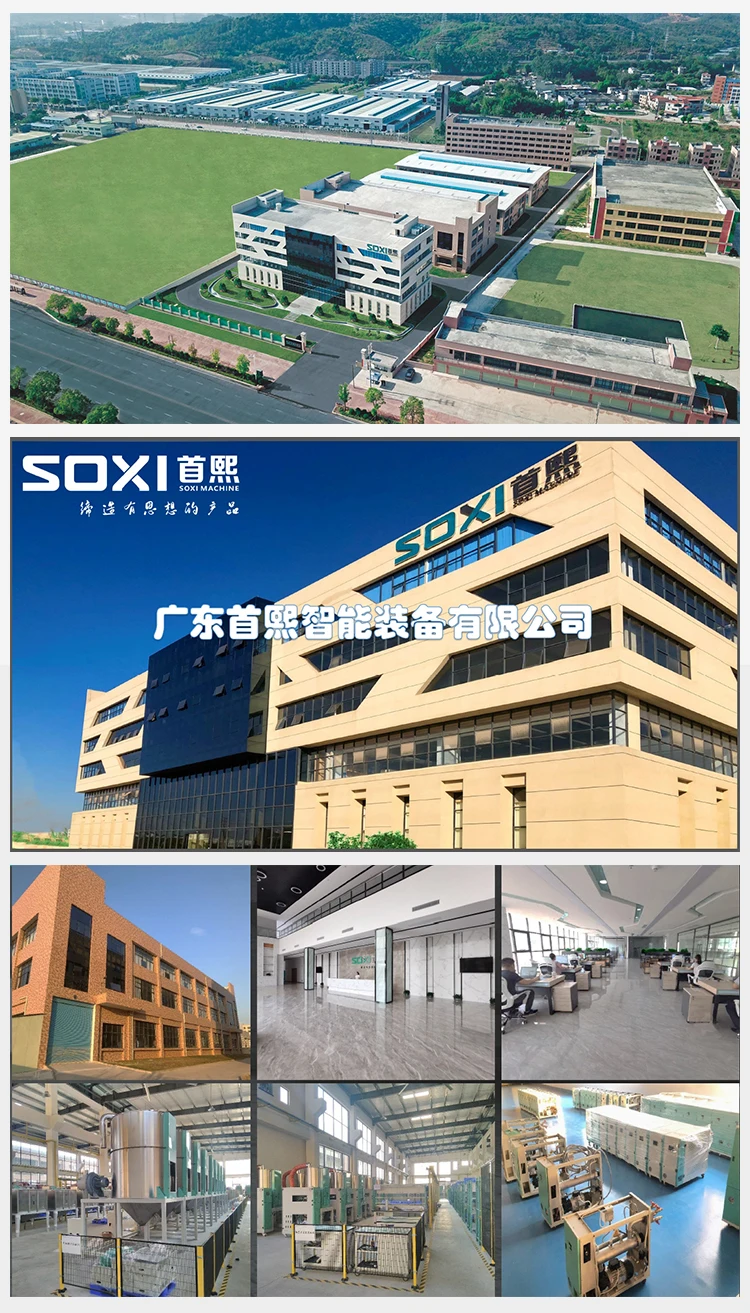

Company Profile

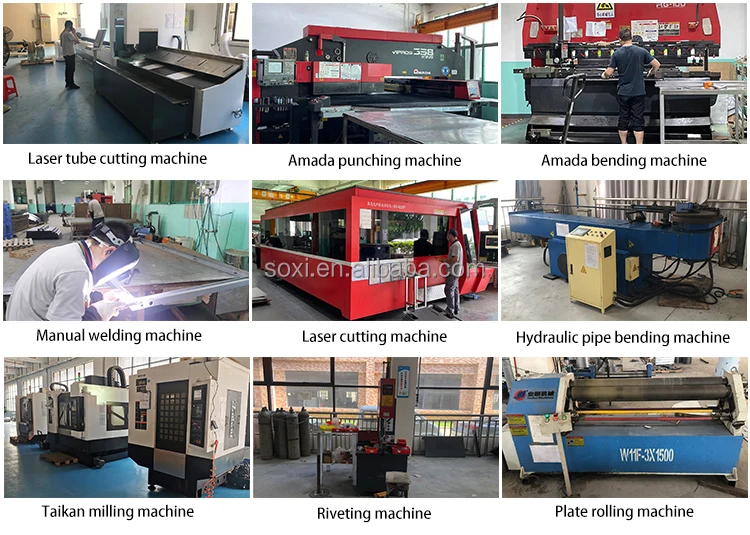

Manufacturing Technique

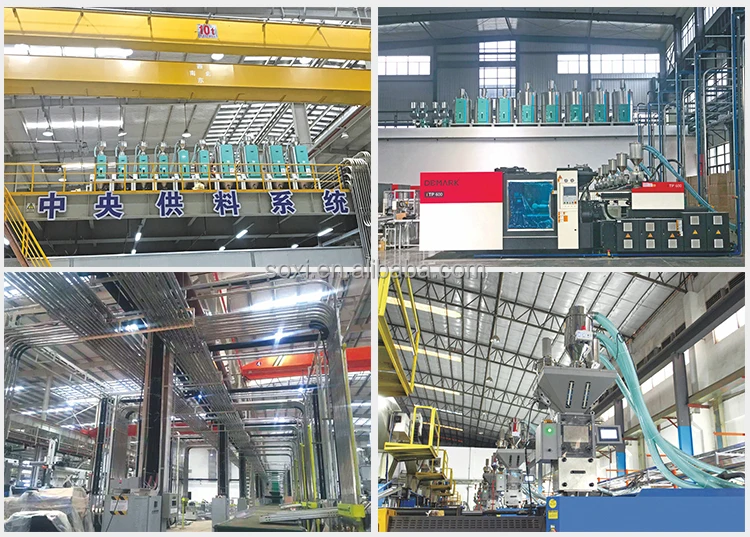

Project Cases
Partner
FAQ
Q: How large is SOXI manufacturing base?

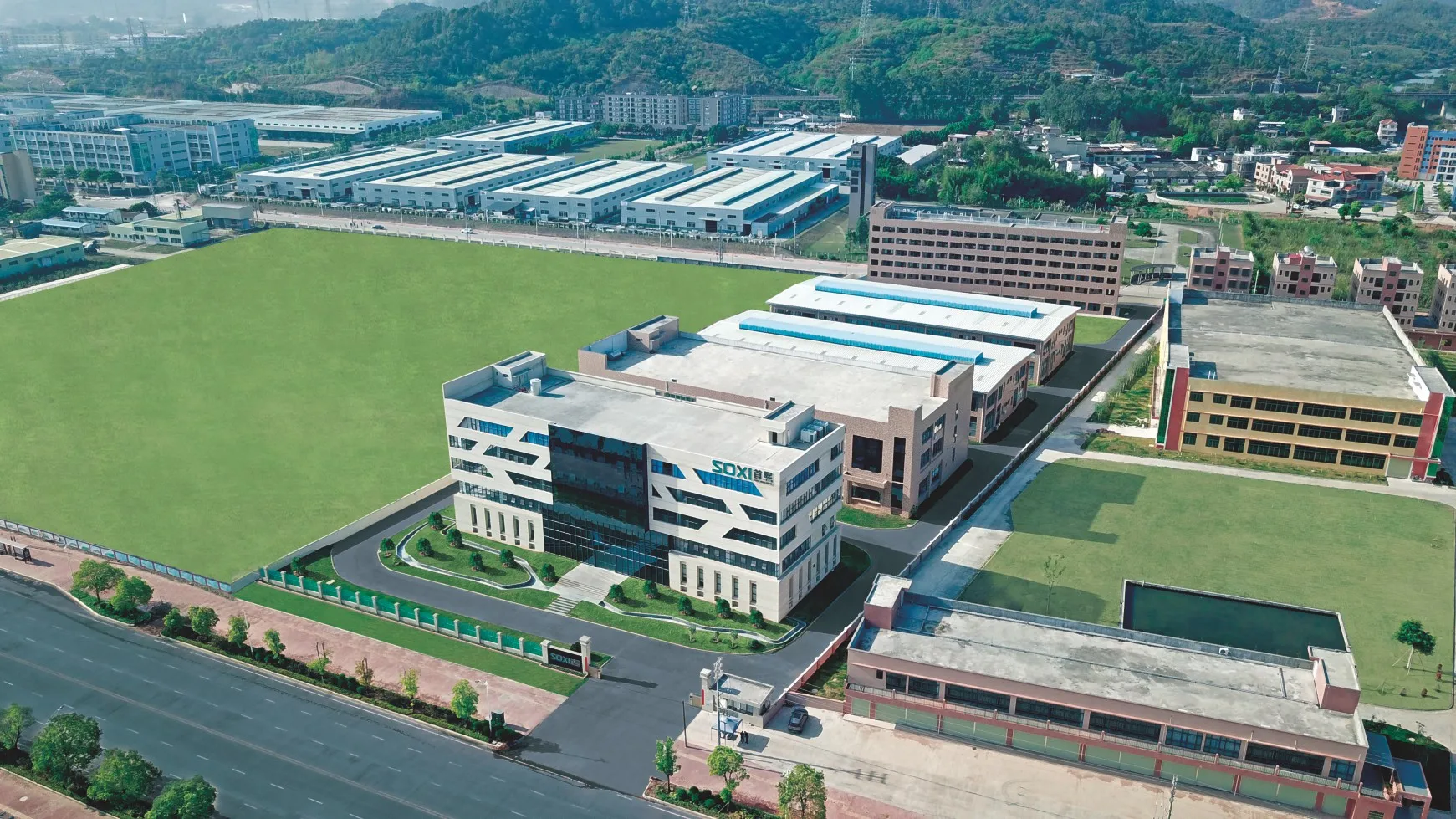

A: SOXI manufacturing base is located in Heyuan,Guangdong province. it covers 12 acres of land area. the combined area of office
and workshop is 22,000 square meters.
Q: How many workers do you have?
A: We have 180 staff members, the majority of staff are based on Heyuan city, while R&D and sales center are based in Shenzhen.
Q: How many years has the company been established?
A: The company was established in 2004 in Shenzhen, and in 2017, the company invested RMB128million in Heyuan to build modernized
workshop. and changed company name from Shenzhen SOXI to Guangdong SOXI.
Q: Who are some of your reference customers?
A: F**W,To**ta, F**d, B*D....etc in automotive. H**er, T*L, A*X....etc in household electric. Sie***s, Xer*x, Fox***n,
Om**n....etc in electric supply.
Q: What is your standard delivery time?
A: For standard units with 230V/50Hz/1Phase or 400V/50Hz/3Phase, it's about 15~30 working days. Other voltages may take up to30~45
working days. For customize unit may take up to 40~50 working days.
Q: What is the standard port of loading?
A: Standard sea freight delivery is Shenzhen China.
Q: What is the standard warranty period?
A: One year on all the mechanical parts and three months of all consumable parts from the date of B/L.
A: SOXI manufacturing base is located in Heyuan,Guangdong province. it covers 12 acres of land area. the combined area of office
and workshop is 22,000 square meters.
Q: How many workers do you have?
A: We have 180 staff members, the majority of staff are based on Heyuan city, while R&D and sales center are based in Shenzhen.
Q: How many years has the company been established?
A: The company was established in 2004 in Shenzhen, and in 2017, the company invested RMB128million in Heyuan to build modernized
workshop. and changed company name from Shenzhen SOXI to Guangdong SOXI.
Q: Who are some of your reference customers?
A: F**W,To**ta, F**d, B*D....etc in automotive. H**er, T*L, A*X....etc in household electric. Sie***s, Xer*x, Fox***n,
Om**n....etc in electric supply.
Q: What is your standard delivery time?
A: For standard units with 230V/50Hz/1Phase or 400V/50Hz/3Phase, it's about 15~30 working days. Other voltages may take up to30~45
working days. For customize unit may take up to 40~50 working days.
Q: What is the standard port of loading?
A: Standard sea freight delivery is Shenzhen China.
Q: What is the standard warranty period?
A: One year on all the mechanical parts and three months of all consumable parts from the date of B/L.
