Фрезерный станок хобби с ЧПУ XH7125, фрезерный станок с ЧПУ
US $14900-$15300
Высокоточный токарный станок с ЧПУ DMTG VDM856 центральный фрезерный автоматический Dalian обрабатывающий
- Категории: Machine Centre >>>
- Поставщик: General,Technology,Group,Dalian,Machine,Tool,Import,And,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

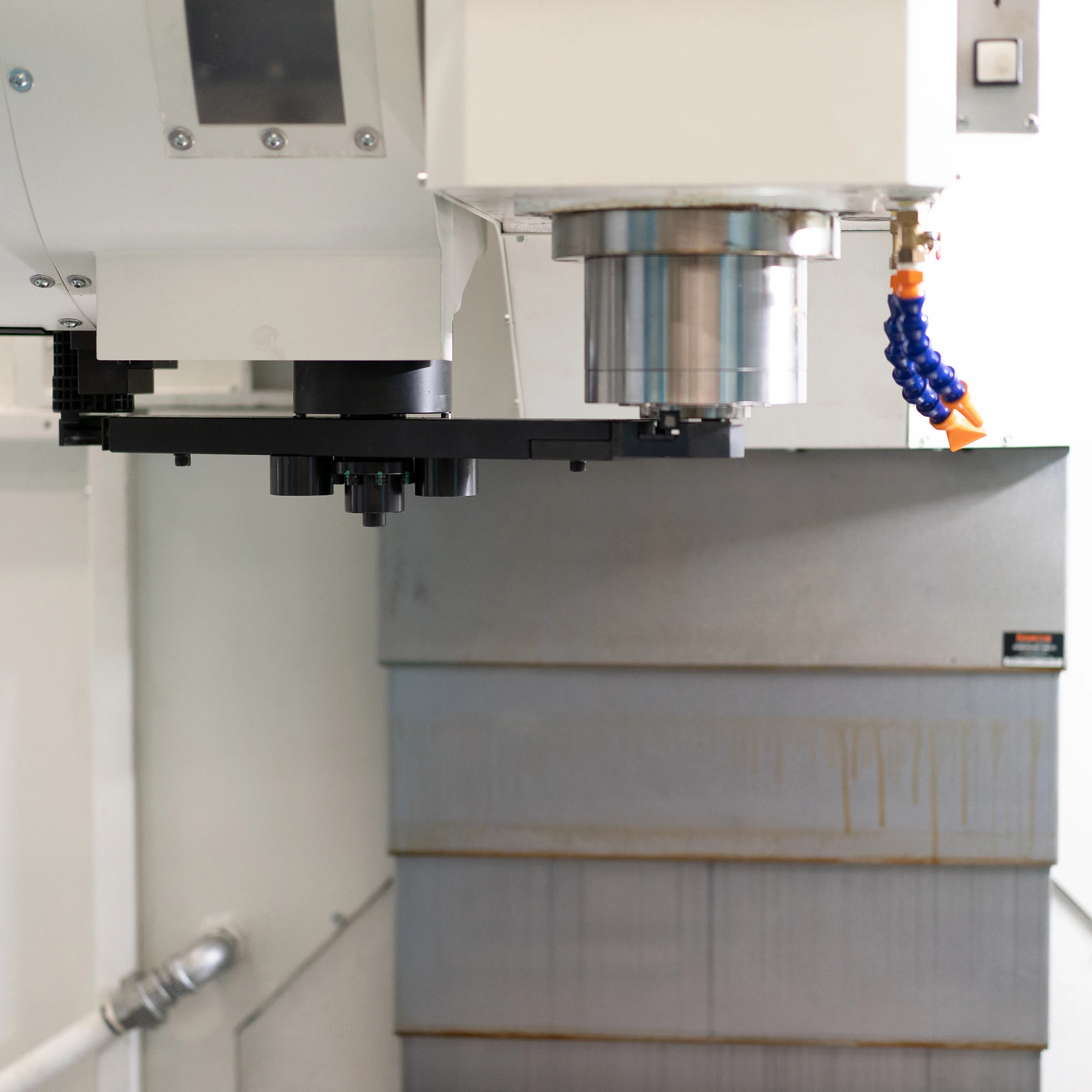

PRODUCT DETAILS
Work table size | 1000X500mm |
Max. load | 500kg |
T slots(No.×W×P) | 5X18X100mm |
Rapid traverse of X/Y/Z-axis | 48/48/48m/min |
X/Y/Z-axis travel | 820/550/600mm |

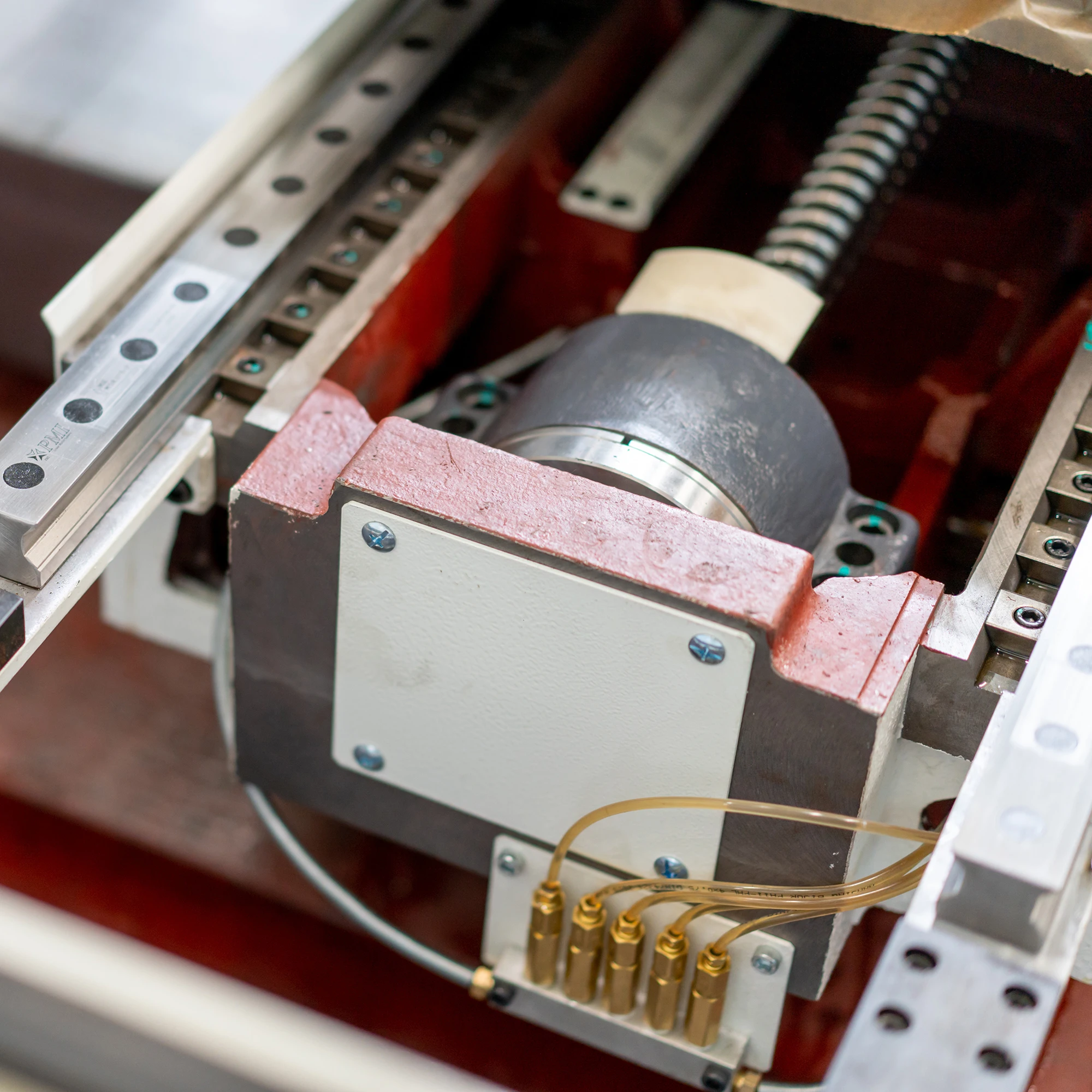

X/Y/Z-axis travel guide way type | Roller guideway |
Spindle motor power | 7.5/11kw |

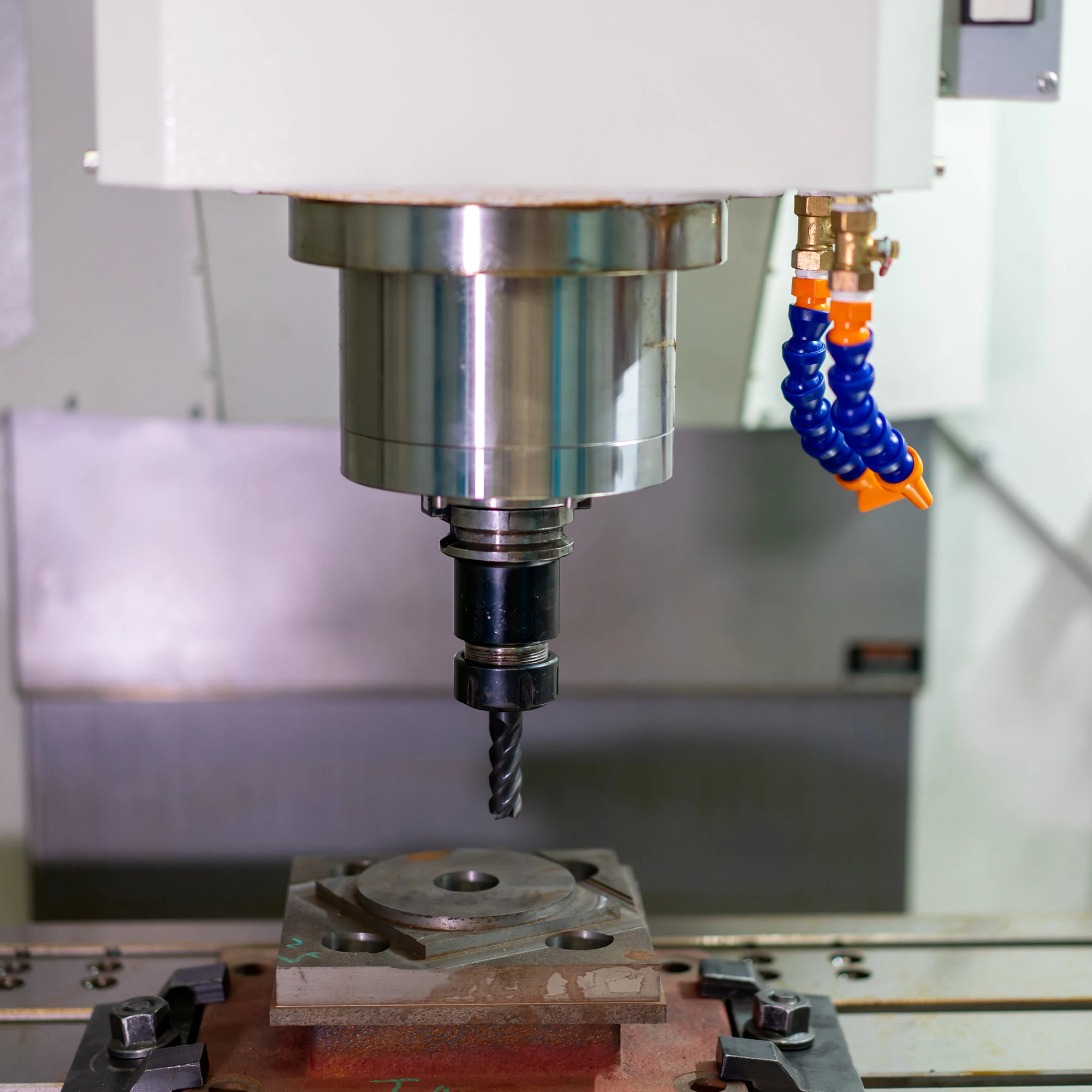

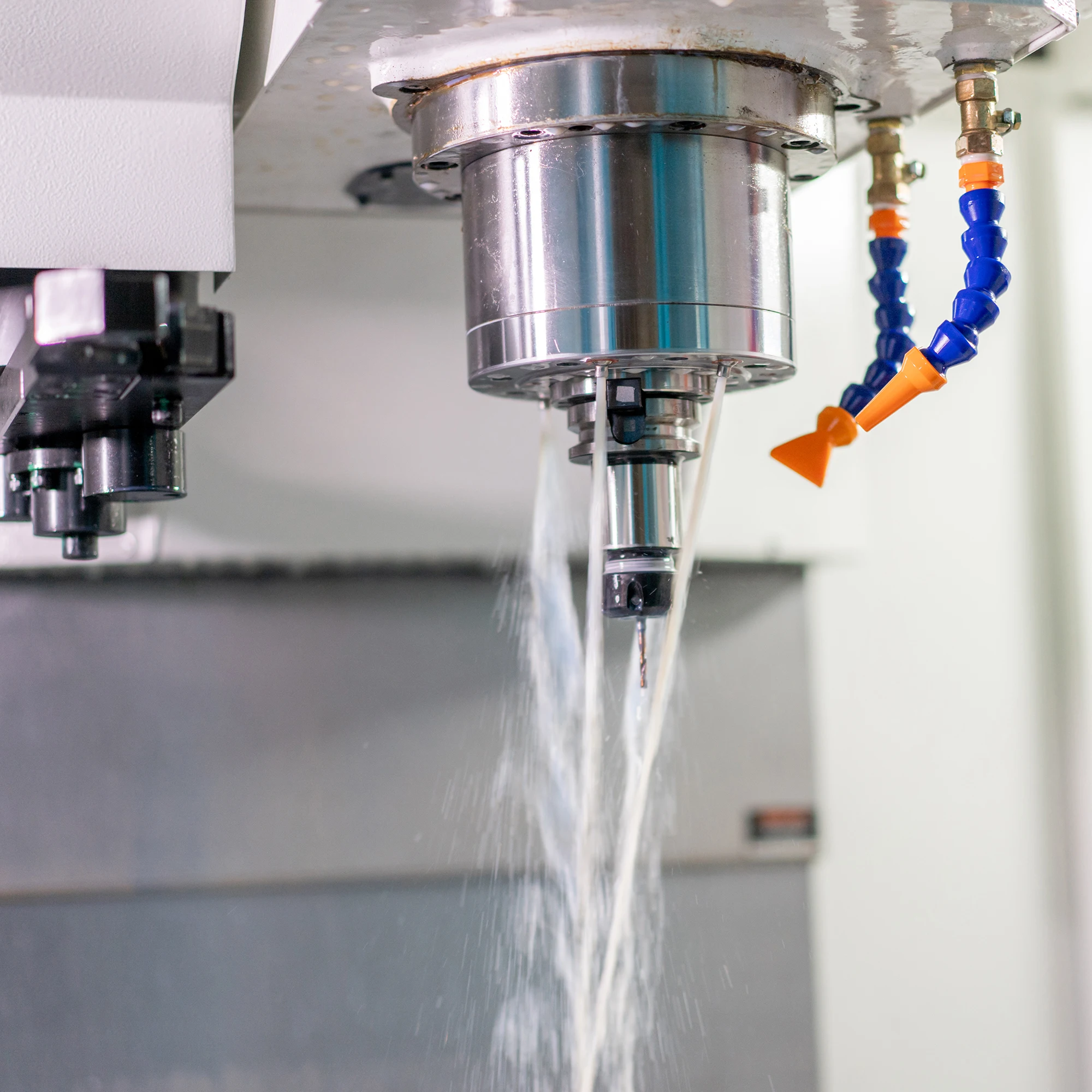

Spindle speed | 12000r/min(direct drive) |
Spindle taper | No.40(7:24) |
X/Y/Z-axis positioning accuracy | 0.008/0.008/0.008mm |
X/Y/Z-axis repeatability accuracy | 0.005/0.005/0.005mm |

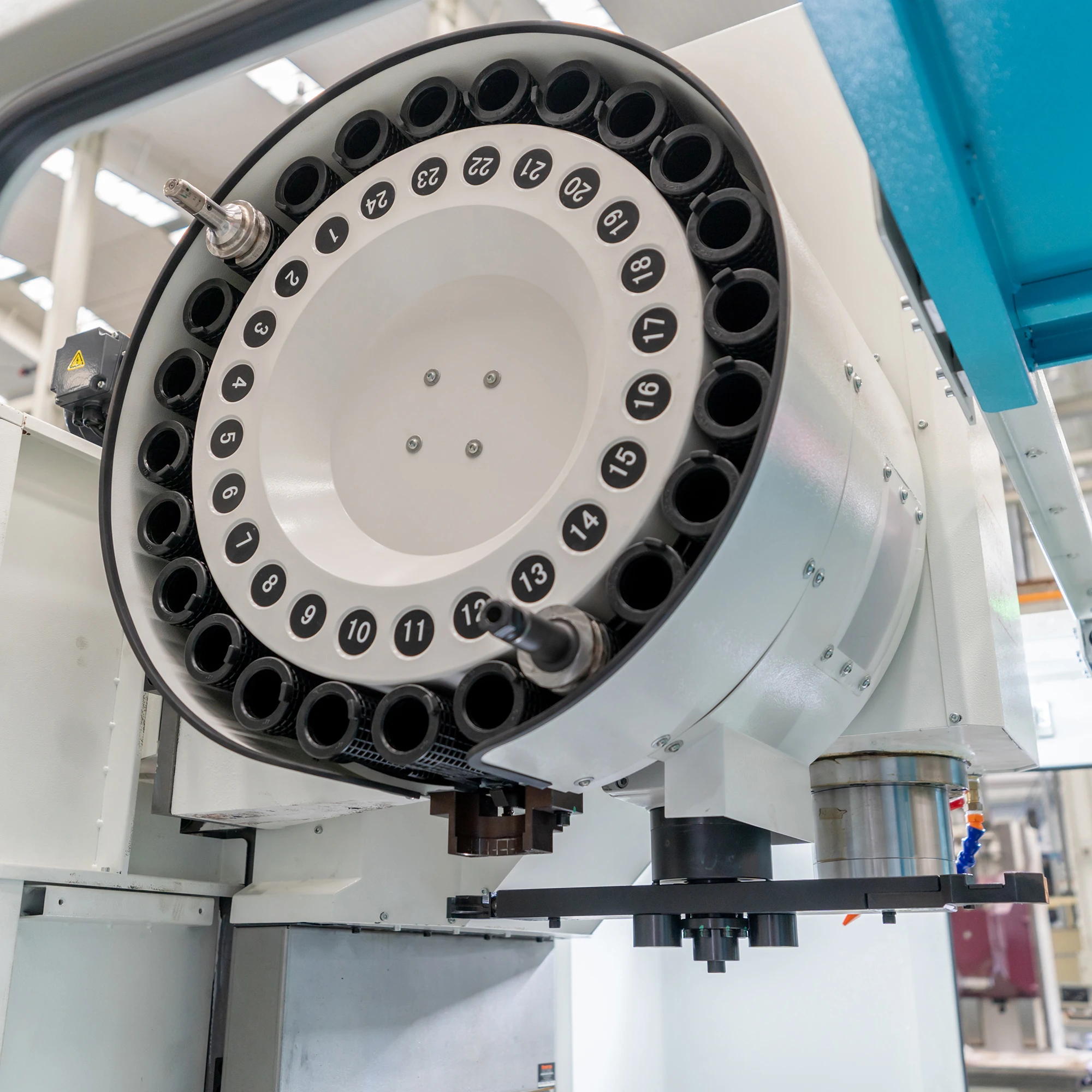

Tool magazine capacity | 24T/Arm type |
Tool shank type | BT40 |
Tool change time (T-T) | 2.5s |
System | Fanuc/Siemens |
Machine dimensions(LxWxH) | 2280*3160*2818mm |
Machine weight | 5800kg |
COMPANY PROFILE
EXHIBITION
CUSTOMER
DMTG’s main products are: Conventional lathes, Flat and slant Bed CNC Lathes, Vertical Milling Machines, Vertical Machining Center 5-axis Vertical Machining Centers, Horizontal Machining Centers, Gantry Machining Centers and Automatic lines, etc.
General Technology Group Dalian Machine Tool Co., Ltd. belongs to the central enterprise China General Technology Group, formerly known as DMTG, which was established in 1935. In 1995, the major state-owned machine tool enterprises in Dalian were merged together to be DMTG. Since 2002, it has successively merged three famous machine tool factories, which were Ingersoll Production Systems, Ingersoll CM System from America, and Zimmermann in Germany. Also established eight joint ventures with the company from America, Germany, Japan, Switzerland, Israel, South Korea and other countries. In April. 2019, China General Technology Group strategically reorganized DMTG and established General Technology Group Dalian Machine Tool Co., Ltd.
CERTIFICATIONS
FAQ
1. Is your company a factory or trading company ? |
We are factory and DMTG was founded in 1935. |
2. Can we pay by L/C or others ？ |
Yes ,you can make the payment by T/T , l/C etc. |
3. What is your payment terms ? |
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation. |
4. What is your delivery time ? |
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not. |
5. Do you have CE certificate? |
Yes , we have CE certification, machine quality is guaranteed. |
6. What is the warranty period ? |
The warranty period is general 13 monthes after B/L date. During the warranty period, we will provide free replacement parts (EXW) which are easy damaged. |
7. Can you send the service engineer to our company ? |
When the machine arrive the destination, we timely send service engineers to install machine according to buyer's schedule, the buyer shall bear all expenses. |
