220 В точный ЧПУ цифровой контроль намотки автоматическая низкая переменная скорость катушки обмотки

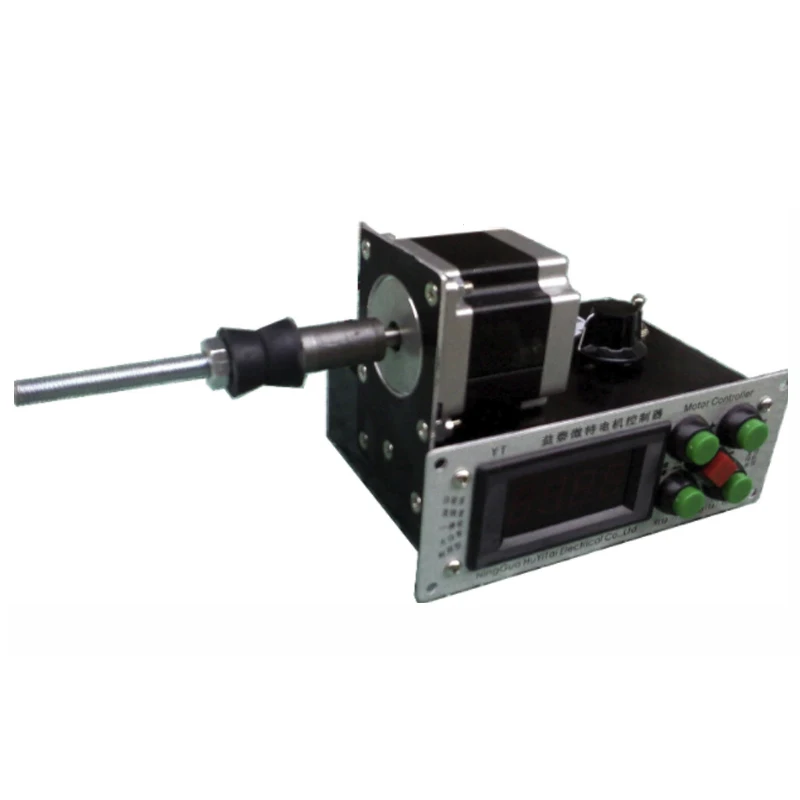

YT-99A computer uniaxial precision automatic winding machine operation instruction:

YT - 99A coiling machine controller is composed of professionals in the winding machine manufacturing industry

development and design, at first, A beautiful, manual operation wound.After use and perfection, proving that the

coiling machine has high precision winding, counting the correct, stable performance, wide application scope,

advantages of simple operation, high efficiency, flexible adjustment, as long as the replacement of different coiling

mode and number of turns for re-election can winding power transformers, small and medium-sized inductor,

power relays, low cycle transformer coil and so on various level wound coil, is currently the more advanced winding equipment.



Main characteristics:

1, Adopts advanced microcomputer programmable controller, two sets of winding circle number, any preset data set.

Can call at any time one kind of wound, after power off data is not lost.
2, USES the import stepper motor, motor drive, high precision, high precision winding rotating, 0.0025 turn, runtime, reversible counter, the number of turns real-time display, be clear at a glance, can produce the product quantity

counting, intuitive easy operation procedures.
3, Electric control for the modular design makes its operation reliability is greatly increased.
4, Strong commonality and wide application scope, corresponding to different clamping mould, can complete all

kinds of coil winding.



The main technical indicators:

Spindle speed: 10-700 RPM

Winding rotating accuracy: 0.9 c (0.0025 turn)
Winding number: the two groups
Programmable winding circle number: 0.1-0.1 turns
Winding direction: clockwise/counterclockwise
Wire diameter range;0.01 1.5 mm
Automatic startup: automatic/manual (0-1.5 V level change)
Wiring way: by hand
Product quantity count: 1-65535
The machine input power: 40 w
Maximum turning diameter: 80 mm
Working power supply: AC220V plus or minus 5% 50 hz
Host size: 160 mm (length) x 120 mm (width) x 100 mm (high)
Weight: 1 kg
Ambient temperature: - 20 °C - + 40 °C

Matters needing attention:

1, If the spindle speed is too high locked-rotor stop, please reduce the spindle speed (reduced parameters of C01 number).

2, Coiling machine, when the phone is switched on speed control knob must be reset back to zero.
3, After work must shut off the power switch or pull out the power plug.
4, In order to ensure the normal operation, the input ac voltage in the range of 220 v + 10%

5, Often keep the machine clean, do not place tools on the top of the winding machine.
