Высокоточная ручная радиочастотная защитная коробка аудио EMI wifi 5g GSM тестирование мобильного телефона

Описание и отзывы

Характеристики

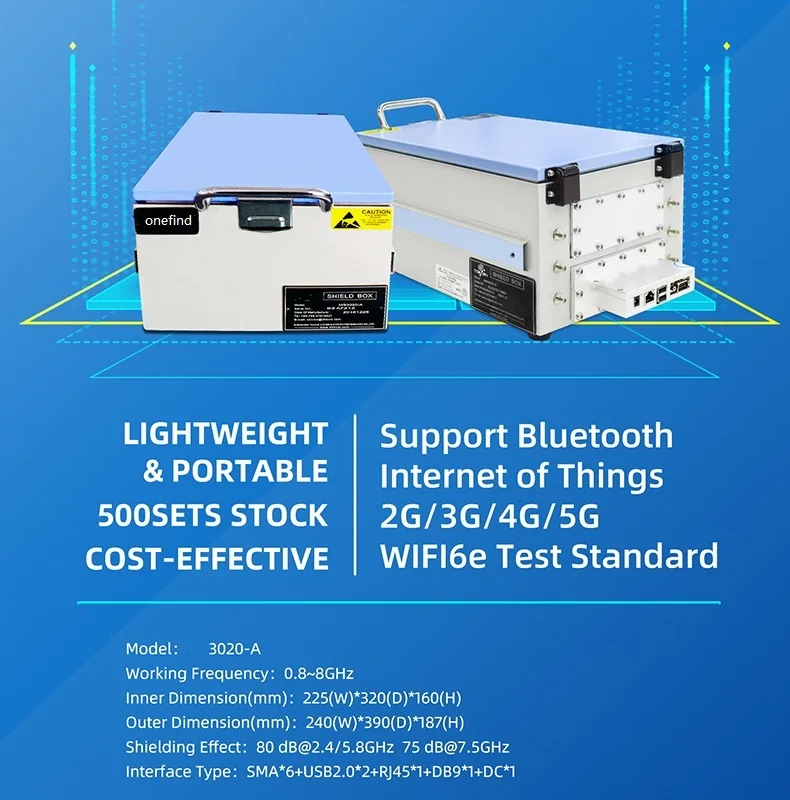

 High precision manual RF Shielding box audio EMI wifi 5g GSM mobile phone testing shield box test box









WF3020-A is a manual shielding box, suitable for the detection of wireless network cards and wireless communication equipment. The shielding box is formed by sheet metal material, with good shielding effect and firm structure. It is an extremely economical and practical high and low temperature shielding test box.





1. 3020-A is a mini shielding box with small size, light weight, easy operation and good shielding performance.

2.Using sheet metal materials, to make the box firm

3.Adopting the latest shielding materials, the box with strong wave absorbing ability and good blocking ability

4. A complete test interface design makes it more convenient for you to match with the tester.

5.An extrusion seal design allows you to get a better shielding effect.



Working frequency(GHz)	0.8~8GHZ
Shielding effect	≥80 dB 2.4GHz/5.8GHz   ≥75dB 7.5GHz
Interface type	MSA*6+USB2.0*2+RJ45*1+DB9*1+DC*1 (Could be customized and optional)
Numbers of filters	2 pcs
Control mode	manual
working temperature(°C)	Normal working temperature
Working size(mm)	225(W)*320(D)*160(H)
Dimensions(mm)	240(W)*390(D)*187(H)
Weight(kg)	About 15
Appearance of color	Body: gray Cover: blue (Could be customized)
