Детали ЧПУ 1604 1605 1610 SFU1604 SFU1605 SFU1610 шариковый винт с гайкой полный комплект
Детали ЧПУ 1604 1605 1610 SFU1604 SFU1605 SFU1610 шариковый винт с гайкой полный комплект
Детали ЧПУ 1604 1605 1610 SFU1604 SFU1605 SFU1610 шариковый винт с гайкой полный комплект
Детали ЧПУ 1604 1605 1610 SFU1604 SFU1605 SFU1610 шариковый винт с гайкой полный комплект
Детали ЧПУ 1604 1605 1610 SFU1604 SFU1605 SFU1610 шариковый винт с гайкой полный комплект
Детали ЧПУ 1604 1605 1610 SFU1604 SFU1605 SFU1610 шариковый винт с гайкой полный комплект
Детали ЧПУ 1604 1605 1610 SFU1604 SFU1605 SFU1610 шариковый винт с гайкой полный комплект

Детали ЧПУ 1604 1605 1610 SFU1604 SFU1605 SFU1610 шариковый винт с гайкой полный комплект


Поделиться:

Цена:*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики







Product Description


Product Name
ball screw
Type
Cnc Machining Parts
Material
Carbon steel
Length
customize
Service
OEM Services
Application
precision part, cnc machining parts, auto parts, industrial parts, etc


What is the difference between a lead screw and a ball screw?
 The basic difference between lead screws vs ball screws is that a ball screw uses ball bearings to eliminate the friction between the nut and screw and lead screws do not. ... Lead screws use deeper helical threads and a mating nut, which is usually made of a polymer composite or bronze.

High speed feeding:
High positioning accuracy: The accuracy is up to the requirement of JIS C3. Acceleration: Over 1.0 g (9.8 m/sec2) to avoid time consuming between accelerating and decelerating.

Heavy stiffness:
Optimized screw profile and structure design. Heavy load: Multi-load ball distribution design. Low vibration noise: Using the best slender ratio and high-speed circulation to lower noise.

Constant temperature:
The efficient heat transfer can restrain the thermal deformation and improve the stability. Environment friendly: Optional
self-lubricant function can reduce the lubricant consumption and to diminish the environment pollution caused by lubricant discard. It also solves the problem that lubricant thickens unevenly by deformation of oil film in spiral path.




How does a recirculating ball screw work?
As the screw or nut rotates, the balls are deflected by the deflector into the ball return system of the nut and they travel through the return system to the opposite end of the ball nut in a continuous path.
What is ball screw lead?
Lead is the linear travel the nut makes per one screw revolution and is how ball screws are typically specified. The pitch and lead are equal with single start screws. For multiple start screws the lead is the pitch multiplied by the number of starts.

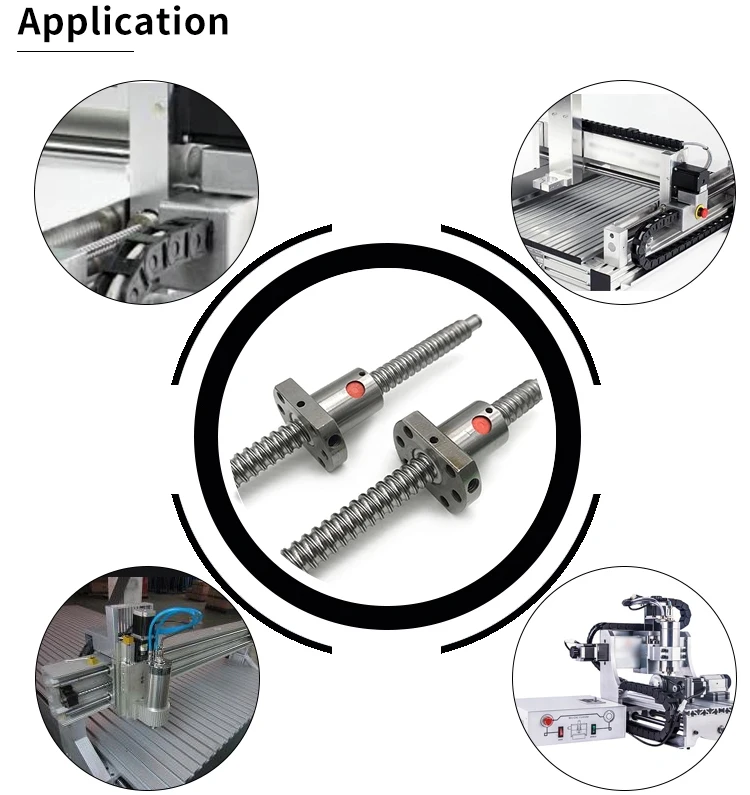

What are ball screws used for?
Ball screws are used in aircraft and missiles to move control surfaces, especially for electric fly by wire, and in automobile power steering to translate rotary motion from an electric motor to axial motion of the steering rack. They are also used in machine tools, robots and precision assembly equipment.


The Ball Screw is a high-efficiency feed screw with the ball making a rolling motion between the screw axis and the nut. Compared with a conventional sliding screw, this product has drive torque of one-third or less, making it most suitable for saving drive motor power.

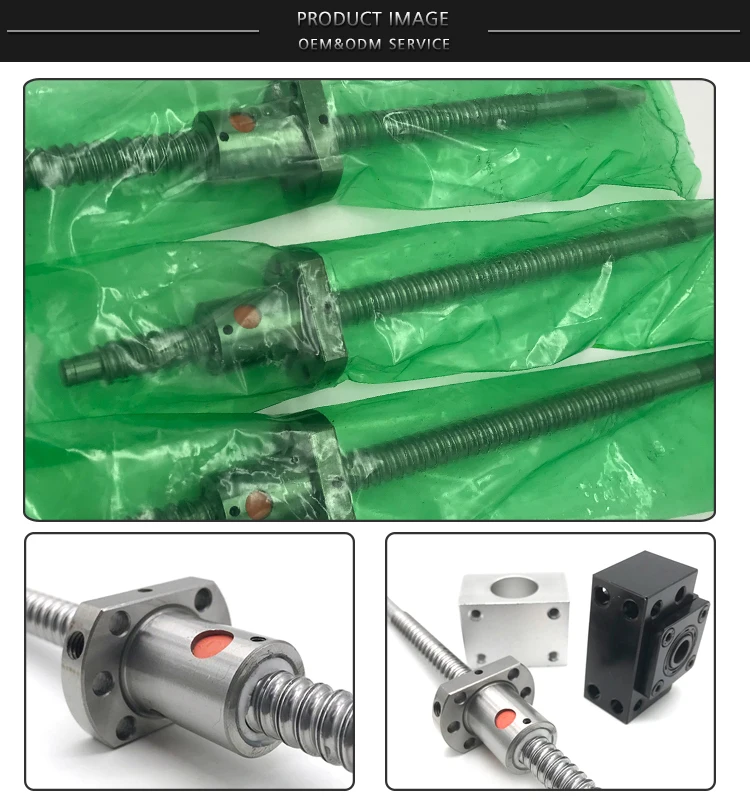

Details Images








Recommend Products






Packing & Delivery




Company Profile




Lishui Tianze Precision Technology Co., Ltd., located in Lishui Economic Development Zone, Zhejiang Province, is a professional production and processing enterprise engaged in linear bearing, linear optical axis, linear guide rail, cylindrical linear guide rail, ball screw and other products. The company has a strong workforce from technology, production to sales and service,and has a complete and scientific quality management system.
Lishui Tianze Precision Technology Co., Ltd. always provides customers with high-quality products and efficient services with superb skills and sincere service. Over the years, integrity, strength and product quality have been recognized by the industry. We respond efficiently and timely according to market changes and customer needs, so as to better serve customers. Here, we welcome friends from all walks of life to visit Lishui Tianze Precision Technology Co., Ltd.




FAQ


1. Who are we?
We are based in Zhejiang, China, start from 2020,sell to Southeast Asia(40.00%),Mid East(40.00%),North America(10.00%),South America(5.00%),South Asia(5.00%). There are total about null people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Import Bearing,Deep Groove Ball Bearing,Spherical Bearing,Roller Bearing,Ball Bearing.

4. Why should you buy from us not from other suppliers?
We are specialized in supplying import bearing.

5. What services can we provide?
Accepted Delivery Terms：FOB,CIF；
Accepted Payment Currency：USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;
Language Spoken：English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
