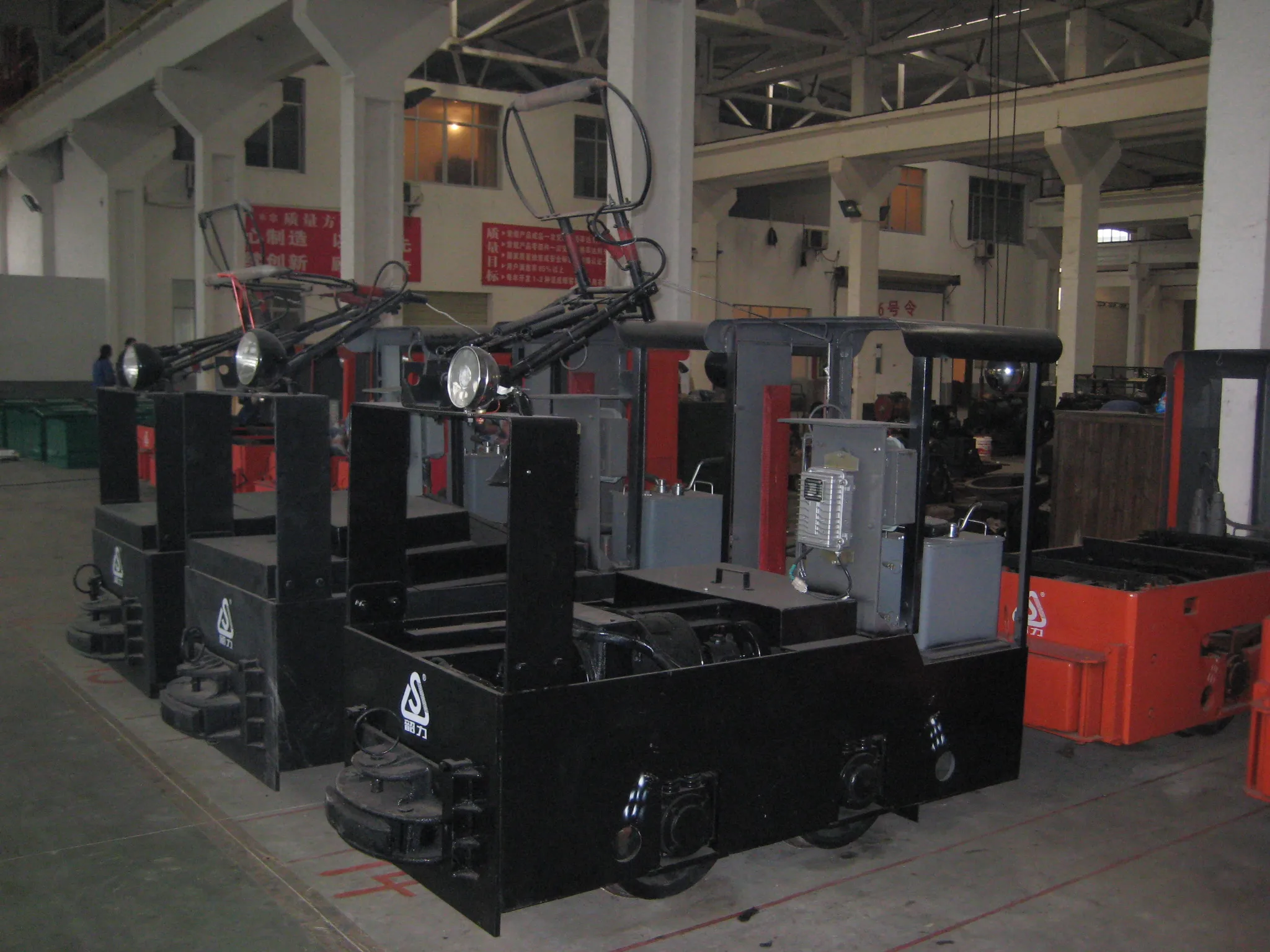

1 5 тонный узкий электромокомотив для транспортировки шахтных

Описание и отзывы

Характеристики

 Product Parameters

Model Name	CJY1.5/6, 7, 9G
Adhesive Weight	1.5 tons
Track Gauge	600, 762 or 900mm
Hourly SystemTraction	2.55kN	3.24kN
Max. Traction	3.68kN
Hourly System Speed	4.54km/h	6.6km/h
Voltage	100V	250V
Power of Electric Motor	3.5kW*1	6.5kW*1
Length	2340mm	2370mm
Width	950, 1076or 1100mm
Height	1550mm
Wheelbase	650mm
Wheel Diameter	Φ460mm
Height of Pantograph	1600~2000mm	1800~2000mm
Height of Traction	320mm	210 or 320mm
Min. Turning Radius	5m
Speed Regulating Mode	Resistance or IGBT
Braking Mode	Mechanical Brake



Frame
Constructed in welded steel and suspended by spring on grease bearing seats with tapered roller bearings.

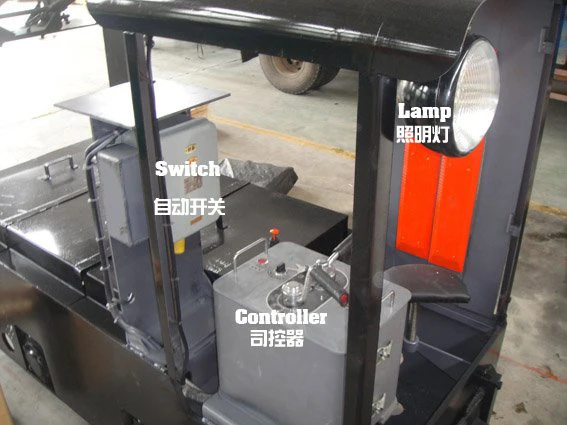

Speed control
In order to achieve continuous and stepless speed regulation, they have an electronic speed controller with high reliability.

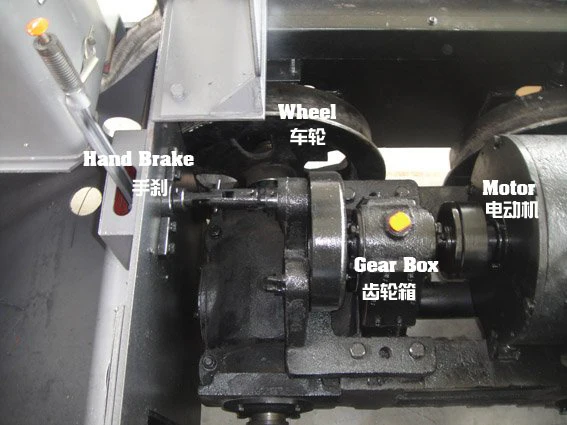

Brakes
Mechanical drum brake to the coupler.
Sanders
Mechanical sanding system to the rails.
Buffers
The locomotive has two buffers with spring shock absorbers to achieve complete shock absorption against collisions.
