Wanda Corn Grinding Machine Cron Mill Machine Corn Crusher Machine With Prices
Main application: This machine is suitable for crushing materials in pharmaceutical, chemical, food and other industries.Working principle: the machine uses the relative movement between the movable toothed disc and the fixed toothed disc to crush the crushed objects through tooth impact, friction and material impact with each other. The whole machine is designed according to the "GMP" standard and made of stainless steel. The machine has the advantages of simple structure, high output and easy cleaning. It is an ideal crushing equipment at present.
This machine can crush spices, corn, soybeans, grains, rice, sugar, salt and other materials.
Specification
Model | WF-20B | WF-30B | WF-40B | WF-50B | WF-60B | WF-80B |
Capacity（kg/h） | 60-150 | 100-300 | 160-800 | 300-1500 | 400-2000 | 500-2500 |
Speed（rpm） | 4600 | 3800 | 3400 | 2900 | 2300 | 1800 |
Maximum feed size（mm） | 15 | 15 | 15 | 20 | 20 | 20 |
Crushing fineness（mesh） | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 |
Crushing motor（kw） | 4 | 7.5 | 11 | 18.5 | 22 | 30 |
Machine size（mm） | 650x570x1240 | 700x670x1370 | 900x800x1550 | 1150x850x1900 | 1250x950x2150 | 1400x1100x2250 |

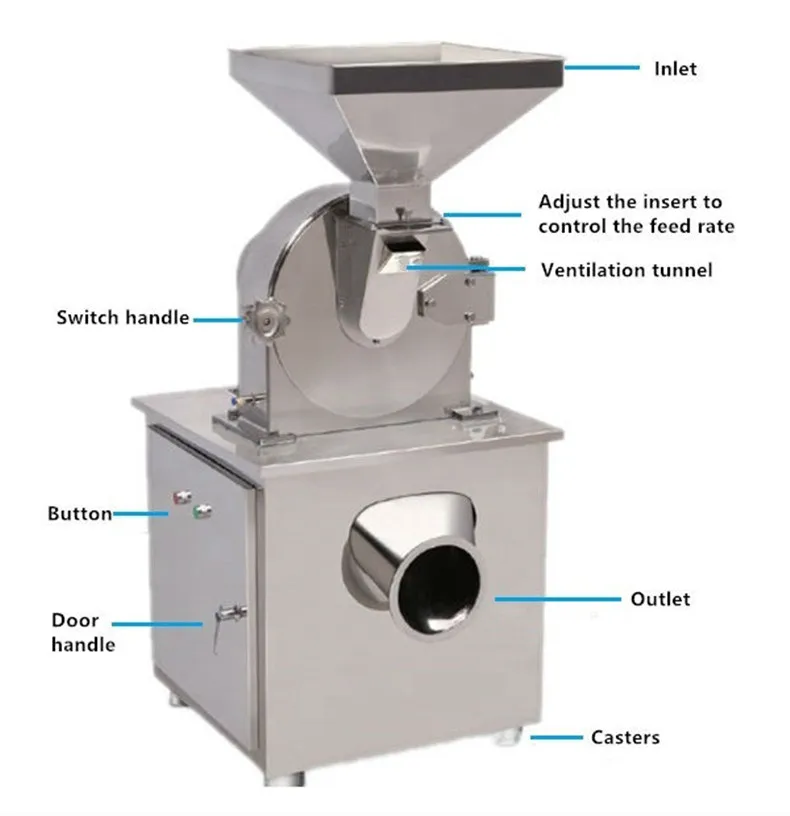

Machine structure

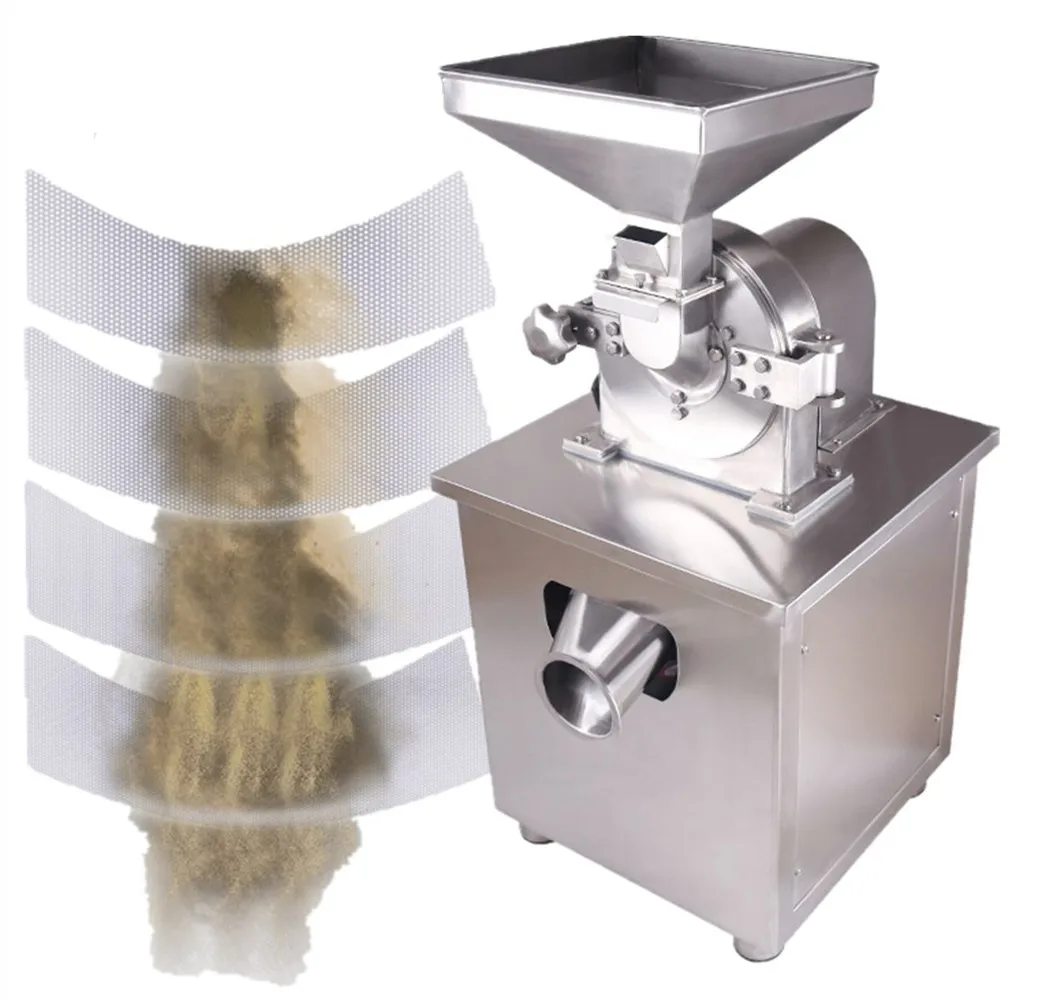

The crusher is equipped with a screen inside. The crushing fineness can be changed by changing the screens with different apertures（ The screens in the machine have the following apertures: 3.0, 2.5, 2.2, 2.0, 1.8, 1.5, 1.2, 1.0, 0.8, 0.7, 0.6, 0.5mm). The customer selects the appropriate aperture as required.

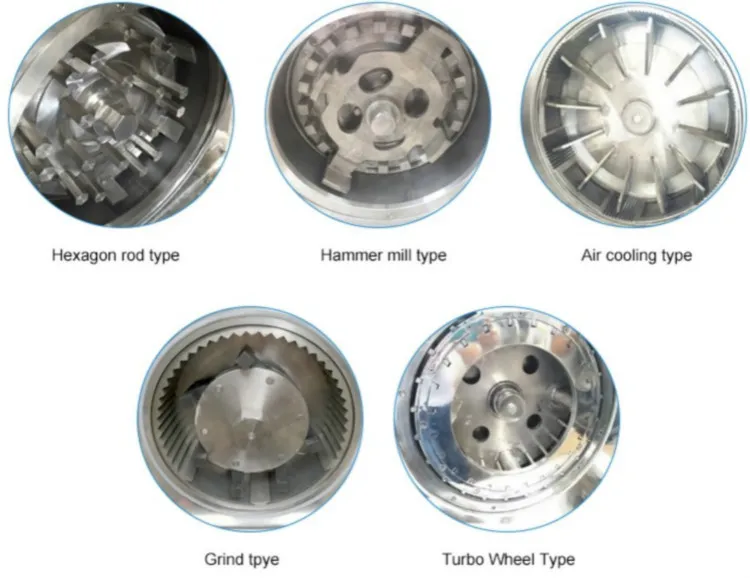

Hexagon rod type:It is suitable for materials that are a little flexible but not very flexible, or materials with medium and low hardness, as well as crystalline materials, such as rice, western medicine, chemical raw materials, etc. If you need to crush corn, this cutter head is very suitable.
Hammer mill type:It is suitable for brittle materials or hard materials, especially for crystalline materials, such as salt, sugar, stone, Panax notoginseng and so on.
Air cooling type:It is suitable for materials whose temperature cannot be too high, especially for crystalline materials, such as traditional Chinese medicine extract, borneol and so on.
Grind type:It is suitable for crushing materials with more fibers, such as grass leaves
Turbo wheel type：It is suitable for materials with a little fiber, but not many fibers, or materials easy to heat, such as leaves, licorice and so on.

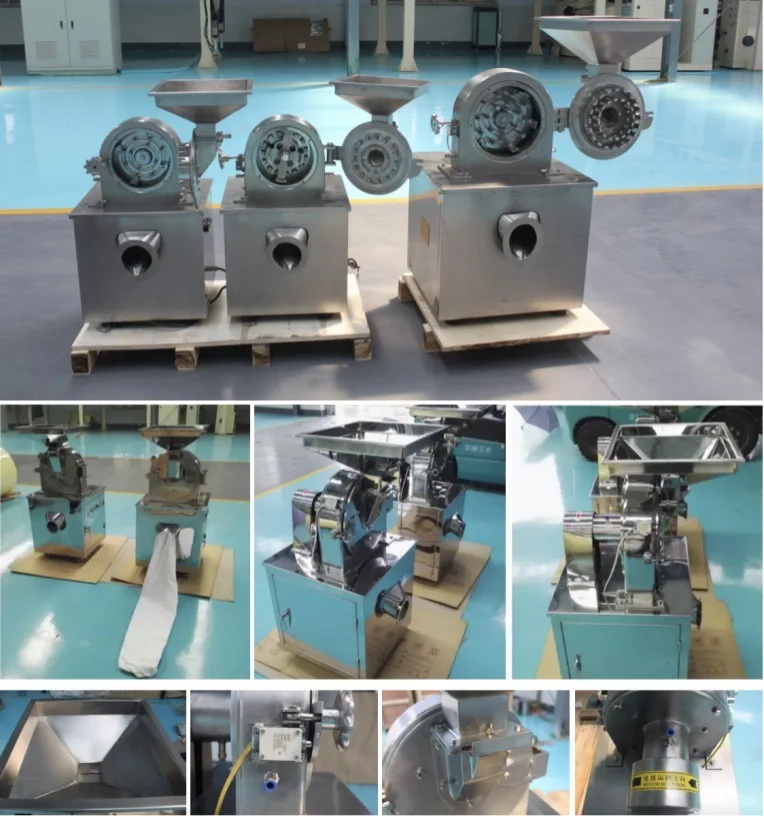

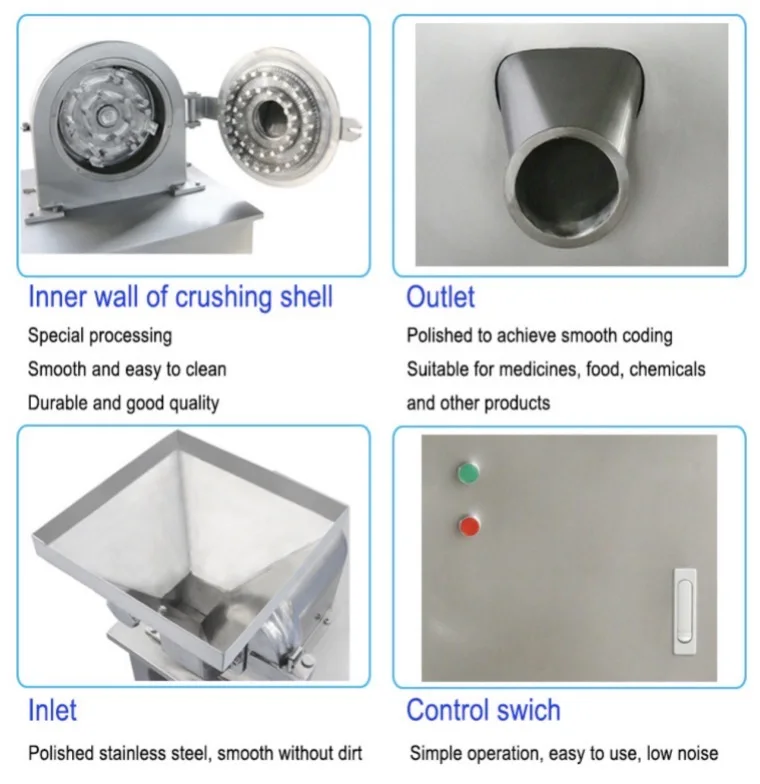

Details Images

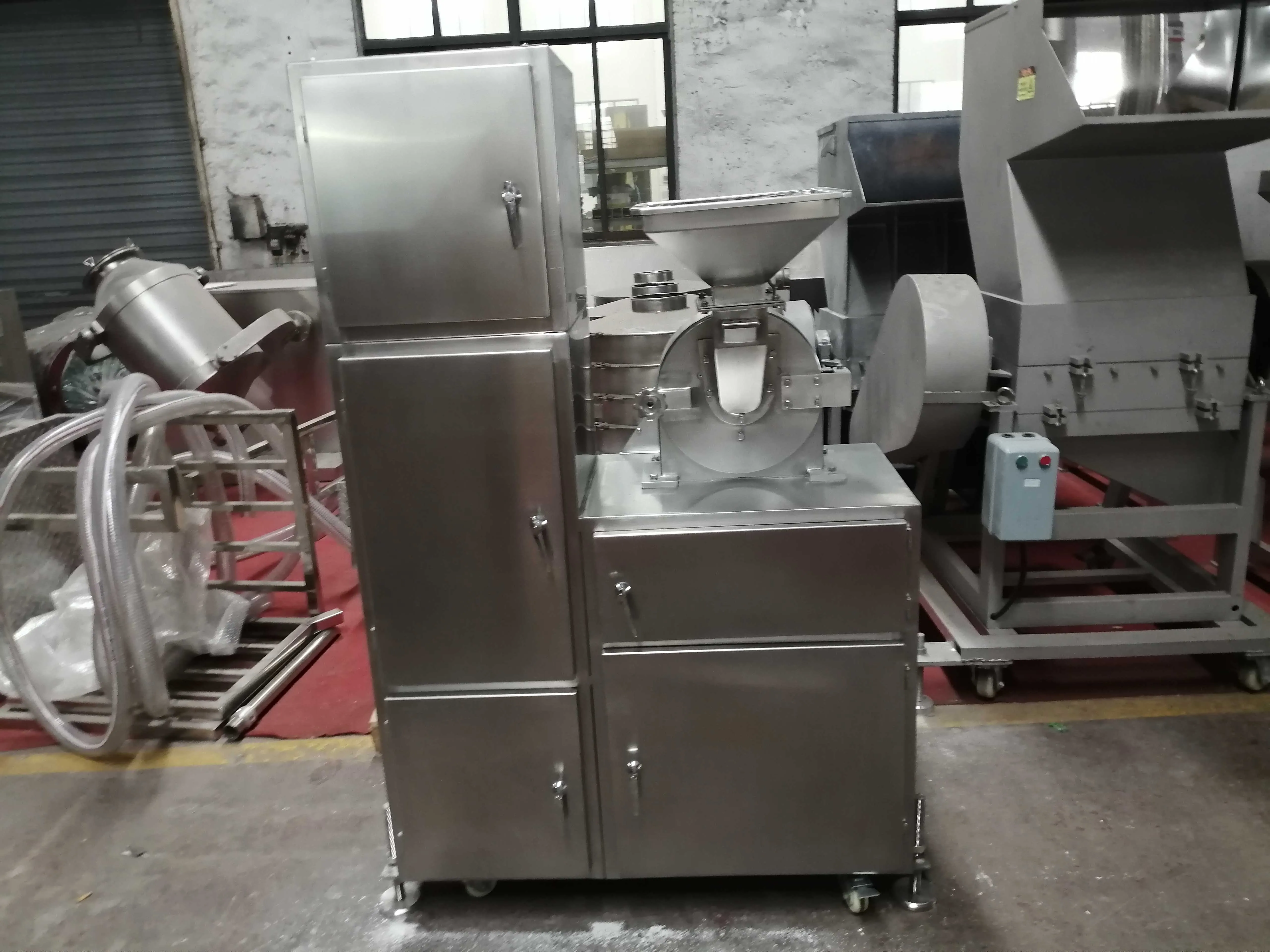

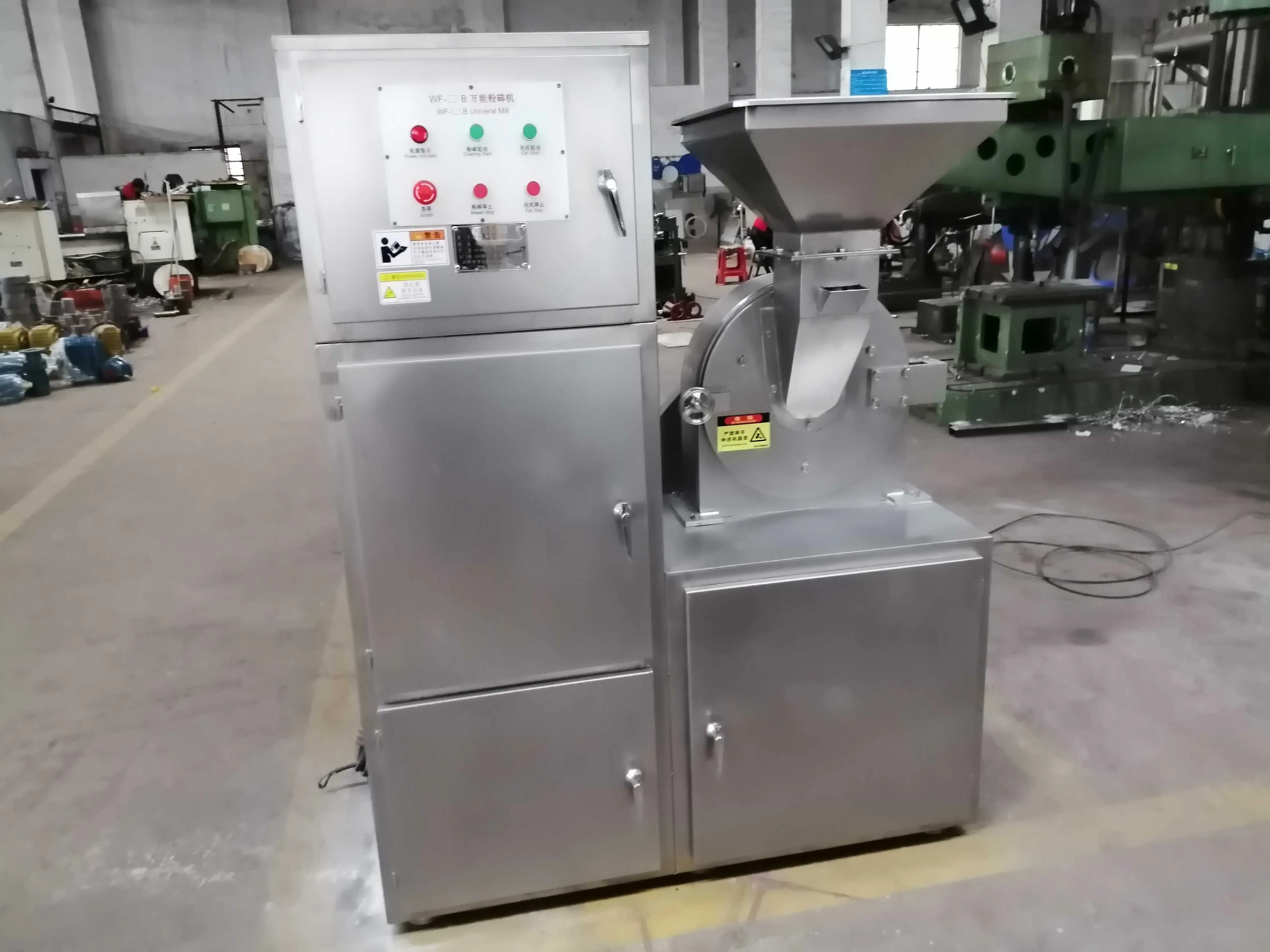

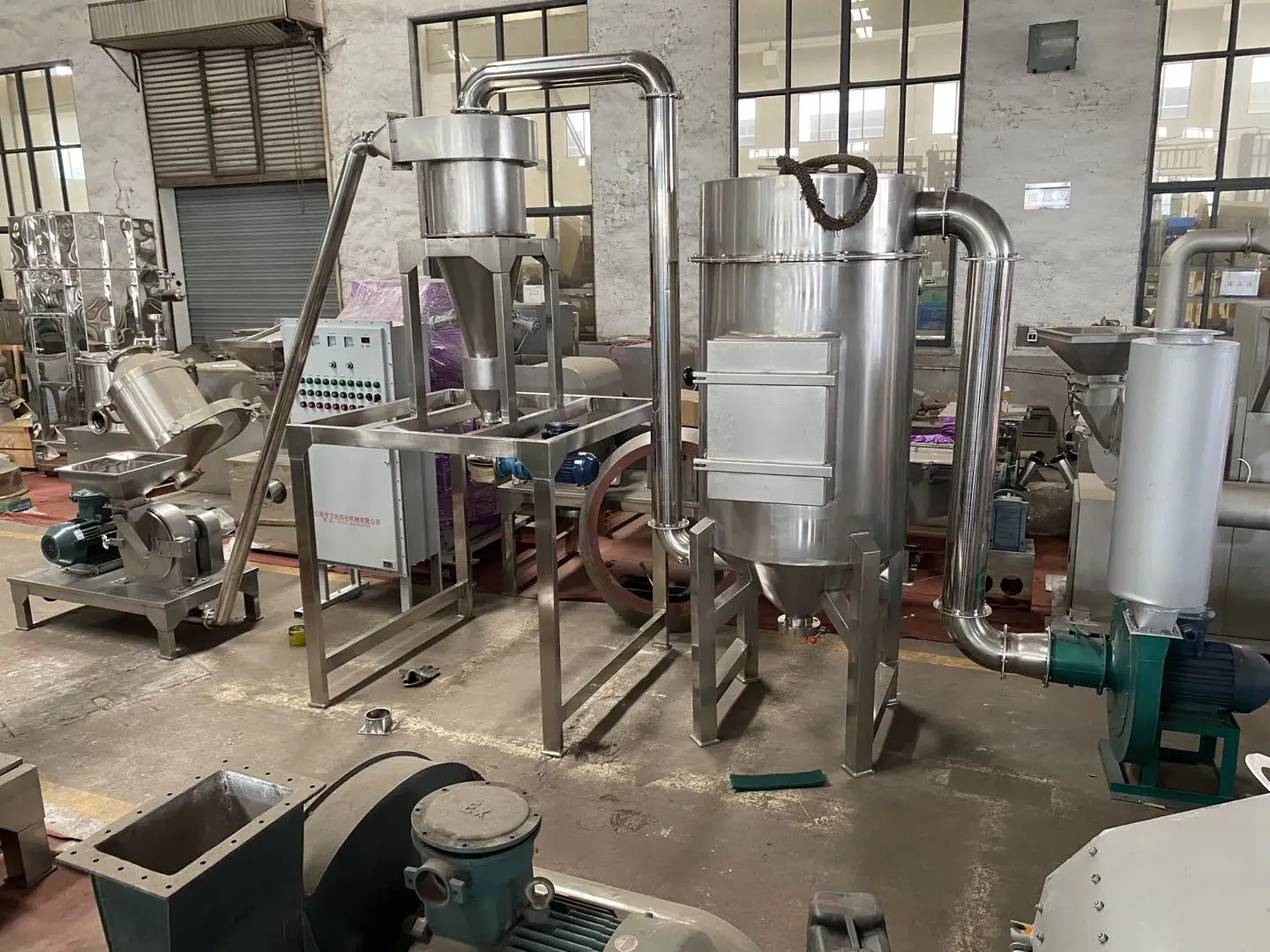

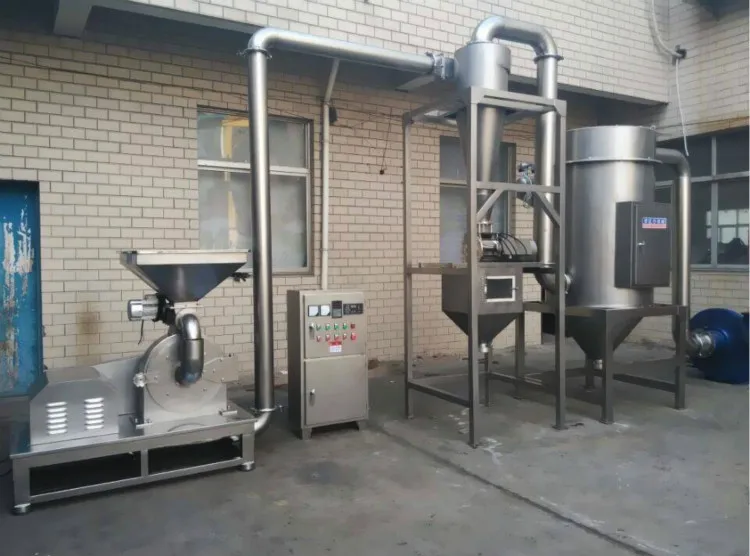

Pulverizer with dust removal
If your crushing capacity is more than 100 kg per hour, we suggest you use a crusher with a dust box. It can reduce the dust generated by the pulverizer during crushing.
Packing & Delivery
We are packed in wooden cases with carbon steel brackets at the bottom.
After packing, the machine will be sent to the port warehouse for shipment.
We support FOB, CIF and DDU. We can transport the machine to your port or your company.
We support FOB, CIF and DDU. We can transport the machine to your port or your company.
Company Profile
We are the manufacturer. We specialize in the production of pulverizer, mixer, granulator, screening machine and feeding machine. If you need anything, please contact us.

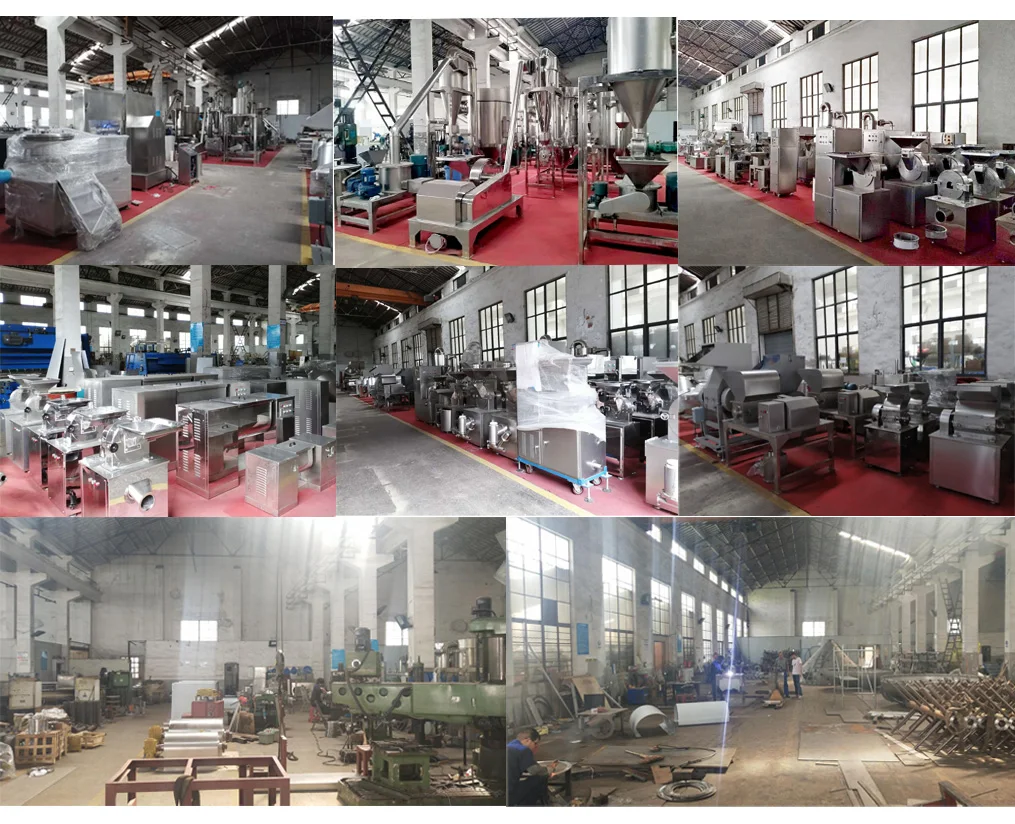

Our workshop
Our exhibitions and customers
FAQ
Q1：Are you a manufacturer or a trader?
A1:We are a factory with more than 10 years of production experience.
A1:We are a factory with more than 10 years of production experience.
Q2:What is the capacity of the machine? What is its crushing fineness? What is the voltage?
A2：We have different models of machines, and their production capacity is also different. You can see from the technical parameters above. The crushing fineness of the machine is 12-120 mesh. The screen in the machine can be changed to adjust the crushing fineness of the machine. About the voltage of the machine, the voltage can be customized. You just need to tell us the voltage you need, and we will make the machine according to your voltage.
Q3：What is your method of collection?
A3：T/T. 30% Deposit in advance and 70% balance before shipment by T/T.
Q4：What is your delivery date?
A4:It depends on the quantity of the order. When we have no stock, our general delivery time is 30 days.
