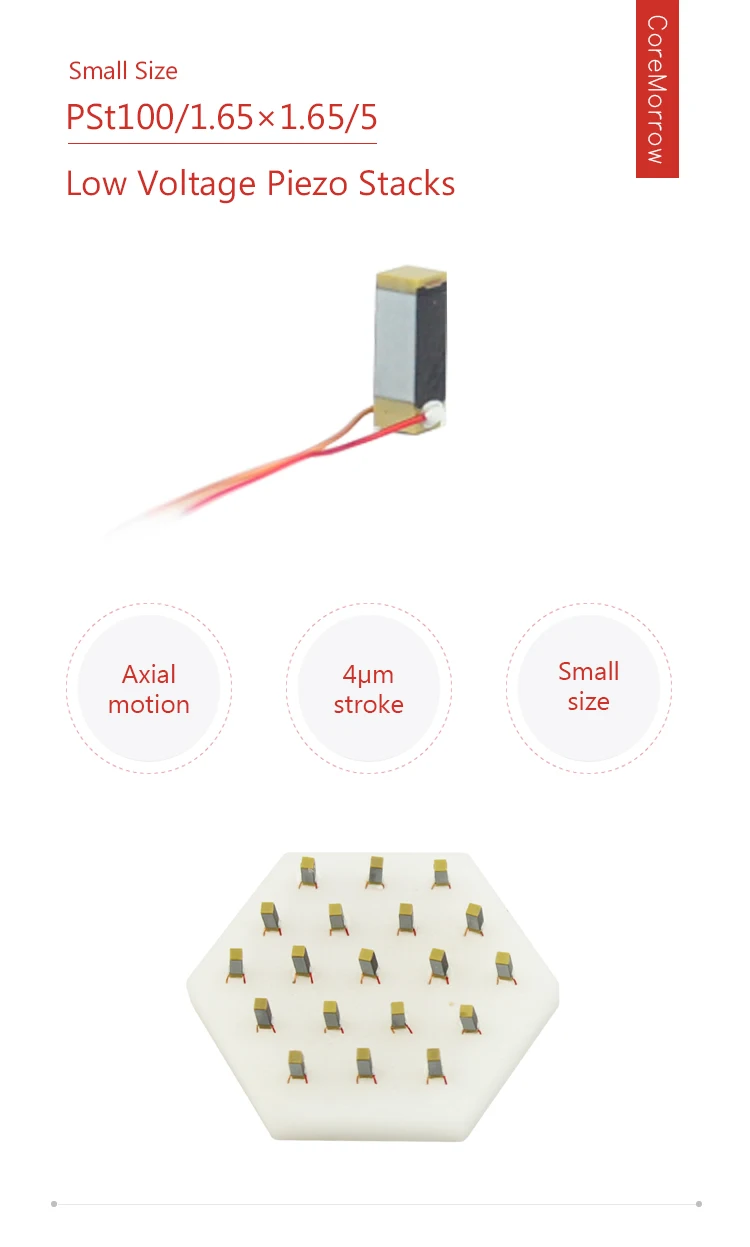

Пьезоэлектрический силовой привод PSt100/1 65*1 65/5 PZT высокочастотный пьезоэлектрический многослойный стак

Пьезоэлектрический силовой привод PSt100/1 65*1 65/5 PZT высокочастотный пьезоэлектрический многослойный стак

Категории: Electronic Accessories & Supplies >>>
Поставщик: Harbin,Core,Tomorrow,Science,And,Technology,Co.,Ltd.

Цена:27,70 $ - 34,50 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


Model	PSt100/1.65×1.65/5	Unit

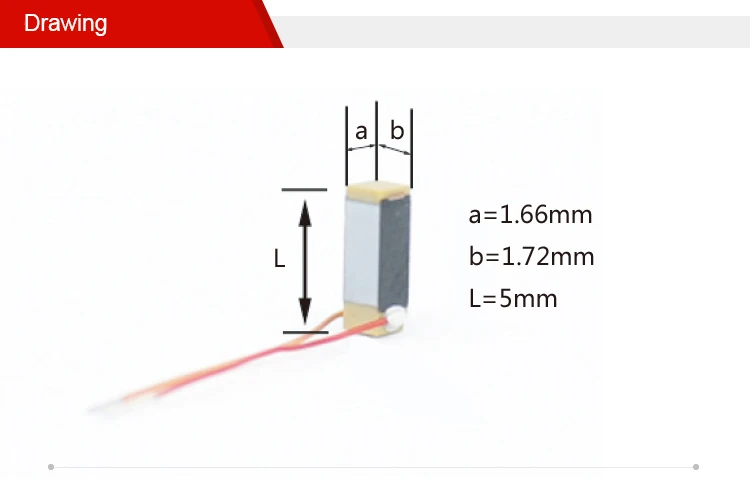

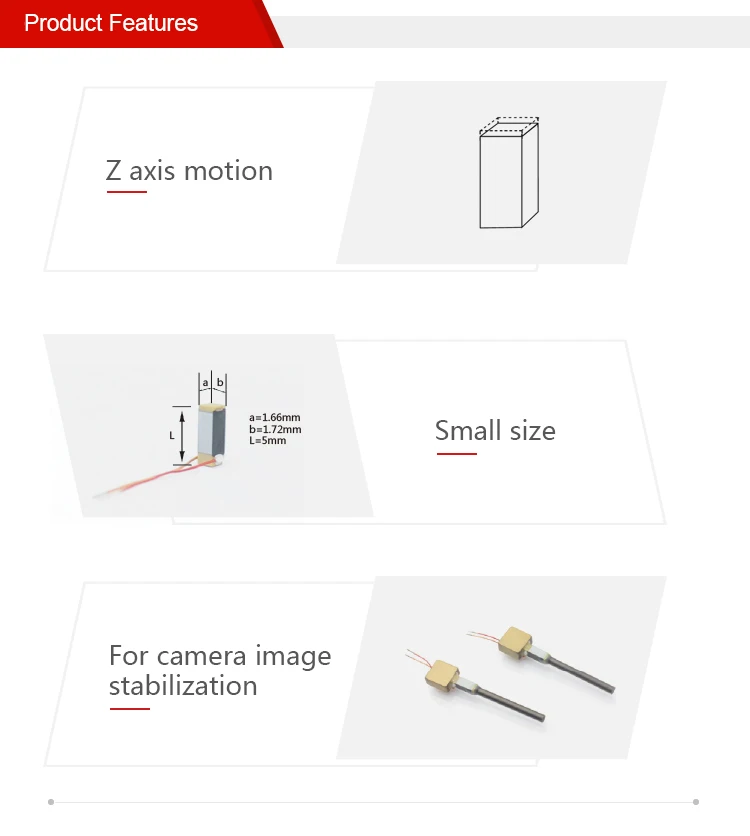

Size a×b×L	1.66×1.72×5	mm
Max./nominal displacement	4/3.2	μm±15%
Electrostatic capacity	0.09	μF±20%
Stiffness	30	N/μm±10%
Response frequency	50	kHz±20%
thrust	120	N
weight	0.48	g±5%
Operating temperature	-25~80	℃
Driving voltage	0~+100	V
Storage conditions	-5~+40	℃,<40%R.H

Max. Displacement is the displacement stroke under the driving voltage of 0~100V.

Note: The installation pre-tightening force generally does not exceed 20% of the output, depending on the application.

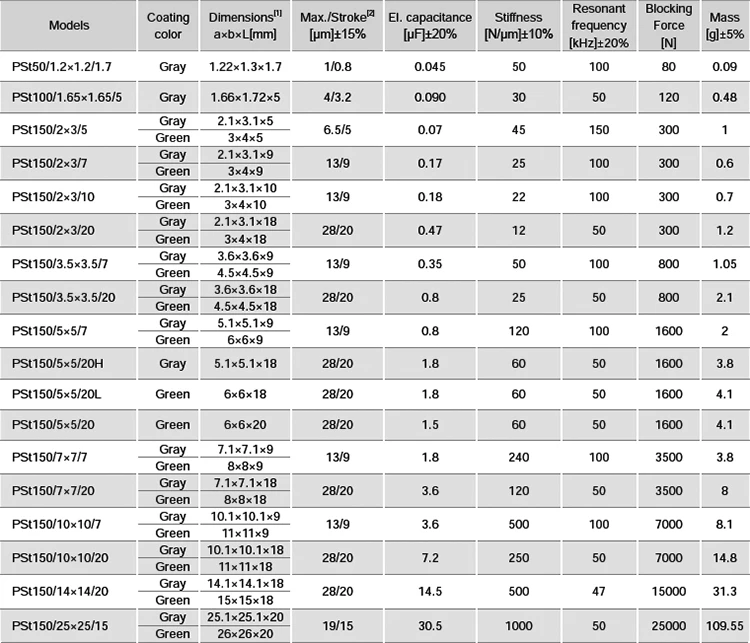

Other PSt Series Low Voltage Square Piezo Stacks
Parameters References

Note: The installation pre-tightening force is about 10%~25% of the output. At a low temperature of 2K, the displacement is about 5% of that at room temperature. The standard vacuum compatibility is up to 10-6mbar, and the 10-10mbar version can be customized.
[1] The length and width tolerance is ±0.1mm, and the height is ±0.05mm. The ceramic size includes the size of the resin and does not include the size of the solder joints. The thickness of gray resin is 50μm, green is 0.5mm, and black is 0.1mm.
The height of the solder joint is 1mm, and the tolerance is ±0.2mm. The location of the solder joints will be slightly different for different sizes.
[2] The nominal displacement of PSt150 series is the displacement stroke under the driving voltage of 0~150V, and the maximum displacement is the displacement stroke under the driving voltage of -30V~150V.
The recommended driving voltage is 0~120V. The maximum displacement of PSt50 series is the displacement stroke under 0~50V driving voltage, and the maximum displacement of PSt100 series is the displacement stroke under 0~100V driving voltage. The standard lead red wire is the positive pole; the PSt50 and PSt100 series red wires are the negative pole.

PSt501.65x1.65-5-1
