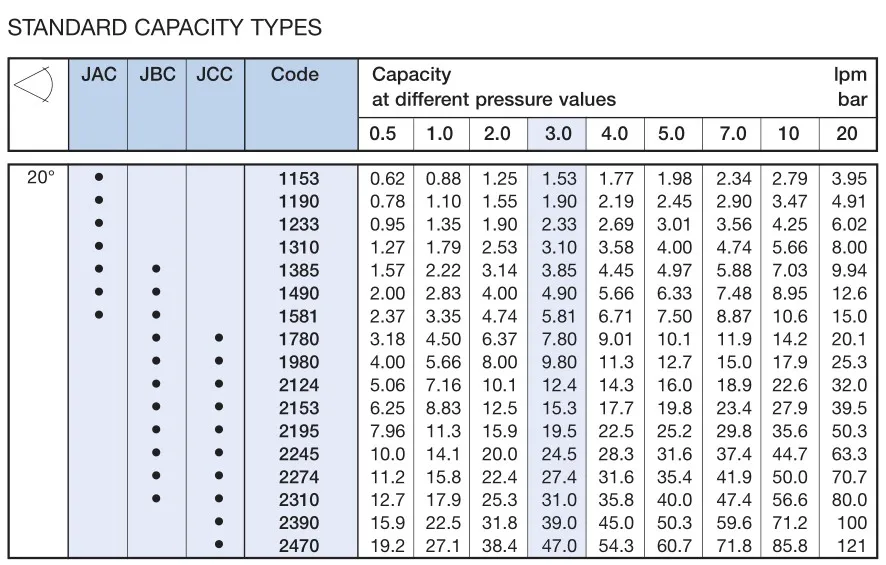

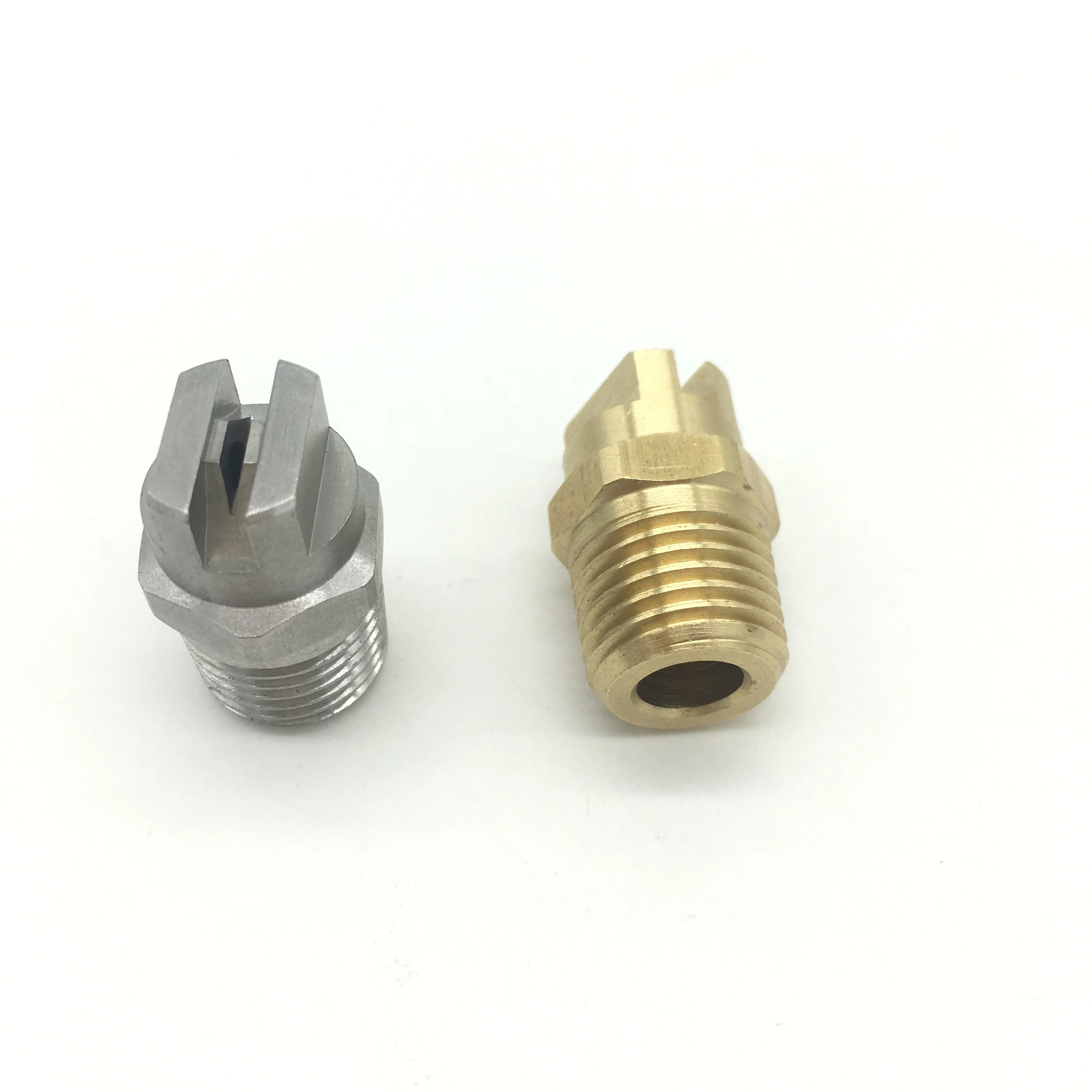

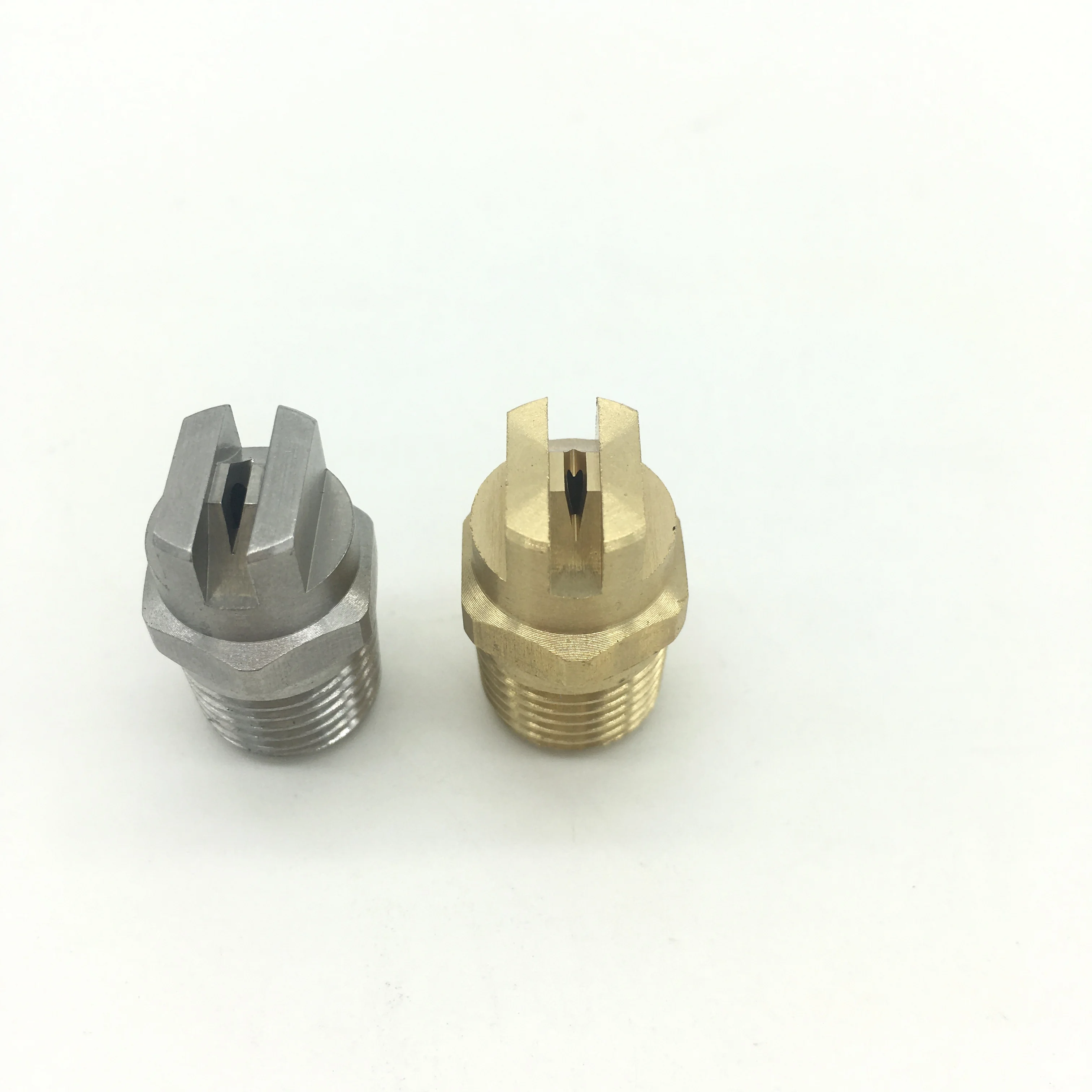

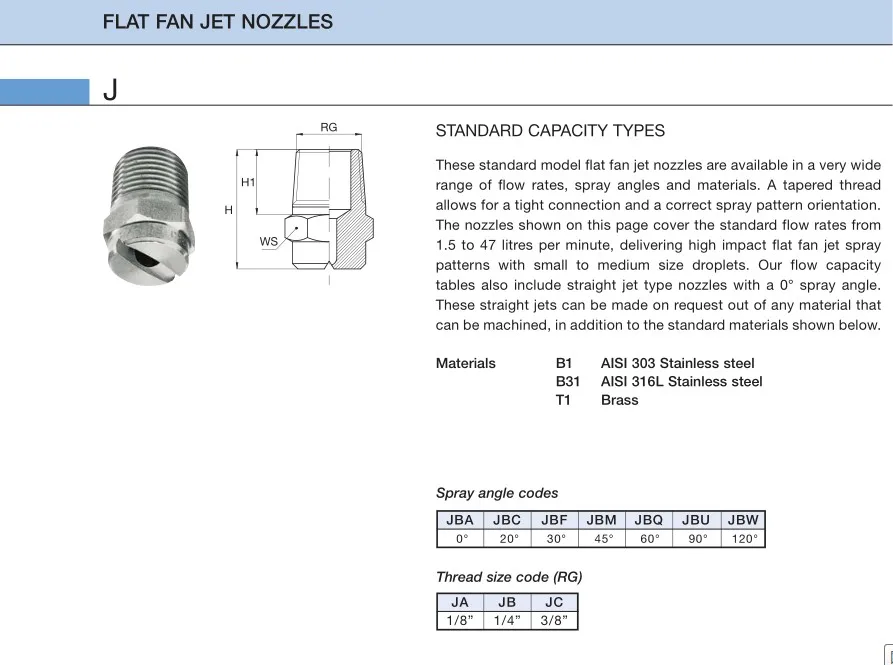

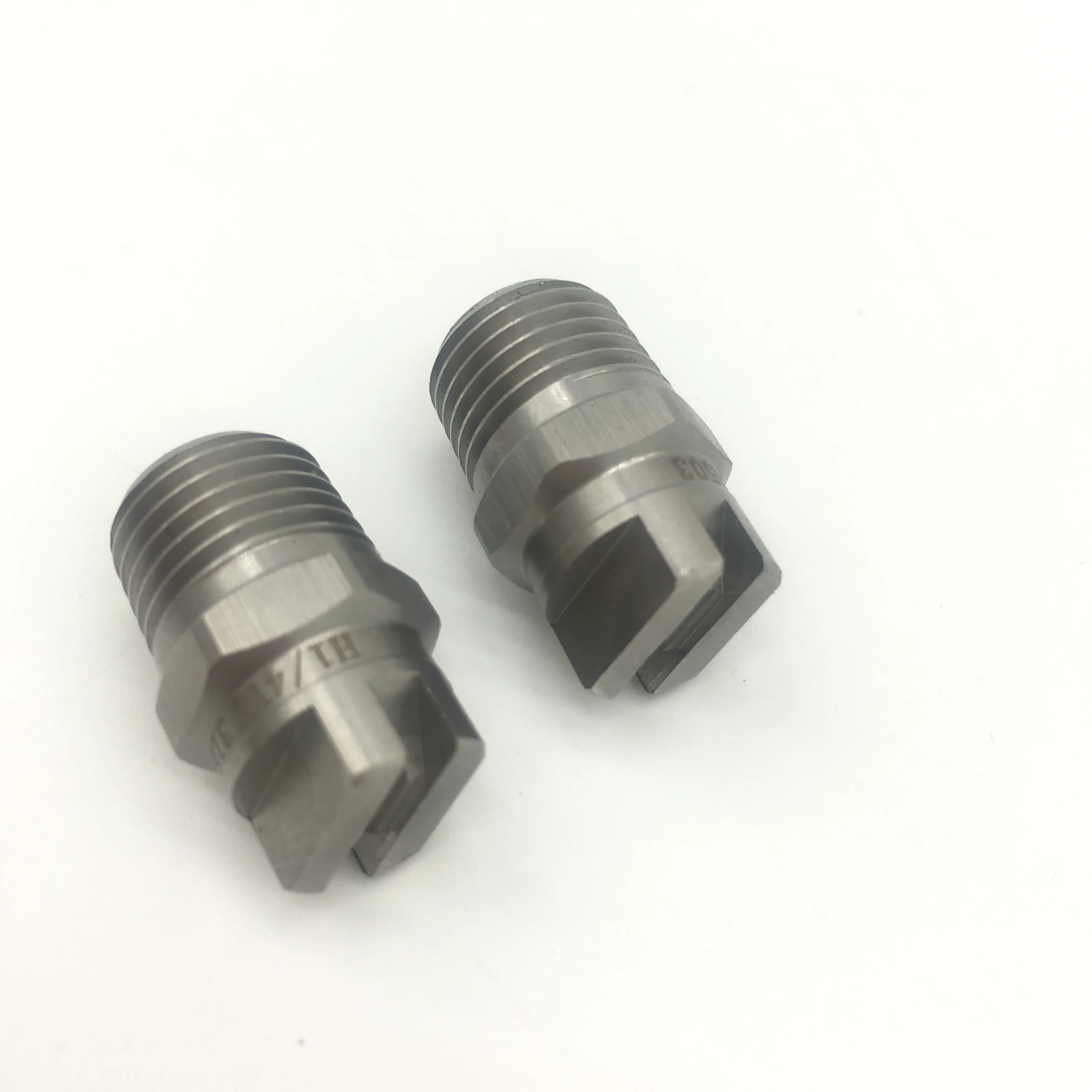

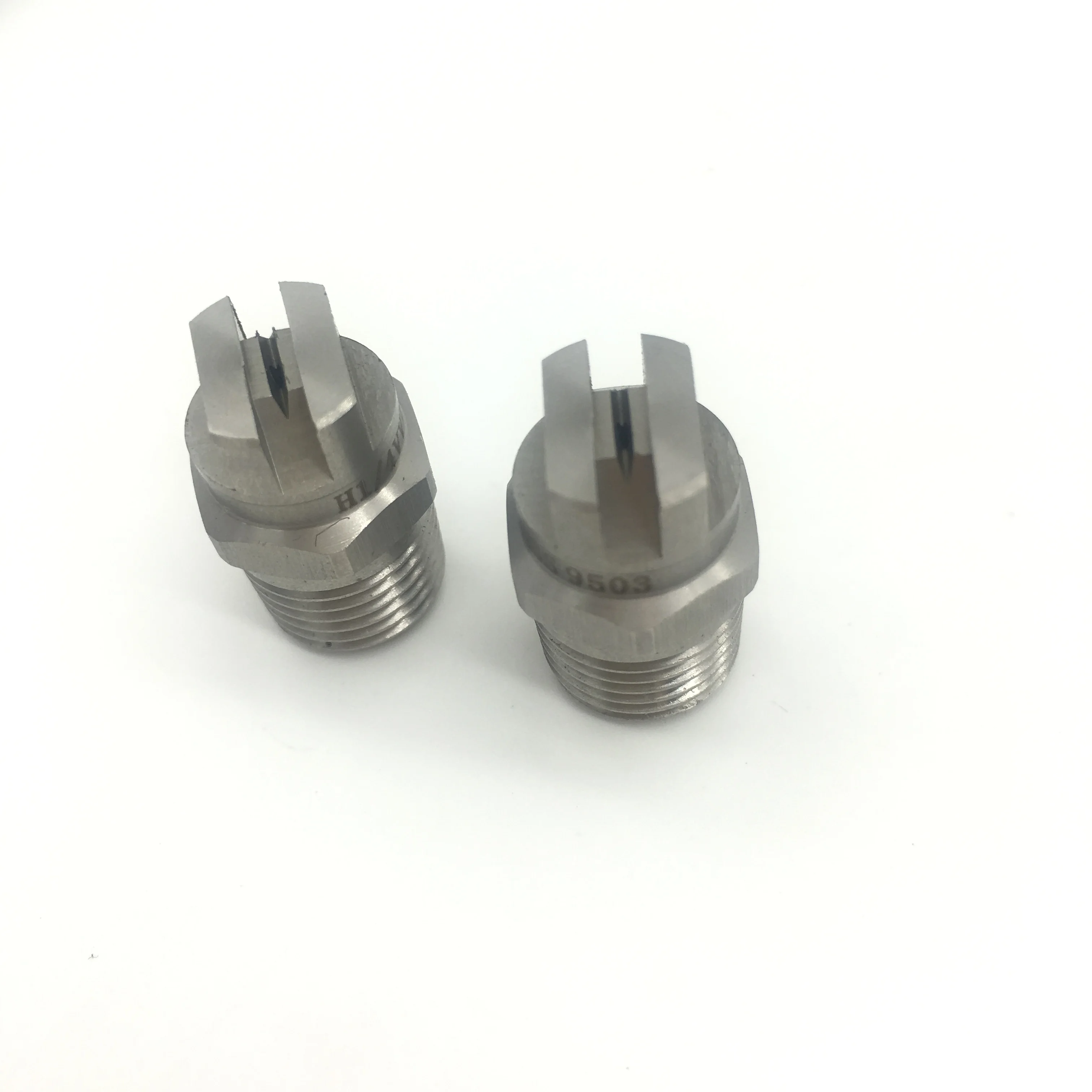

These standard model flat fan jet nozzles are available in a very wide range of flow rates, spray angles and materials ,A tapered thread allows for a tight connection and a correct spray pattern orientation. the nozzles shown on this page cover the standard flow rates from 1.5to 4.7liters per minute,delivering high impact flat fan jet spray patterns with small to medium size droplets .our flow capacity tables also include straight jet type nozzles with a 0degree spray angle.these straight jets can be made on request out of any material that can be machined, in addition to the standard materials shown below.
Technology
Buyer Feedback
Company Information
The machine manufcturing accuracy at 0.05-0.1um.
the nozzle orifice diameter >=0.2mm
Advantages
1:over 20 years spray nozzle proffesional experience 2:good skilled engneer to design and provide proffesional advice for your spray nozzle choice 3:samples provide before order 4:7*24hours sales service (+008613925573754(whatsapp/wechat are avalble ) email:info at dgjtc.com 5:real true raw material and high precision flow rate manufacturing ,each one pc spray nozzle tested before delivery . 6:competitve price and fast delivery
