Профессиональный HFSPC-1000 буровая установка для бурения скважин на воду 1000 м сверлильный
- Категории: Mine Drilling Rig >>>
- Поставщик: Zhengzhou,Hanfa,Imp,&,Exp,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Product Introduction

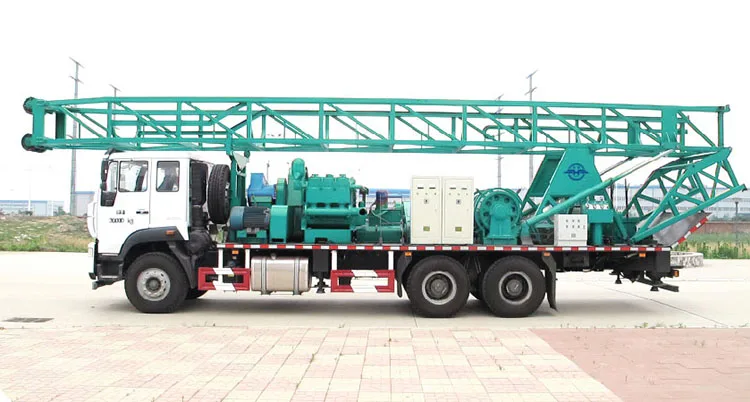

SPC series drill locomotive vehicle wheel rotary drill rig, will be in addition to the tool of all components (including: power,
gearbox, gearbox, drawworks, rotary table and mud pump and rig, etc.) all integrated installation onto the truck chassis. With auxiliary motion of the drill is given priority to with mechanical drive, and part of the operation performed by the hydraulic control. Not only the traditional drill less consumption, easy operation and good maintenance, fault, the characteristics of less also has a convenient vehicle rig transitions and the advantages of easy operation.
gearbox, gearbox, drawworks, rotary table and mud pump and rig, etc.) all integrated installation onto the truck chassis. With auxiliary motion of the drill is given priority to with mechanical drive, and part of the operation performed by the hydraulic control. Not only the traditional drill less consumption, easy operation and good maintenance, fault, the characteristics of less also has a convenient vehicle rig transitions and the advantages of easy operation.
The series with rotary rotary drilling rig, mud was cycle as the main way to work, in the clay, sand, rock and other strata in
drilling. For Wells, hydrogeological exploration hole, in-situ leaching uranium mining Wells, grouting holes, grouting holes for engineering construction, the shallow coal seam of porosity pore or other engineering construction.
drilling. For Wells, hydrogeological exploration hole, in-situ leaching uranium mining Wells, grouting holes, grouting holes for engineering construction, the shallow coal seam of porosity pore or other engineering construction.
This series of drilling rig compared with the same kind of drilling rig, increased capacity reserve coefficient, equipped with
security lighting system and auxiliary power unit, drill abity more and more human.
security lighting system and auxiliary power unit, drill abity more and more human.
Technical Data
Type | HFSPC-600 | HFSPC-1000 | ||
Drilling Diameter(mm) | 520 | 520 | ||
Drilling Depth(m) | 600 | 1000 | ||
Drill pipe(mm) | 108 x 108 x 10500 | 108 x 108 x 10500 | ||
Hole drill pipe(mm) | 89x9500 | 89x9500 | ||
Engine model | MC07.28-50/Y250M-4 | QSL8.9-C360/SC13G310D2+G0219 | ||
Engine Power(kW) | 203/55x2 | 264/227 | ||
The hole diameter(mm) | 520 | 520 | ||
speed(r/min) | 22、39、65、101、145、190、23 (Reverse) | 23、40、69、110、182、219、23 (Reverse) | ||
form | Mechanical winch | Hydraulic | ||
Ability to add and subtract pressure(KN) | 300（stress reliever） | 350/220 | ||
Add and subtract pressure stroke(mm) | 10800 | 10800 | ||
Shackle maximum torque(kN.m) | / | 60 | ||
Single rope tension( kN) | 50 (Lord)、 50 (vice) | 70 (Lord) 、1.5 (vice) | ||
Rope capacity(m) | 150/Ф18 | 150/Ф20 | ||
Speed on the second floor (m/s) | 1.1、1.8 | 1.9 | ||
Mud pump | model | 3NB-130 | 3NB-130 | |
Maximum flow(L/min) | 1000 | 1000 | ||
The highest pressure(MPa) | 10 | 10 | ||
The bearing capacity(t) | 40 | 60 | ||
Effective height(m) | 15 | 15 | ||
Chassis | TAZ5305TYTA | TAZ5415TYT | ||
Drive way | 6x4/6x6 | 8x4/8x8 | ||
Highest speed(kM/h) | 80 | 80 | ||
Minimum turning diameter(m) | 22 | 29 | ||
Clearance from the ground（Fully loaded）(mm) | 255 | 314 | ||
Braking distance ( 30Km/h)(m) | ≤10 | ≤10 | ||
Crew/operator | 2 | 2 | ||
Overall dimensions(LxWxH) | 13830 x 2550 x 4000mm | 14200 x 2525 x 3930mm | ||
Weight(t) | 30 | 38 | ||
Company Introduction
FAQ
1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
