Охлаждающий охладитель охлаждаемый циркуляционный промышленной

Цена:5 625,00 $ - 6 375,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Product Description

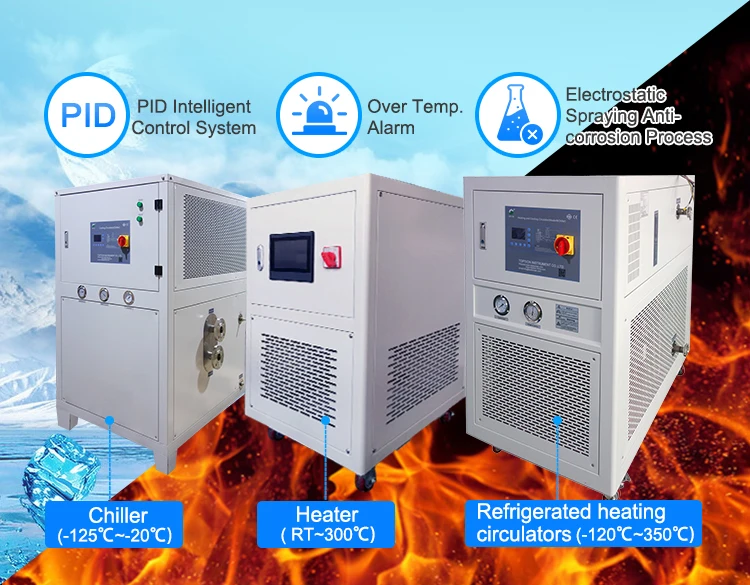

We provide kinds of temperature control system

1.chiller temperature range -125℃~-20℃，

2. heater temperature range RT~300℃，

3. chiller&heater intergrated machine temperature range -120℃~350℃.

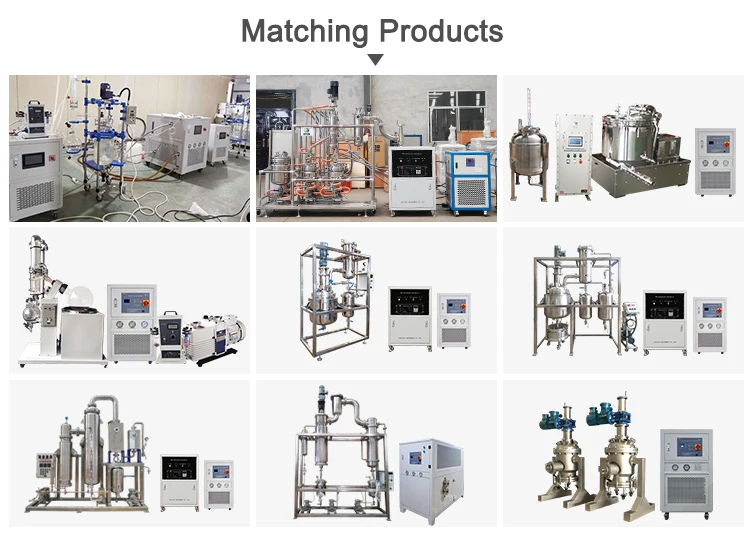

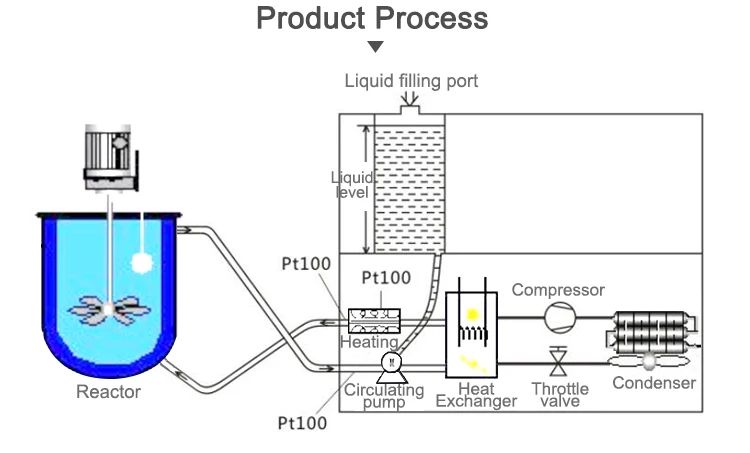

It can match the glass reactor, rotary evaporator, and other distillation and reaction equipment.

Products Parameter

Model	LX-0250	LX-0400	LX-0700	LX-1000	LX-1450
Medium Temp Range	-15C~RT	-25C~RT	-25C~RT	-25C~RT	-25C~RT
Temp Control	ASET Multifunctional controller
Communication Protocol	MODBUS RTU Protocol， RS485 Interface
Cooling capacity @0C	1.5kw	2.4kw	4kw	7.5kw	10kw
Cooling capacity @-10C	1kw	1.5kw	2.7kw	6.3kw	8kw
Cooling capacity @-20C	0.55kw	0.8kw	1.5kw	3.5kw	5kw
Circulation Pump	Max 20L/min	Max 20L/Min	Max 35L/Min	Max 50L/Min	Max 75L/Min
Capacity of liquid storage	15L	25L	30L	35L	45L
Operation controller	LCD digital display
Connection Size	DN-15	DN-20	DN-20	DN-20	DN-20
Power	220V 50HZ/1P	220V 50HZ/1P	220V 50HZ/1P	380V 50HZ/3P	380V 50HZ/3P
