JMRRC 1100mm wheelbase 4-rotors rescue drone Agricultural Industry Application RC UAV Drone Multi-function Drone frame W/ landing gear !

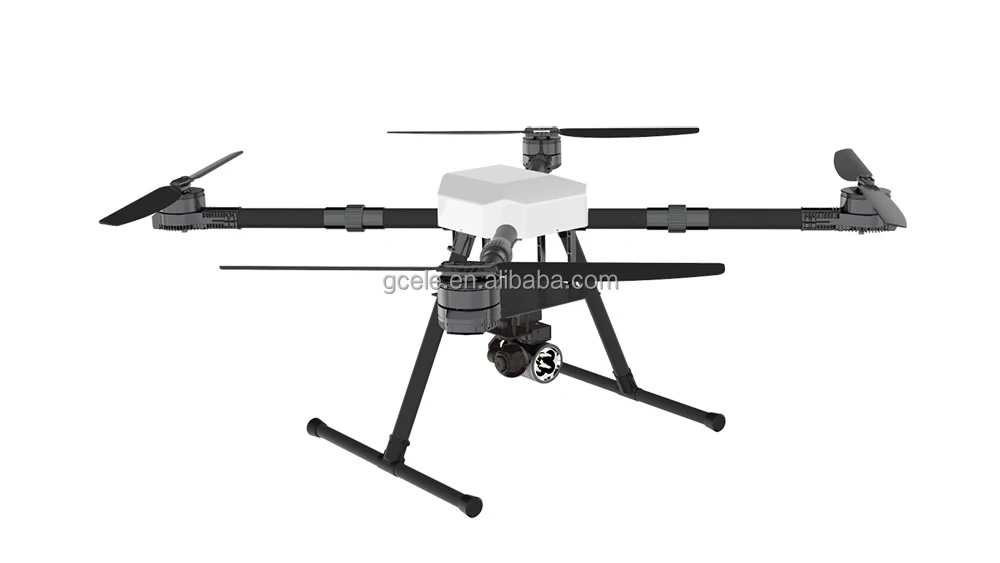

The X1100 Drone Flight Platform was designed for mulit-purpose and 1-5kg payload with long flight time.  55 miniutes more hovring time and 2kg payload over 40 minutes flight match to many application scenes. Keep the reliable safe flights for our drones is the work we always do.



The excellent Anti-vibration ability precede the traditional carbon fiber frame.High efficiency propulsion system give this drone up to 16kg take off ability .

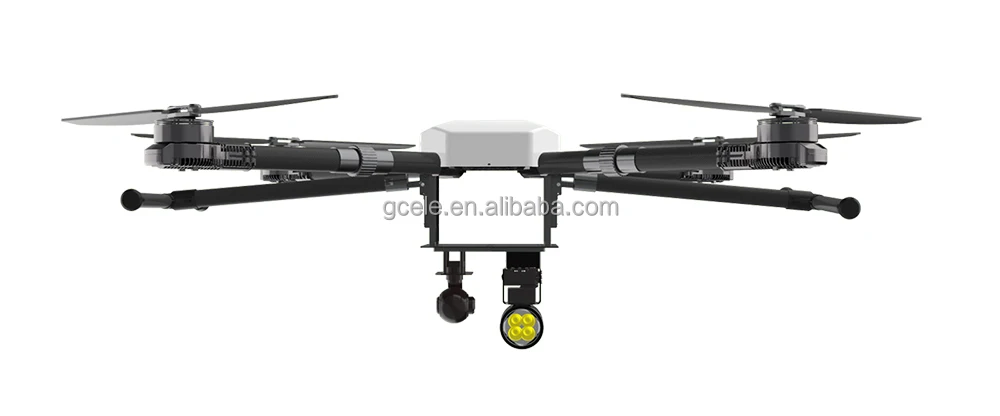

Big Space under the battery mount board can mount the most of equipments  . Such as zoom able cameras, Speaker , Searchlight , Fire extinguisher balls, buoy ,Environment sensors etc. Flight controller compatible with A3 , N3, Pixhawk and other FC, Depend the different FC will get follow functions : Airway navigation flight, electronic fence, Low battery safe protection; Fail safe  protection etc.



Options	Empty weight machine	Voltage	Battery	Motor	ESC	propeller	No-load  flight time	Payload time of flight	Payload time of flight
1	4.1kg	24V	16000mah*2	5015	60A	2278	53min@0kg	45min@1kg	34min@3kg
2	4.1kg	48V	22000mah*2	5015	40A	2278	74min@0kg	54min@2kg	45min@4kg
3	4.1kg	48V	22000mah*2	7208	40A	2895	90min@0kg	55min@3kg	40min@5kg
4	4.1kg	48	30000mah*2	7208	40A	2895	100min@0kg	/	/





Parts included :

• 1100mm wheelbase Quad frame body kit  with white top shell * 1set


• Carbon fiber fix landing gear * 1set


• Battery tray set * 1set

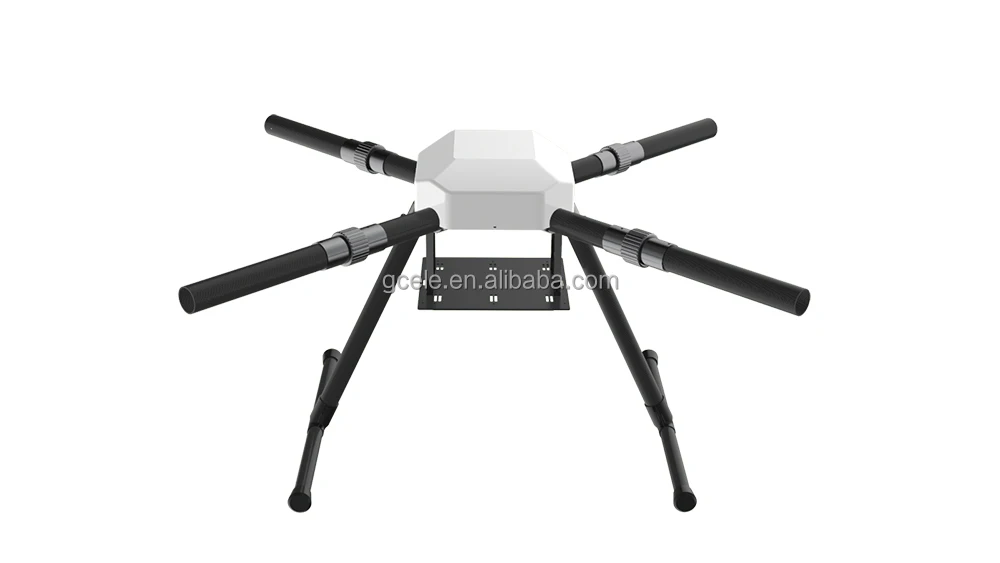

X1100 Frame parameters:

Product name	JMR-X1100 4 rotors industry drone
Wheelbase	1100 mm
Folding method	horizontal(can do down folding)
Expand Dimension	800*800*430mm
Folded Dimension	560*460*430mm
folding Joint	ø30mm auto lock
Arm Boom diameter	ø30mm
Landing gear tube size	25mm to 20mm
Frame net weight	1.43kg

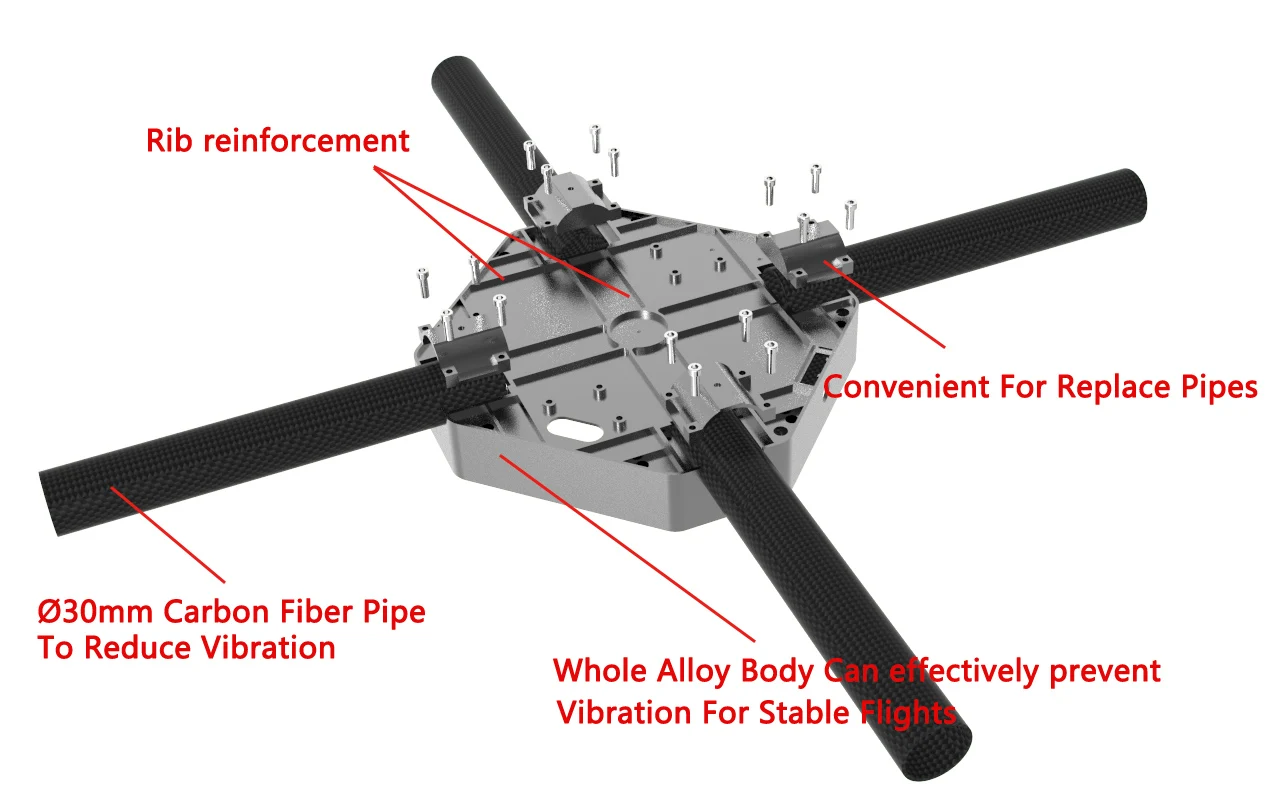

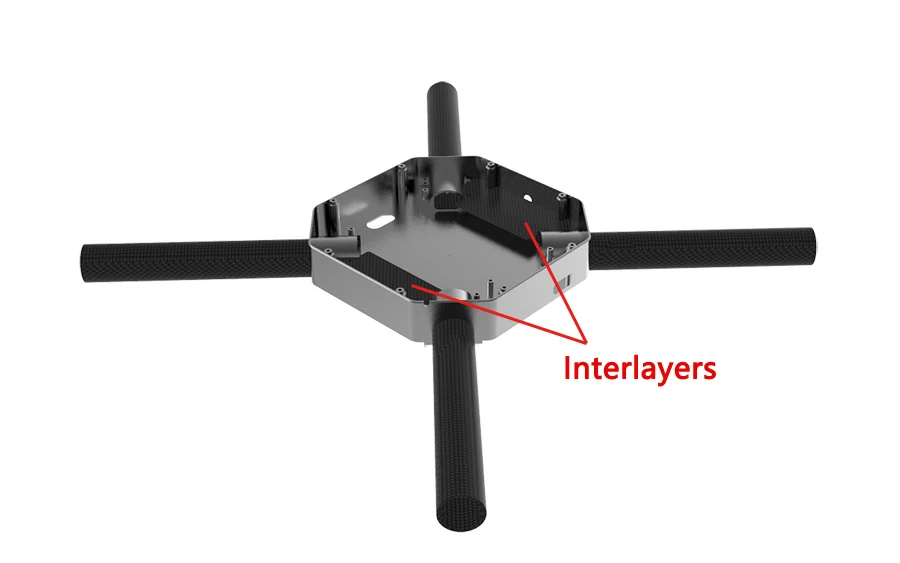

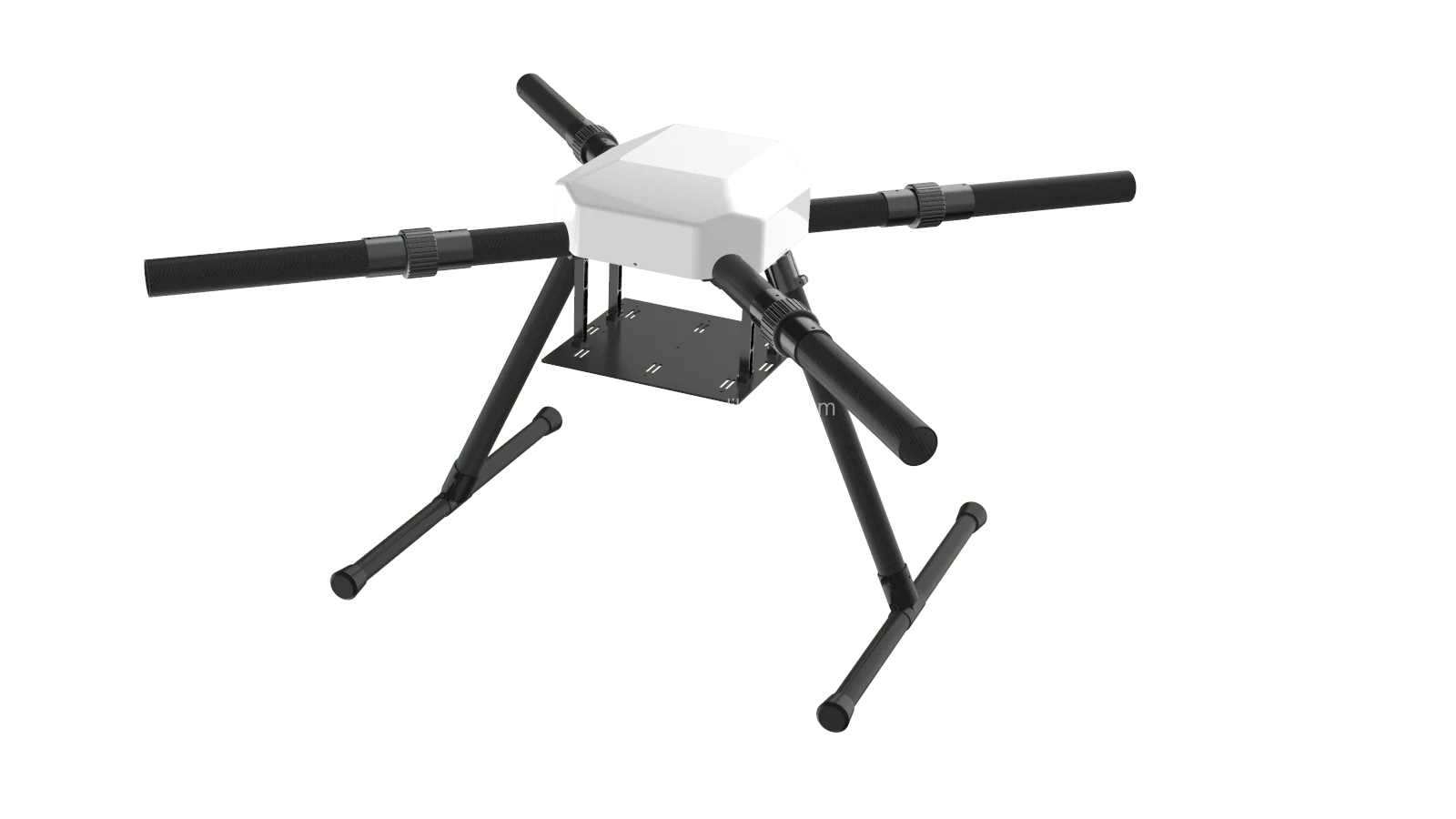

Stronger CNC machined frame: "H" shaped of cut section give stronger structural strength for this drone. Reinforcing rib on the bottom bring the powerful shock resistance and impact resistance. X1100 drone multi purpose: X1100 Drone Flight Platform has big space under the battery tray mount, And can install powerful propulsion system. Allow user mount different equipment for different purpose.

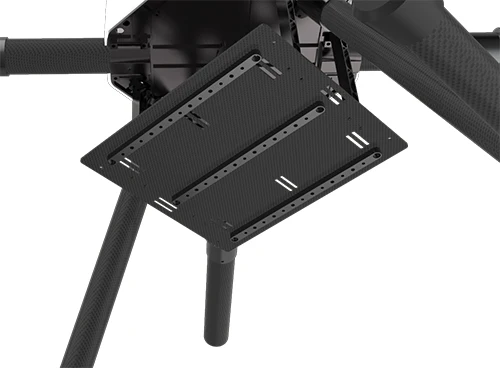

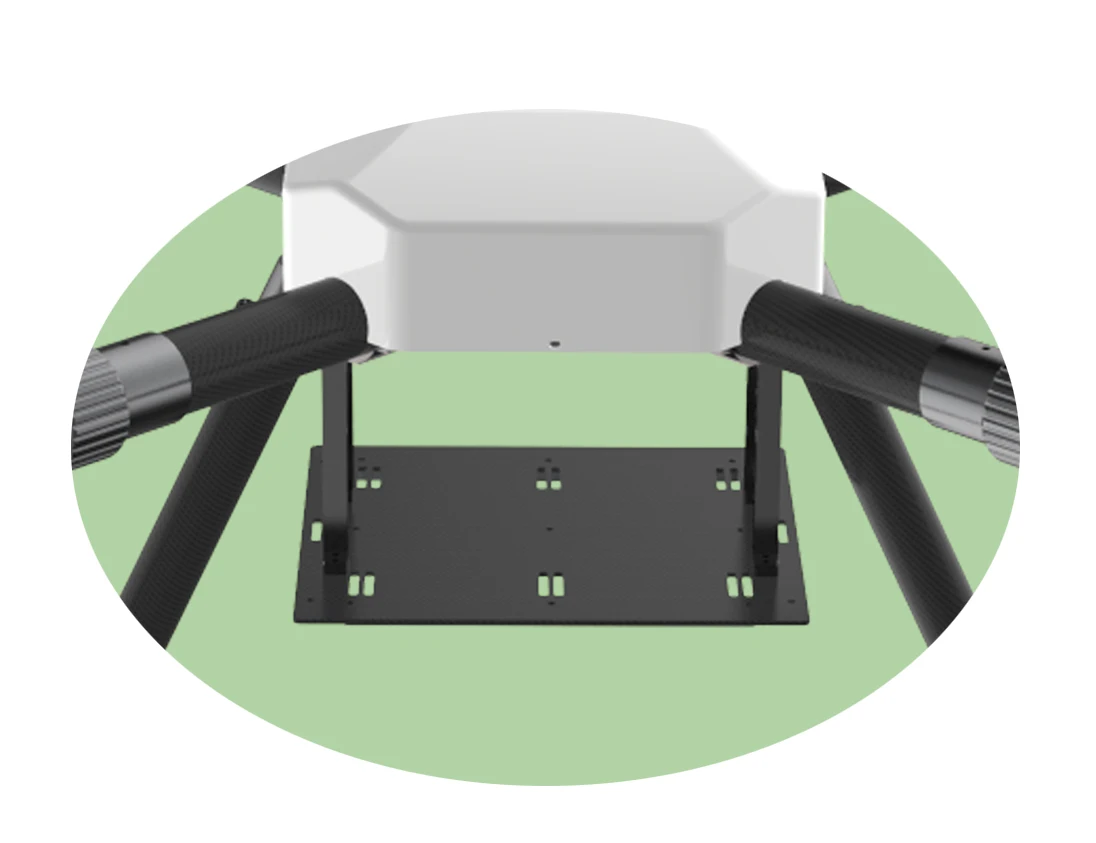

Large battery mounting board:

Different application equipments can be installed at the bottom of the battery mounting board,  the mounting holes can be customized according to requirements,it not fix.

Big battery case: Battery  tray compatible with different capacity batteries, for example 2 *6S 10000mAh , 2*6S 25000mAh or 12S battery)

Q: Who are you?

A: We are a reliable drone manufacturer, who is specialized in drone R&D for almost 4 years.



Q: How long is your delivery time?

A: Generally it is 2 weeks after deposit.



Q: Do you provide samples ?

A: No, we provide a complete solution.



Q: Can you do customized product?

A: Yes, we do.



Q: What is your terms of payment ?

A: T/T, L/C, etc.





If you need the full parts for the drone or other accessories , pls leave messages to me . thank you !!!
