HFVD45-SA Сага для сушки древесины машина высокой частоты Вакуумная
- Категории: Other Woodworking Machinery >>>
- Поставщик: Shijiazhuang,Saga,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
High frequency vacuum wood dryer is smaller but fast lower temperature drying dryer, suitable for all kinds of wood drying, from veneer/lamina /board to thick lumber, even heavy timber. For thin piece like veneer or floor board lamina, HF vacuum drying not only offer you short cycle solution but also eliminate the problem of curve or shrink. For thick and hard wood, HF vacuum drying brings you good quality wood with uniform humidity, free of split or spark both on surface or inside, short drying cycle will help you a lot to meet your demand for production.
* CHARACTER
High frequency vacuum drying technology constitutes a combination of two special methods: heating by high frequency current and drying in vacuum where the boiling point of water is decreased with decreasing pressure.
A. High frequency heating:
High frequency power acts only on the moisture of the wood, it penetrate the wood and where there is water or moisture, there is high frequency power.So it dries fast and uniformly
B.Vacuum condition:
* At vacuum condition, the water is vapored at very low temperature, so this eliminate the problem of sparking or spliting
problem for hard wood, especially for the type of extremely hard wood that likely to spark if drying temperature is too high.
* Further more, vacuum condition create a minus pressure in the tank, the movement of water through wood increases leading to shorter drying time than can be achieved at atmospheric pressure, this minus pressure suck the water or moisture out of the wood fast.
High frequency vacuum drying technology constitutes a combination of two special methods: heating by high frequency current and drying in vacuum where the boiling point of water is decreased with decreasing pressure.
A. High frequency heating:
High frequency power acts only on the moisture of the wood, it penetrate the wood and where there is water or moisture, there is high frequency power.So it dries fast and uniformly
B.Vacuum condition:
* At vacuum condition, the water is vapored at very low temperature, so this eliminate the problem of sparking or spliting
problem for hard wood, especially for the type of extremely hard wood that likely to spark if drying temperature is too high.
* Further more, vacuum condition create a minus pressure in the tank, the movement of water through wood increases leading to shorter drying time than can be achieved at atmospheric pressure, this minus pressure suck the water or moisture out of the wood fast.
.CHARACTER OF SAGA’S HF VACUUM WOOD DRYER
A.SAGA OFFER YOU ONE BUTTON CONTROL TECHNOLOGY
Full automatic drying program with-in PLC control system for different type of wood, your worker do not need to know too much knowledge about wood drying to cook your wood perfect.
B.PRECISE AND RELIABLE MONITORING SYSTEM
High precision and stable monitoring spare will always guide on your machine both for warrantee of good drying quality or safety of personal and machine.
C.WELL SELECT SPARE PARTS
We choose high grade stable spare parts which is tested for long time for your machine to make it stable running and problem free.
D.LOGICAL AND SAFE DESIGN
With more than 10 years of experienced engineer, you can expect a more logical and humanistic machine that very easy to use, stable running and help you a lot in production.
A.SAGA OFFER YOU ONE BUTTON CONTROL TECHNOLOGY
Full automatic drying program with-in PLC control system for different type of wood, your worker do not need to know too much knowledge about wood drying to cook your wood perfect.
B.PRECISE AND RELIABLE MONITORING SYSTEM
High precision and stable monitoring spare will always guide on your machine both for warrantee of good drying quality or safety of personal and machine.
C.WELL SELECT SPARE PARTS
We choose high grade stable spare parts which is tested for long time for your machine to make it stable running and problem free.
D.LOGICAL AND SAFE DESIGN
With more than 10 years of experienced engineer, you can expect a more logical and humanistic machine that very easy to use, stable running and help you a lot in production.
Specification
Model | HFVD45-SA | HFVD120-SA |
High frequency generator | 1450mm*1300mm*2050mm | 1450mm*1300mm*2050mm |
Tank | 5700mm*2150mm*2000mm | 9300mm*2400mm*2000mm |

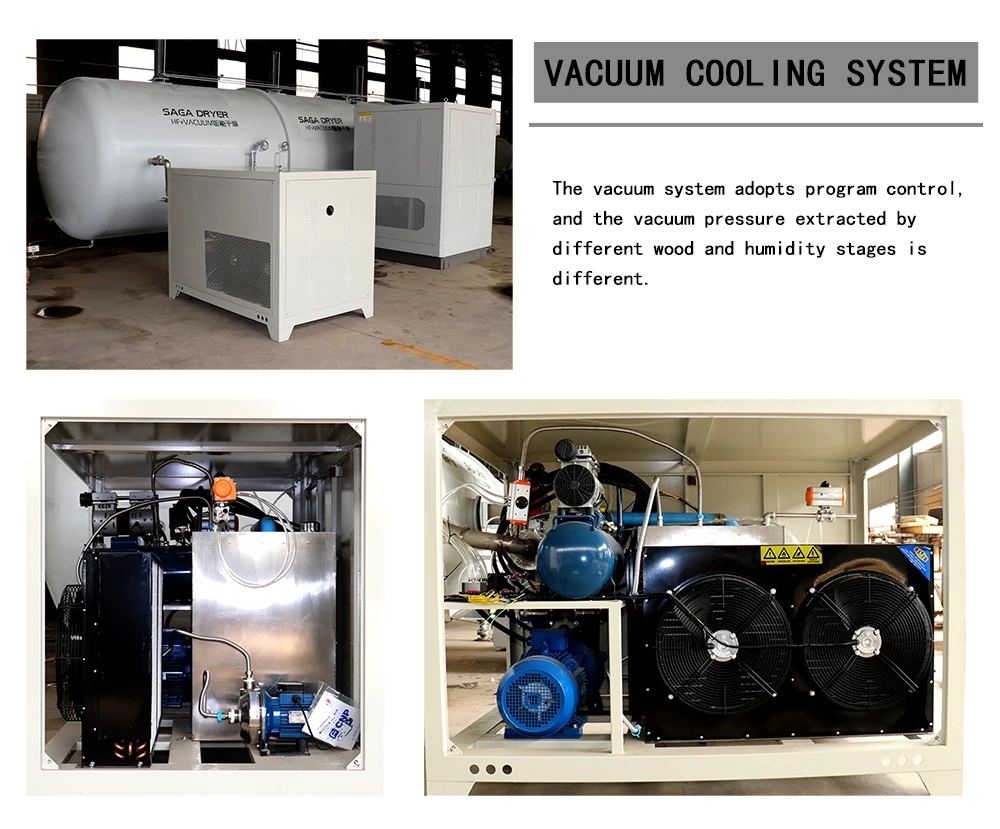

Cooling and Vacuum system | 1650mm*1050mm*1250mm | 1650mm*1050mm*1250mm |
Gross Weight | 7.3T | 13T |
Inside Diameter(mm) | Ф1700 | Ф1900 |
Stack Timber Size(mm) | 4500 * 1000 * 1000 | 8000 * 1300 * 1300 |
Stack Timber Capacity | 4.5m3 | 12.5m3 |
HF Output Power | 30Kw | 50Kw |
HF Oscillation | 6.78MHz | 6.78MHz |
Protection | Overload protection/Wind cooling pressure detection/Filament 2 stage starts/Lose phase protection | Overload protection/Wind cooling pressure detection/Filament 2 stage starts/Lose phase protection |
Turning Mode | Variable vacuum capacitor | Variable vacuum capacitor |
Cooling Type | Force wind cooling | Force wind cooling |
Main Spare Parts | Schneider/Siemens/Omron | Schneider/Siemens/Omron |
Working Temperature | 45-75℃ | 45-75℃ |

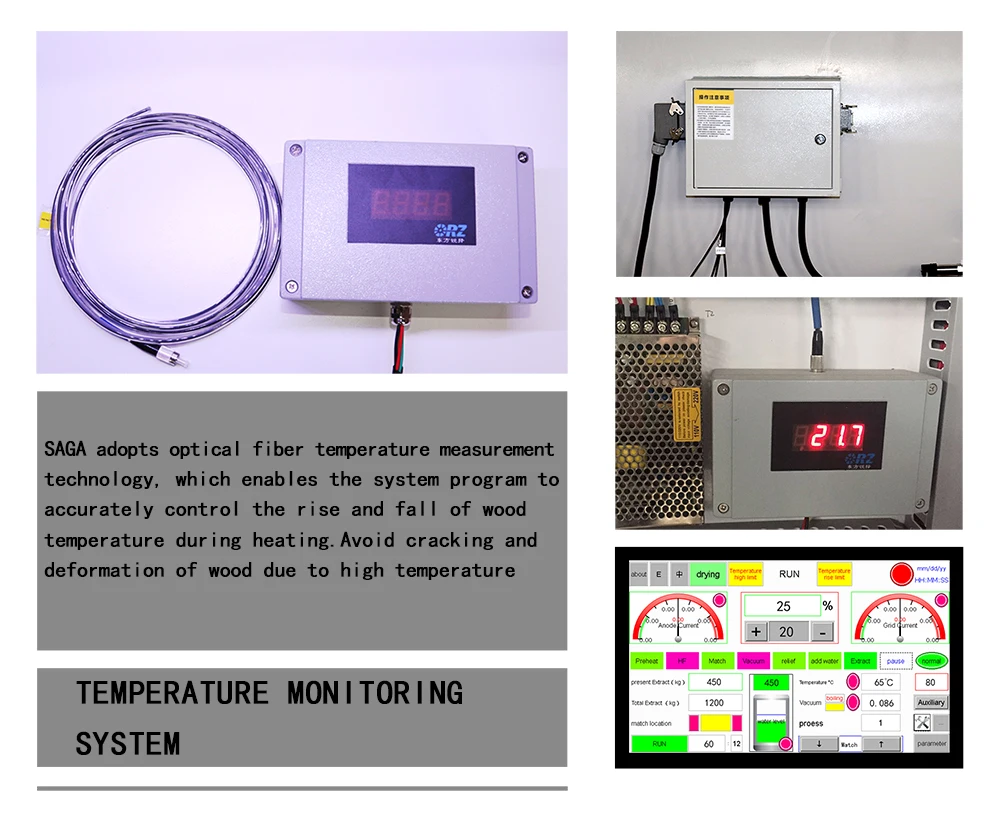

Temperature Test | Fiber optic glass temperature sensor | Fiber optic glass temperature sensor |

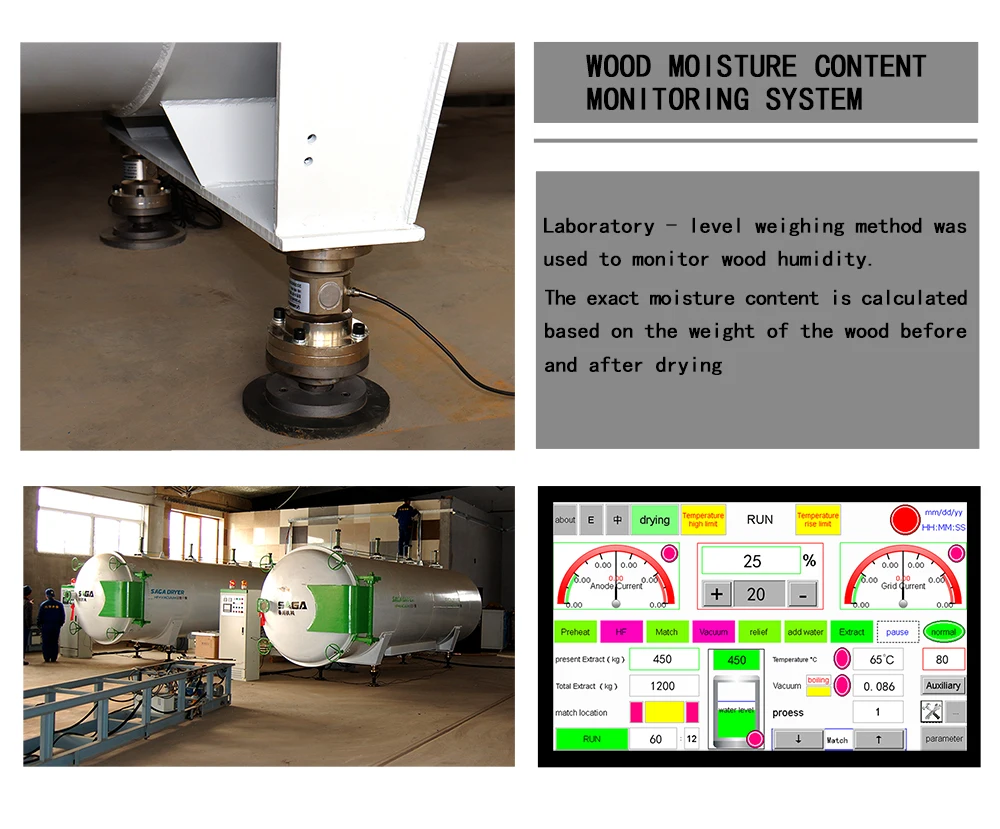

Moisture Test | Weighting system | Weighting system |

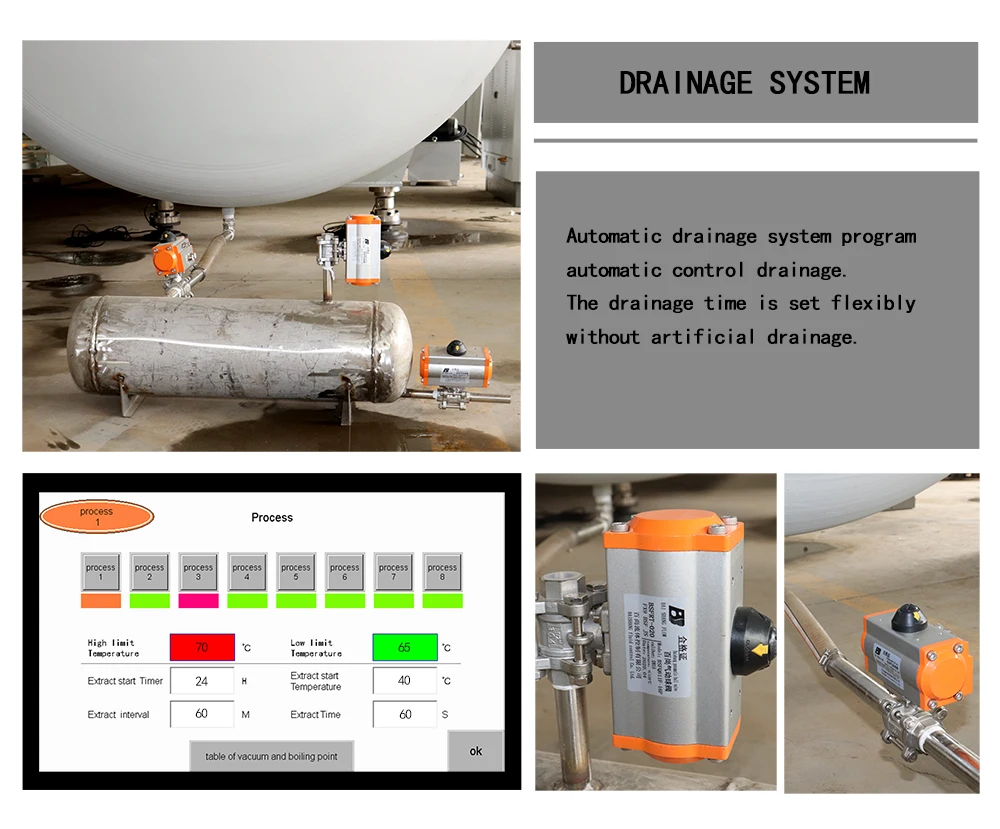

Dewatering | Full automatic | Full automatic |
Tank Thickness | 12mm | 12mm |

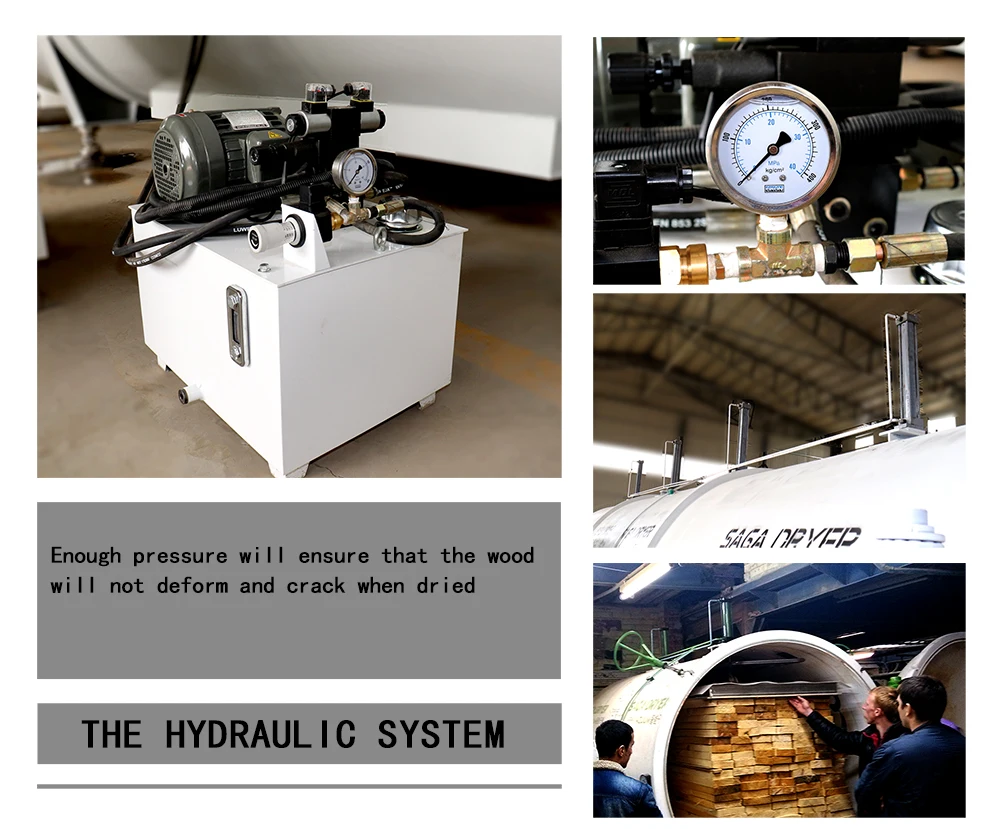

Pressure | 6T | 8T |
Power of vacuum pump | 7.5Kw | 7.5Kw |
Vacuum Range | -0.01 -0.09Mpa | -0.01 -0.09Mpa |

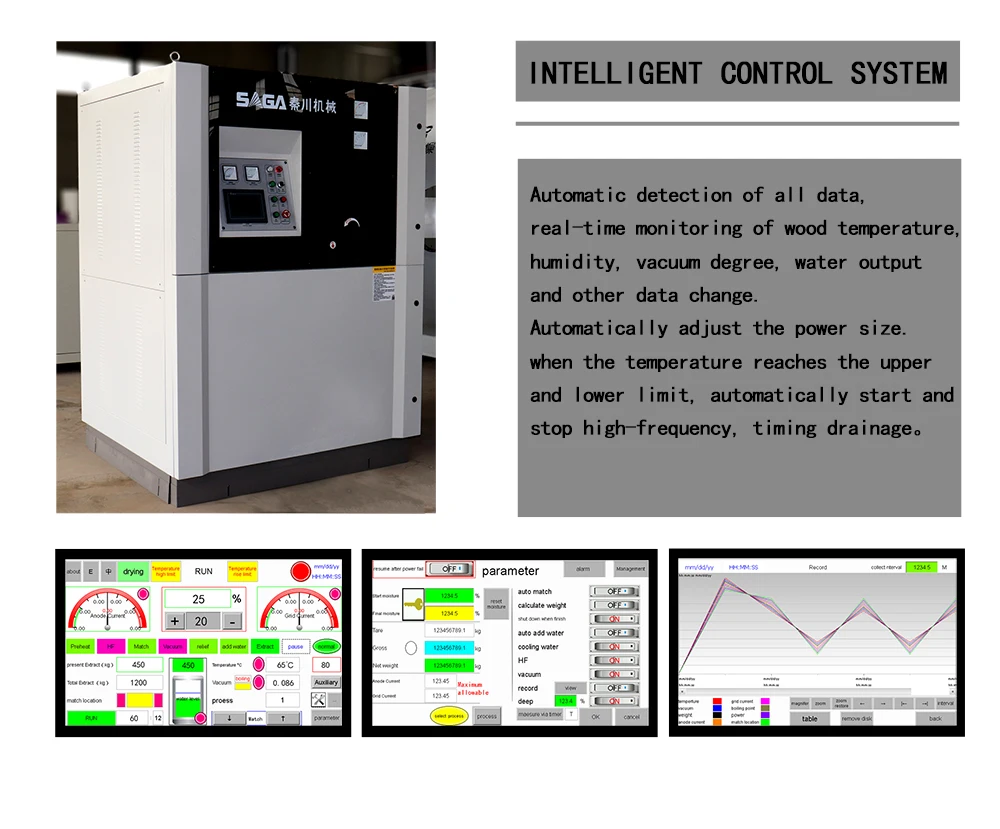

Controller | PLC | PLC |
Outside Temperature | 1℃-45℃ | 1℃-45℃ |
Details Images

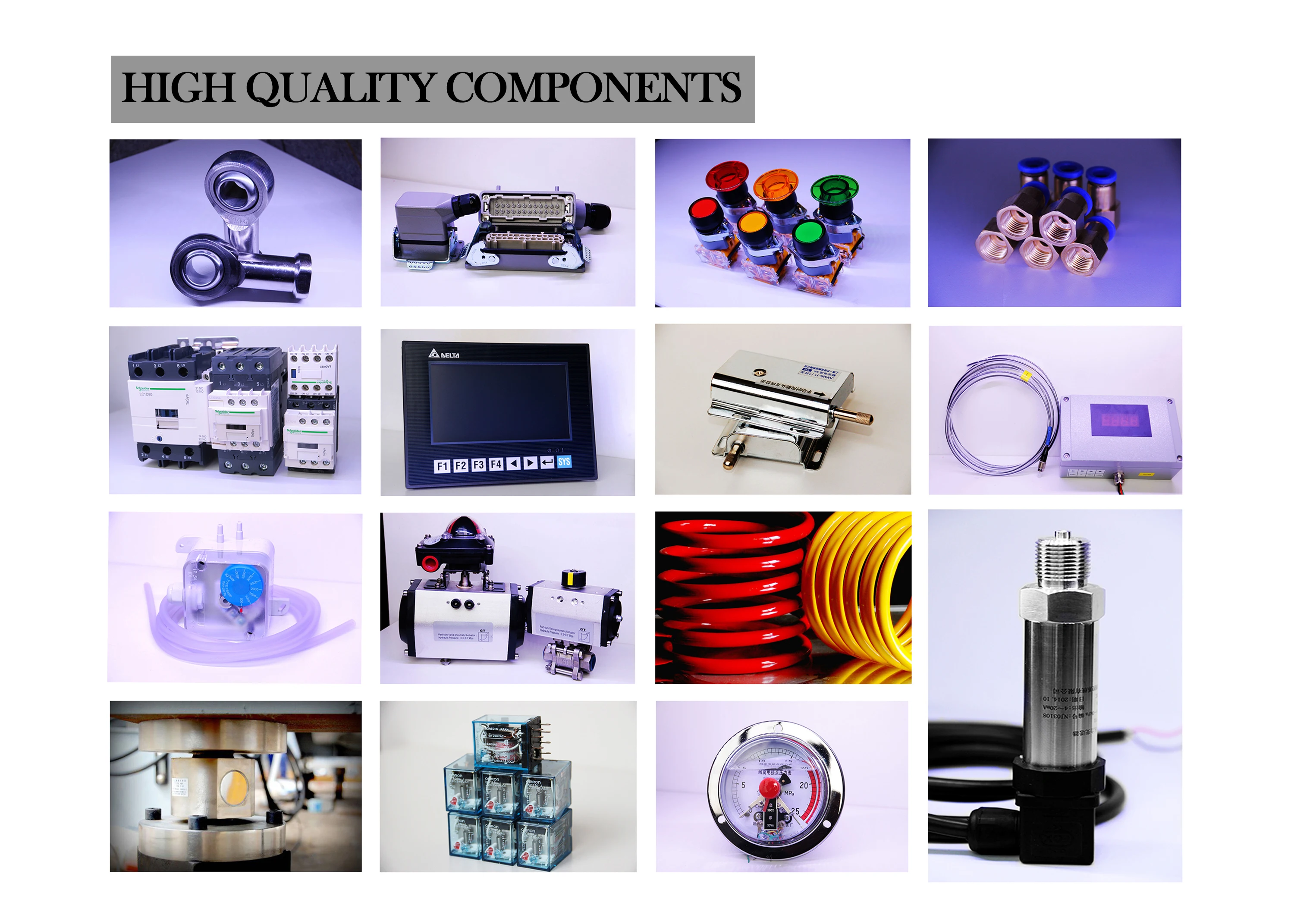

Spare parts

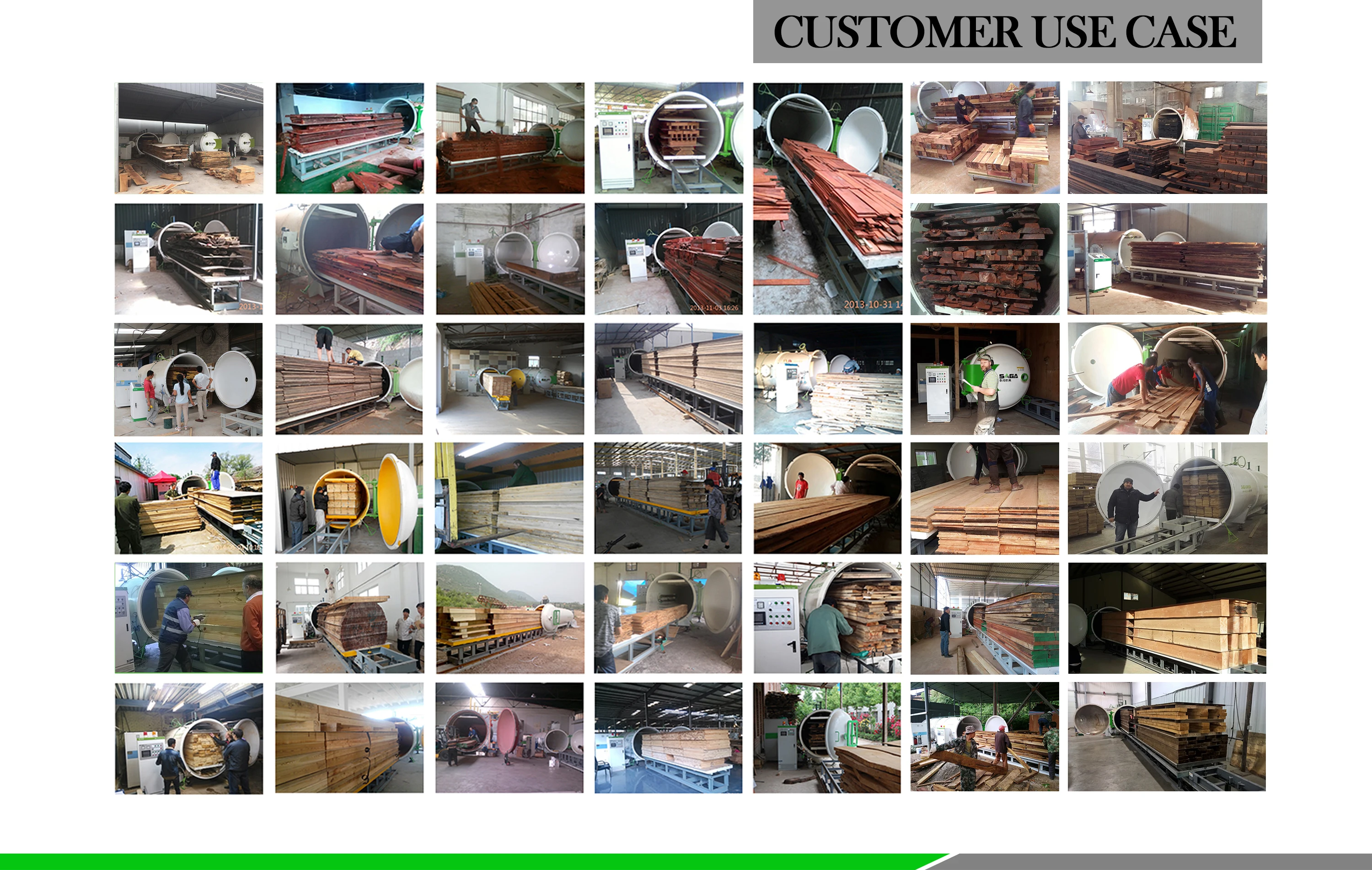

Customer Photos

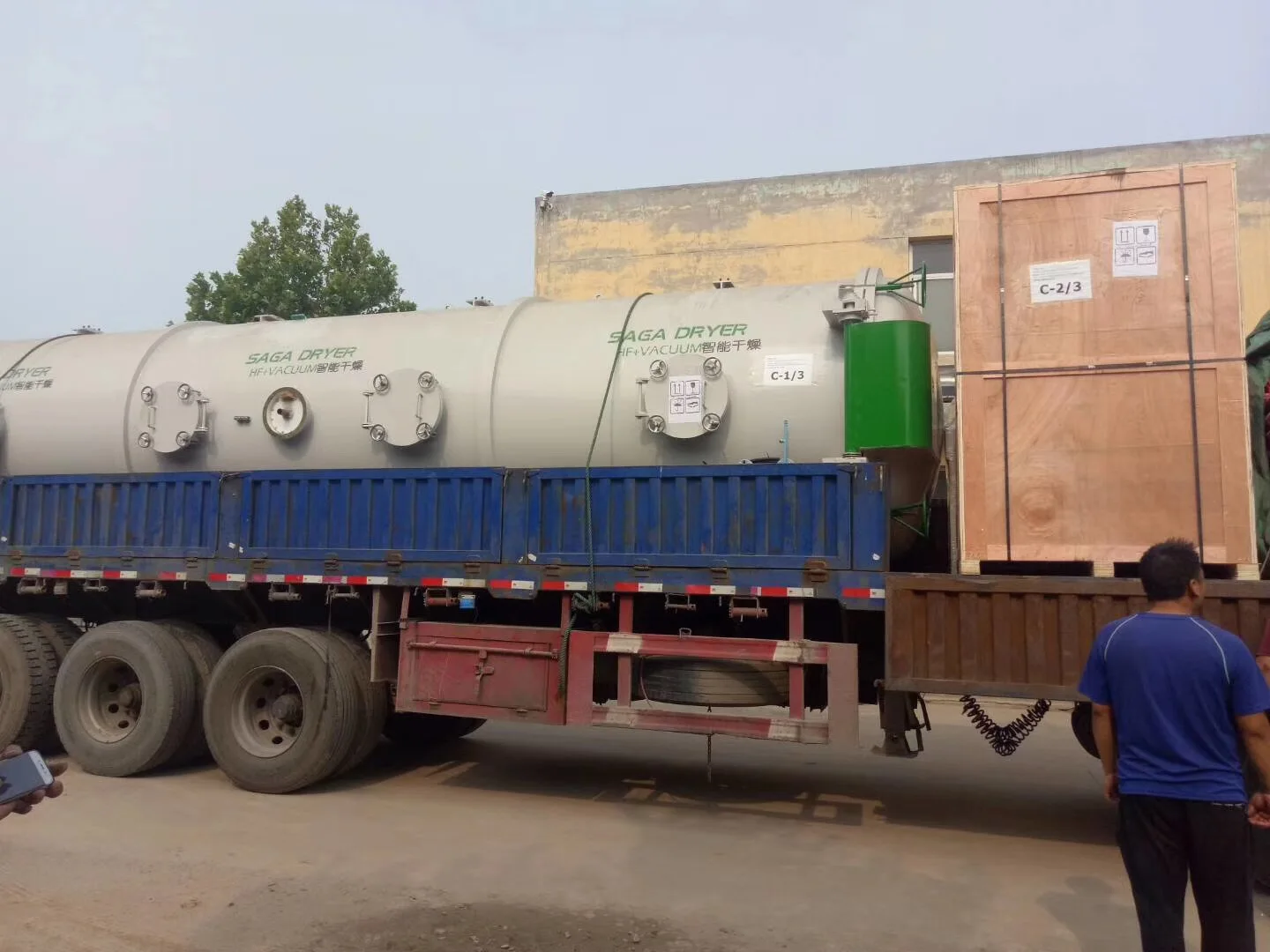

Packing & Delivery

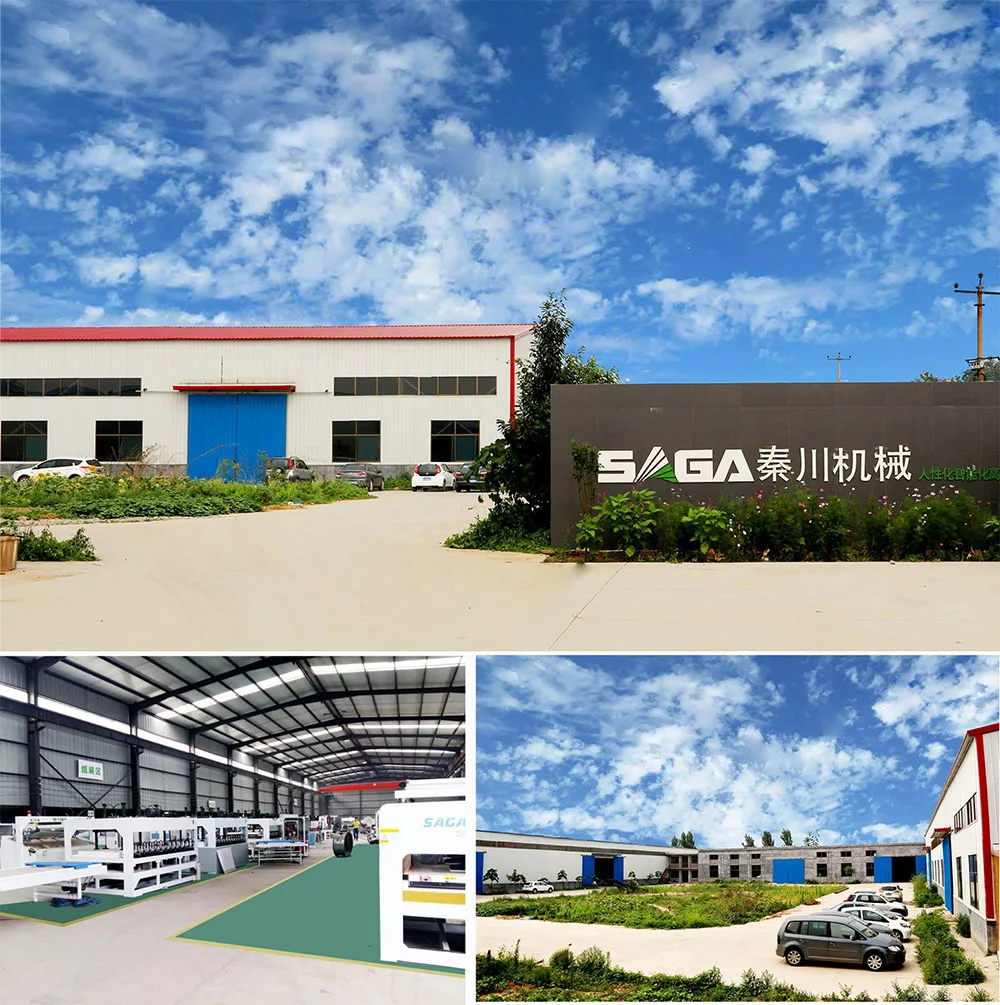

Company Profile
Saga Machinery Co., Ltd. is specialized in developing, designing and producing high frequency dielectric heating machinery. We are the main high frequency machinery manufacturer in China. There is a professional know-how engineering group and a service group. Various needs from our customers can be met. We have a strict quality control system to ensure the quality of every product.
Saga aims to provide you with humanistic high frequency technology and service to help you improve the quality of your products and increase your production efficiency to the maximum.
Not only focus on the quality but also on the safety and convenience of users. Our humanistic design assures you of comfortably using the machine and experiencing the perfect industrial design.
The spare parts we use for the products are mostly European standard or brand or at least national top brand plus various protection systems both for human and machine. You can use it and feel at ease. The user-centered cautious designs ensure you that we can use it more freely.
Saga got its customer and user internationally like: South east Asia, Middle east, Africa, Eastern Europe and South America, we got service senter at India and Turkey, we welcome specaillized wood working company abroad for cooperation.
Our productions cover with high frequency dielectric heating generator, high frequency vacuum wood dryer, high frequency curved plywood press, high frequency edge gluer, high frequency gluing press, high frequency wooden frame assembly machine, etc.
Saga aims to provide you with humanistic high frequency technology and service to help you improve the quality of your products and increase your production efficiency to the maximum.
Not only focus on the quality but also on the safety and convenience of users. Our humanistic design assures you of comfortably using the machine and experiencing the perfect industrial design.
The spare parts we use for the products are mostly European standard or brand or at least national top brand plus various protection systems both for human and machine. You can use it and feel at ease. The user-centered cautious designs ensure you that we can use it more freely.
Saga got its customer and user internationally like: South east Asia, Middle east, Africa, Eastern Europe and South America, we got service senter at India and Turkey, we welcome specaillized wood working company abroad for cooperation.
Our productions cover with high frequency dielectric heating generator, high frequency vacuum wood dryer, high frequency curved plywood press, high frequency edge gluer, high frequency gluing press, high frequency wooden frame assembly machine, etc.
