Заводское предложение экстракция и изготовление пюре из целлюлозы jackfruit автоматическое

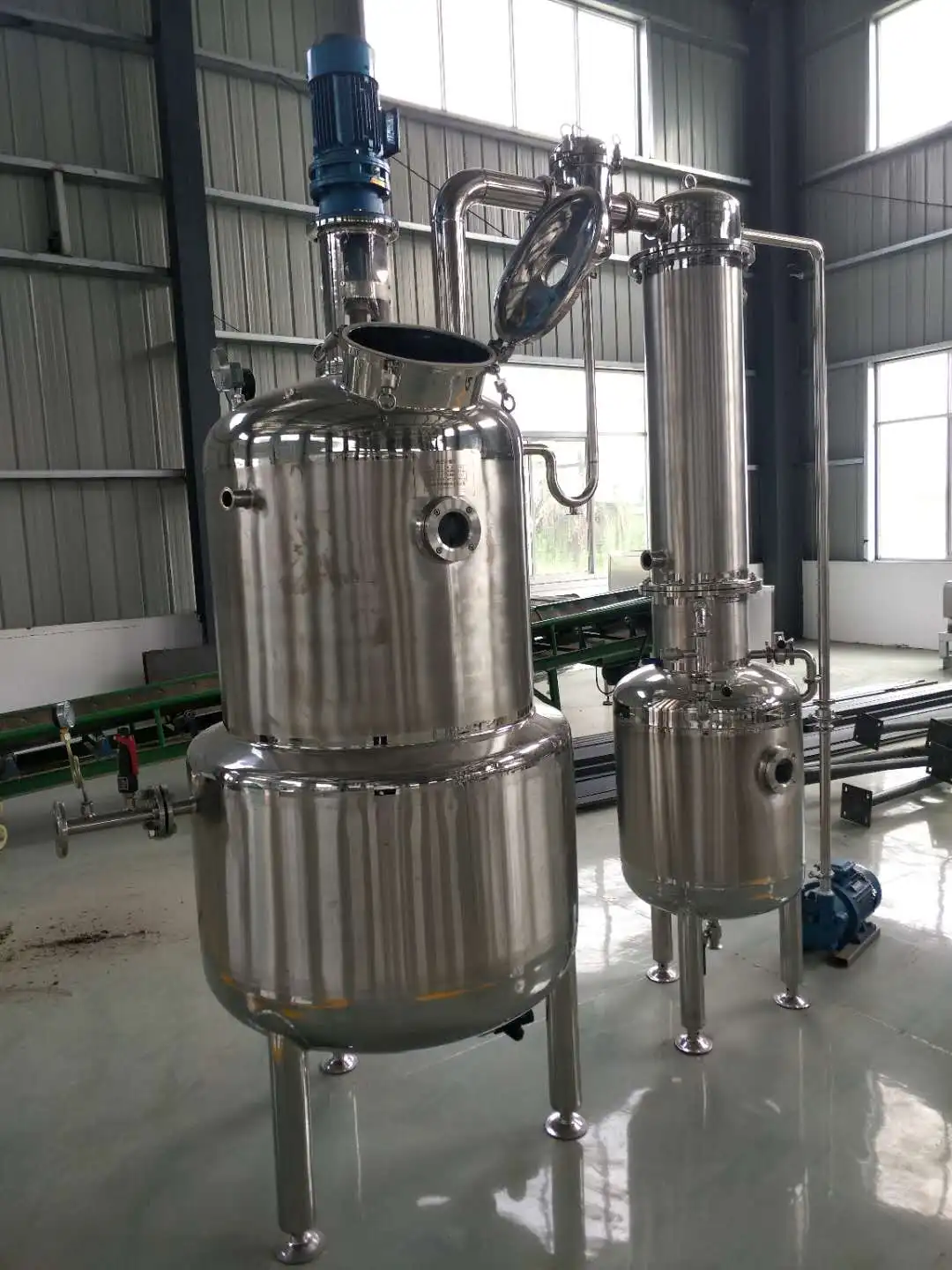

this kind of concentrator is specially used for sauce ，pulp and other poorly fluid materials concentrate，especially for small size capacity production line ，it can suit for 0.3-2T/H water evaporation capacity .

Working principle: The equipment consists of agitator body, heater, separator, hydraulic ejector,
agitator and multi-stage pump. Divided into two parts: concentrated evaporation and vacuum. The concentration pot is composed of
an upper pot body and a lower pot body. The lower end of the lower pot body is a butterfly-shaped head, and the lower part of the
lower pot body is provided with an interlayer. Steam is introduced into the interlayer to boil and evaporate the material under
vacuum. There is a horizontal shaft type agitator device in the lower pot Inside, it is driven by a motor reducer through a
V-belt, with a rotation speed of 24 rpm to enhance the flow of materials. The middle of the cylinder is an evaporation separation
chamber, and the top is a foam trap. The liquid separated at the end of the middle is separated by the foam trap. To prevent the
secondary steam from taking away the liquid foam, the secondary steam generated by the steam is taken away by the water jet. In
order to facilitate the observation of the production situation in the pot, there are lamp holes and sight holes, and for the
convenience of cleaning and maintenance, there are manholes.

1, provide customers with comprehensive design guidance, including:

   Market positioning guidance, product structure positioning, factory location guidance, process design, layout design, factory construction design guidance, equipment selection, equipment production and installation and commissioning, personnel training, after-sales service, etc.

2, provide customers with various types of processing single and turnkey turnkey projects, including:

(1) single equipment: washing machines, fruit sorting machines, conveyors, crushers, de-stone machine, seed extract machine, shredder, preheater, pre-cooking machine, blanching machine, beater, blending tank,storage tanks, fermentors tank, enzymolysis tank, forced external circulation vacuum concentrator, falling film evaporator, Pasteur pipe sterilizer, UHT ultra-high temperature sterilizer, four layers high viscosity tube in tube sterilization machine (aseptic type), aseptic filling machine,BIB filing machine linear filling machine, diagnostic reagent filling capping machine (aseptic type) , post pasteurizer spraying spray sterilization machine, roll bar water bath sterilization machine, inverted bottle sterilization machine, wind knife drying machine, conveyor, coconut vacuum water machine, coconut cutting machine, coconut peeling machine, CIP cleaning system and various Figure processing and various types of equipment designed according to requirements.
