HS-D1 Auto Wire Stripper Crimper Cable Cutter Multifunctional Pliers 8-Inch 0.2-6.0mm Manual Crimping Pliers Hand Tools



Features and specifications:

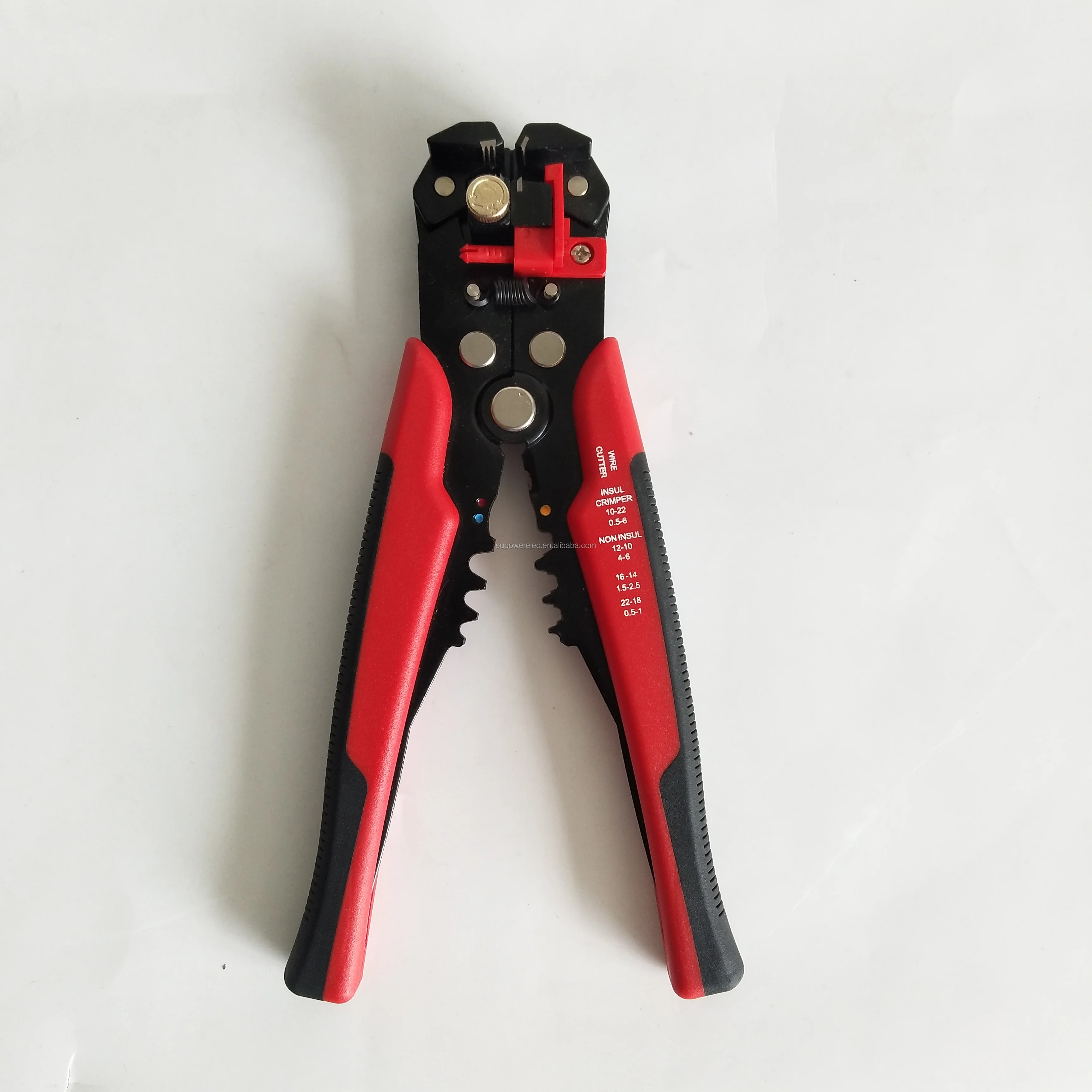

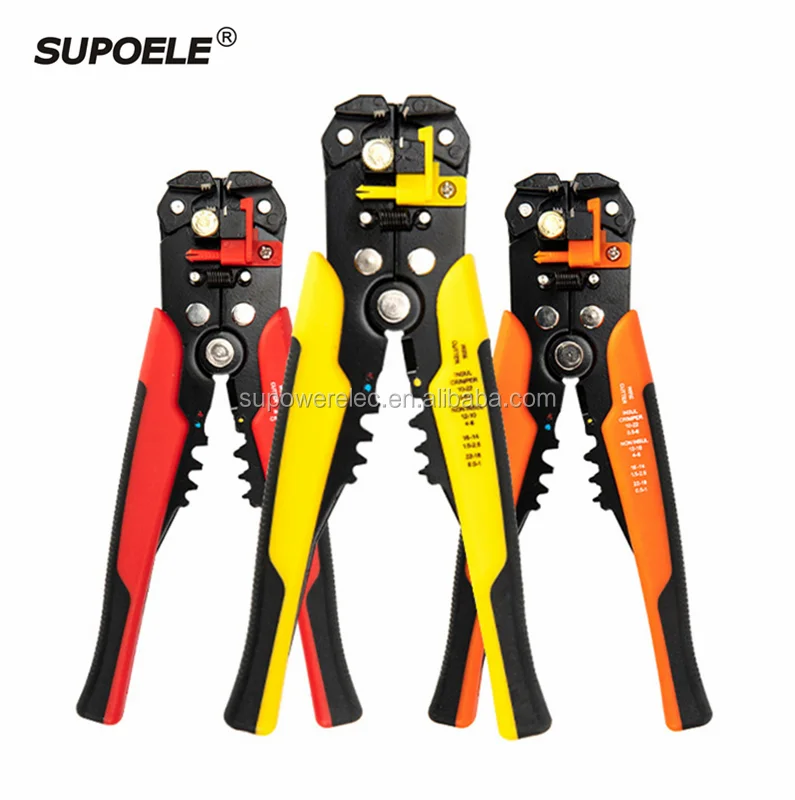

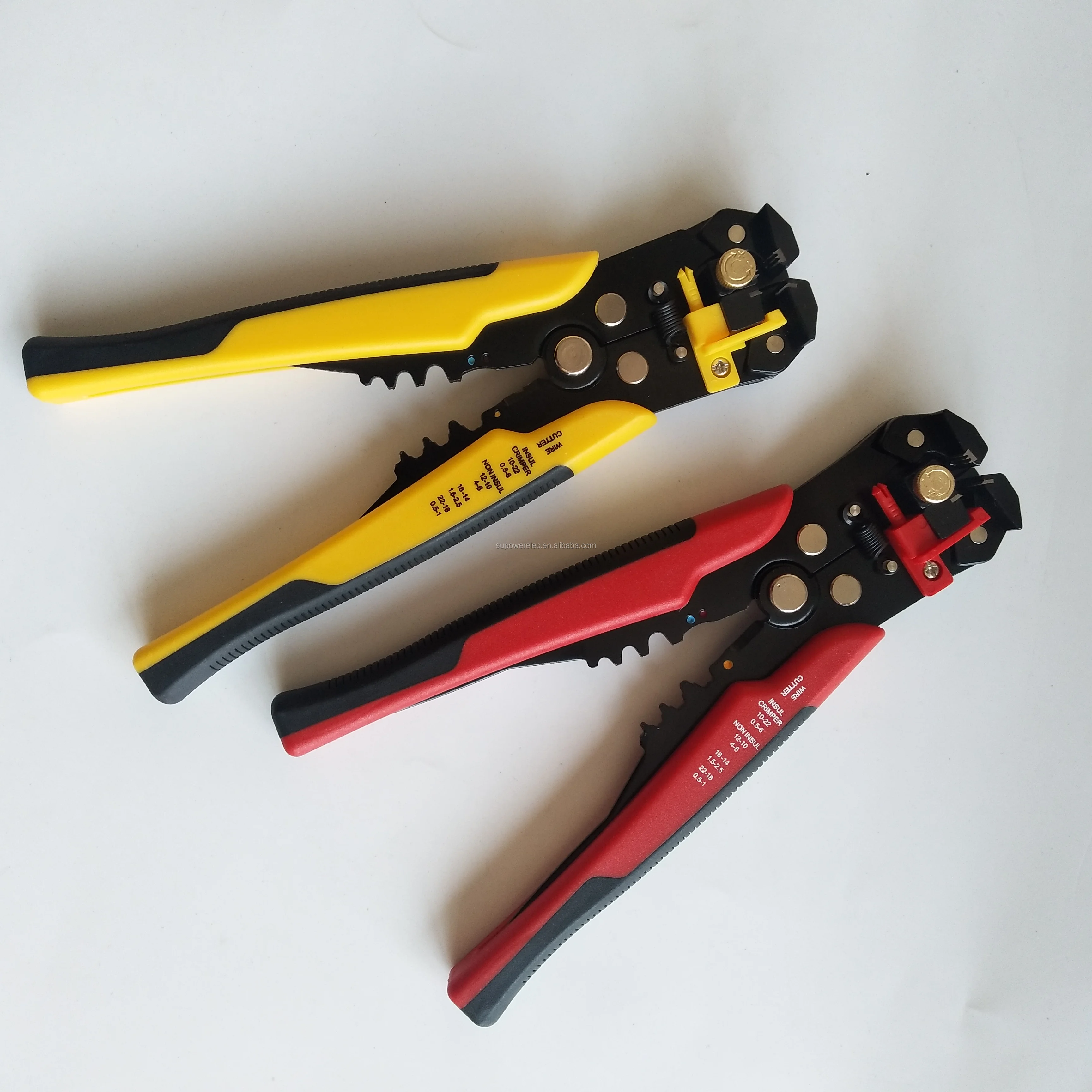

Product name: 8 inch multifunctional automatic wire stripper
Length: 205mm
Material:  head: zinc alloy  head: Cr12MoV, hardness HRC55-60, wire cutting process.
Pliers: A3 heat-treated handle: PP + TPR Features:
Stripping range: 24-10AWG / 0.2-6mm2;
Crimping of cutting function terminals:
insulated terminals 22-10AWG/0.5-6mm2
non-insulated terminals 12-10AWG/4-6mm2
non-insulated terminals crimped: 16-14AWG/1.5-2.5mm2
non-insulated terminals crimped: 22-18AWG/0.5 -1mm2

How to use the adjustment screw:
1. Rotate the adjustment screw to adjust the bite force of the blade, decrease counterclockwise, increase clockwise
2. When stripping the thin thread, adjust the screw counterclockwise.
3. If the wire is broken, please adjust the screw counterclockwise.
4. If it is difficult or impossible to peel off, please adjust the screw clockwise.
