Product Description


Y3150E general type hobbing machine, gear hob used to generating method hobbing cylindrical spur gear, helical gear and spline, sprocket, etc. Machine could also adopt the method of manual radial feed to processing ordinary worm gear. According to the user's requirements, special parts, using tangential feed hobbing worm gear.




SPECIFICATION


Middle-Duty Size Gear Hobbing Machine
Item
Unit
Y31125
Y31160
Y31180
Y31200
Y31250
Max machining diameter
mm
1000/1250
1300/1600
1800
2000
2500
(without column)
Max modulus
mm
16/18
16/20
24
24
16/20
Max width of teeth
mm
450
450
1100
1100
1100
Max hob diameter/length
mm
245/220
280/320
325/360
325/360
260/300
Diameter of Worktable
mm
950
1100
1450
1650
1380
Spindle Speed/steps
rpm
16-125/7
19-124/7
10-92
10-92
16-100
Max hob shift axial
mm
100
100
140
140
140
Main Motor
kw/rpm
15/1500
15/1500
22/1500
22/1500
14/1440
Worktable bore diameter
mm
200
260
260
260
275
Max hob swivelling angle
degree
±60
±60
±45
±45
±45
Diameter of hob arbor
mm
27,32,40,50
32,40,50
32,40,50,60,80
32,40,50,60,80
32,40,50,60,80




Detailed Images

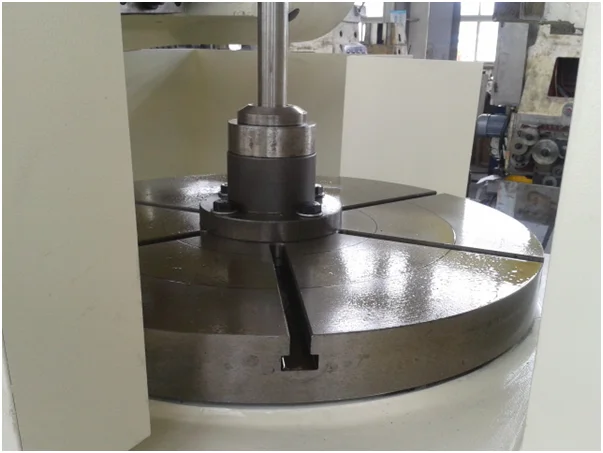

Worktable/Workbench
Base on workbench institutions by the workbench, the workbench, spindle unit.Workbench with: stop, inching and variable speed function.The workbench to withstand vertical load.Machine tool under the condition of environment temperature 0 to 40 degrees can work normally.

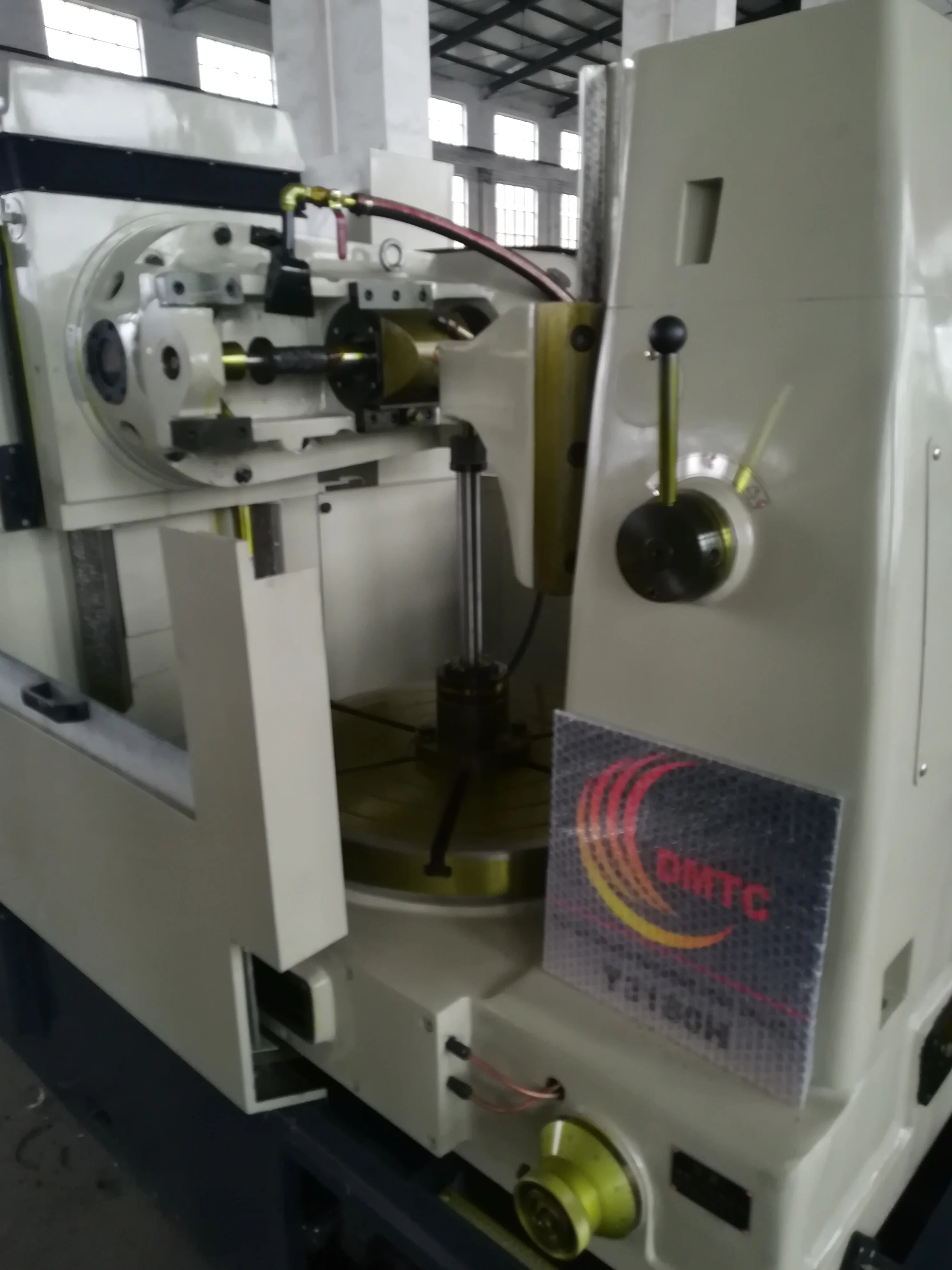

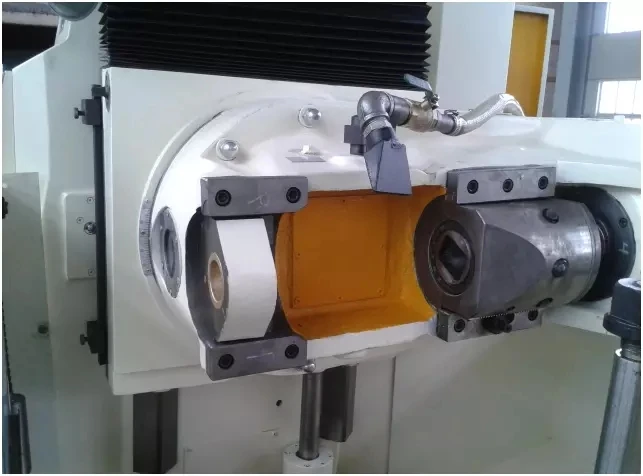

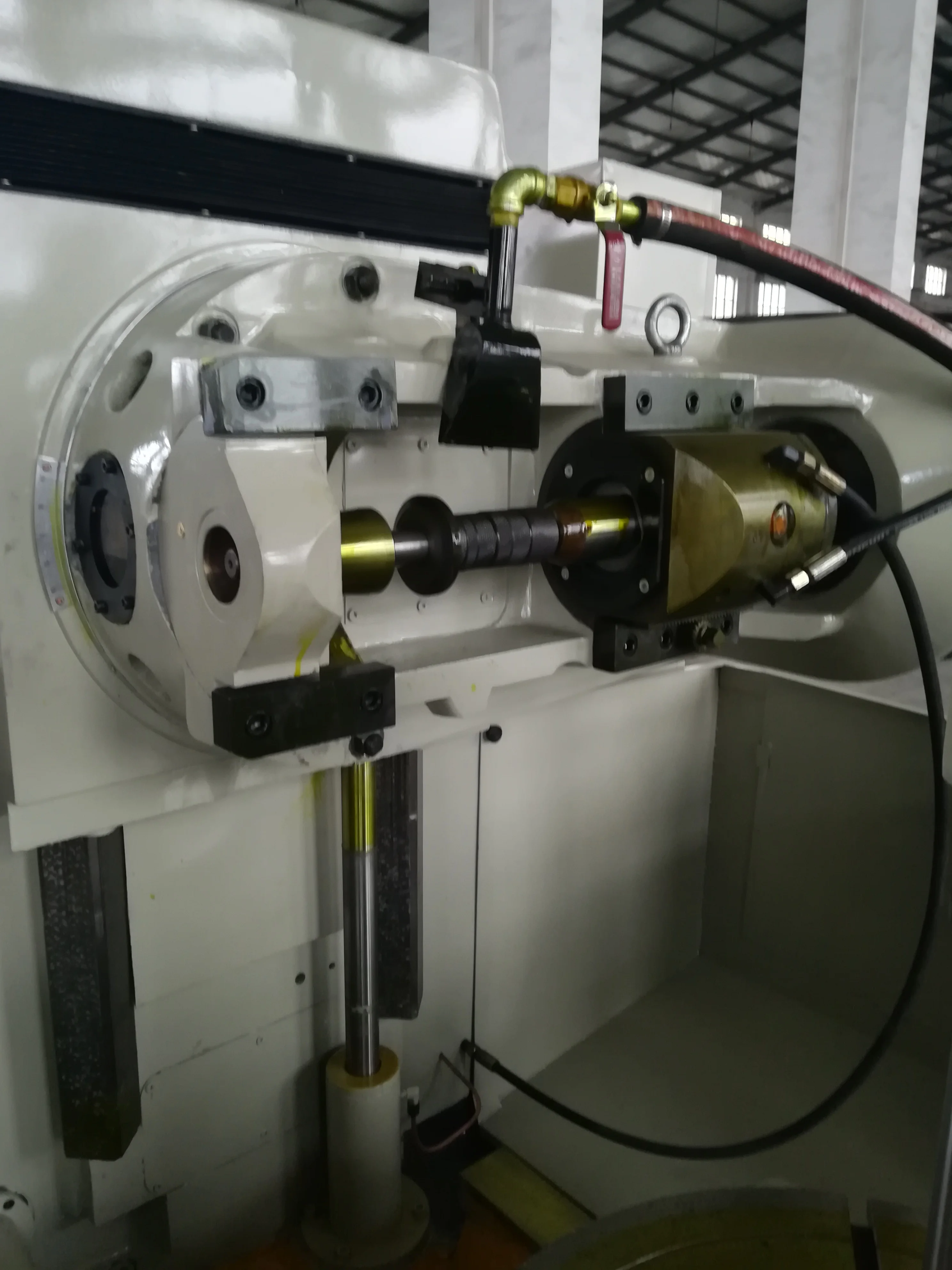

Hob carriage:
The hob holder is used to support the hob main shaft and drive the hob mounted on the main shaft to make vertical feed motion. The internal bearing adopts domestic famous or imported bearings with long life.

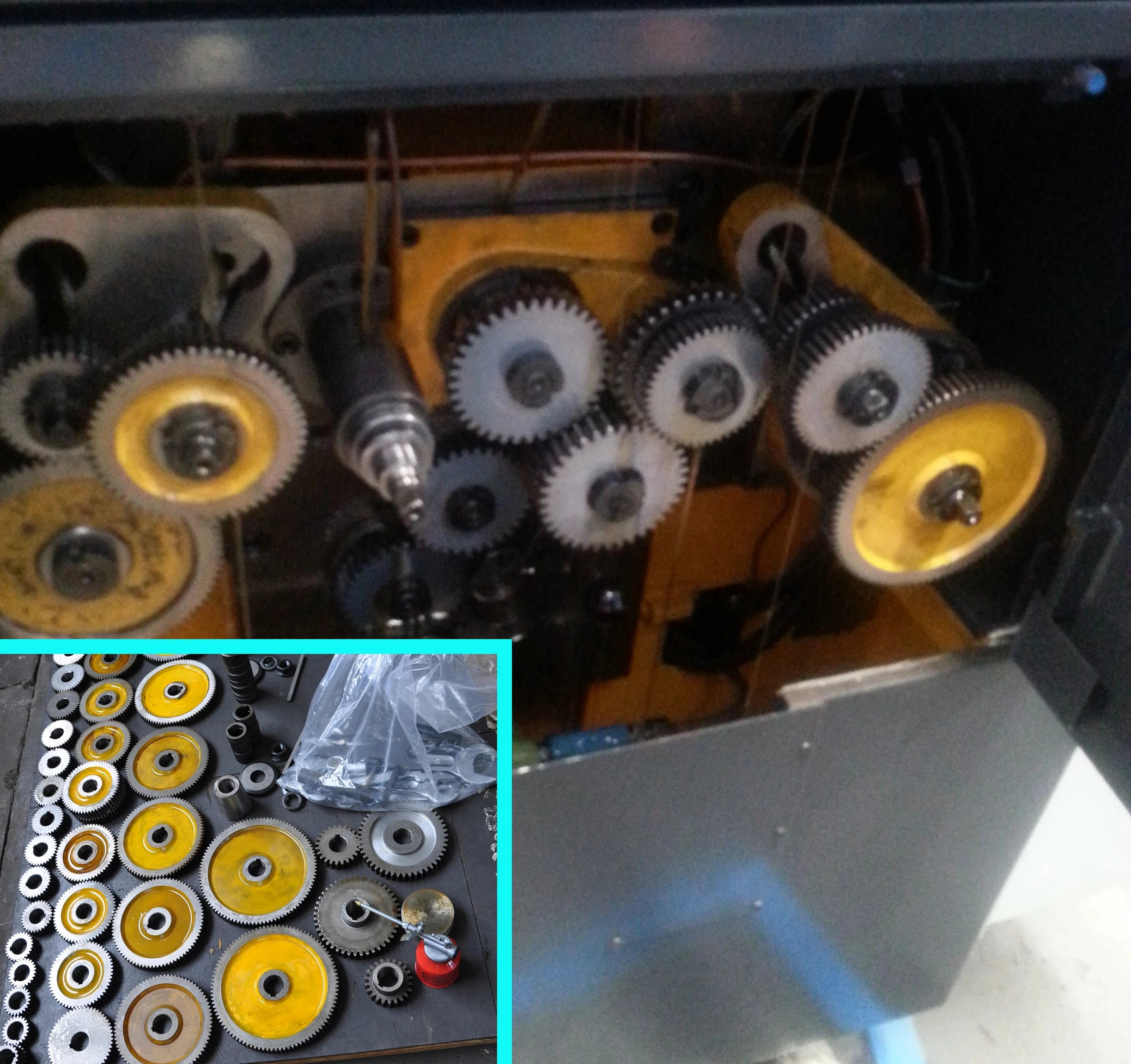

Change Gear:
The gear is selected from domestic high-quality suppliers, such as SMTCL or other well-known manufacturers. In addition, the combination of different hanging wheels will achieve the purpose of rolling out different gear forms.

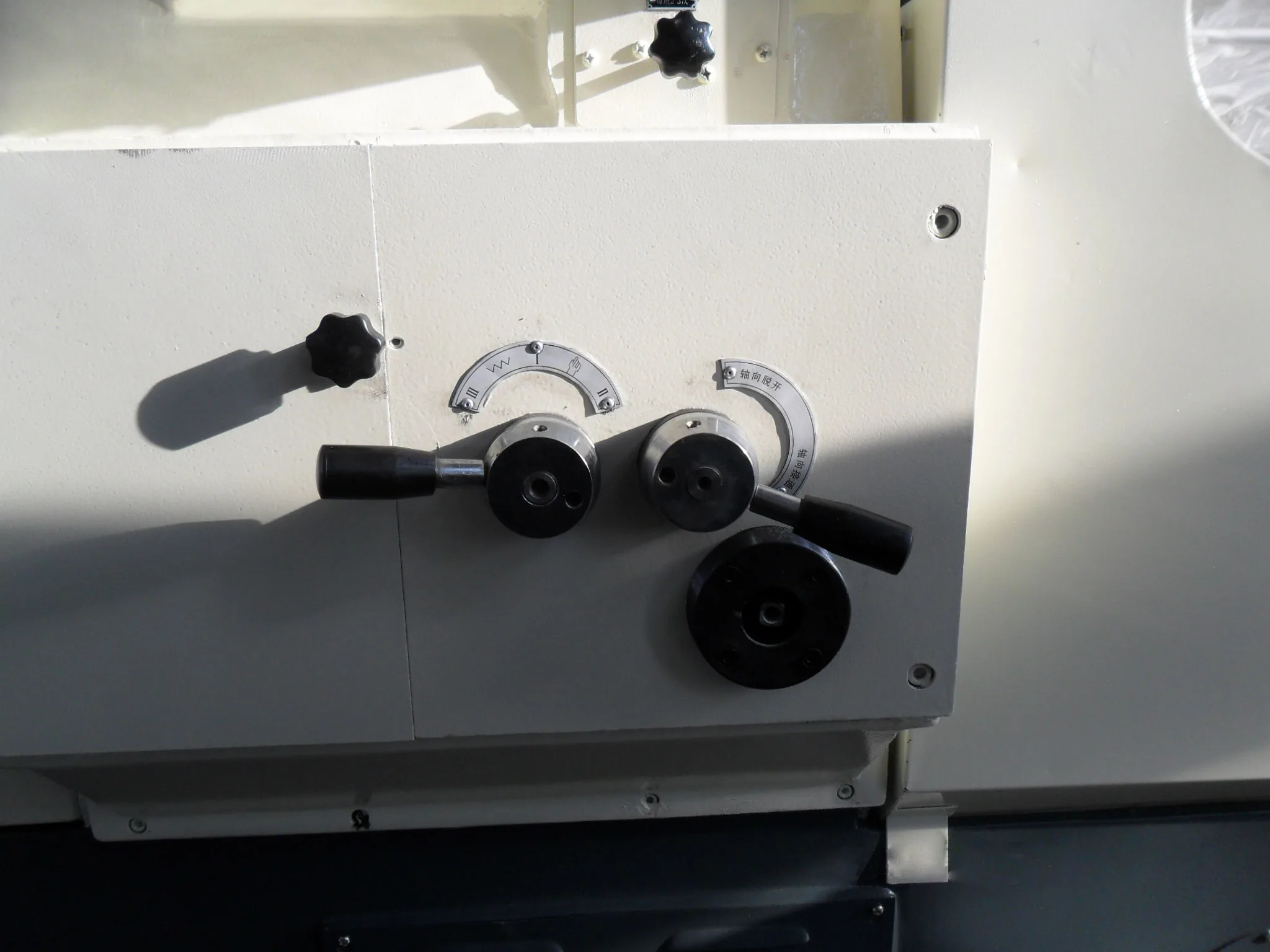

Hand Wheel:
 Operating the handle, different handles can achieve different speeds, the specific speed is related to the size of the machine.

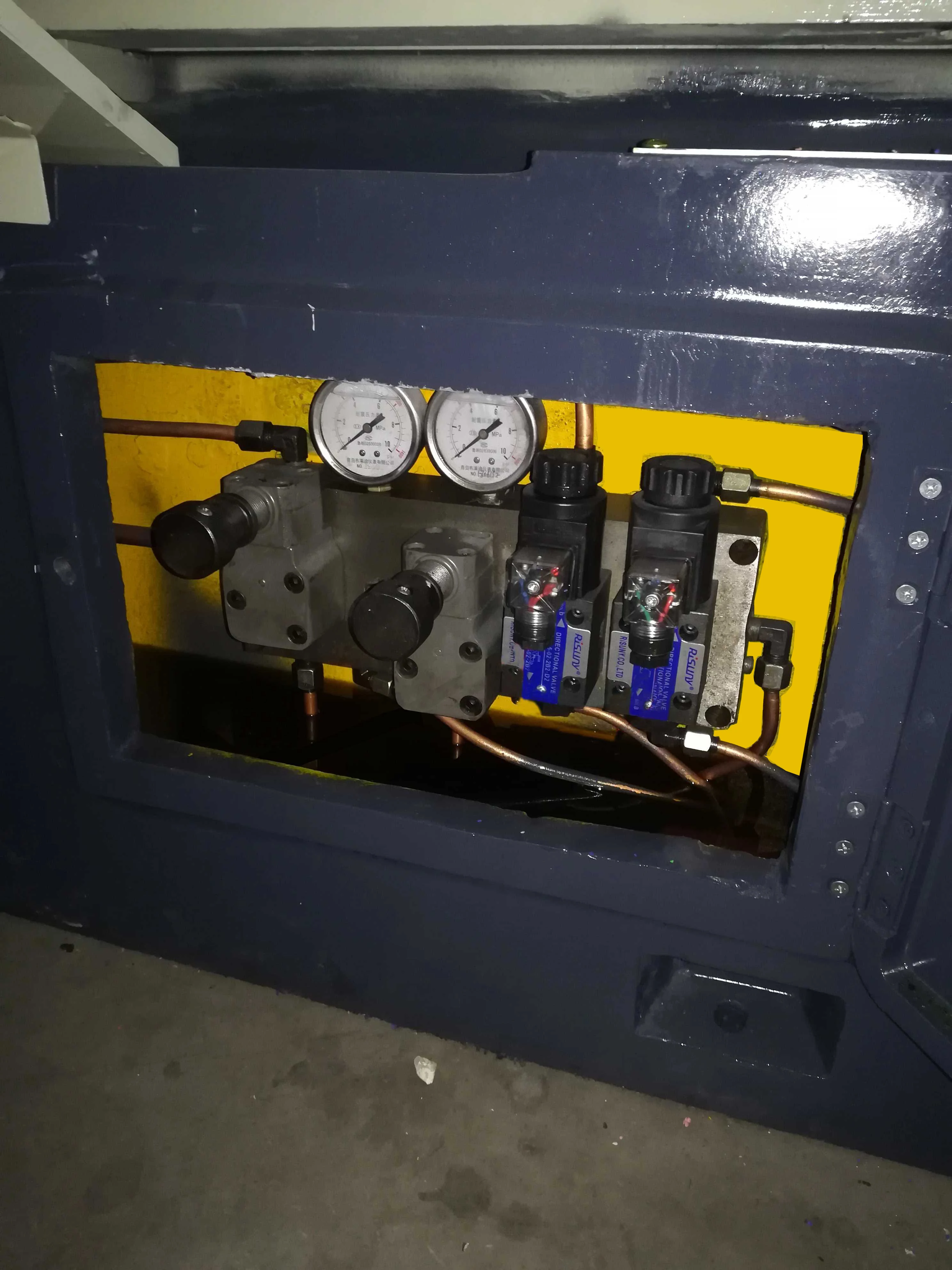

Hydraulic lubrication system
stable and reliable product quality, strong commonality.


Rear Column
When loading and unloading workpieces, turret rotation is to rely on manual.

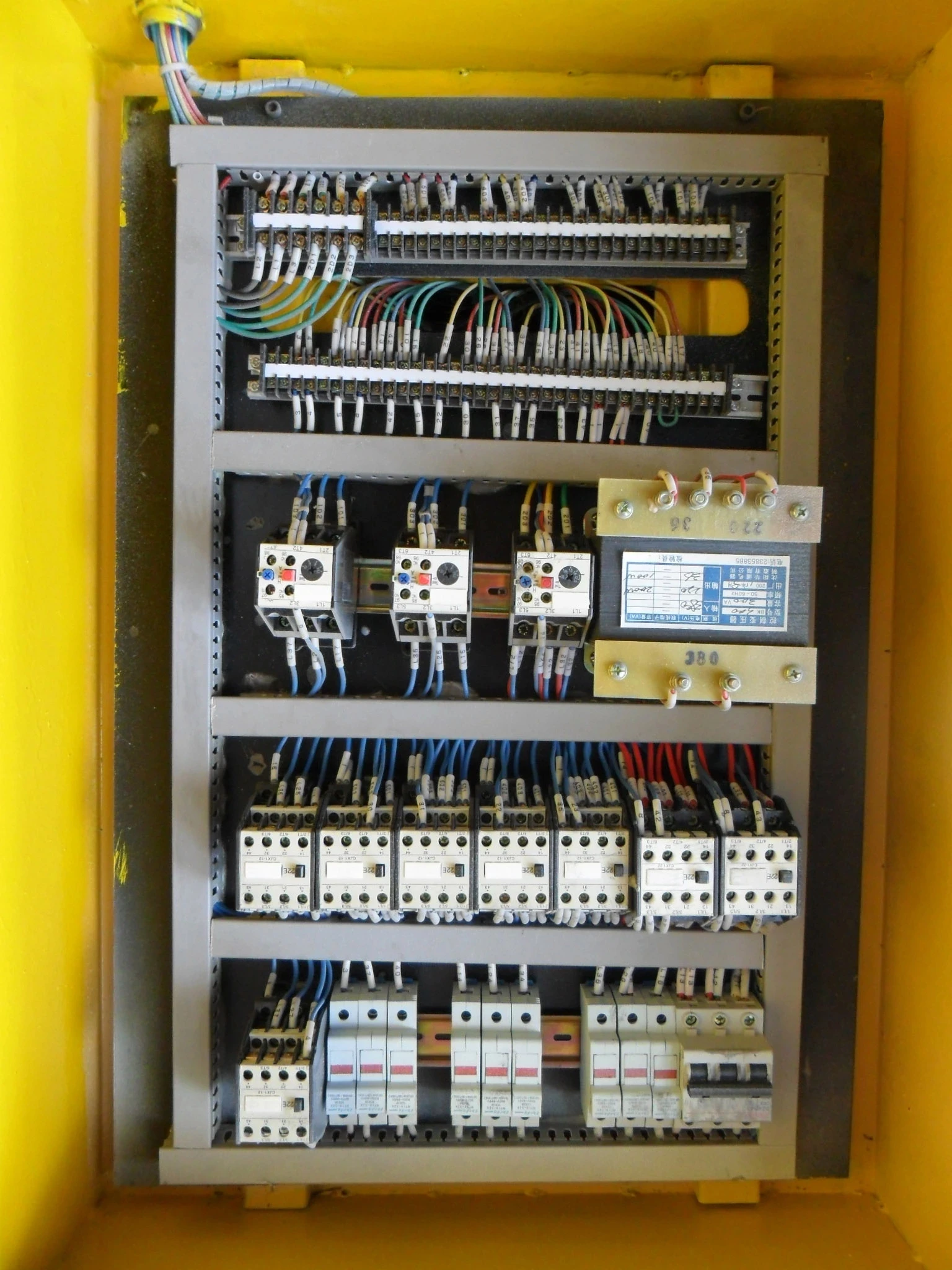

Electrical and Operation
the normal operation of the machine tool and the safety of the operator.

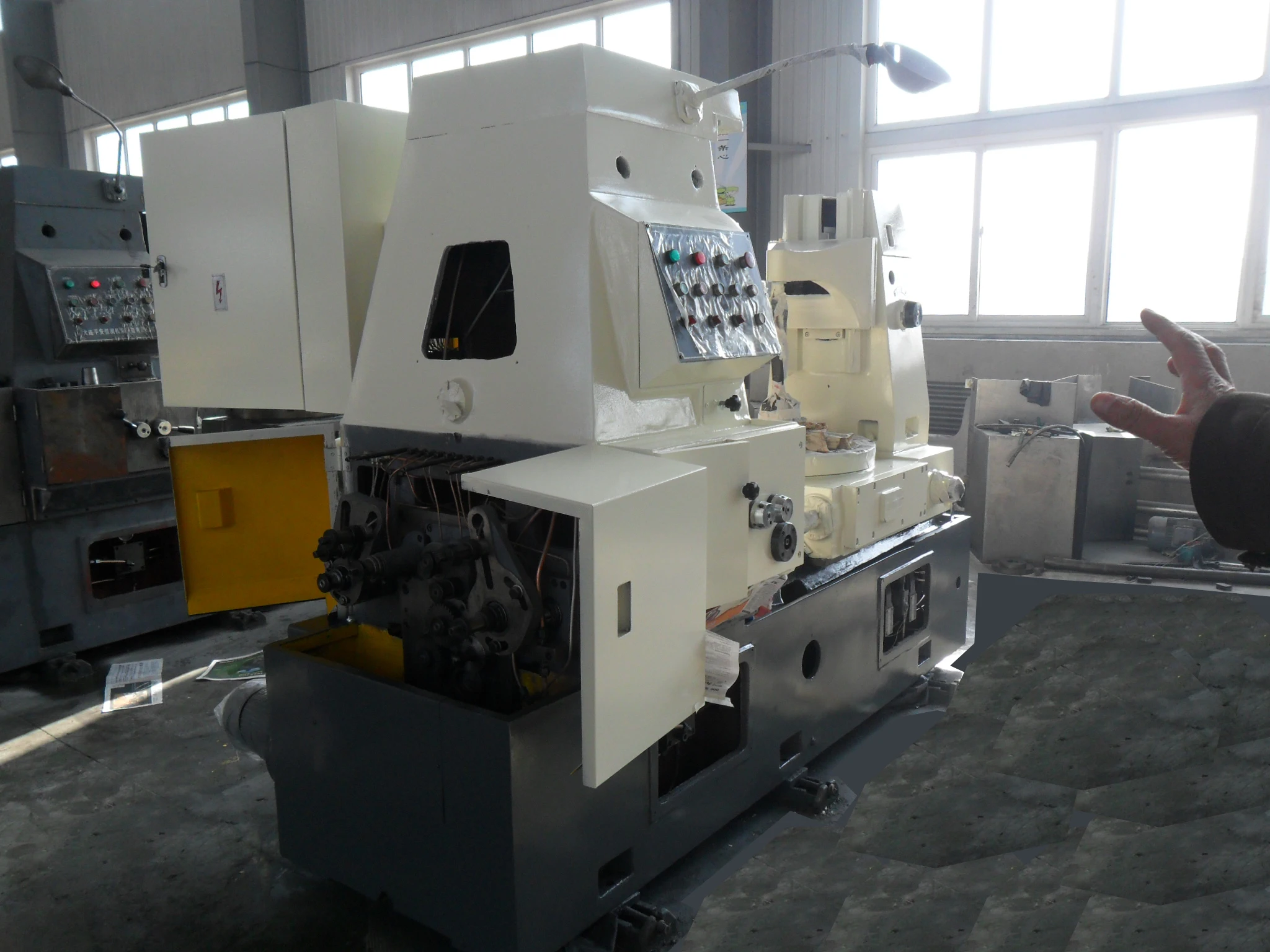

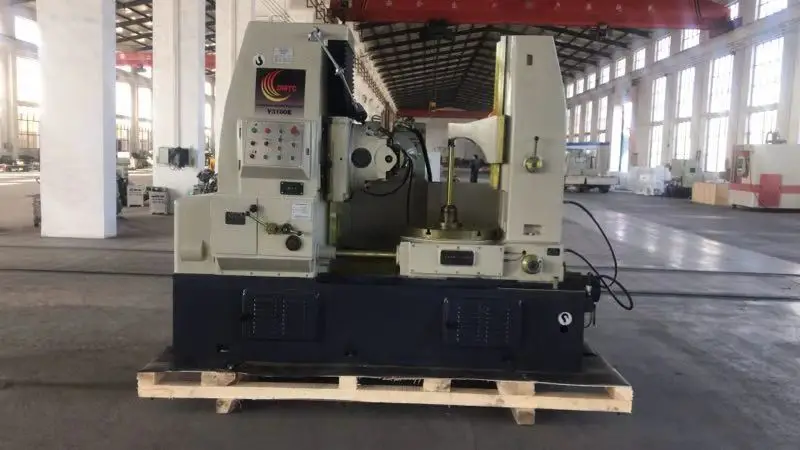

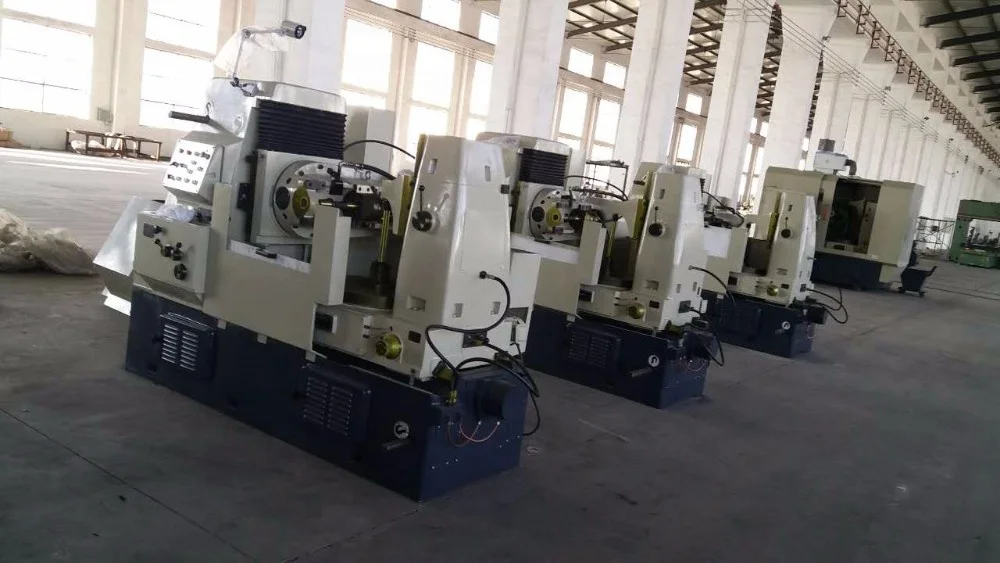

Machines Picture








Certificate




Packing&Shipping




Company Introduction


Dalian Dahui Machinery Equipment Co., Ltd. is a professional manufacturer and trading company engaged in the manufacturing and export of various types of machine tools such like: CNC Lathe Machine, Vertical Lathe Machine, Horizontal Lathe Machine, Boring Machine, Machining Center and their accessories. Since its establishment in 2009, its products have been exported to more than 20 countries and regions, including Italy, Sweden, Turkey, Russia, Saudi Arabia, the United Arab Emirates, Australia, and Mexico. With reliable product quality and meticulous after-sales service, it has won customers' trust and praise.




Our Services & Strength
Our service:
DMTC provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics operation service. With years of understanding of various markets, engineers who have toured various countries for a long time provide installation services. In addition, we can help customers successfully complete a series of services such as import clearance, thereby reducing customer costs in all aspects.

Our advantage:
Advantage 1: CE, ISO certification.
Advantage 2: Full production tracking.
Advantage 3: Engineers stationed in the factory guarantee the highest quality.
Advantage 4: More suppliers as alternatives, guarantee your lowest price.
Advantage 5: Sales staff who have been in the business for more than 10 years, answer your pre-sales / after-sales questions.
Advantage 6: Engineers traveling around the world to ensure after-sales service.
Advantage 7: OEM, ODM production, to meet customer needs in all aspects.
Advantage 8: 5% -10% deposit, giving you the greatest trust and the least pressure on funds.
Advantage 9: Low MOQ for only 1 unit.
Advantage 10: For small equipment (such as boring machines) guaranteed in-stock all year round.
