ZBR-500-3 автоматический трансформатор делая машину Серводвигатель три катушки HV машина для намотки
- Категории: Electric Equipment Making Machinery >>>
- Поставщик: Jiangxi,Hongjun,Environmental,Protection,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Specification
Three coil automatic wire winding machine-ZBR-500-3 | ||||
No. | Component | Technical parameter | ||
1 | Central height | 850mm | ||
2 | Winding width | MAX：800mm | ||
3 | Windable coils | O.D.：800mm; I.D.：80mm | ||
4 | Work torque | 800N | ||
5 | winding speed | 0-250 r/min | ||
6 | Winding power | 7.5KW | ||
7 | Winding shaft | 60*60*2400mm | ||
8 | Round wire | Ø0.6-Ø4.0mm | ||
9 | String cable specifications | Ø0.15-Ø0.8mm | ||
10 | Layer insulating | Air shaft 3 sets | ||
11 | Tension way | Pneumatic 3 sets | ||
12 | Width of insulating paper | 100-650mm | ||
13 | Double-axis release frame | 35 mm | ||
Product Description
Introduction of the machine
Application:
ZBR-500-3 three coil automatic wire winding machine is suitable for S9 S10 S11 S15 oil-immersed and dry -type transformer, reactor,amorphous transformer high voltage coil winding.
Main Component：
Main Component：
The machine is used as the line driving device for the machine, the high precision ball screw, the linear guide rail as the line drive device, the winding mechanism adopts the motor, the decelerator drive, the gearbox, the tail frame and other assembly combinations.
Main Features:
The parking stability is reliable, winding automatic counting, power failure memory function, using encoder counting, the feet step on the switch and back control.
The parking stability is reliable, winding automatic counting, power failure memory function, using encoder counting, the feet step on the switch and back control.

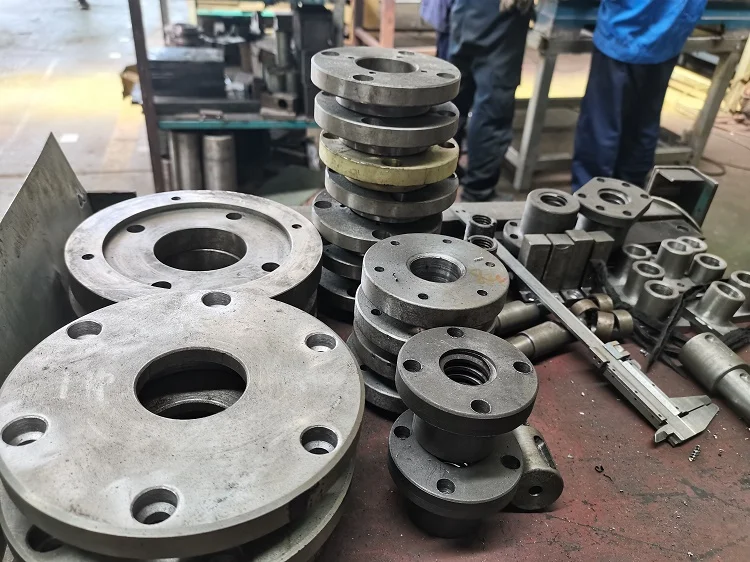

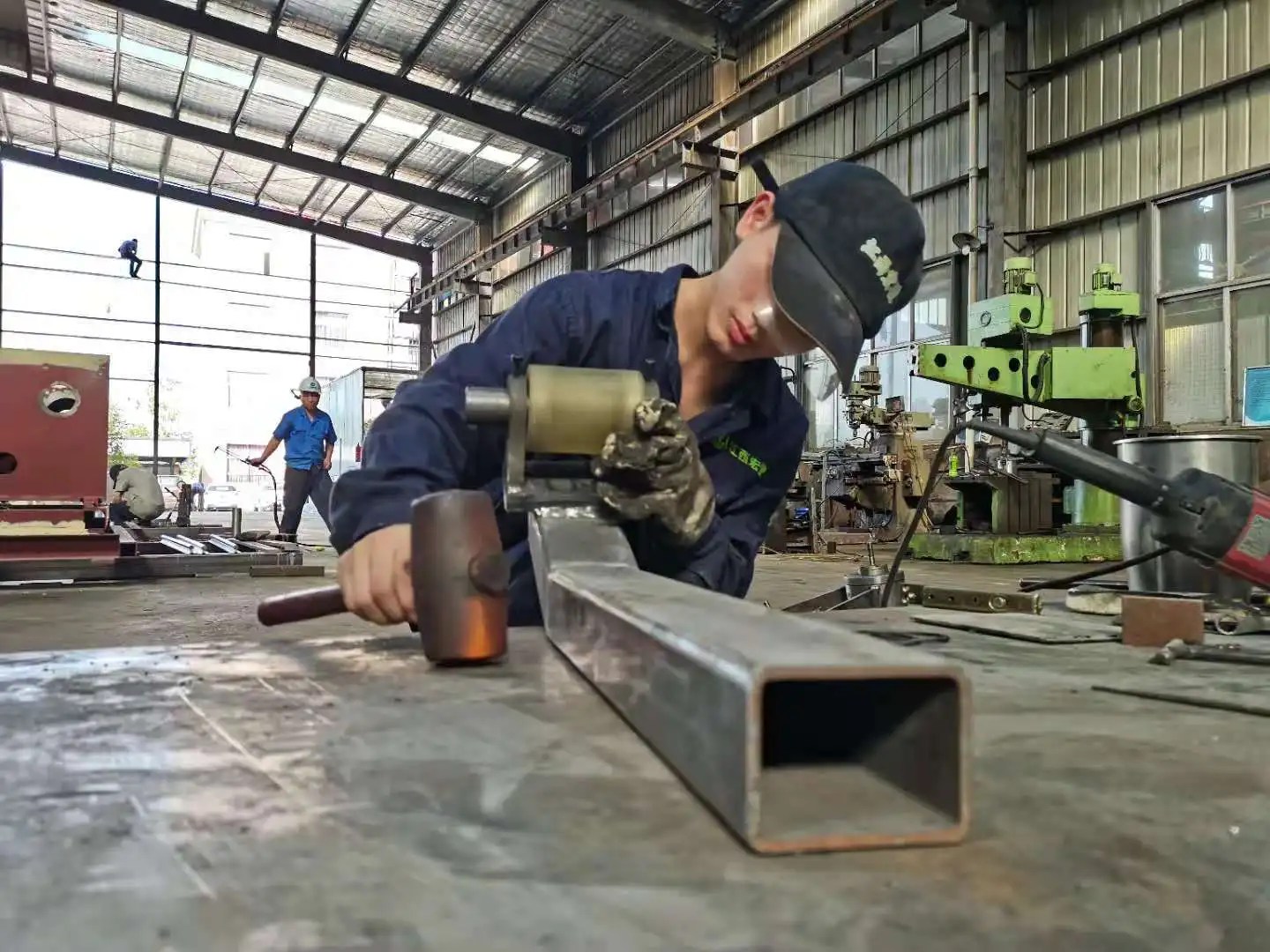

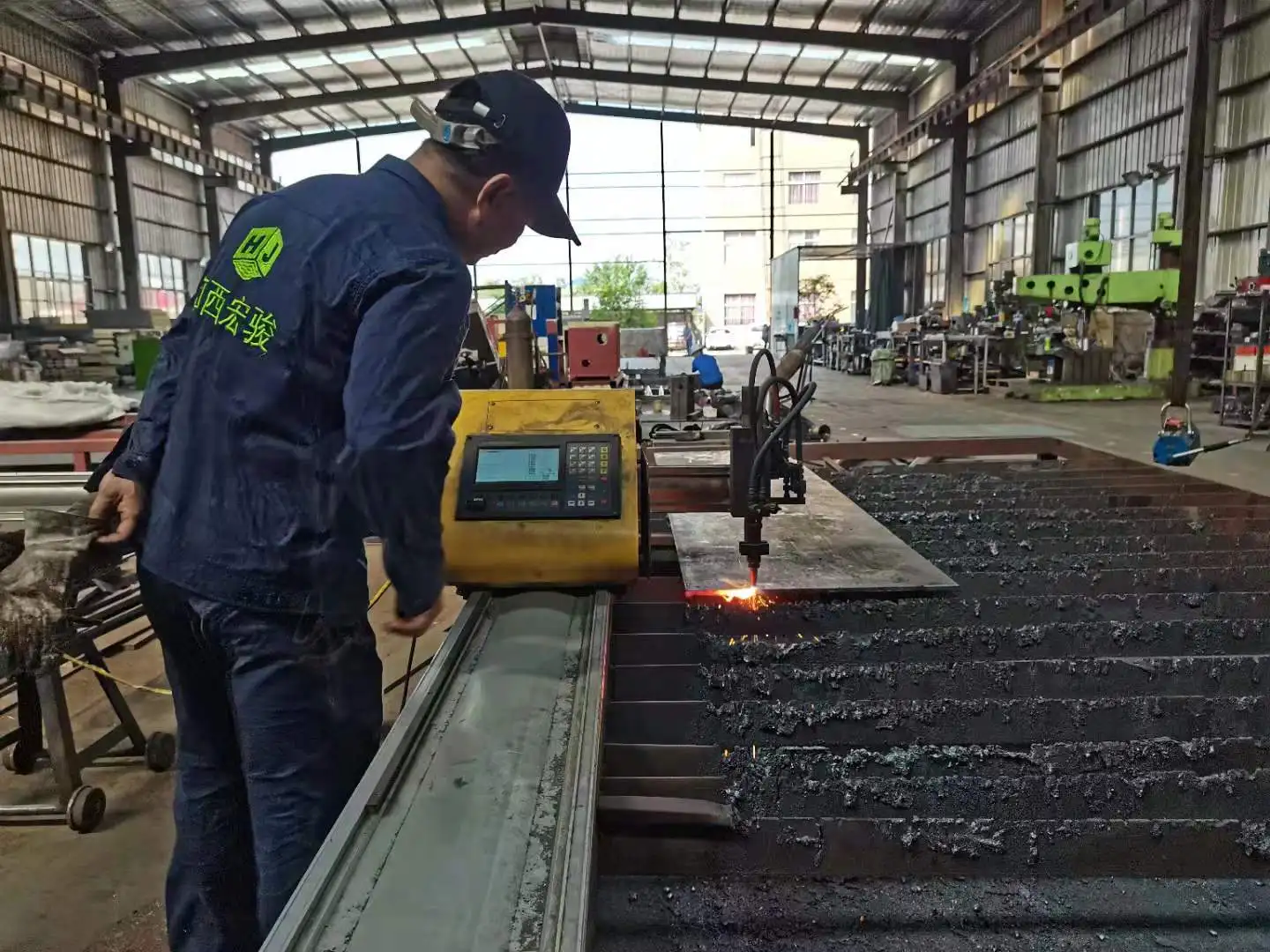

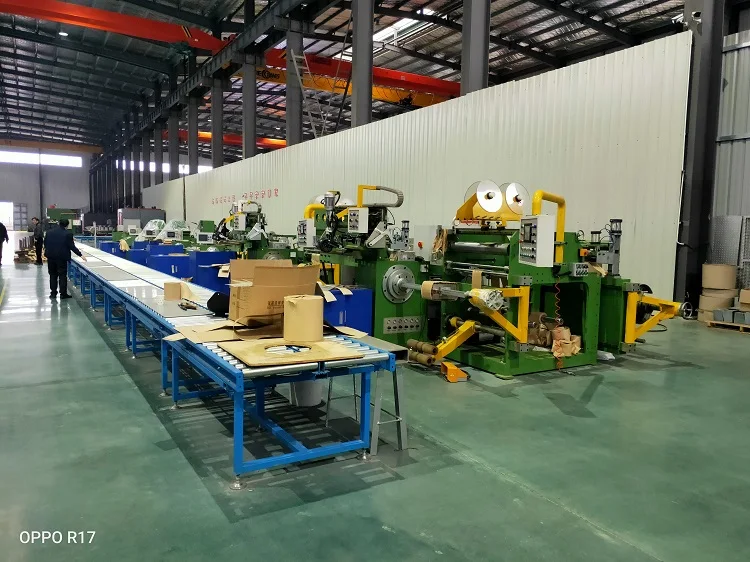

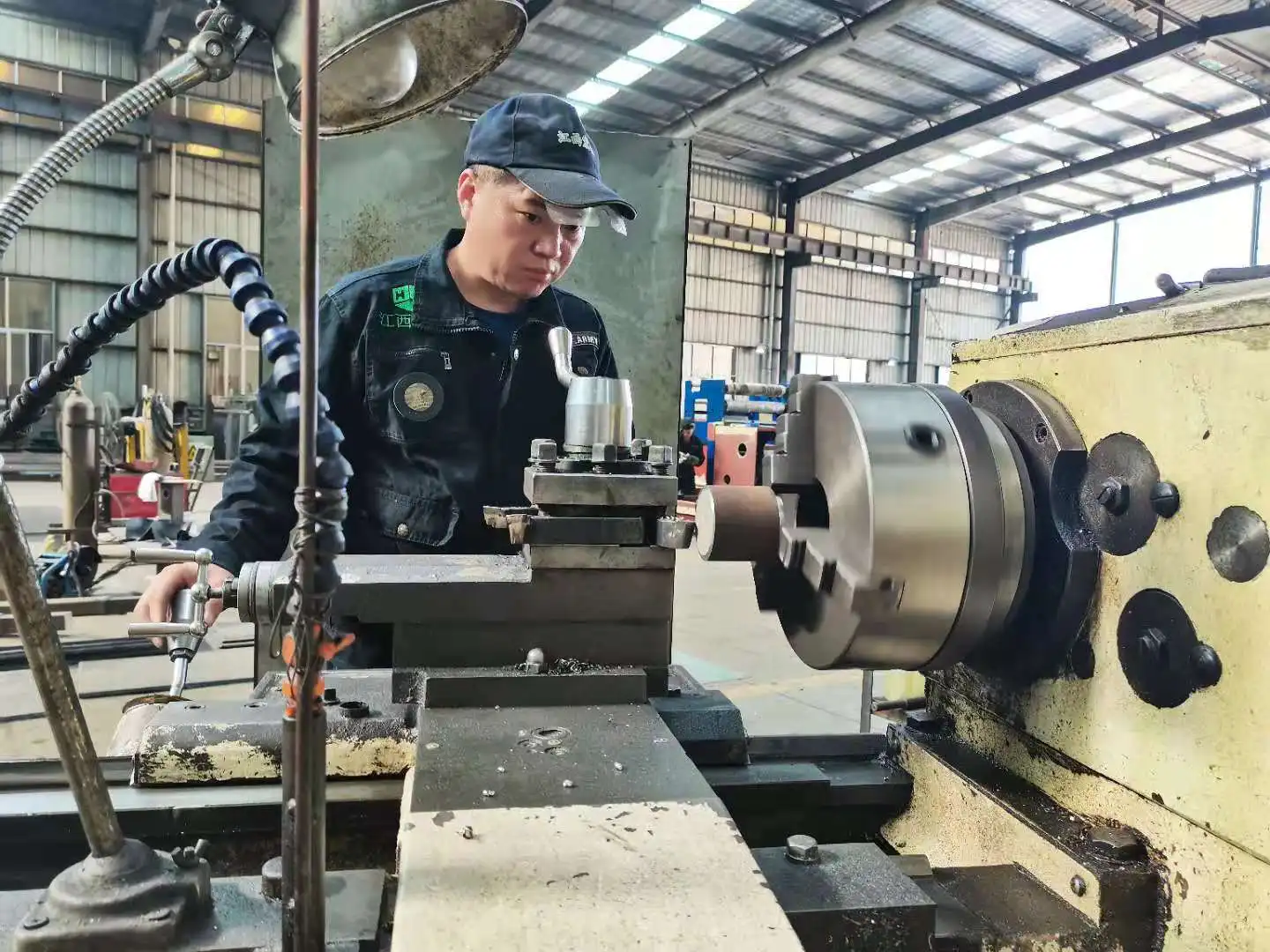

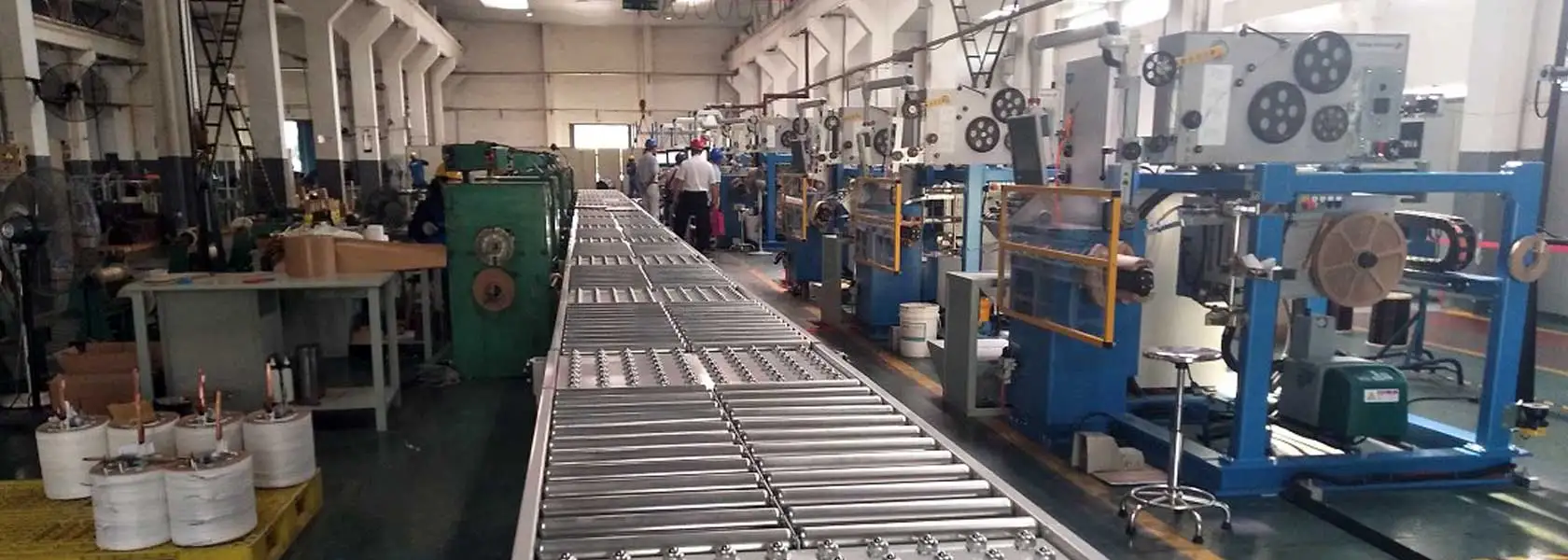

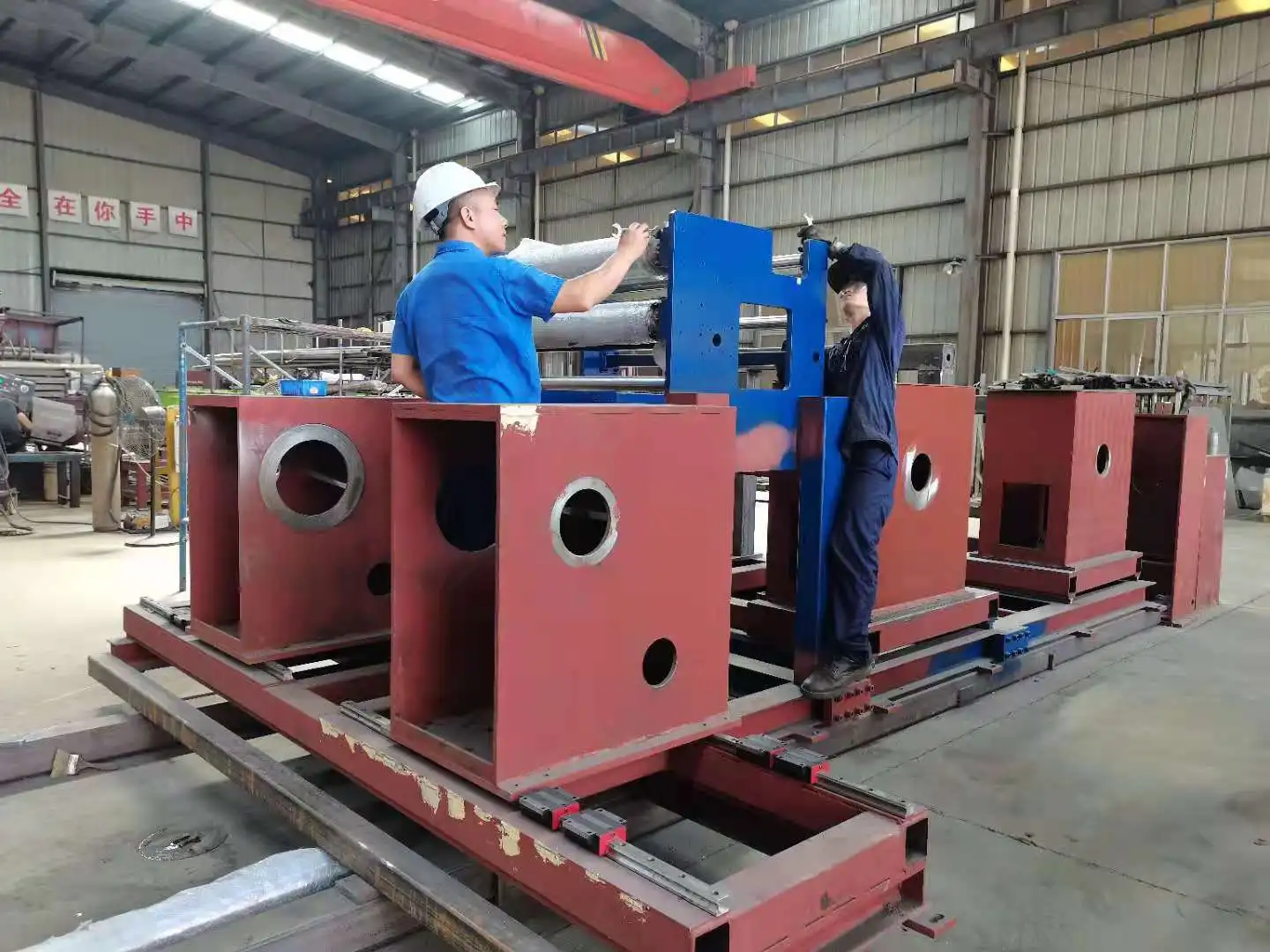

Production Process

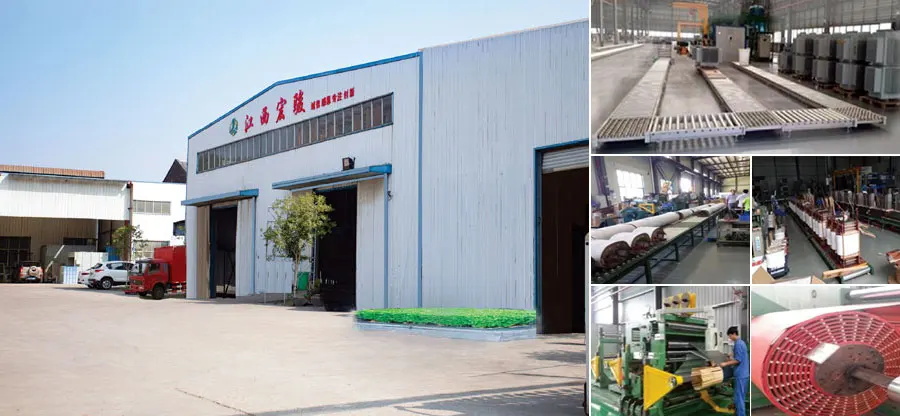

Company Profile
Jiangxi Hongjun Environmental Protection Technology Co., Ltd., is a professional manufacture specialized in producing all kinds of transformer manufacturing equipment ,like foil winding machine,coil winding machine, Silicon steel sheet shears，Vacuum equipment and Facility&Tooling etc.Jiangxi Hongjun was founded in 2017 with a registered capital of 10 million yuan, is located next to Wugong Mountain scenic spot in Luxi County, Jiangxi Province. Beautiful environment and convenient transportation .we always been striving for become a leading integrated service provider of intelligent manufacturing equipment in China.We have rich export experience to global market ,At present, our equipment has been sold at home and abroad, and get high praise from our client.Quality is our company life and foundation. We assure each set of our machine has passed quality test when it is delivery. Sincerity is our company values, we assure every machine of ours can meet with client reasonable requirement. Choosing our company as your partner is our developing power! Never stopping and continuous improving ourselves, supplying the best quality equipment with reasonable price for each client. Sincerely to cooperate with you !!!\t
Certificate
1.All machine can be customized as per your requirement ,we have rich experience for design and development.
2.We can provide one-stop solution at competitive price and outstanding service.
3.After sales service assurance,service for machine using all life.
2.We can provide one-stop solution at competitive price and outstanding service.
3.After sales service assurance,service for machine using all life.
4.Quality guarantee,we strictly control the quality from the raw material to the finished product,and we will test the machine before delivery.
5.We are one of the most reliable supplier in transformer industry in China.

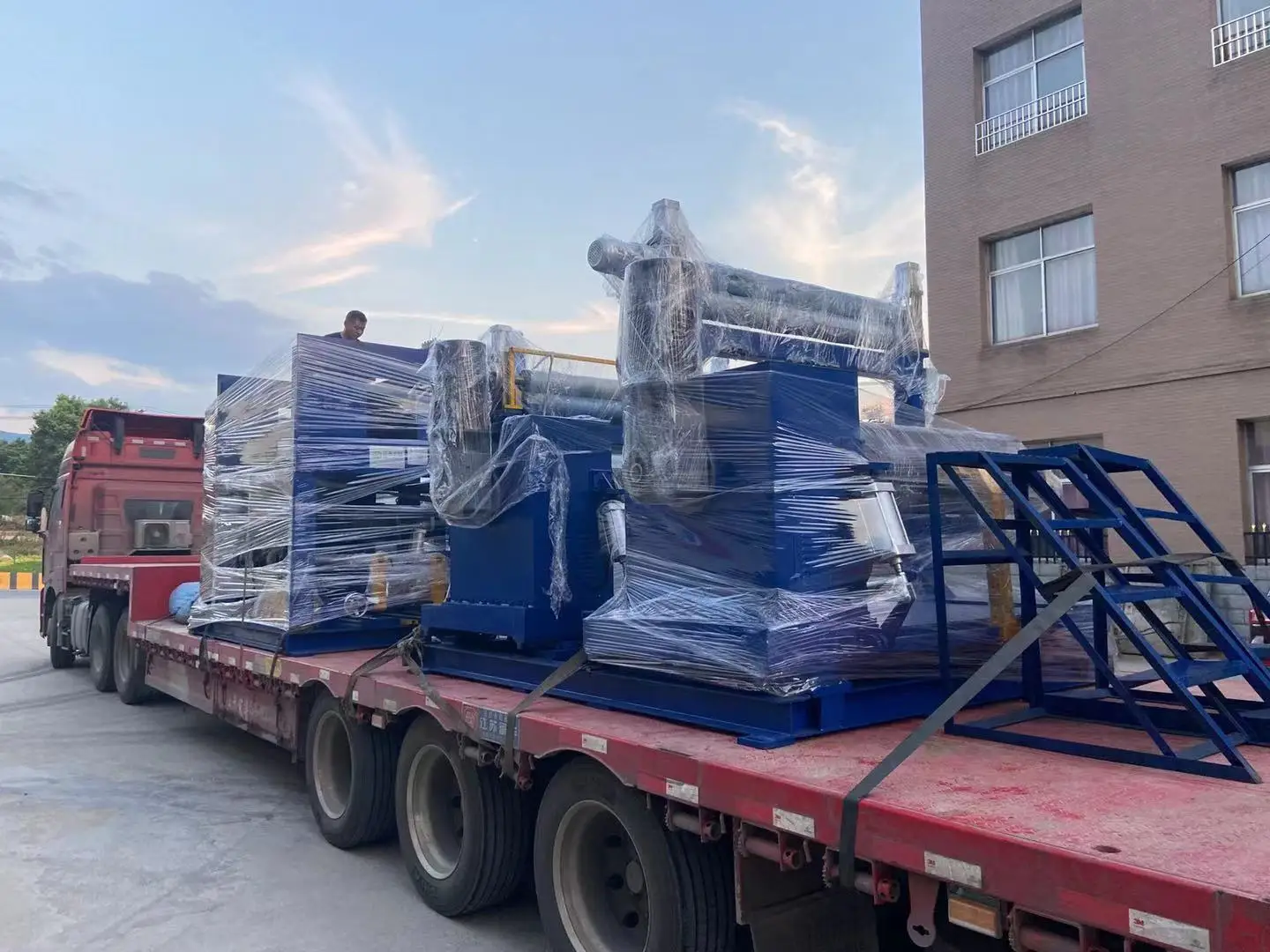

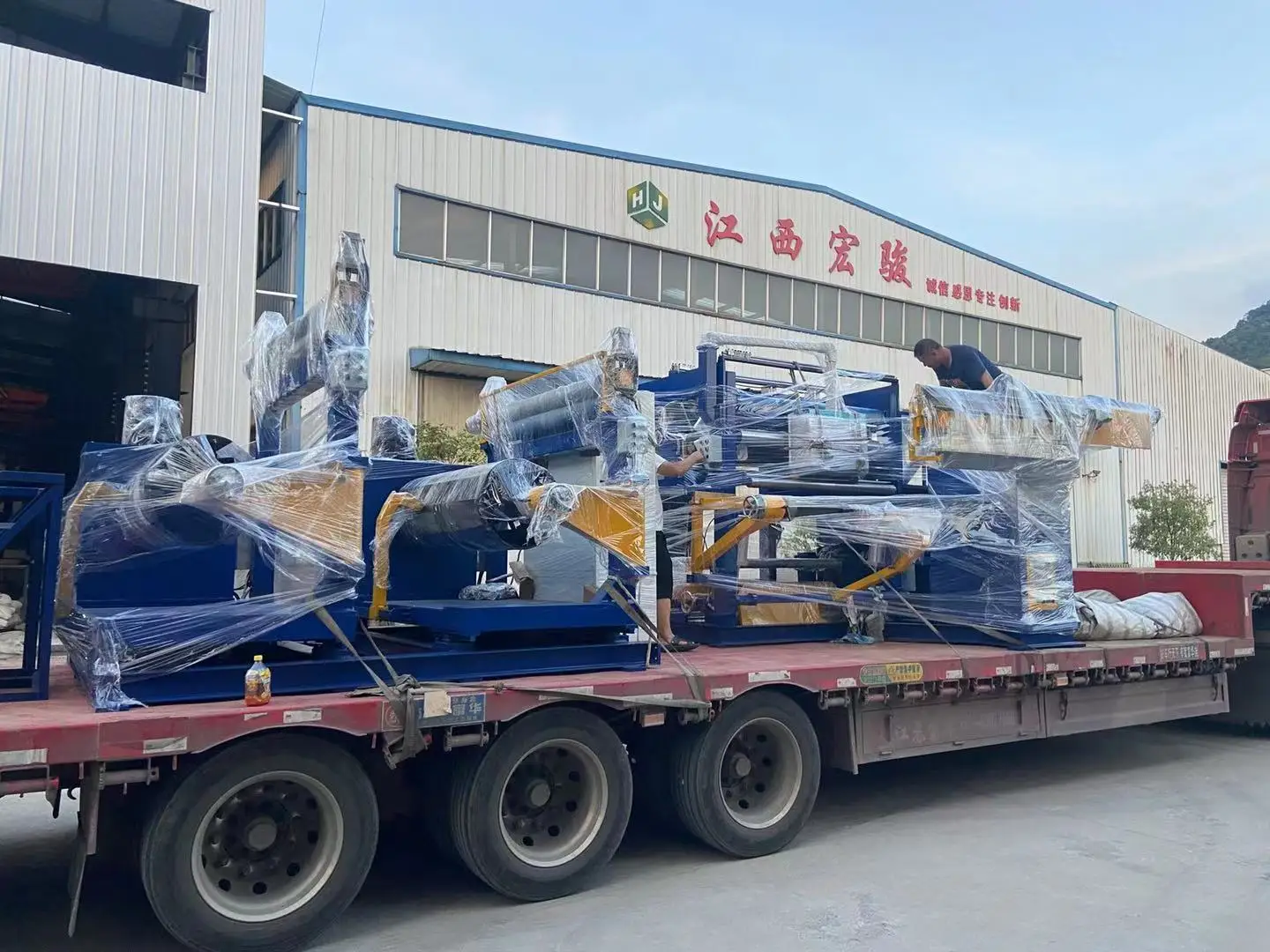

Packing & Delivery
FAQ
1)Q: Are you manufacturer or trading company?
A:We are both manufacturer and trading company,we can customized as per your requirements ,and so we can provide best quality at competitive price .
2)Q:.how can we guarantee quality?
A:we have superior engineer,who have rich experience in producing and developing ,ensure the quality can meet your ideal demands .Besides we strictly control each production chain, all machines have to be tested before loading.
3)Q:what can you buy from us?
A:Transformer coil Winding Machine,Foil Winding Machine,Vacuum Equipment,Facility&Tooling,Silicon steel sheet shears.
4)Q:What about the payment term ?
A:Payment terms are 50% T/T in advance, 50% payment before delivery .
5)Q:And the delivery time?
A:Usually the delivery will be arranged in 50 working days after received your down payment.
6)Q: what services can we provide?
A:Accepted Delivery Terms: FOB,EXW；
A:Accepted Payment Currency:USD,EUR,CNY;
A:Accepted Payment Type: T/T,Western Union,Cash;
A:Language Spoken:English,Chinese,"
A:We are both manufacturer and trading company,we can customized as per your requirements ,and so we can provide best quality at competitive price .
2)Q:.how can we guarantee quality?
A:we have superior engineer,who have rich experience in producing and developing ,ensure the quality can meet your ideal demands .Besides we strictly control each production chain, all machines have to be tested before loading.
3)Q:what can you buy from us?
A:Transformer coil Winding Machine,Foil Winding Machine,Vacuum Equipment,Facility&Tooling,Silicon steel sheet shears.
4)Q:What about the payment term ?
A:Payment terms are 50% T/T in advance, 50% payment before delivery .
5)Q:And the delivery time?
A:Usually the delivery will be arranged in 50 working days after received your down payment.
6)Q: what services can we provide?
A:Accepted Delivery Terms: FOB,EXW；
A:Accepted Payment Currency:USD,EUR,CNY;
A:Accepted Payment Type: T/T,Western Union,Cash;
A:Language Spoken:English,Chinese,"
